Industrial Very Narrow Aisle (VNA) Shelving Storage Metal Heavy Duty Pallet Rack

Basic Info.

Model NO.

VNA-001

Usage

Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack

Material

Steel

Structure

Push Back Racking

Type

Pallet Racking

Mobility

Adjustable

Height

4.6/5.2/6.9metre

Weight

1.2/1.5/2.0tons

Closed

Open

Development

New Type

Serviceability

Common Use

Color

Blue and Orange, Customized

Customize

Based on The Measurement of Your Warehouse

CE

CE Certificate

ISO

ISO Certificate

Installation

Installation Guide, Free Installation Drawing

Drawing

Free, Whole, Detailed From Our Technician

Visiting

Warmly Welcome

Feature

Corrosion Protection

Use

Industrial

Frame Structure

90*70*2.0

Beam Structure

100*50*2.0

Surface Finish

Powder Coating & Galvanized

Free Sample

Available (Delivery Cost on Buyer)

Transport Package

Rubble, Carton

Specification

L2400*D1100*H5600m/aisle

HS Code

73012000

Production Capacity

100000tons/Year

Product Gallery

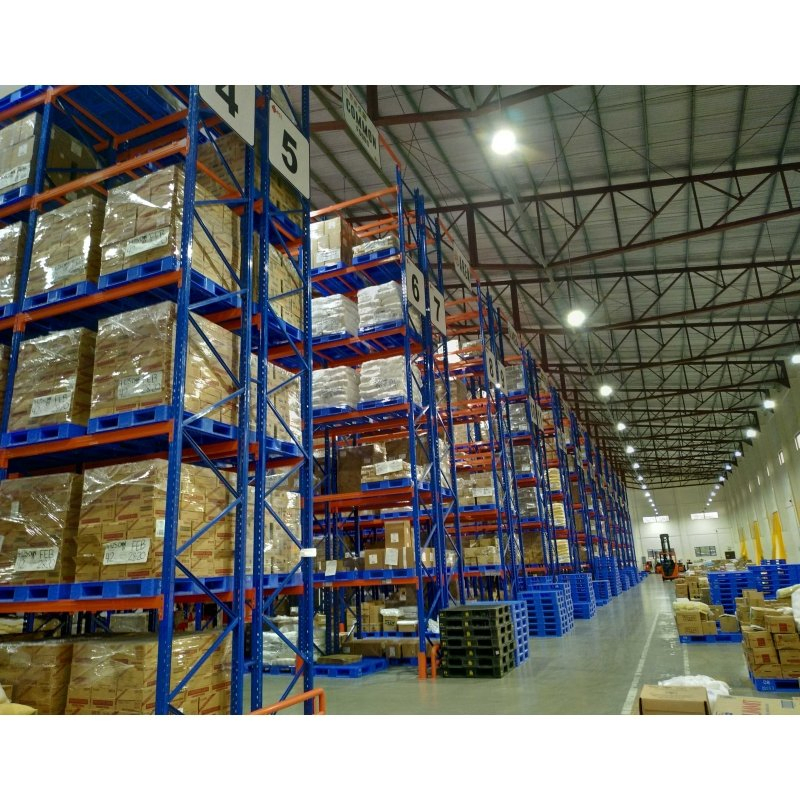

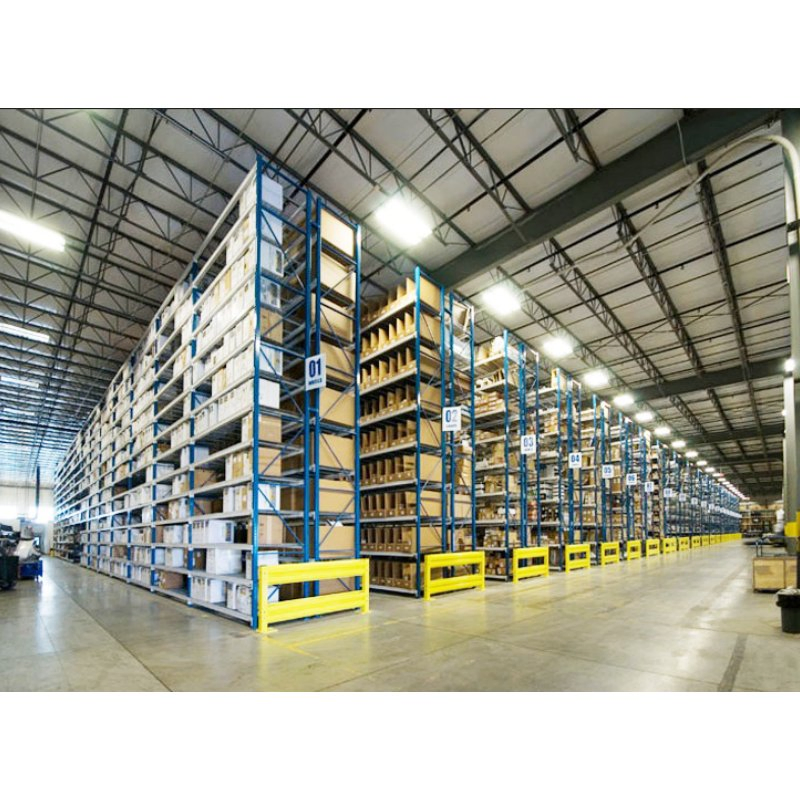

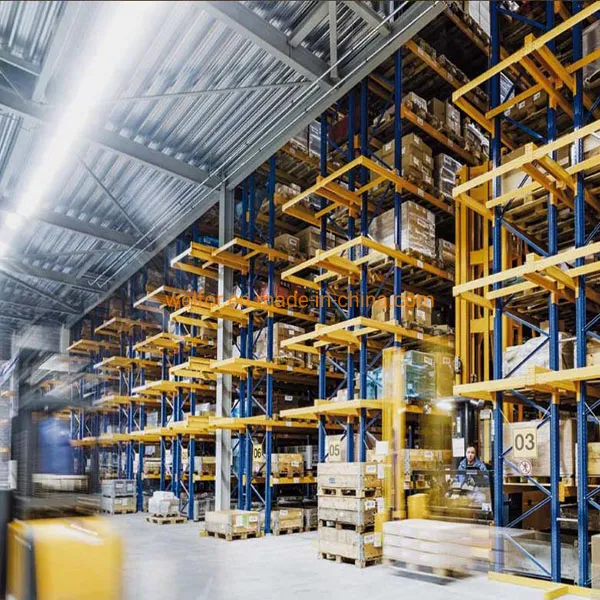

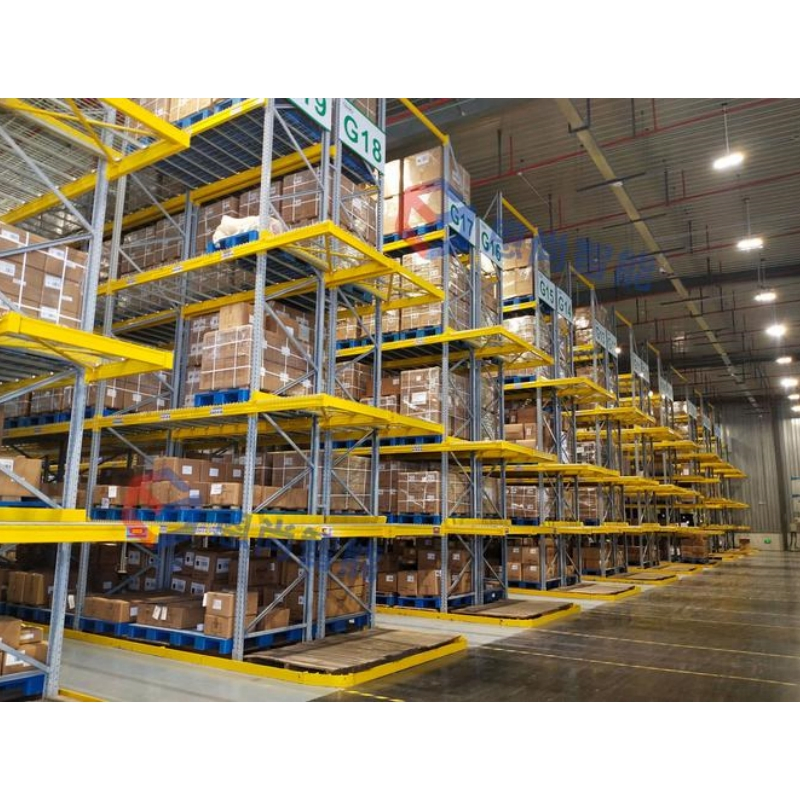

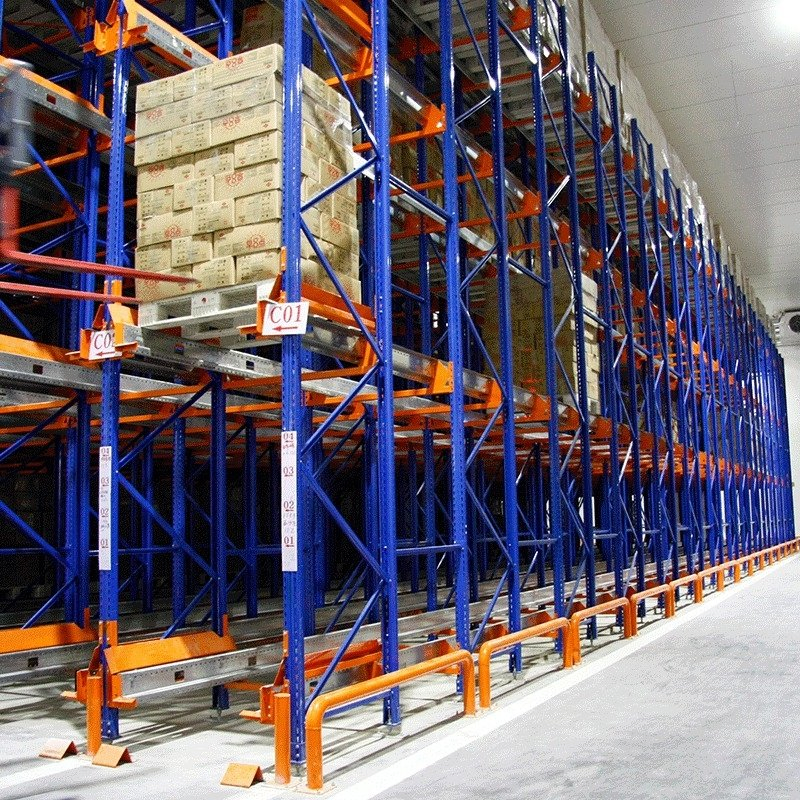

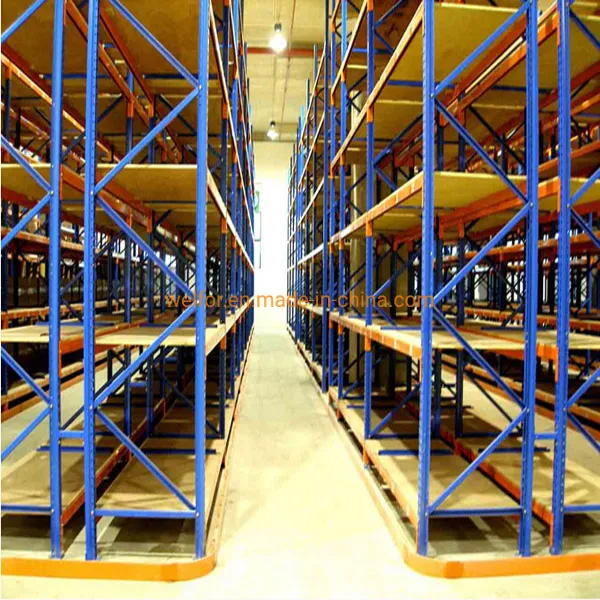

Industrial Very Narrow Aisle (VNA) Shelving Storage Metal Heavy Duty Pallet Rack

Description & Advantages: Very Narrow Aisle Rack

The aisles of this rack are very narrow, reducing the aisle space can build more racks and maximize the use of warehouse space.
The narrow aisle racks have become smaller because of the smaller aisles, and the increased density of racks increases the storage capacity by 30%-80% than the normal pallet racking.
The amount of stored goods is large, the goods are in and out more frequently, and there are higher picking requirements for the goods.
It is about 1600mm-2000mm, which greatly improves the space utilization rate of the warehouse.
The operation mode is flexible, and the storage and retrieval mode of the shelf can be first-in-first-out or first-in-last-out to meet different usage requirements.

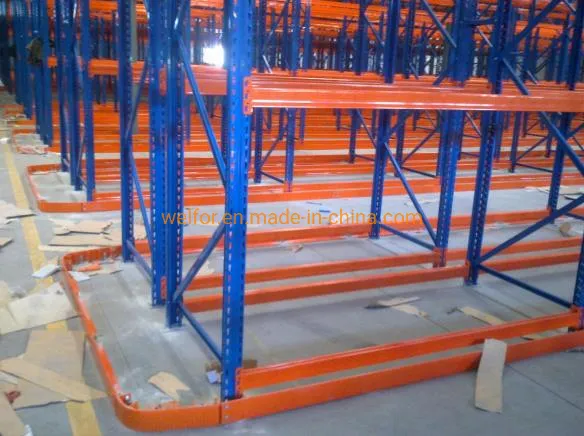

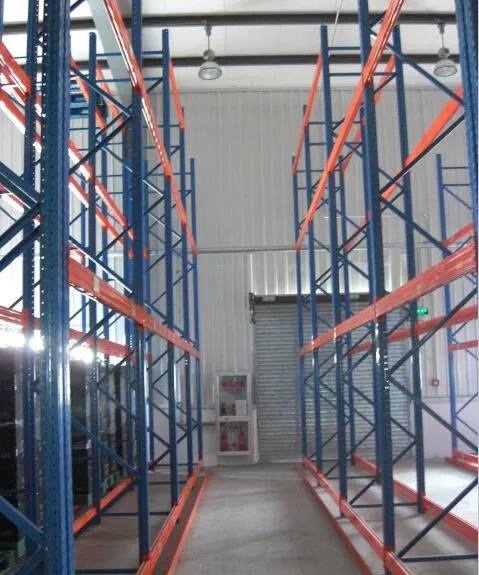

Product Details Show: Guide rails, frame, beams

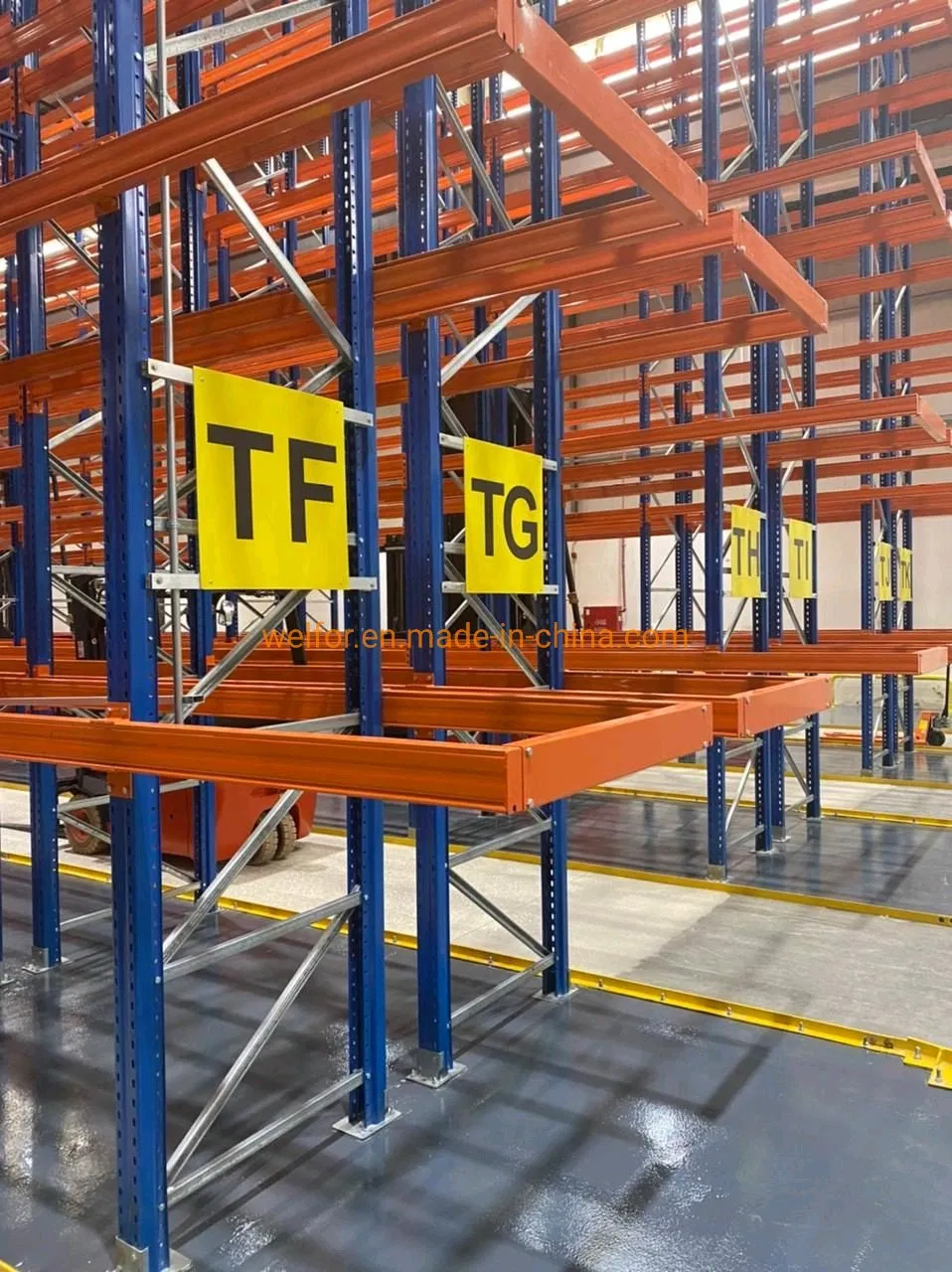

Very Narrow Aisle Rack Overview

Very narrow aisle pallet rack on sale mainly used with the most advantage three ways forklift, occupying small aisle, saving the space of the warehouse, and can store and pick up products quickly, and cutting down the operating cost.

Which is particularly suitable for logistic centers less than 15 m high. Comparing with the conventional pallet rack, its aisle is much narrower, ordinarily 1600-2000 mm, and the space utilization rate will increase by about 20%.

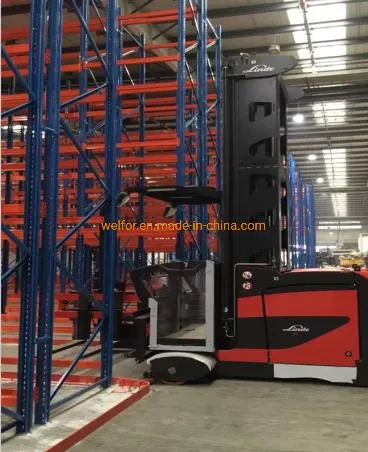

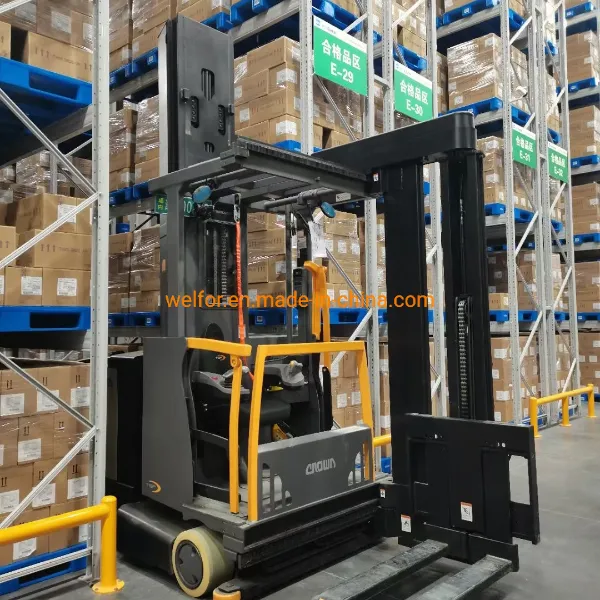

Guide rails should be installed on both sides of the aisle for the three-way forklift running.

Specifications

Narrow Aisle Forklift Easily Handle Aisle Warehouse Racking System

Item	VNA Pallet Racking Specifications
Type	Vna Pallet Rack
Material	Steel
Feature	Corrosion Protection
Use	Warehouse Rack
Depth	Customized
Weight Capacity	500-2000kg
Width	Customized
Height	Customized
Usage	Supermarkets, Warehouse
Product Name	Narrow Aisle Racking
Color	Customized
Surface Treatment	Epoxy Electrostatic Powder Coating
Application	Goods Storage
Structure	Easy Assemble
Keyword	Narrow Aisle Pallet Racking / VNA Racking System For Warehouse
Layer	2~10 Layers
Packing	Carton Packing
Size	Accept Customer Size Customized Size

3D Layout and Factory Loading

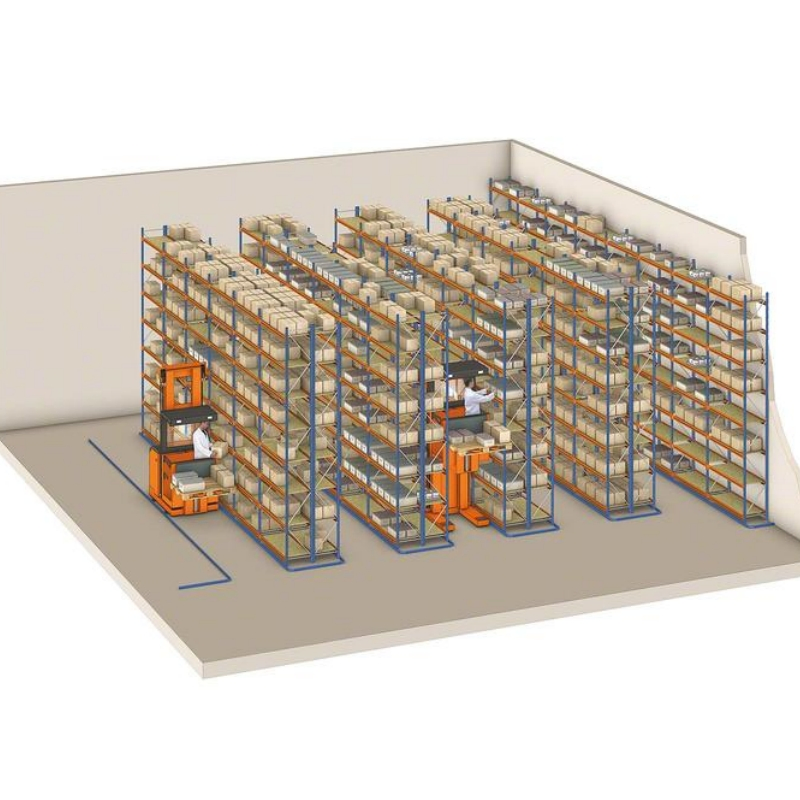

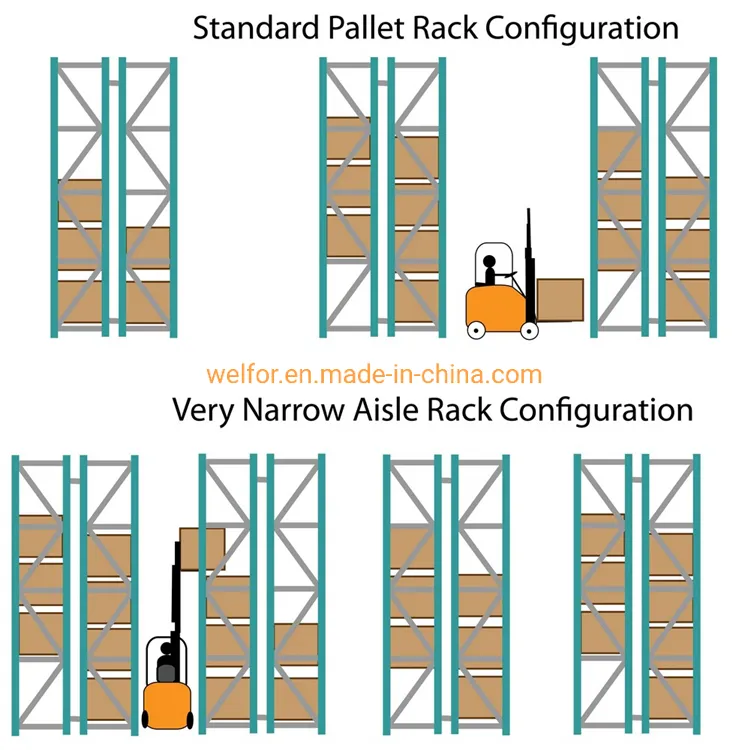

3D layout from us:

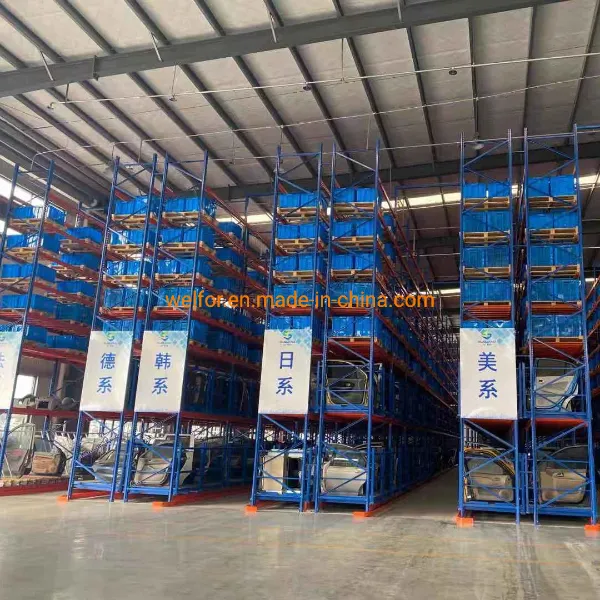

Loading pictures from our factory:

Our Service

What services do we provide?

Free and professional warehouse rack CAD drawing design
To design, please provide the following details:

Size of your warehouse (Length x Width x Clear height)

Size (W*D*H) & weight of pallet (after loading)

How many levels you would like

Pre-sales Service:

You can send us your CAD drawing for a quick online quote, or simply share the three-dimensional dimensions of your warehouse and we will design and draw layouts for you within 48 hours.

We promise to reply with a price within 24 hours - sometimes even within the hour. If you need advice, please contact us and we will answer your questions immediately.

After-sales Service:

1) Reminders sent before ship arrival.
2) Customs clearance documentation support provided according to customer demands.
3) Installation engineering guidance abroad if requested.

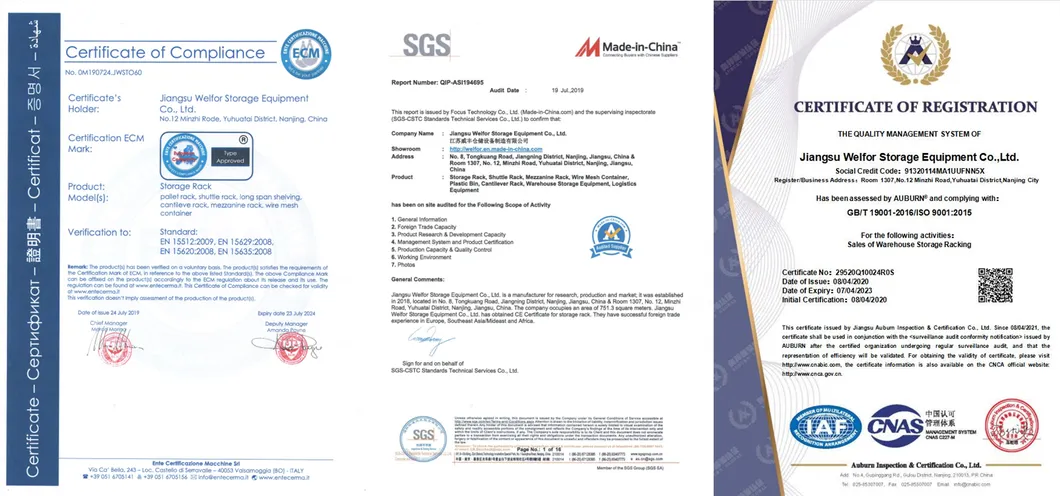

Our factory ce & iso certificate:

Frequently Asked Questions (FAQ)

What is a Very Narrow Aisle (VNA) Pallet Racking system?

A VNA racking system is a high-density warehouse storage layout that utilizes narrower aisles (typically 1.6m to 2.0m) to allow for more racking rows. This setup maximizes floor space utilization and increases warehouse capacity significantly compared to standard pallet racking systems.

How much extra storage space can a VNA rack provide?

By shrinking aisle space and packing racks closer together, a VNA racking system can increase your warehouse storage capacity by 30% to 80% compared to standard open pallet configurations.

What type of forklift is required to operate in VNA aisles?

VNA racks are designed to operate alongside specialized three-way (swing-reach) turret trucks or articulated forklifts. Physical guide rails must be installed on both sides of the aisles to guide the running forklift safely.

What information is needed to get a free CAD drawing design?

To create a precise, custom CAD layout for your facility, we need: the overall dimensions of your warehouse (length, width, and clear ceiling height), the size (width, depth, height) and weight of your loaded pallets, and your preferred number of vertical storage levels.

Are customized load capacities and dimensions supported?

Yes. The height, depth, width, and frame structures are fully customizable based on the specific measurements of your warehouse. Load capacities typically range between 500kg and 2000kg per level.
