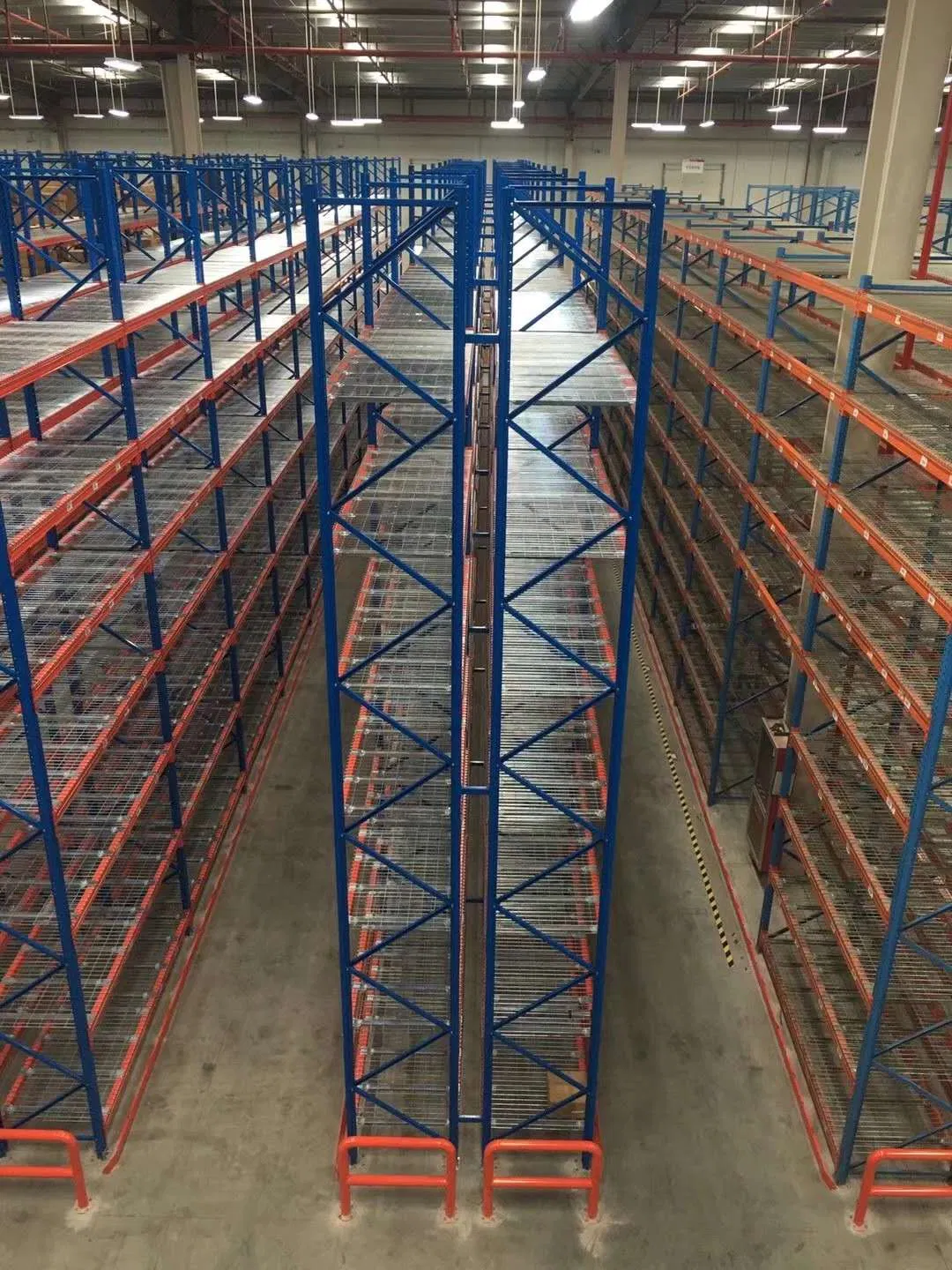

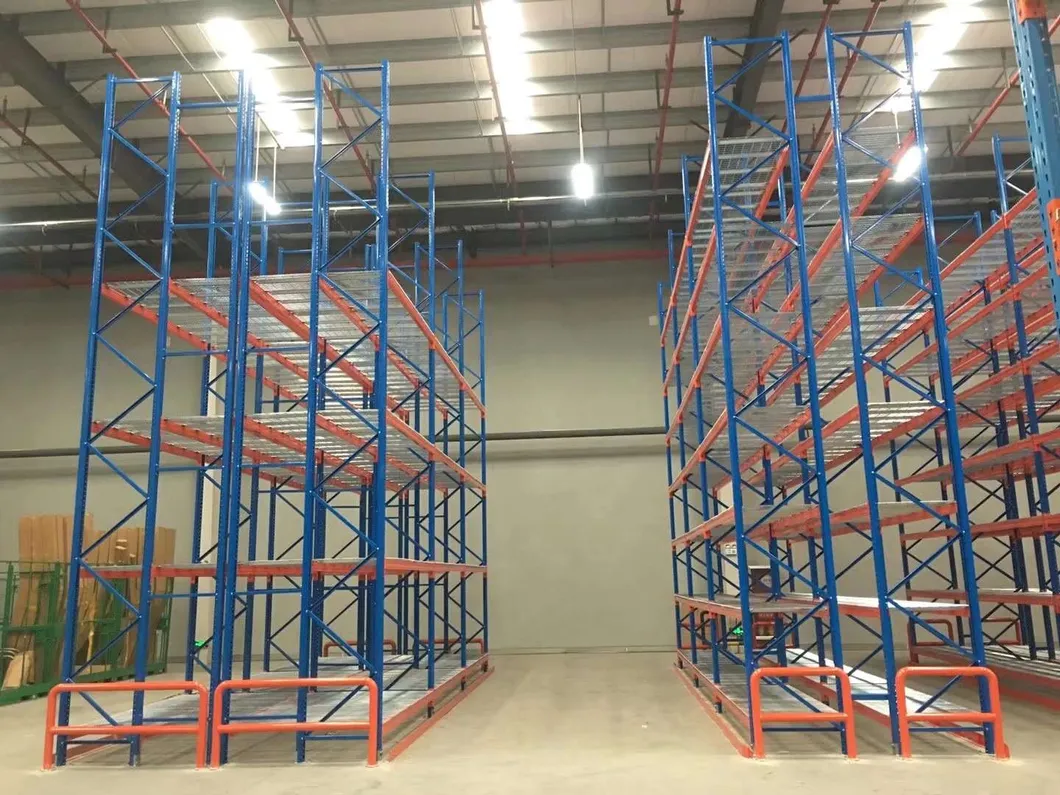

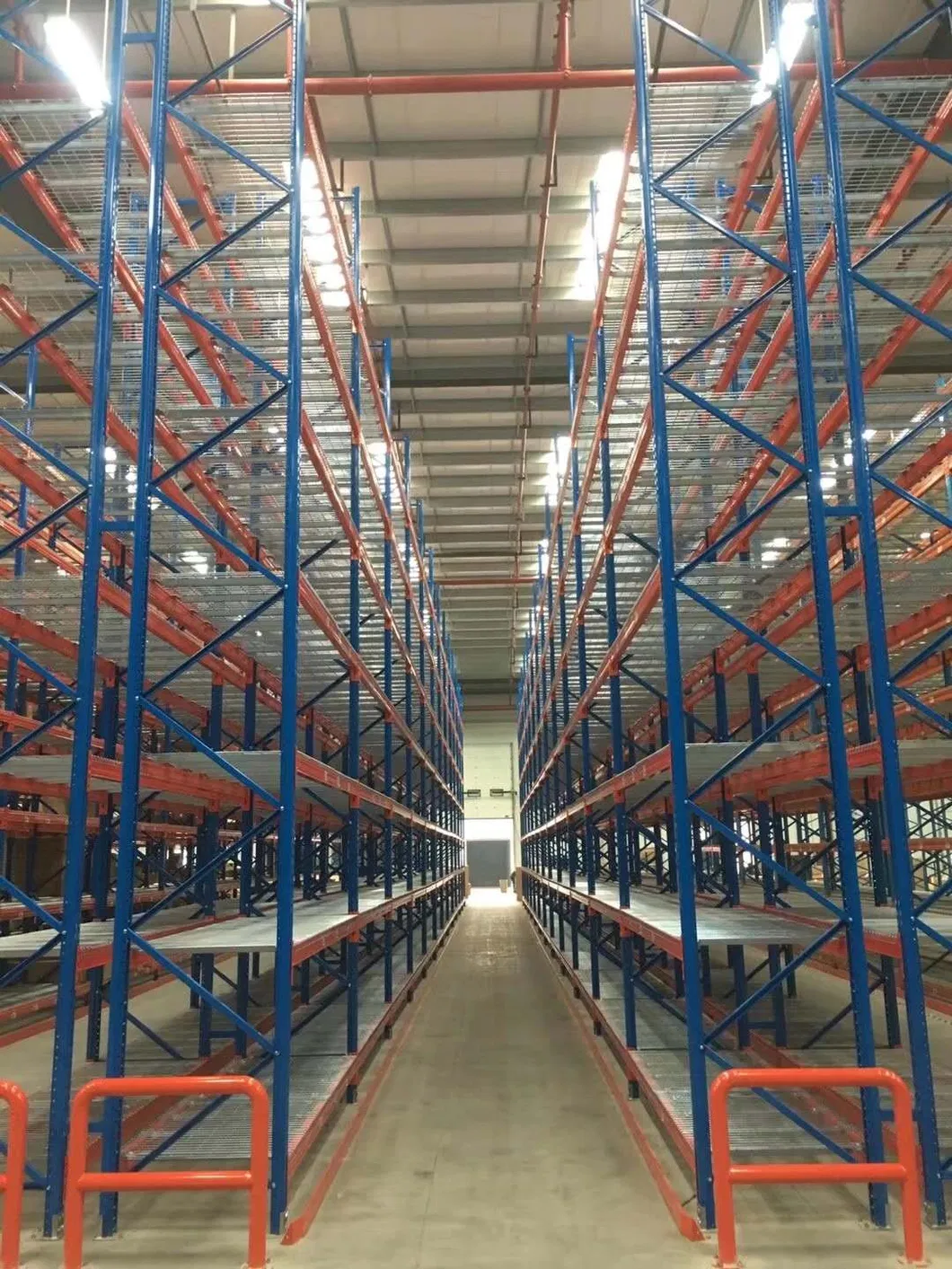

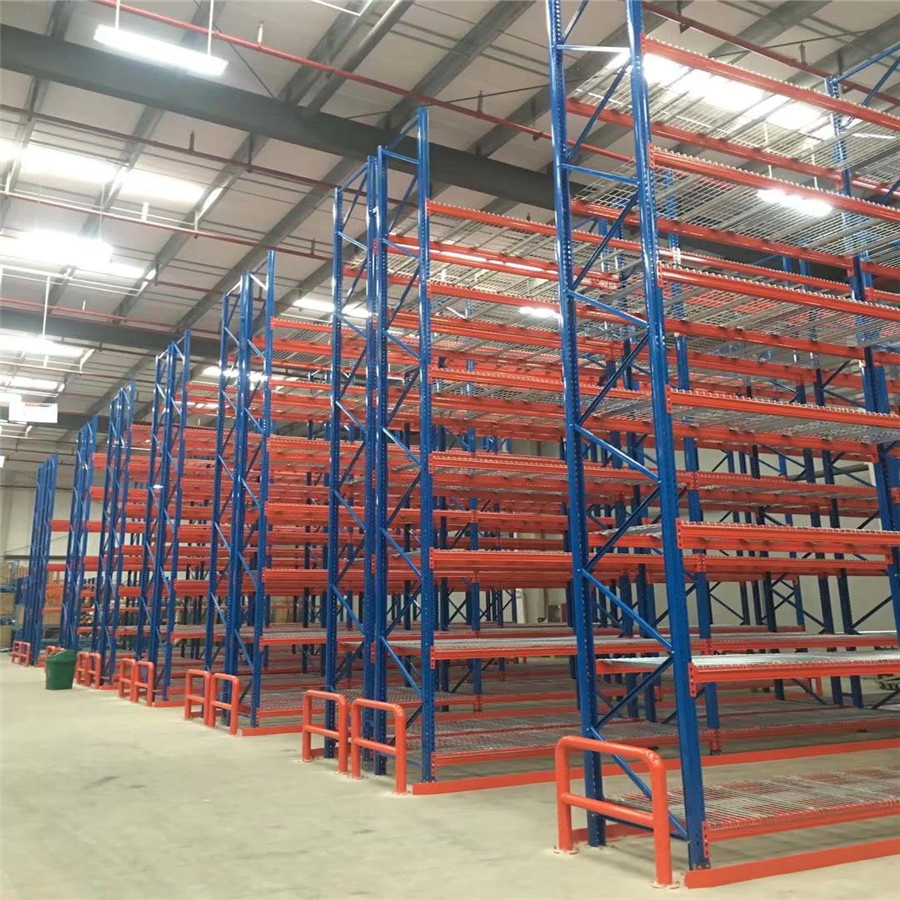

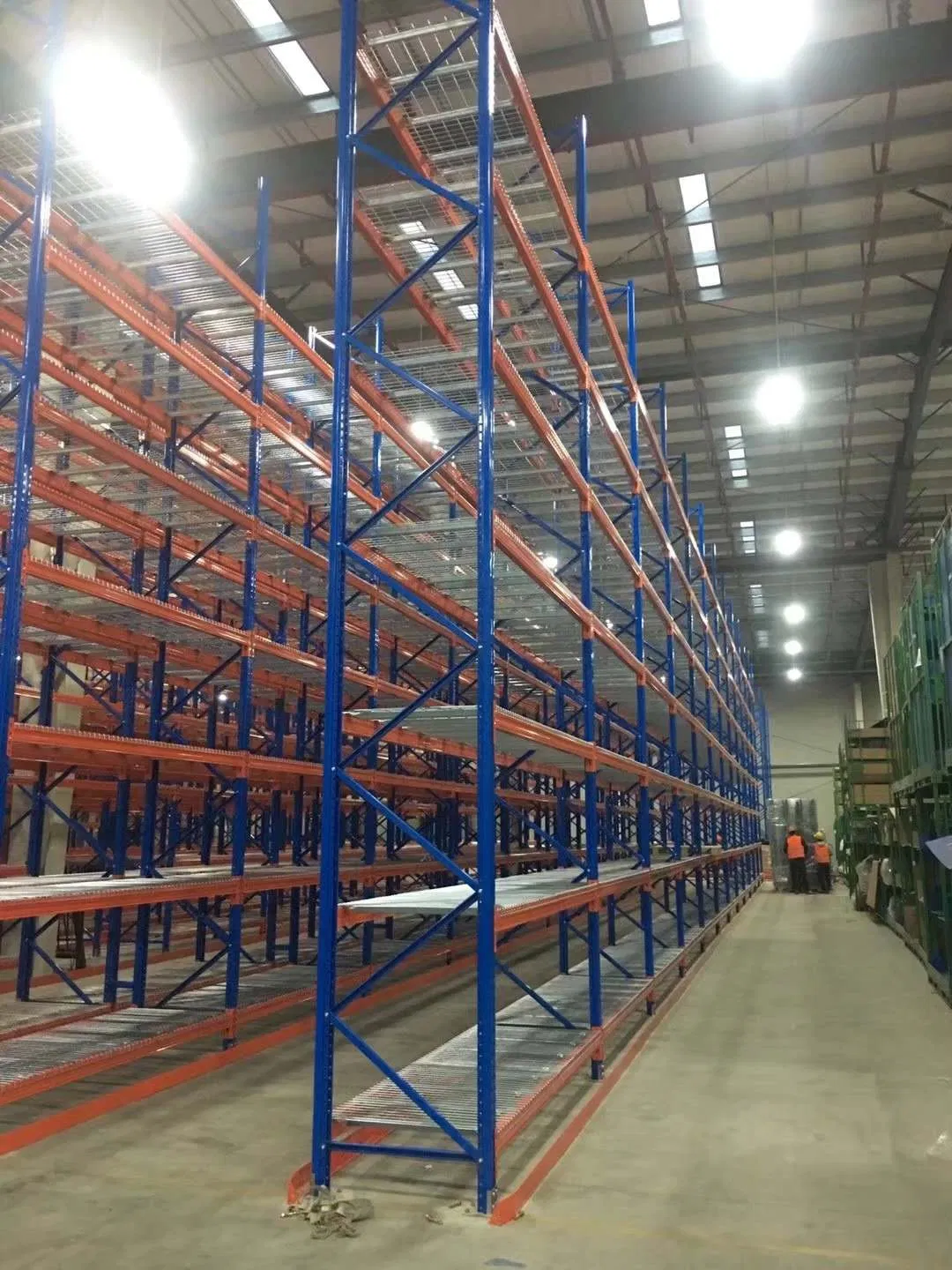

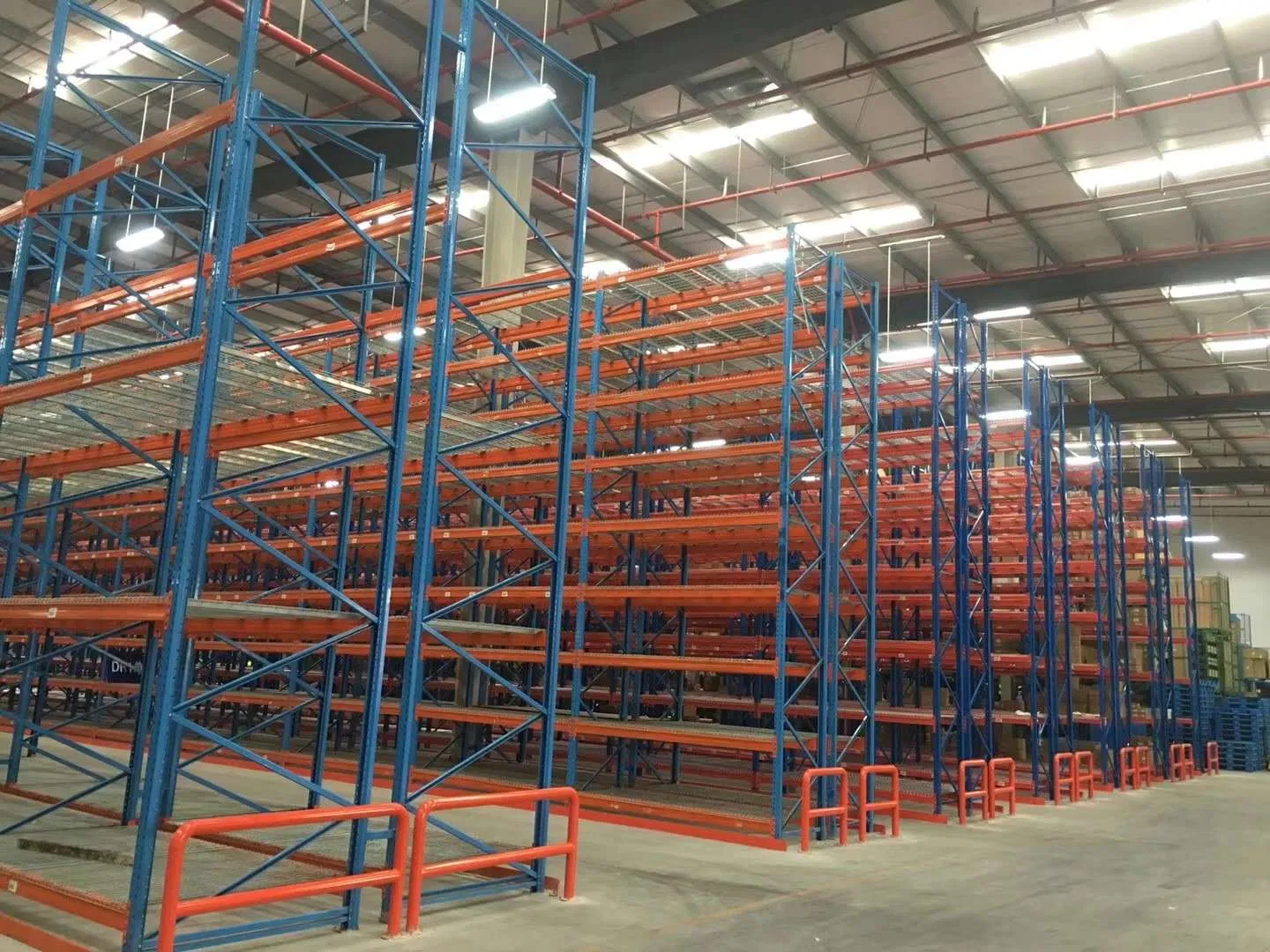

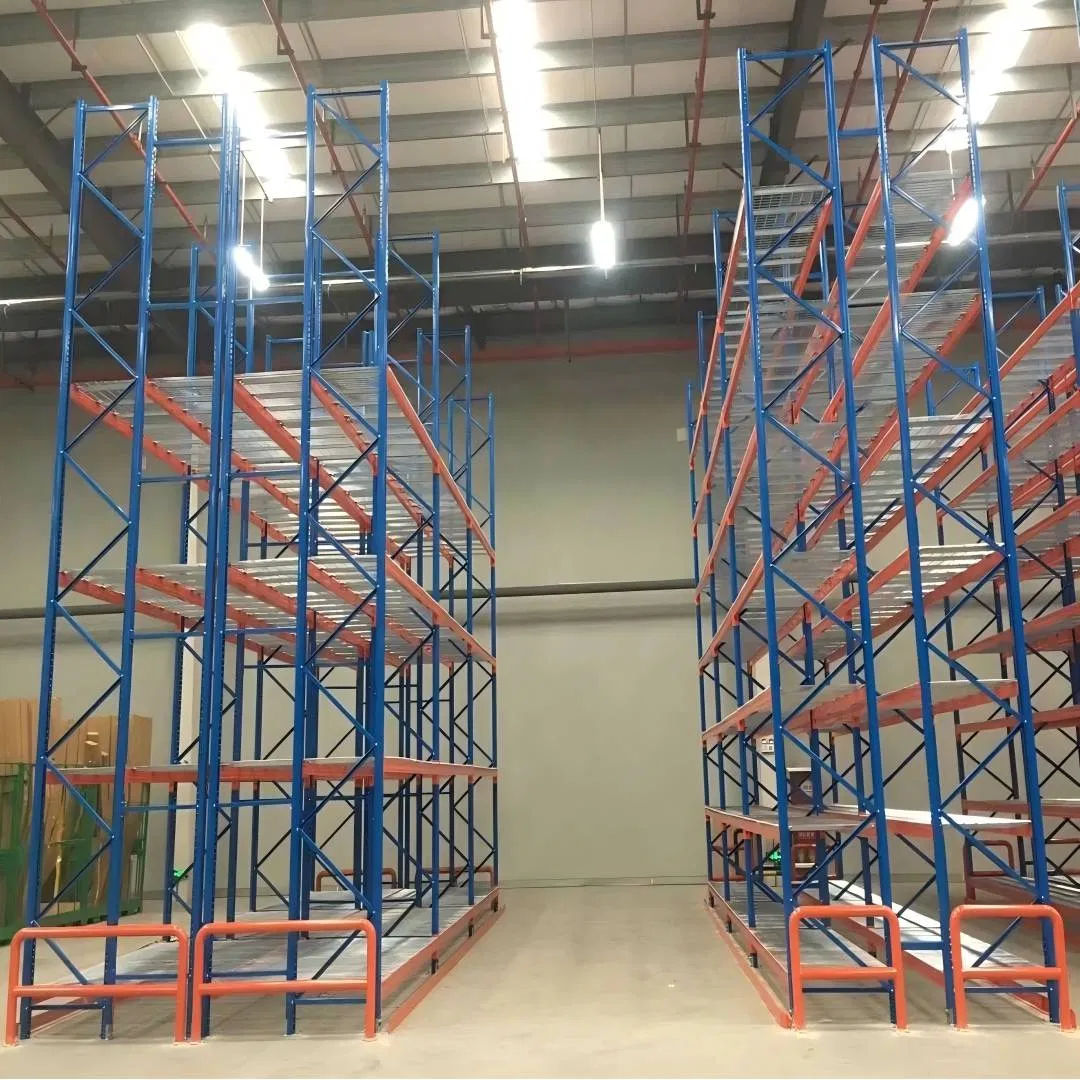

VNA (Very Narrow Aisle) Rack:
Very narrow aisle pallet rack mainly used with the most advantage three ways forklift, occupying small aisle, saving space of warehouse, can store and pick up products quickly so as to cut down the operating cost, particularly suitable for logistic center less than 15 m high.

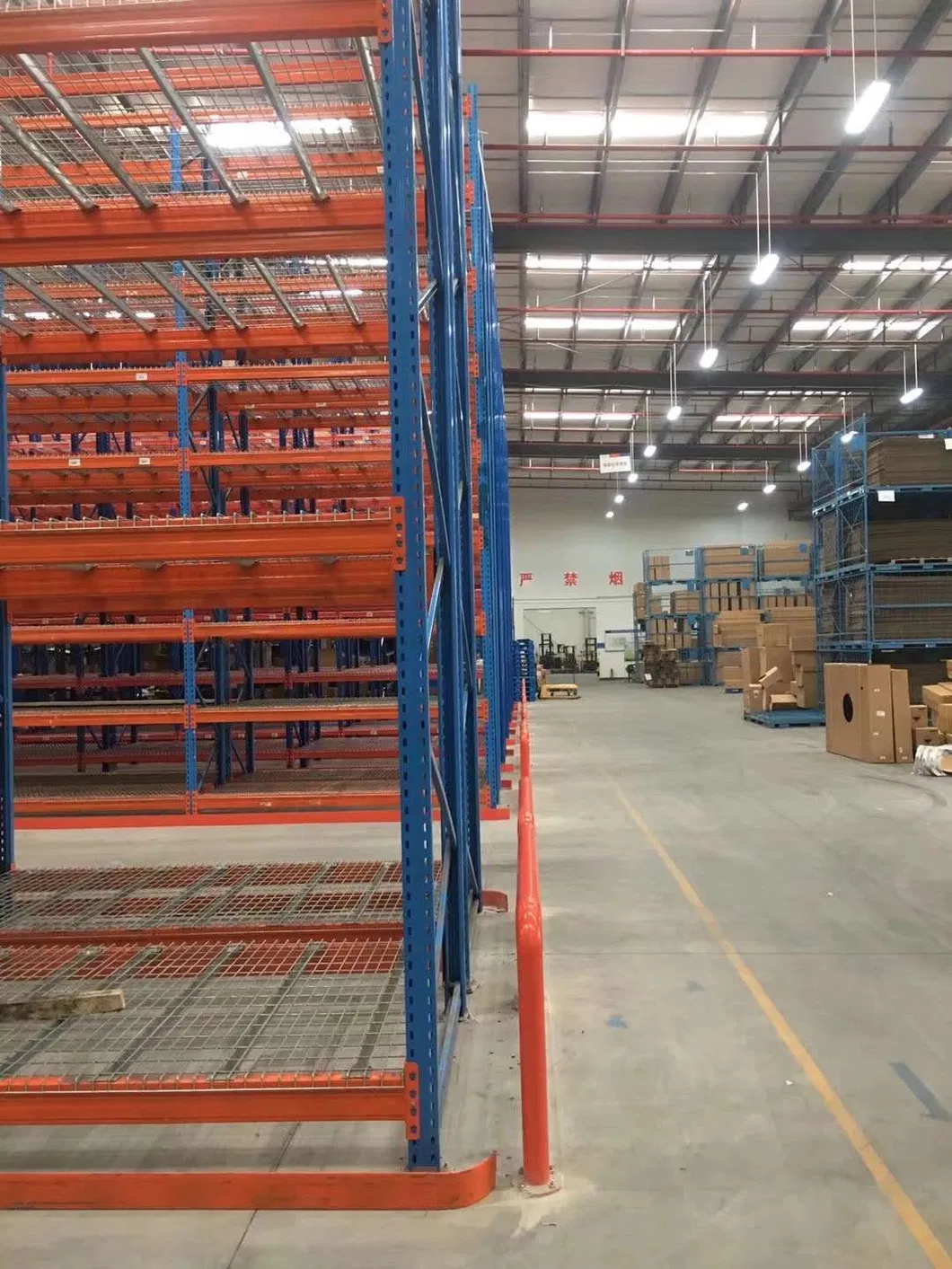

Comparing with the conventional pallet rack, VNA rack aisle is much narrower, ordinarily 1600-2000 mm, the space utilization rate will increase about 20%. Guide rails should be installed on both sides of aisle for the three-way forklift running.
| Style | Warehouse Storage Pallet Rack |
|---|---|
| Selection | Single Row, back-to-back Rows and multiple Rows |
| Dimension |
Standard Pallet: 1200*800(F) / 1200*1000(F) / 1100*1100(F) / 1066(F)*1220 Depth: 1000MM / 900MM / 1020MM Width: 2700MM / 2300MM / 2500MM / 2432MM Height: pitch is adjusted by increments of 75mm |

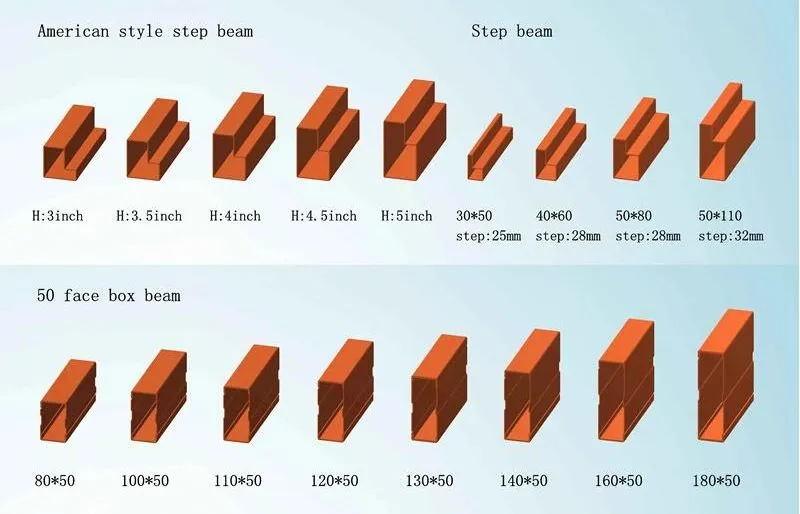

| Beam | Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm |

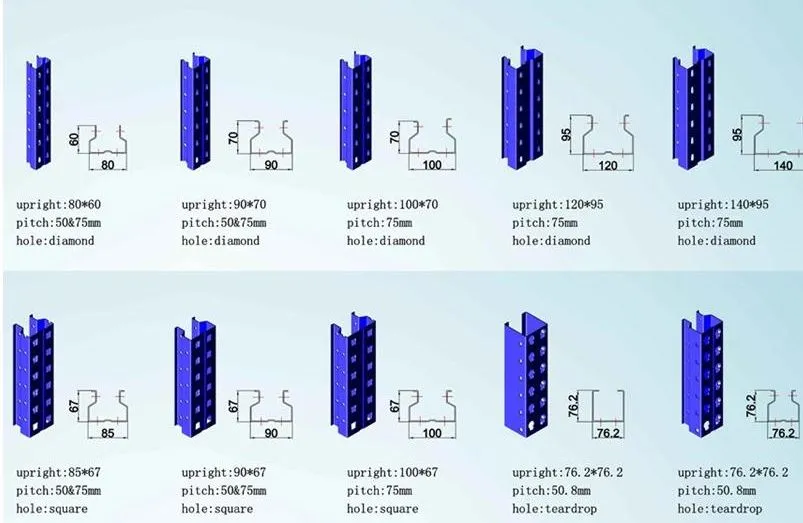

| Upright | 80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75; 120*75; 120*87mm, Thickness: 1.5~3.0mm |
| Bearing Capacity | 5000KG per level max ; 1500KG per pallet max |

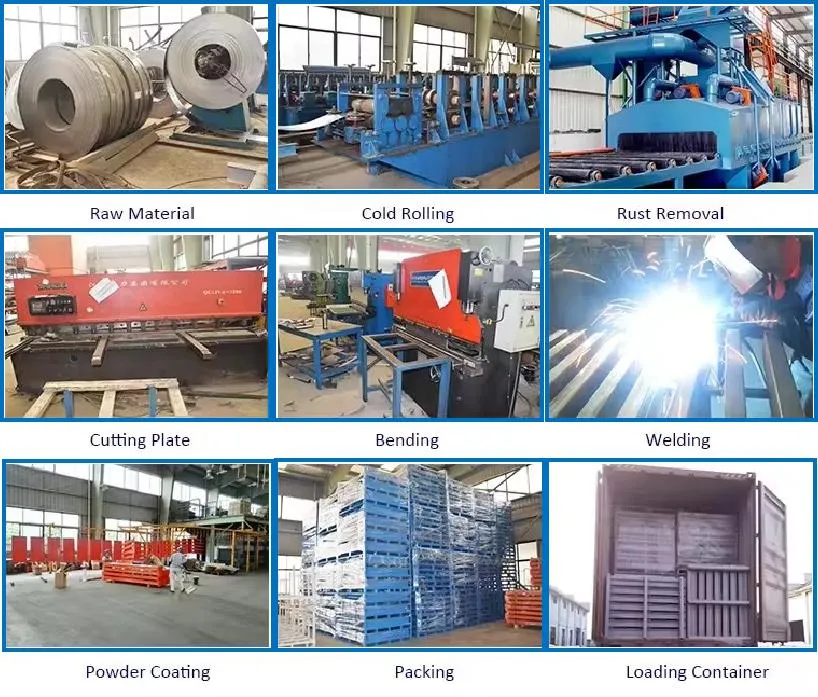

We are an experienced manufacturer in the warehouse storage industry, dedicated to providing high-quality racking systems.
Generally, delivery is within 25 days against formal order and deposit. Our standard payment term is T/T 30% as deposit, and 70% before delivery. We will show you photos of the products and packages before you pay the balance.

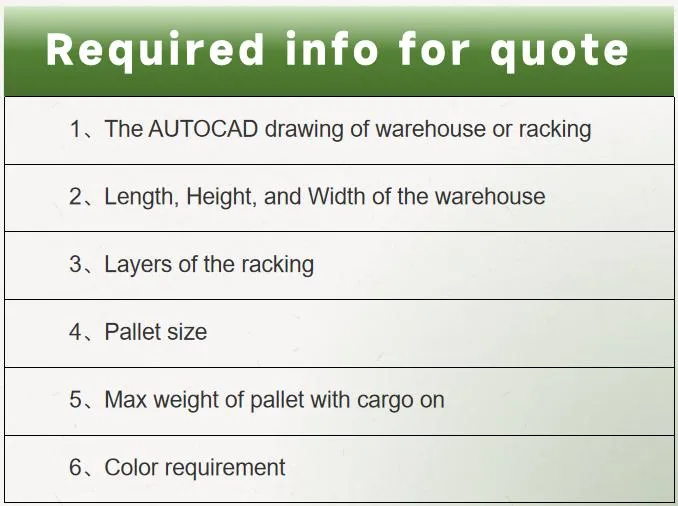

Please provide: 1) Quantity (sets), 2) Dimension: Length * Width * Height (mm) or technical drawings, 3) Load capacity per layer (kg), and 4) Number of layers required.
Our products are manufactured using premium mild steel Q235B to ensure strength and structural durability.
Yes, absolutely. We offer custom design services (OEM & ODM). We can create the most suitable warehouse layout design for you based on your storage requirements.
Yes, we support our product quality by providing a 3 to 10-year warranty depending on the product specifications and application.
