Explore our state-of-the-art multi-level structures designed to double or triple your facility storage capacity safely and efficiently.

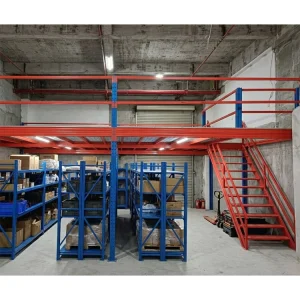

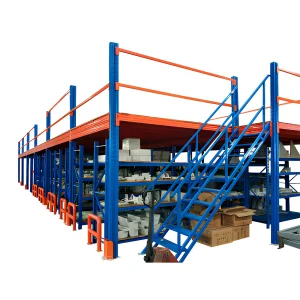

In the modern era of supply chain management, land scarcity and rising industrial rental rates have driven a fundamental shift in warehouse architecture. Businesses no longer evaluate storage efficiency simply by square footage; instead, the focus has shifted to cubic meters. Multi-tier rack mezzanine systems represent the pinnacle of this space-optimization paradigm, enabling enterprises to leverage underutilized vertical space up to the ceiling height.
From global logistics hubs in North America and Western Europe to high-density manufacturing corridors in the Asia-Pacific region, rack-supported mezzanines are integrating seamlessly with advanced material handling equipment. By utilizing heavy-duty upright frames as the structural foundation, these systems deliver a cost-effective, semi-permanent solution that bypasses the strict building permit cycles and high capital expenditure associated with traditional structural building expansions.
A comparative analytical breakdown of different industrial storage configurations.
| Feature / Specification | Rack-Supported Mezzanines | Structural Steel Platforms | Shelving-Attic Combinations | |
|---|---|---|---|---|
| Load Capacity Range | 300 kg/m² to 1,200 kg/m² | 500 kg/m² to 2,500 kg/m² | 150 kg/m² to 500 kg/m² | |
| Primary Steel Materials | High-tensile cold-rolled steel (Q235B/Q345B) | Structural I-beams, H-beams, heavy hollow sections | Standard medium-duty shelf components and thin-gauge steel panels | |
| Floor Decking Options | Perforated steel floor, grid plate, checker plate, plywood | Thick steel plate, concrete floor pans, heavy steel grating | Solid steel sheets, galvanized panels, wood panels | |
| Installation Complexity | Medium; modular connection elements without welding | High; requires crane access and qualified heavy riggers | Low to Medium; quick assembly using boltless or bolted systems | |
| Integration with Automation | Excellent (designed for AGVs, vertical lifters, and chutes) | Good (mainly supports massive sorting systems and heavy machinery) | Fair (predominantly localized for manual order-picking operations) |
Our structural engineering process relies on premium grades of structural steel, such as Q235B and Q345B. These materials are chosen specifically for their optimal balance of tensile strength and ductility. Every design undergoes finite element analysis (FEA) to confirm stability under seismic loads, dynamic traffic loads, and static product distribution.
Unlike static building additions, rack-supported mezzanines feature completely modular bolted connection patterns. As operational strategies shift, columns, platforms, and shelving segments can be extended, relocated, or reconfigured with minimal disruption to daily distribution activities.
Our designs integrate standard smoke clearance structures, fire-protection sprinkler penetrations, and safety mesh partitions. Flooring decks can be perforated to meet regional regulatory requirements for air circulation and fire-suppression water penetration.
Nanjing Ciho Racks Co., Ltd. is a leading professional manufacturer and supplier specializing in high-performance warehouse storage systems and heavy-duty industrial racking solutions. Leveraging years of targeted experience in the global material handling sector, we design, manufacture, and deliver efficient, durable, and structurally safe warehousing environments.

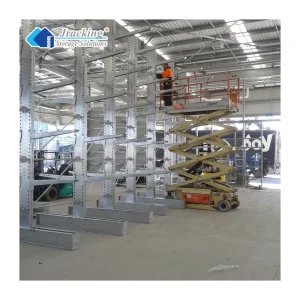

Our comprehensive engineering product range features selective pallet racks, drive-in systems, heavy-duty cantilever racks, multi-tier mezzanine floors, medium-to-longspan shelving units, solid steel platform configurations, dynamic carton flow channels, and highly custom-tailored industrial racking frameworks. We engineer solutions designed to maximize volumetric cube utilization and push structural efficiency to its absolute limit across diverse applications.
From raw structural steel material acquisition to high-precision cold roll forming, robotic welding arrays, and modern automated electrostatic powder coating processing, quality remains our foundational metric. Operating under strict global QA/QC standards, we verify that every installation is safe, robust, and structurally resilient for decades of service.
To optimize industrial warehousing space, reduce logistics overhead, and elevate product throughput by engineering globally compliant, safe, and robust steel storage solutions.
End-to-end manufacturing oversight, automated robotics welding arrays, global structural certification compliance (SEMA/RMI/FEM), and custom CAD/BIM layout engineering.
From raw structural coils to precision-profiled, powder-coated heavy steel elements.
Adapting multi-tier racking systems to specific global industrial verticals and regulatory landscapes.

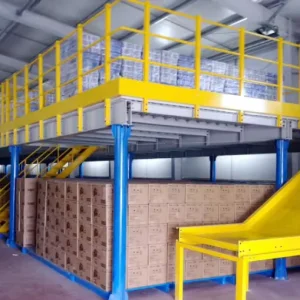

Our high-density racking environments are custom engineered to handle multi-SKU product layouts. With designated integrated staircases, slides, chutes, and localized pallet drop zones, manual orders are completed faster. Integrating mezzanine storage floors speeds up picking operations by routing inventory across multiple independent platforms.
Heavy machinery, metal molds, and automotive spare parts demand structural designs that offer both high weight-carrying capacity and ease of manual access. Heavy-duty rack-supported platforms provide robust industrial strength, using long-span shelves to organize heavy equipment and high-density components on a single consolidated floor area.
Clean storage configurations rely on epoxy-coated, non-dusting flooring structures. We construct cleanroom-compliant mezzanine configurations using fully enclosed steel panels or high-grade electro-galvanized grates. These designs support rapid ventilation control while keeping dust collection on industrial surfaces to a minimum.
The warehousing sector is shifting away from static steel structures. The modern technology roadmap for multi-tier platform systems features:
Specially designed flat steel plates with high structural rigidity allow autonomous mobile sorting robots to operate on elevated platform levels without structural vibration.
Integrated smart load sensors detect platform strain or deflections in real-time, helping to prevent structural failures from overloaded pallets.
Transitioning to eco-friendly, zero-emission powder coatings and optimizing cold-rolling processes to minimize material waste.
Critical engineering answers to guide warehouse project planning.

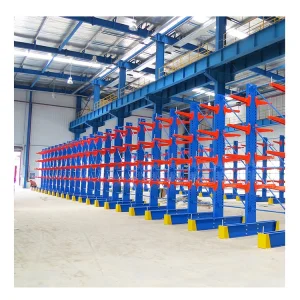

Browse our complete product range, including heavy-duty industrial cantilevers, lofts, and structural warehouse frameworks.
