Engineered for high-throughput logistics, our dynamic gravity flow racks increase pick accuracy and speed.
Modern fulfillment dynamics require warehouse logistics that are fast, flexible, and extremely dense. Carton flow racking systems, utilizing gravity-fed roller lanes, allow carton boxes, totes, and plastic bins to slide smoothly from the replenishment side to the picking face. This First-In, First-Out (FIFO) methodology guarantees inventory rotation, limits physical strain on pickers, and minimizes travel distance inside warehousing hubs.
As a leading Carton Flow Racking Manufacturer & Supplier, we design our systems to fit into existing pallet racking frameworks or stand alone as multi-tiered pick modules, maximizing vertical space utilization up to 85%.

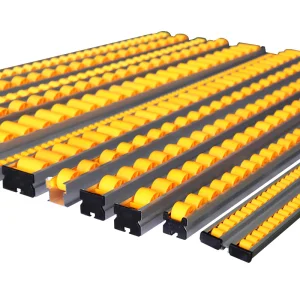

At its core, a Carton Flow Racking System is a dynamic gravity-fed system. Heavy-duty beds of roller tracks are installed at a slight incline (typically between 3 to 6 degrees depending on the weight and material of the packaging). When an order picker removes the front carton from the face, the subsequent cartons automatically roll forward to fill the void. This continuous feed mechanism cuts out travel time and keeps the pick face permanently stocked.
To maintain optimum sliding speeds without damaging fragile goods, the pitch of the roller track must be calibrated precisely. If the slope is too gentle, light cardboard boxes may stall. If the slope is too steep, heavy plastic containers can pick up excessive momentum, risking collisions and operator injury. Advanced systems from top-tier carton flow rack manufacturers use integrated centrifugal dynamic brakes and flow dividers to slow down items on long runs.
A high-performance carton flow setup relies on several critical structural components engineered for long-term fatigue resistance:
Nanjing is widely recognized as the structural steel racking fabrication hub of the world. Sourcing Carton Flow Racking Systems directly from a professional Nanjing factory like Nanjing Ciho Racks Co., Ltd. offers significant strategic advantages for global buyers:
Direct supply links to China’s top steel mills provide access to certified premium grade Q235B and Q355B steel. Nanjing factories can source high-strength metals at lower base prices, translating to direct cost savings for large-scale warehouse layouts.
Our Nanjing facilities run state-of-the-art automated manufacturing setups, including CNC rolling lines, robotic precision welders, and automated electrostatic powder coating booths. This high degree of automation ensures uniform load ratings and tight tolerances across all components.
With an experienced in-house engineering group, we can customize carton flow systems to fit existing teardrop, European, or custom-configured storage layouts. We specialize in producing custom roller widths, variable slope frames, and specialized integration for pick-to-light systems.
The warehouse racking industry is moving quickly away from static storage setups toward dynamic, automated systems. Some key industry developments driving the carton flow sector include:
Carton flow systems are highly adaptable and perform critical roles in various localized settings:
In high-SKU, fast-moving consumer goods settings, carton flow racks keep picking activities localized. This limits picker travel time, increases safety, and supports pick-to-light systems for ultra-fast sorting.
Operating in environments down to -25°C, cold storage facilities must optimize structural density due to high refrigeration costs. Our stainless steel carton flow components and cold-rated rollers operate reliably without seizing up or cracking.
Automobile manufacturers utilize dynamic flow racks alongside assembly lines for parts kitting. Components are delivered via gravity, ensuring workers always have immediate access to parts without pausing assembly flow.
Providing high-efficiency warehouse solutions, custom engineering, and reliable supply chains globally.
Nanjing Ciho Racks Co., Ltd. is a professional manufacturer and supplier specializing in warehouse storage systems and industrial racking solutions. With years of experience in the material handling industry, we are committed to providing efficient, durable, and cost-effective storage solutions for customers worldwide.
Our product range includes selective pallet racks, drive-in racks, cantilever racks, mezzanine systems, longspan shelving, steel platforms, carton flow racks, and customized warehouse storage solutions. Designed for maximum space utilization and operational efficiency, our products are widely used in logistics centers, manufacturing facilities, distribution warehouses, e-commerce fulfillment centers, and retail storage applications.
At Ciho Racks, quality is our top priority. From product design and raw material selection to manufacturing and final inspection, every step is carried out under strict quality control standards to ensure reliability, safety, and long service life. Our experienced engineering team works closely with customers to develop tailored storage solutions that meet specific warehouse requirements.
Our integrated manufacturing line ensures high precision, superior durability, and ISO-certified consistency.
Expert insights on Carton Flow Racking specifications, implementation, and customization.
Complete industrial racking solutions direct from our factory to optimize your supply chain footprint.
