Adjustable Warehouse Heavy Duty Storage Very Narrow Aisle (VNA) Pallet Racking

1 / 5

Adjustable Warehouse Heavy Duty Storage Very Narrow Aisle (VNA) Pallet Racking

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview Detailed Photos Features Product Parameters Production Process Packaging & Shipping Quick Quotation FAQ

Basic Info.

Model NO.VNA-012

UsageTool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack

MaterialSteel

StructureRack

TypeSelective Pallet Racking

MobilityAdjustable

Height5-15m

WeightMore Than 1, 000kg

ClosedOpen

DevelopmentConventional

ServiceabilityCommon Use

Surface TreatmentPowder Coated

ColorBlue and Orange

CertificateCE, SGS

Delivery Time20-25 Days

Product NameVna Pallet Rack

Transport PackageBanding, Plastic Film, Wood Pallet, Carton

Specificationaccording to pallet size and weight

HS Code73089000

Production Capacity5, 000 Ton/Month

Product Description

Adjustable Warehouse Heavy Duty Storage Very Narrow Aisle (VNA) Pallet Racking

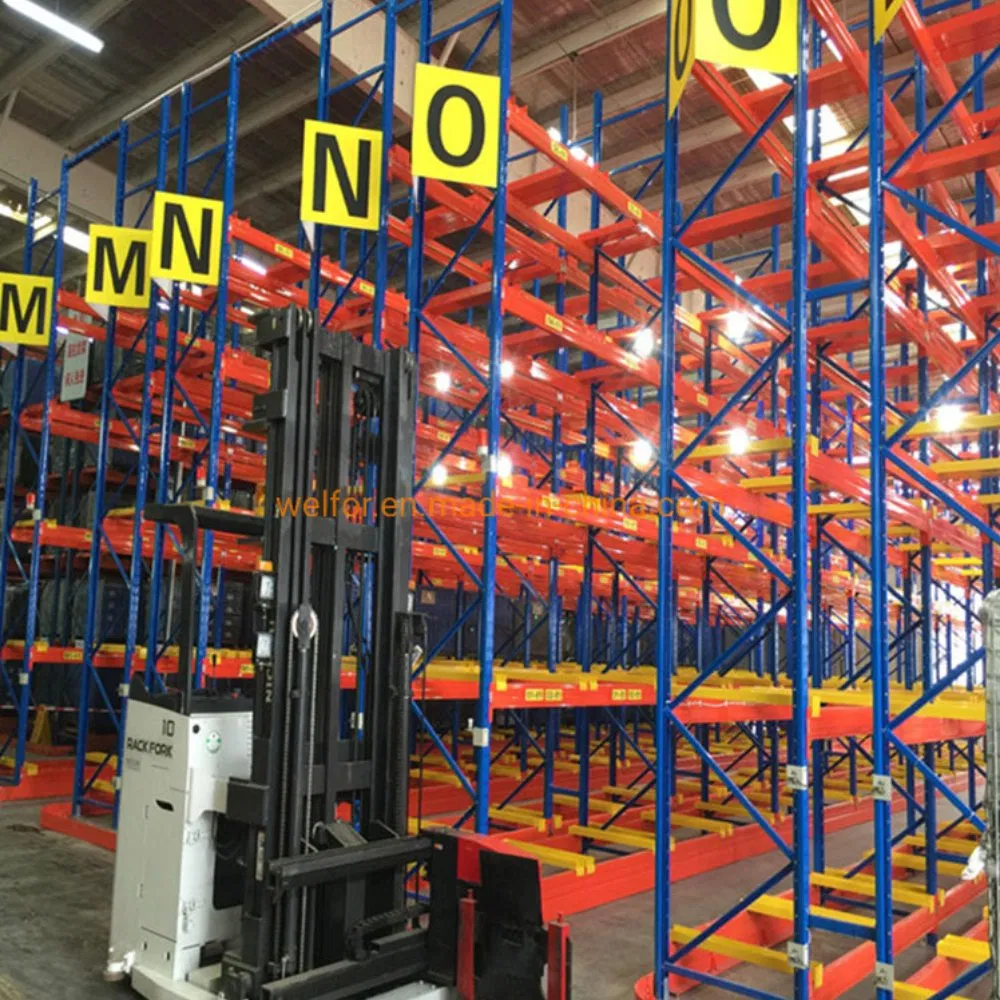

Very Narrow Aisle Pallet Rack on sale mainly used with the most advantage three ways forklift, occupying small aisle, saving the space of the warehouse, and can store and pick up products quickly, and cutting down the operating cost.

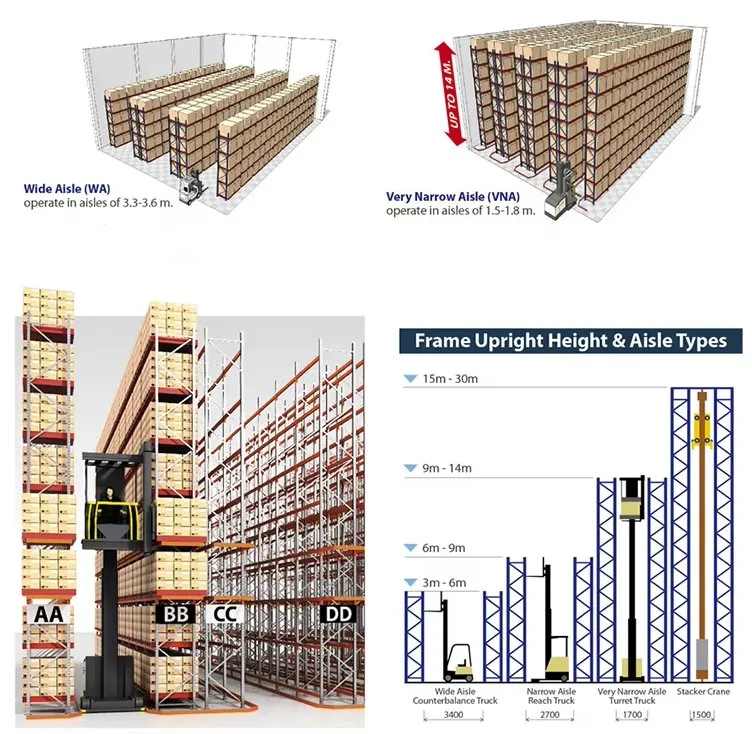

Which particularly suitable for logistic center less than 15 m high. Comparing with the conventional pallet rack, its aisle is much narrower, ordinarily 1600-2000 mm, the space utilization rate will increase about 20%.

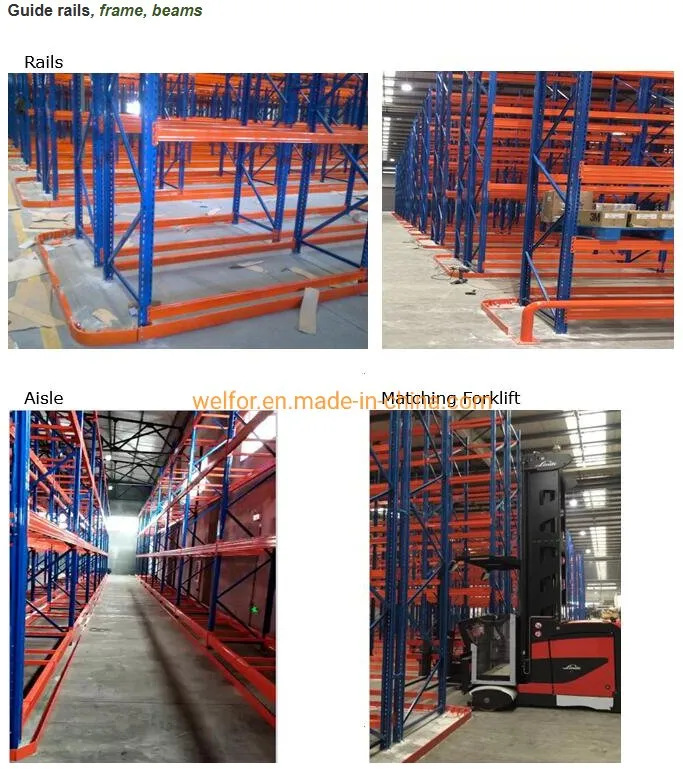

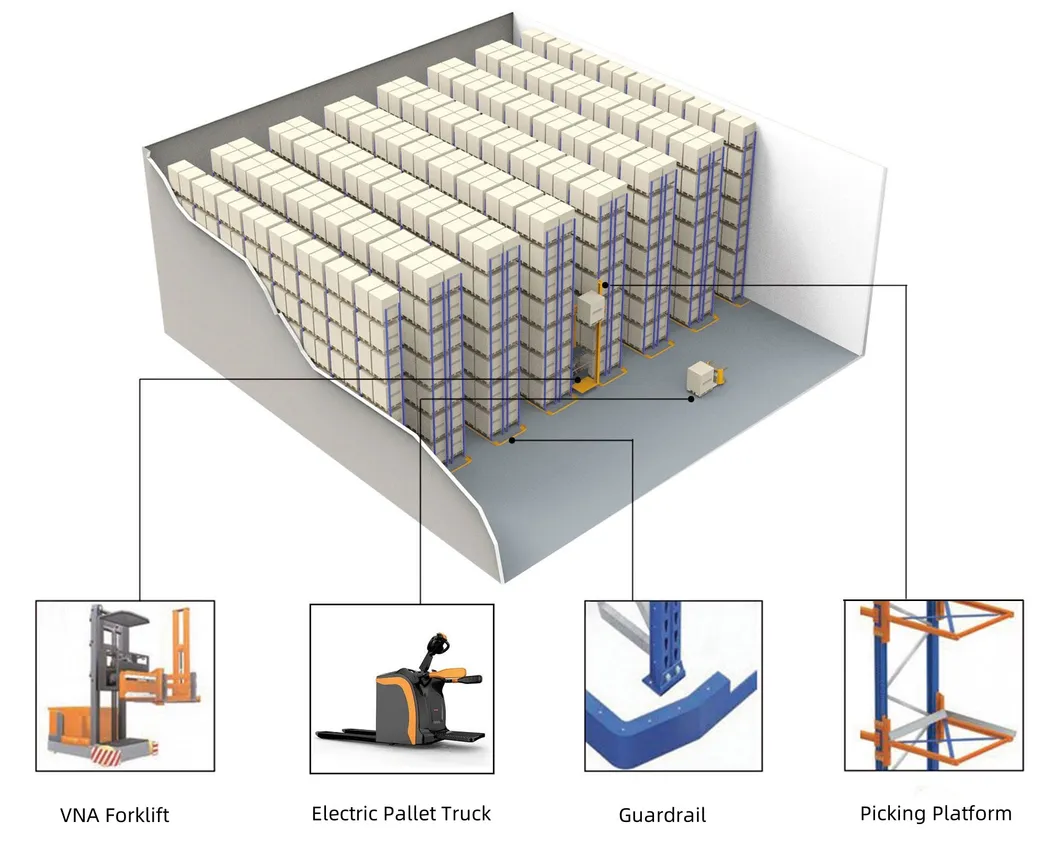

Guide rails should be installed on the both sides of aisle for the three-way forklift running.

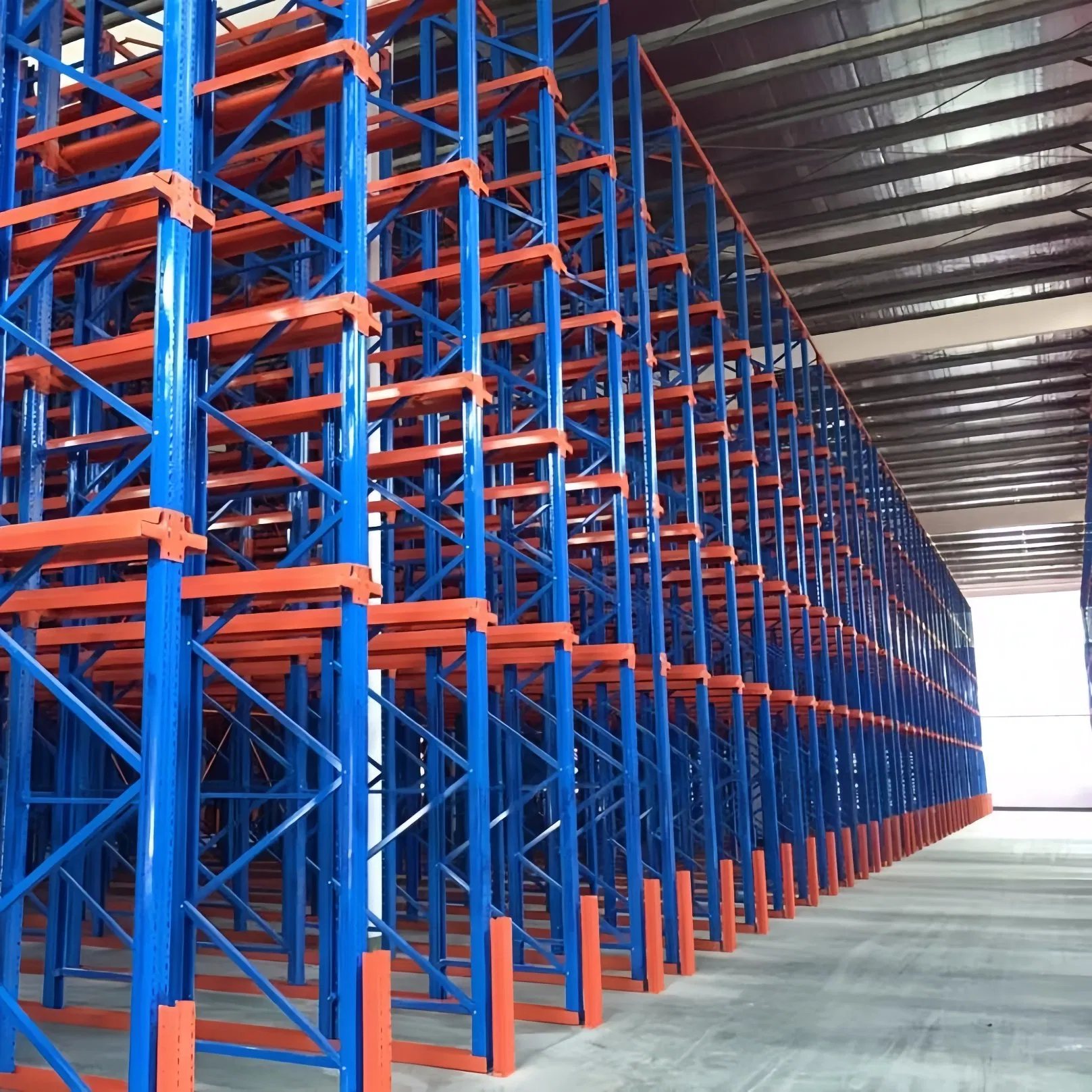

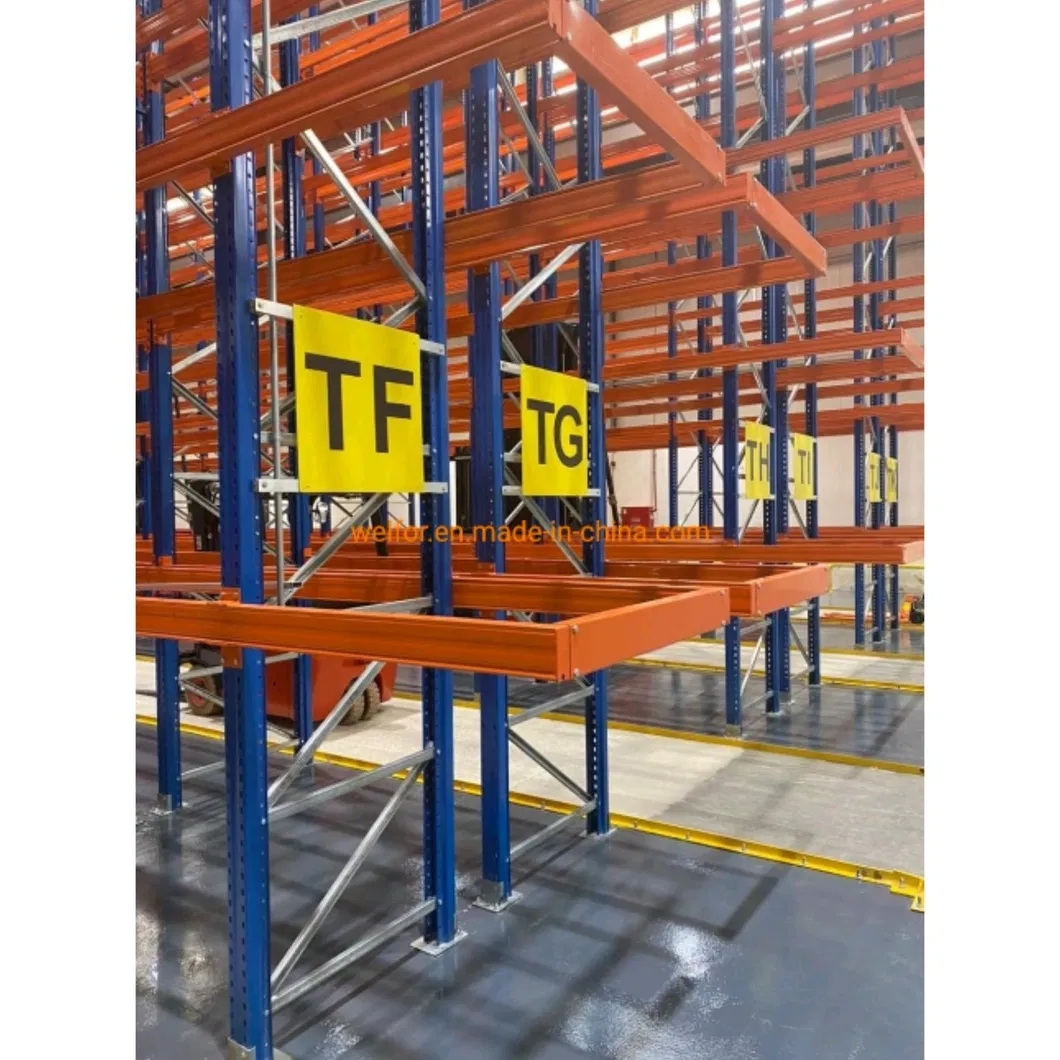

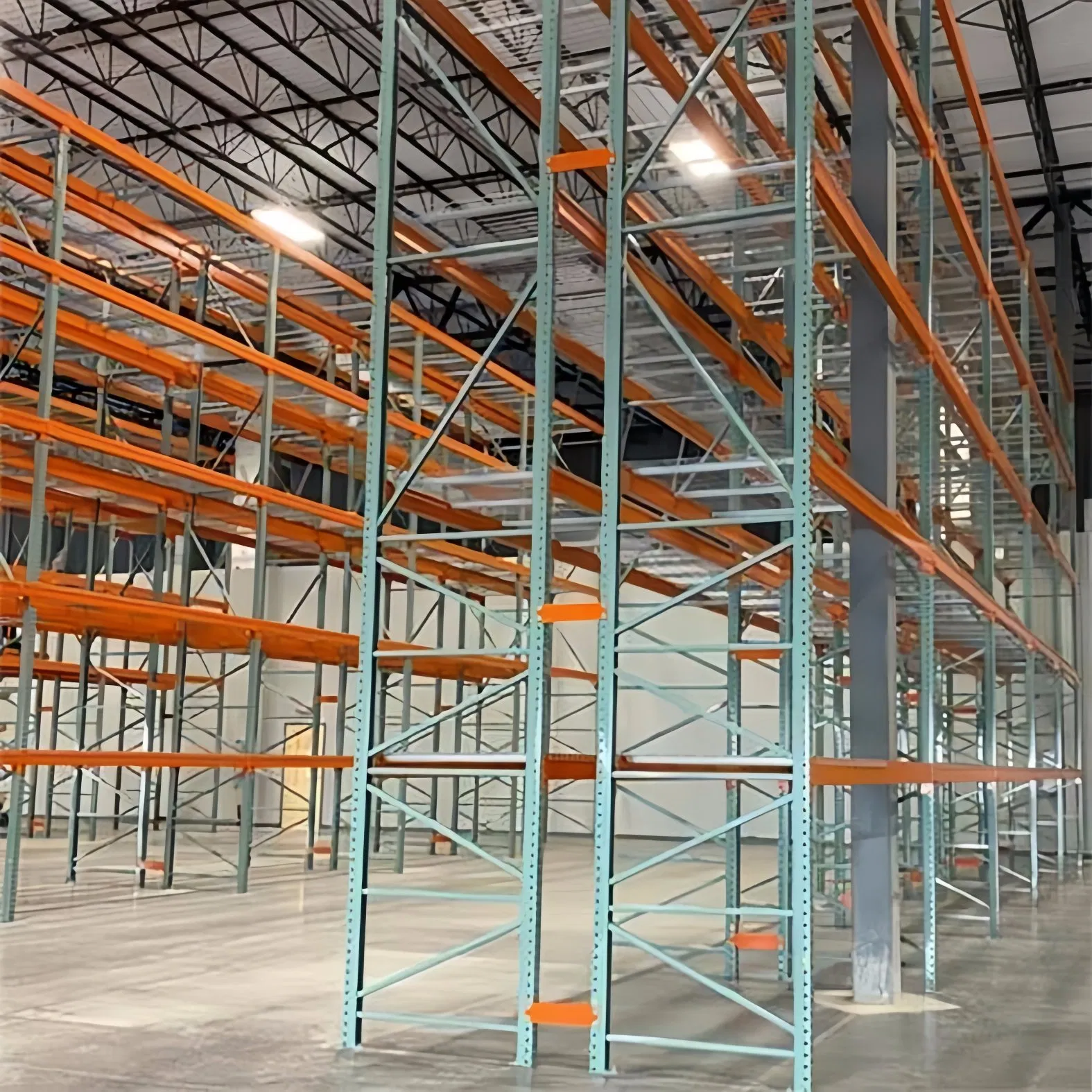

Detailed Photos

Features

The aisles of this rack are very narrow, reducing the aisle space can build more racks and maximize the use of warehouse space.
The narrow aisle racks have become smaller because of the smaller aisles, and the increased density of racks increases the storage capacity by 30%-80% than the normal pallet racking.
The amount of stored goods is large, the goods are in and out more frequently, and there are higher picking requirements for the goods.
It is about 1600mm-2000mm, which greatly improves the space utilization rate of the warehouse.
The operation mode is flexible, and the storage and retrieval mode of the shelf can be first-in-first-out or first-in-last-out to meet different usage requirement.

Product Parameters

Style	Pallet storage warehouse rack
Selection	Single Row, back-to-back Rows and multiple Rows
Dimension of pallet rack	Standard Pallet: 1200800(F)/12001000(F)/11001100(F)/1066(F)1220 Depth: 1000MM/900MM/1020MM Width: 2700MM/2300MM/2500MM/2432MM Height: pitch is adjusted by increments of 75mm
Customized Support	Customized Pallet: other special size available

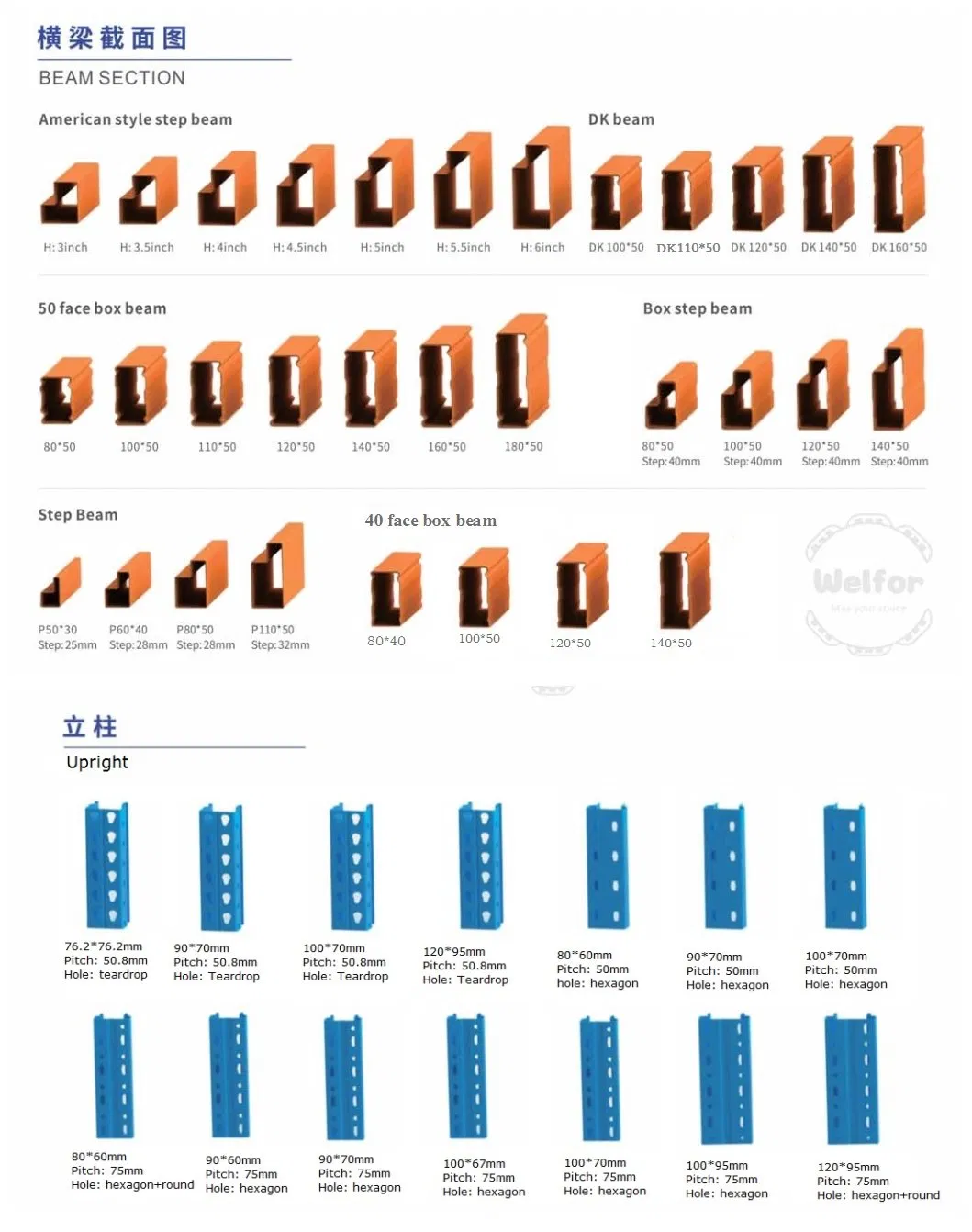

Beam range of pallet rack	Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm
Upright range of pallet rack	8060; 9060; 9070; 9075; 10067; 10070; 10075; 12075; 120*87mm; Thickness: 1.5~3.0mm
Color of pallet rack	Blue and Orange or Customized
Weight capacity of pallet rack	5000KG per level max ; 1500KG per pallet max
Package of pallet rack	Packed by poly sheets and straps and pallets; Other parts and accessories are packed by cartons; straps; wooden pallets, etc.
Lead time of pallet rack	20-25 working days

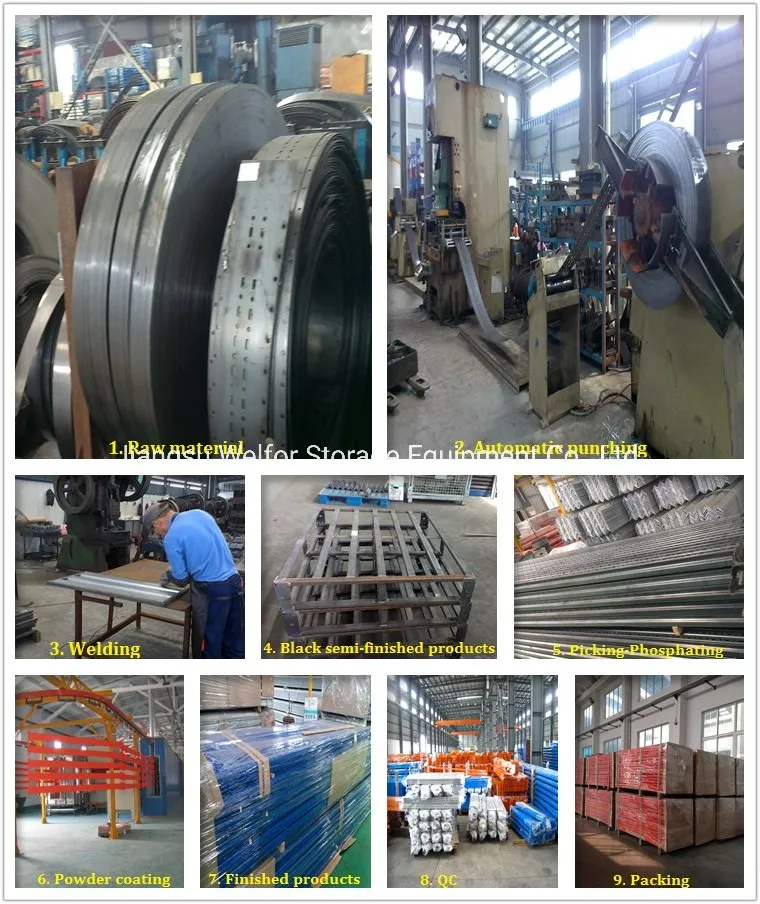

Production Process

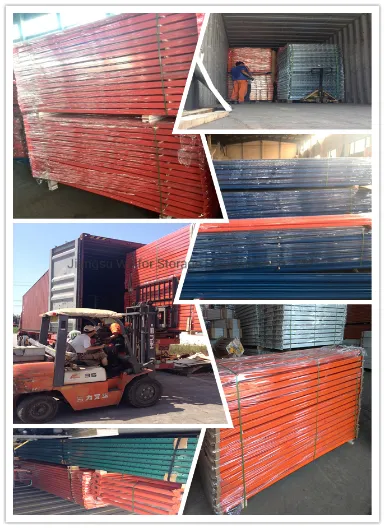

Packaging & Shipping

Quick Quotation

How can I get a quick quotation on my pallet racking project?

Usually for a quick quotation, we need to know the following information:

Pallet Racking Dimension: Length * Depth * Height?
Number of beam levels?
Loading Capacity of each level?
Racking Quantity?

But if you are not sure of this information, we can make a design for you with the following details:

Warehouse drawing (length * width * height) if CAD drawing is available?
Pallet size with goods (length * width * height)?
Pallet weight with goods?
Width of forklift working aisle?

FAQ

1. What is the MOQ limitation for the rack system?

There is no strict MOQ. However, a large purchase will bring competitive prices. A 20FT container (10T~13T) is highly recommended so that production can be better handled.

2. What is the lead time?

The lead time is typically 20-25 working days.

3. What payment methods do you accept?

Both T/T and L/C payment methods are welcomed.

4. How about the sample delivery?

A short section of uprights and beams can be provided free of charge. However, the freight will be collected upon your duty.

5. What is the warranty for the rack system?

All rack items are warranted against manufacturer's defects. To avoid any shortage or missing components, we will provide 1%~2% spare parts in addition to the basic ones.

6. What is the typical aisle width for VNA pallet racking?

The aisle width is much narrower compared to conventional racks, ordinarily between 1600 mm to 2000 mm. This narrow layout increases the space utilization rate of the warehouse by approximately 20%.
