Product Description

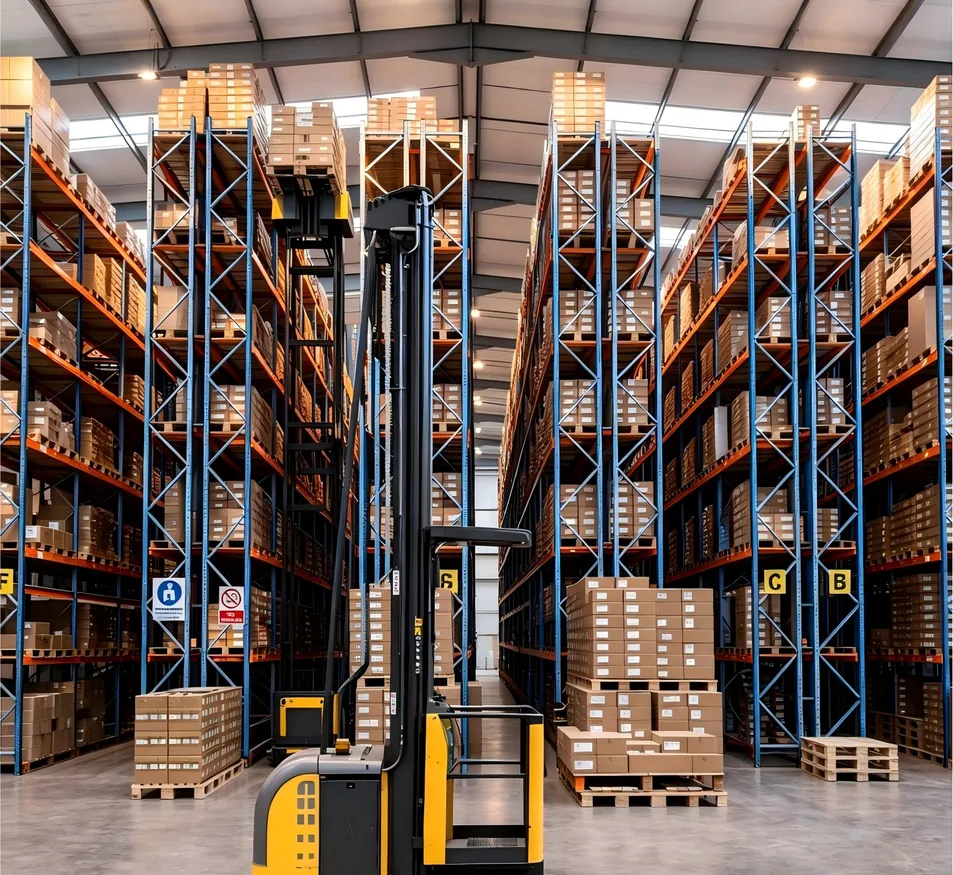

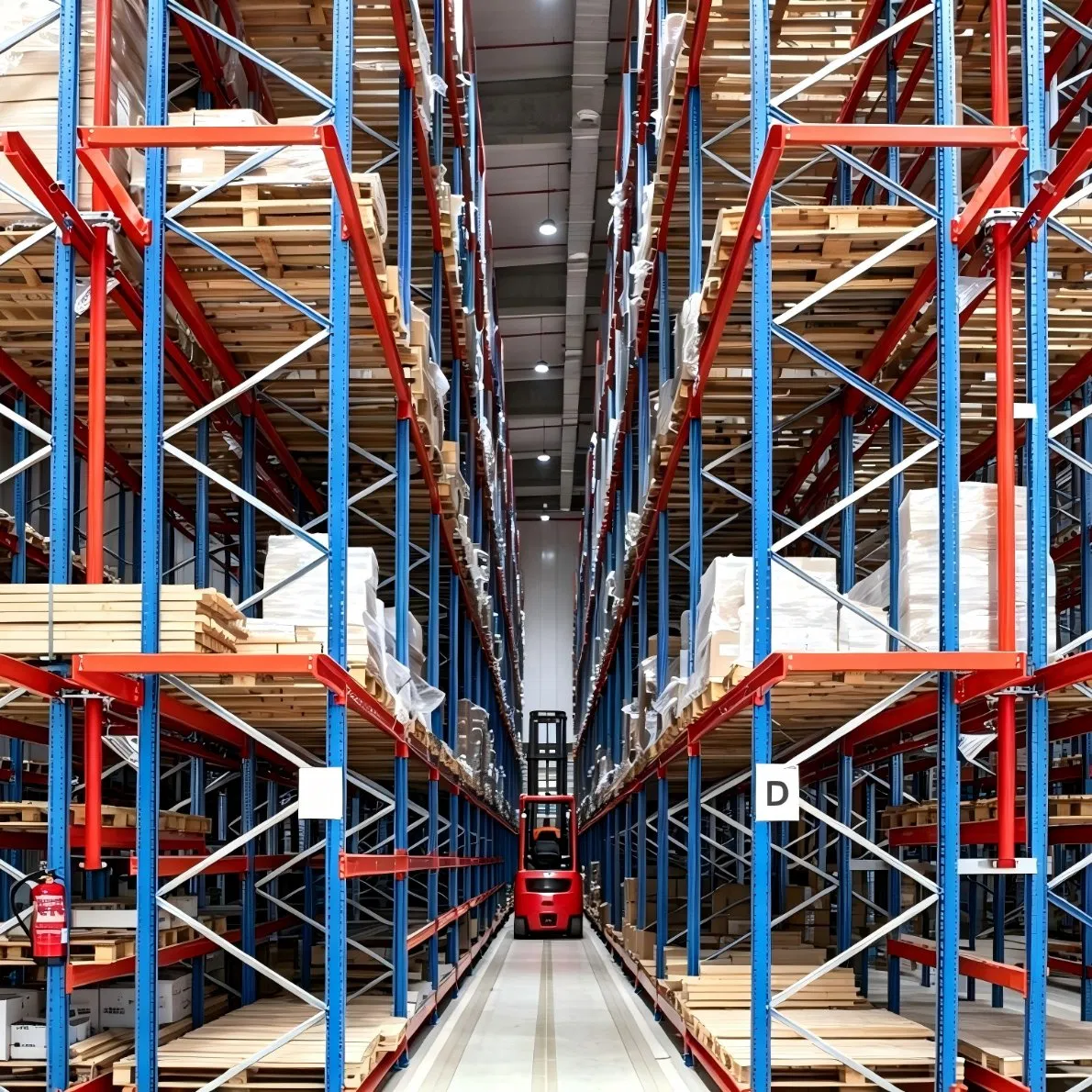

Narrow Aisle (VNA) Racking System

Narrow Aisle (VNA) Racking is an advanced warehouse storage solution designed to maximize storage capacity by significantly reducing aisle width while maintaining direct access to every pallet location.

Compared with conventional selective pallet racking, VNA racking can increase warehouse storage capacity by up to 40% without requiring additional floor space. The system is operated using specialized VNA forklifts or turret trucks, allowing efficient pallet handling in very narrow aisles.

VNA racking is an ideal choice for warehouses seeking higher storage density, improved inventory management, and optimized operational efficiency.

Key System Advantages

Increase storage capacity by up to 40%
Direct access to every pallet
Better space utilization
Faster inventory management
Reduced warehouse expansion costs
Suitable for high-volume storage operations
Ideal for warehouses with limited floor space
Long-lasting and durable steel construction

Technical Specifications

Material	Q235 steel
Type	Narrow Aisle (VNA) Racking
Reference size	Length: 2000 / 2400 / 3000 mm (customizable) Width: 800 / 900 / 1000 / 1200 mm (customizable) Height: 1800 to 11550 mm range
Material reference	Upright: 5547, 9070, 8040, 7011016 (thickness: 1.8-2.0mm) Beam: 8040, 8050, 10050, 12050, 14050, 160*50 (thickness 1.5-2.0mm)
Loading capacity	300 ~ 5000 kg / layer
Color	Blue, white, black, yellow, orange (customizable)
OEM/ODM SERVICE	Acceptable
Surface treatment	Electrostatic Powder Coating, Corrosion Resistant, Anti-Rust Treatment
Certification	ISO9001 / CE
Delivery Time	15 working days

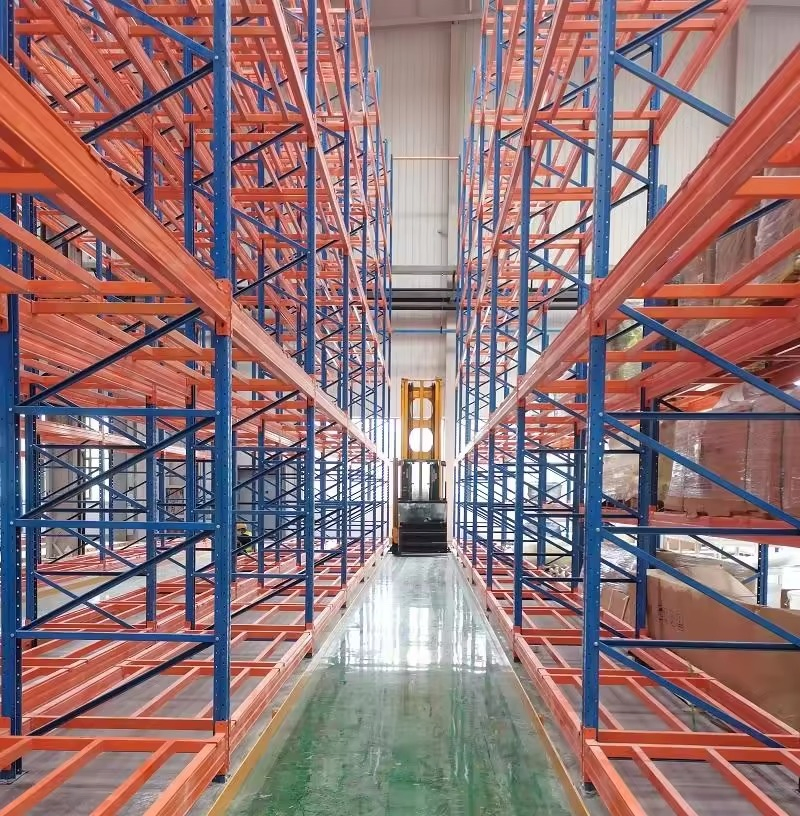

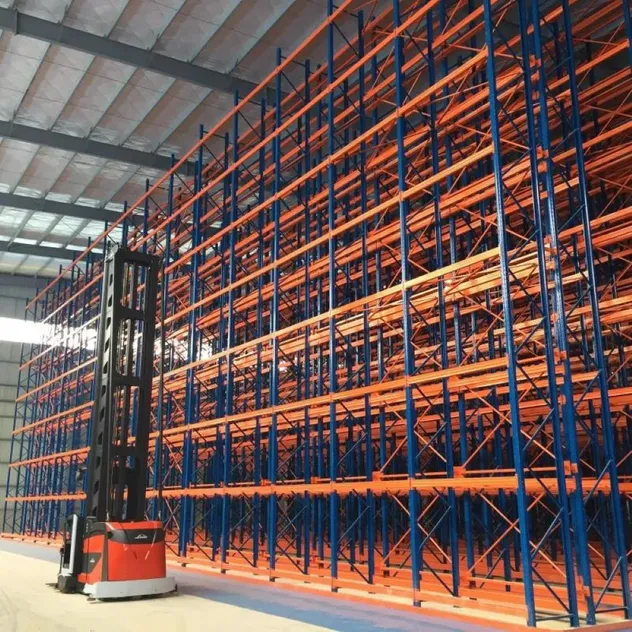

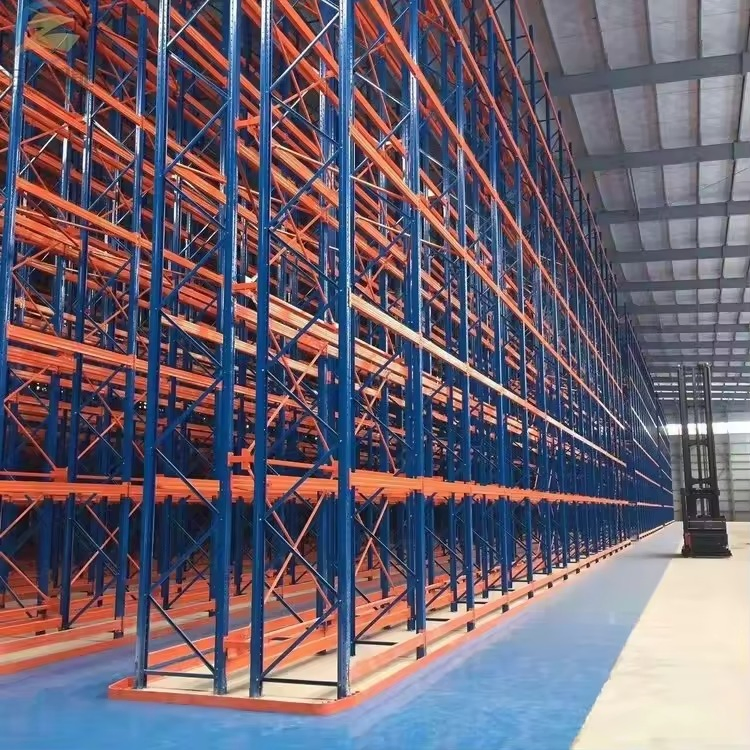

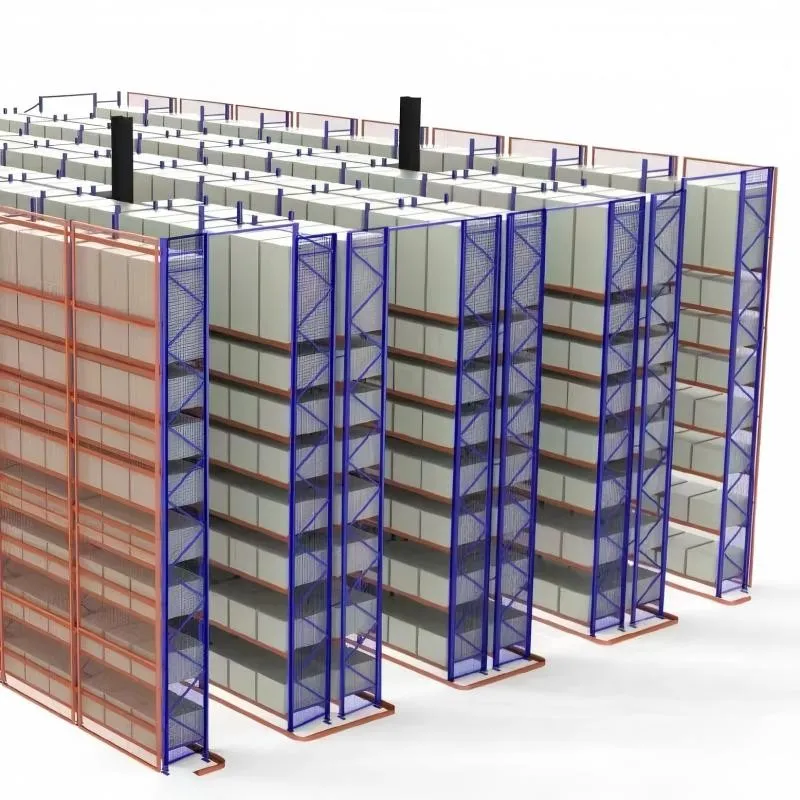

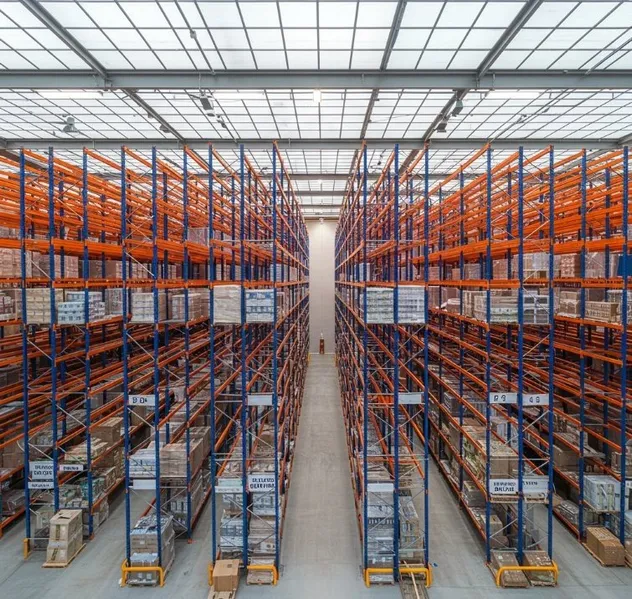

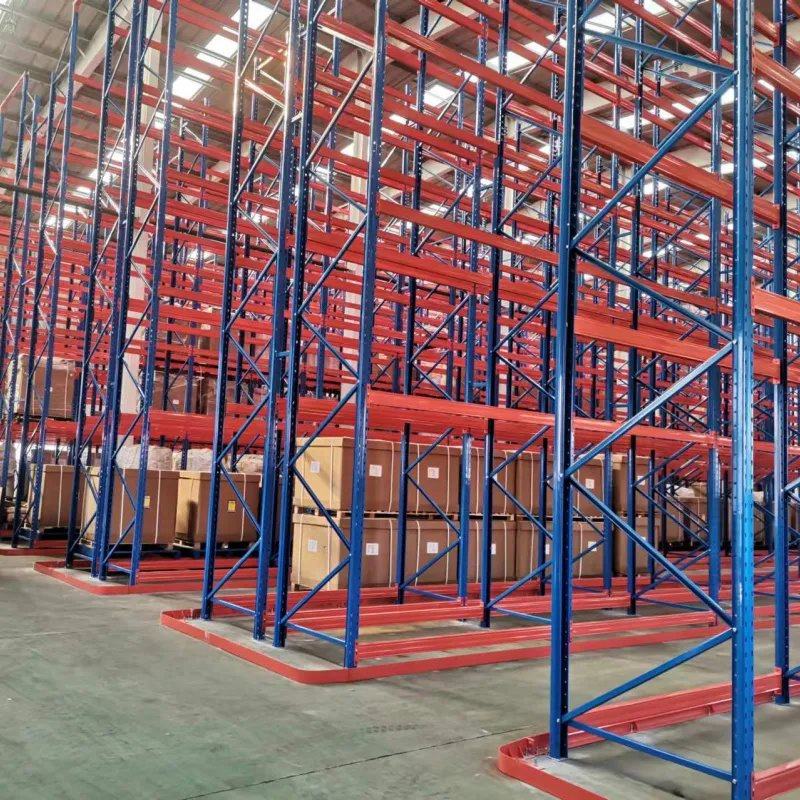

System Layout & Projects

Frequently Asked Questions

What is a Very Narrow Aisle (VNA) Racking System?

A VNA racking system is a high-density storage setup that compresses standard pallet racking pathways into very narrow aisles (typically 1.5m to 1.8m). It maximizes cubic space utilization while offering 100% direct accessibility to each pallet.

How much storage capacity can VNA racking save?

VNA racking can increase warehouse storage capacity by up to 40% compared to traditional selective racking systems by reclaiming wasted aisle space for storage shelves.

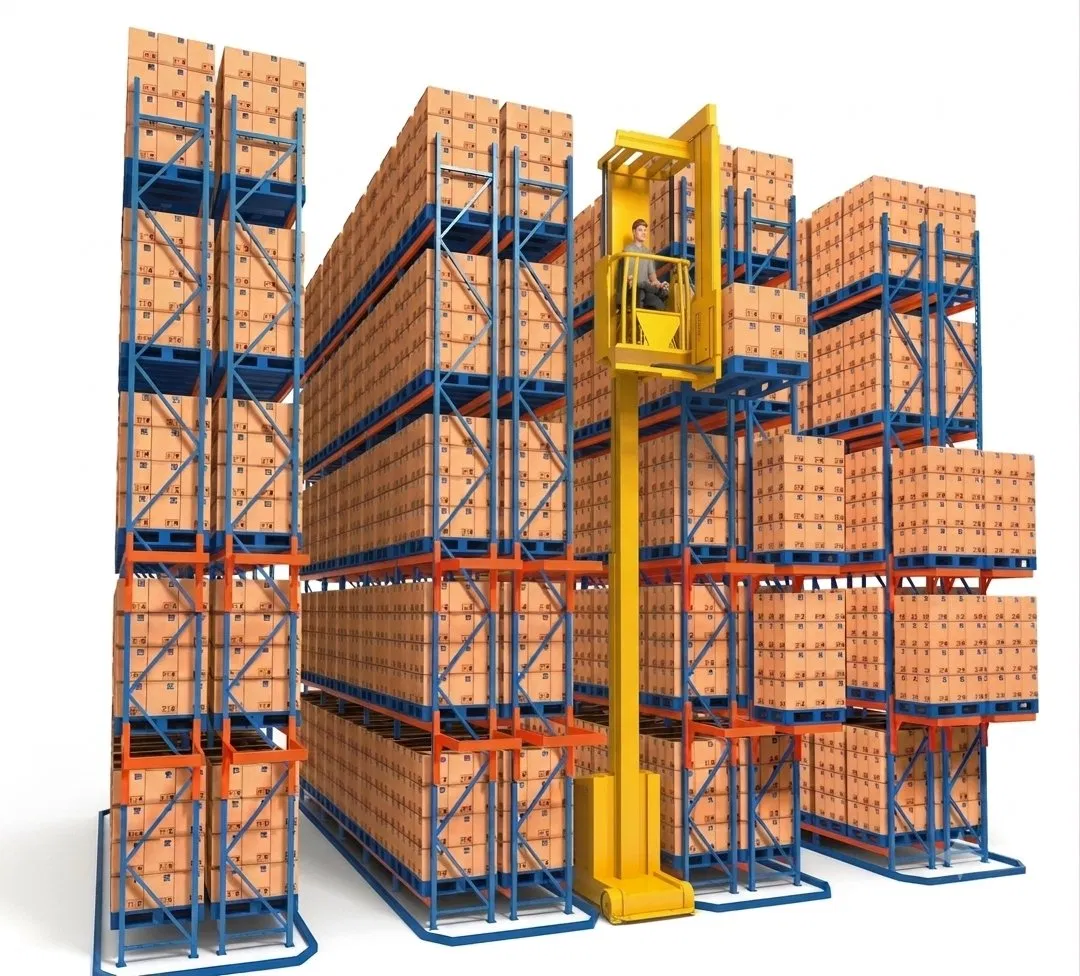

What type of forklifts are required for VNA systems?

VNA systems require specialized equipment such as Turret Trucks, Man-up/Man-down VNA Forklifts, or Articulated Forklifts that can operate comfortably within aisles as narrow as 1.5 meters.

Is a guide rail system necessary for VNA aisles?

Yes, guide systems (either physical steel guide rails or wire-guided induction systems embedded in the concrete floor) are highly recommended to ensure the safe and rapid travel of VNA forklifts within the narrow aisles.

Can VNA racking configurations be customized?

Absolutely. The rack heights, bay widths, load-carrying capacities (ranging from 300kg up to 5000kg per layer), and layout dimensions can be fully customized based on your specific pallet sizes, warehouse height, and weight requirements.
