Vna Pallet Racking with Very Narrow Aisle Forklift

Customization:	Available
Usage:	Warehouse Rack
Material:	Steel

Basic Info.

Model NO.

VN 90

Structure

Rack

Type

Pallet Racking

Mobility

Adjustable

Height

5-15m

Weight

500kg-2000kg

Closed

Semi-closed

Development

Conventional

Serviceability

Common Use

Transport Package

Packed in Bundles on Pallets and Wrapped in Film

Specification

upright 1.8--2.5mmT, Beams 1.5-1.8mmT

HS Code

73089000

Production Capacity

20, 000 Tons Per Year

Product Description

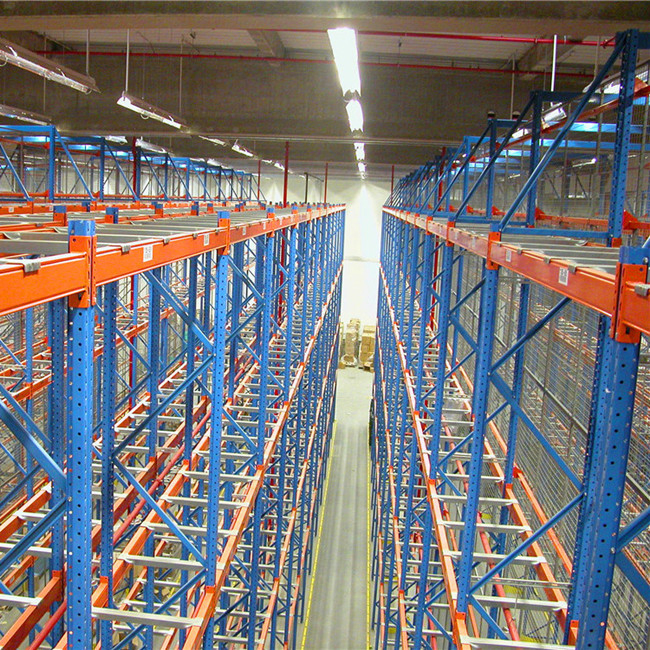

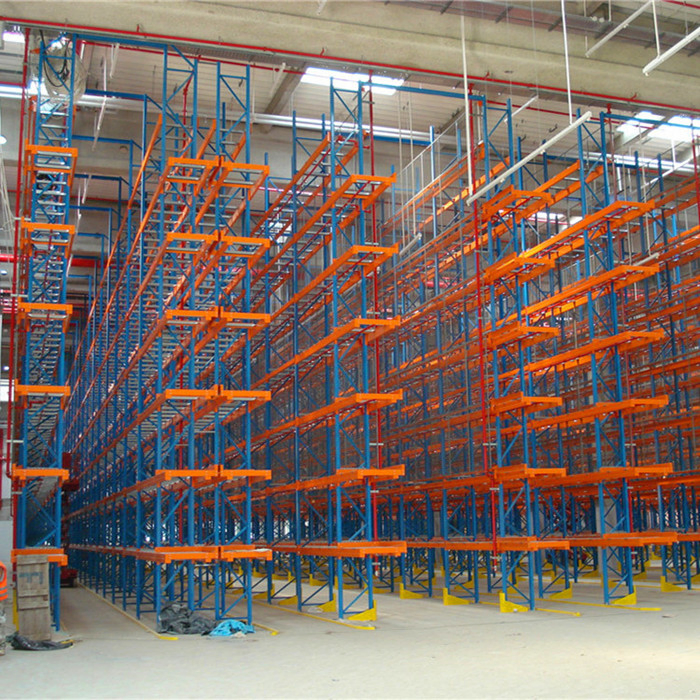

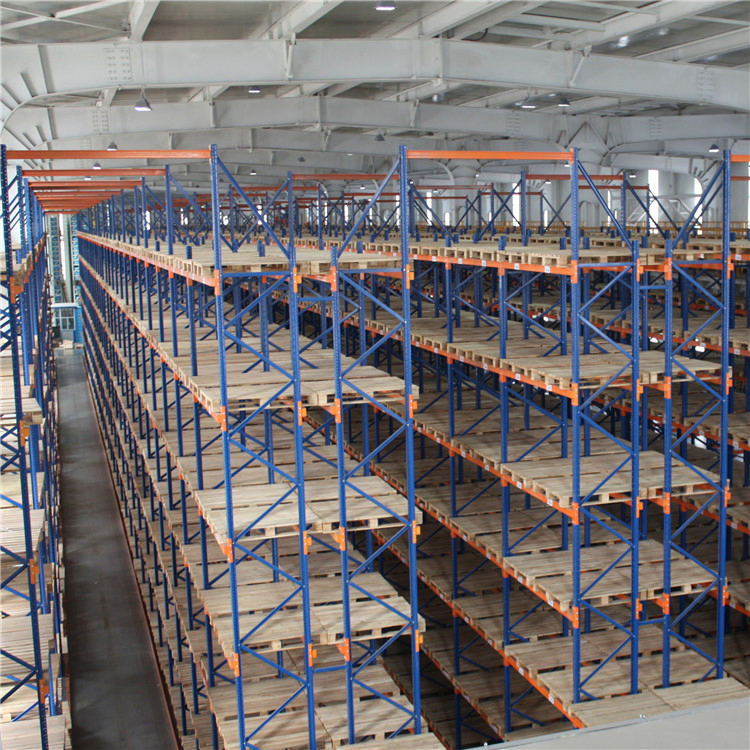

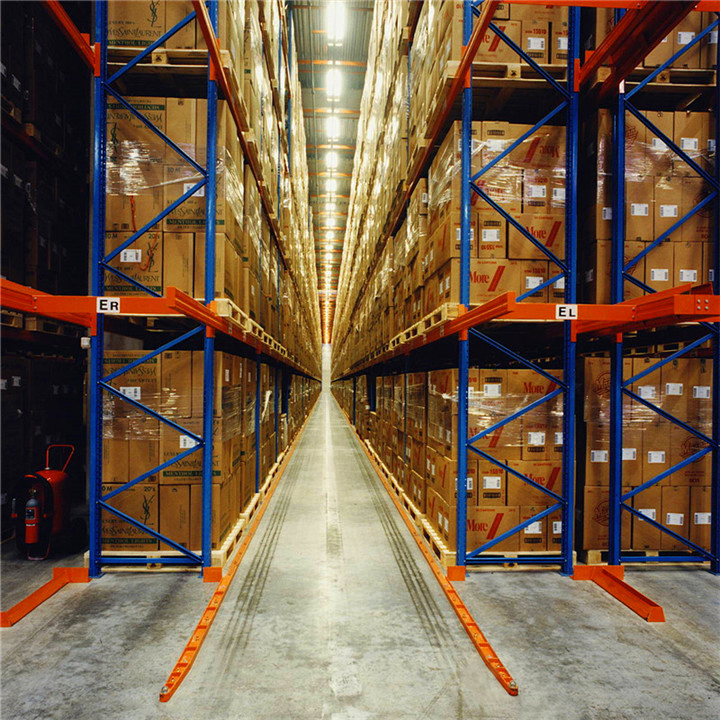

Vna Pallet Racking with Very Narrow Aisle Forklift is derived from the selective pallet racking, and only the floor guide rails are equipped. (Some trucks with magnetic conductance does not need floor guide rails). The Very Narrow Aisle (VNA) system handled with special handling equipment. The VNA truck with rotate mast or fork from left to right position to store in and pick up pallets from the aisle without turning. VNA truck can operate in margined aisle width and greater height than conventional truck.

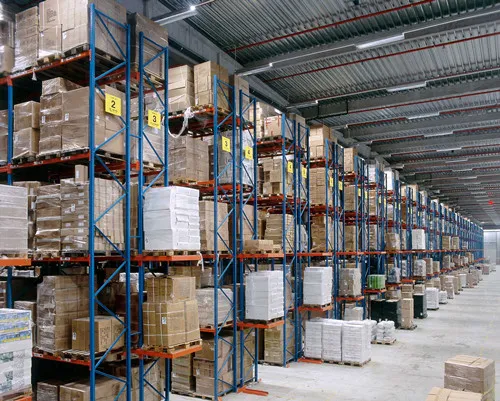

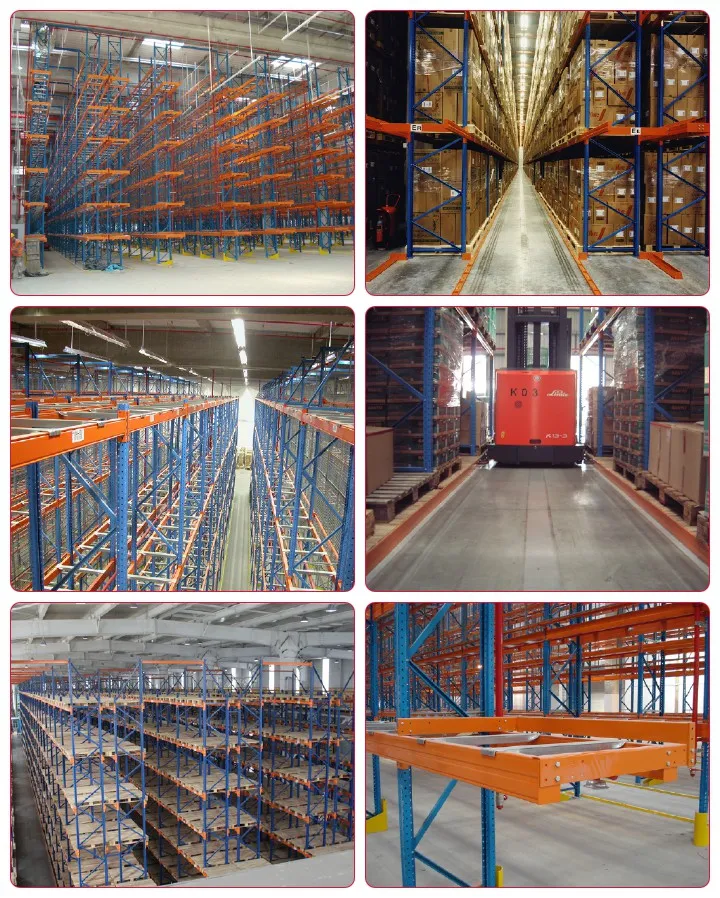

Vna Pallet Racking with Very Narrow Aisle Forklift Detail

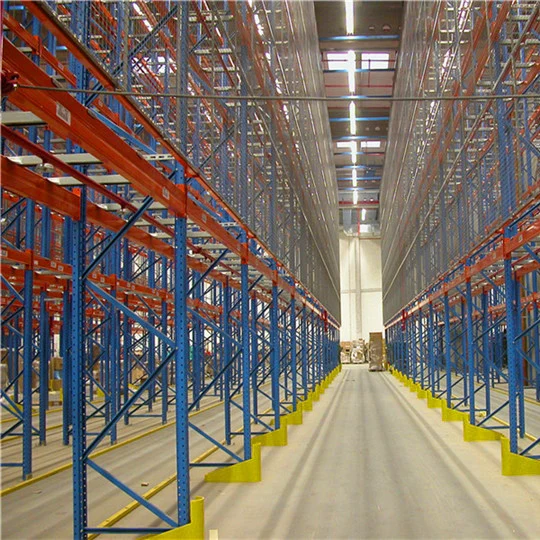

Vna Pallet Racking with Very Narrow Aisle Forklift, VNA pallet rack Floor utilization is 50% and 100% selectivity, which is the best option for high-density storage. It is simple and good for first in first out application. The system is found in warehouse, super market, distribution center, pharmaceutical industry, etc.

Aisle width is approximately 1700-2000mm depends on reach height and pallet depth. The system is designed for standard palletized goods. The size and weight of the goods, the specification of the VNA truck can be determined to design the racking structure. Rack beam height can be as high as 15m. Normally the working aisles for the VNA truck can be around 1800mm.

The basic components

Vna Pallet Racking with Very Narrow Aisle Forklift is composed of basic element such as frames and beams. It also consists of a full range of accessories to fulfill all of your requirements. The system is designed for the optimized storage of goods of all sizes and weights.

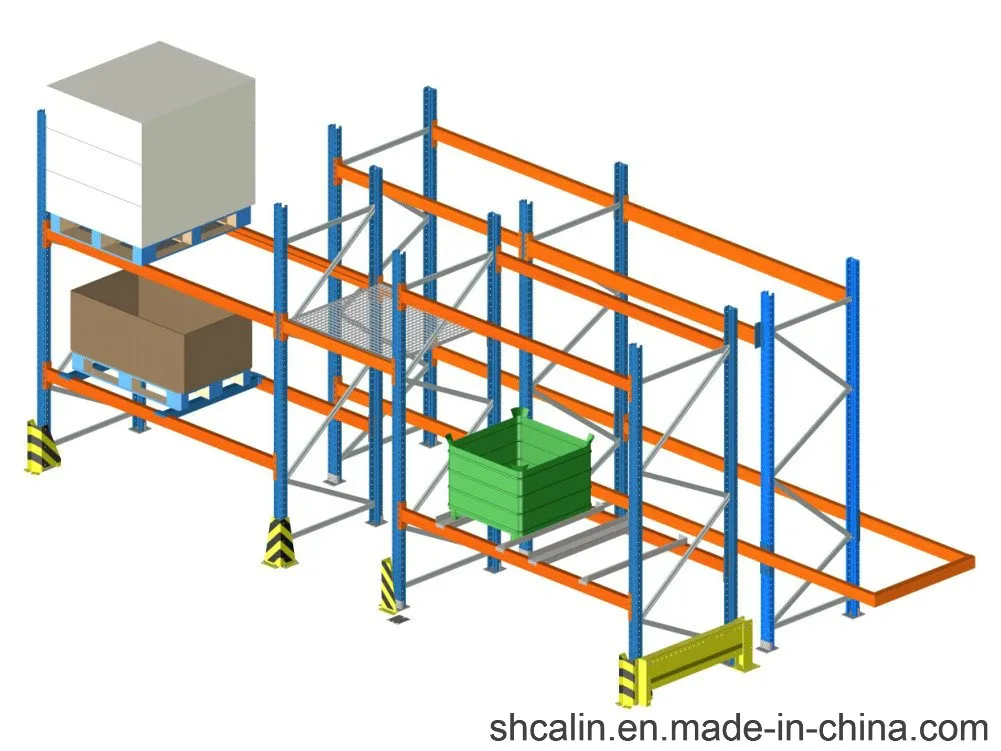

Vna Pallet Racking Basic Components diagram

The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C. The standard colors are RAL 5015 (= sky blue) for the frames and RAL 2004 (=pure orange) for the beams. Protectors are painted in RAL 1004 (= golden yellow). Some smaller parts have a galvanized finishing. Special colors are available on request.

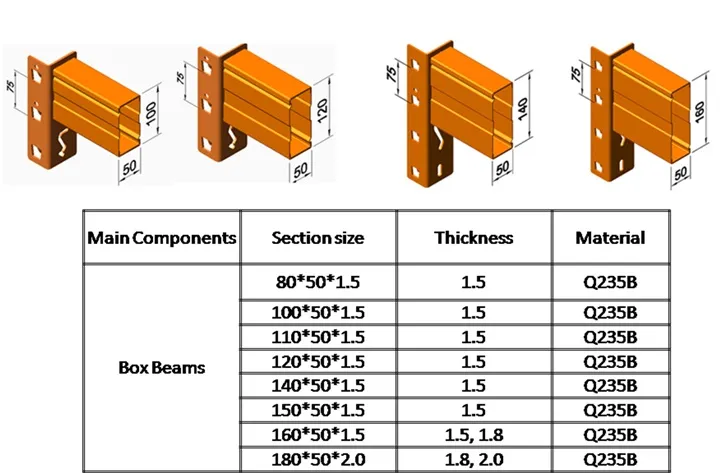

Main components specifications

The main components are uprights and beams, the standard specifications are as follows:

Advantages and Key benefits

Complies with international norms and regulations
Wide range of basic components for storage of all pallet sizes and weights.
Many standard accessories to meet every storage need you can imagine
Computer aided design ensuring the best solution for every application, including static calculations
Rigid and stable construction
High quality of finish
Easy and quick installation
Mass volume production to offer very cost effective products

Beam Loading Chart

Beams Specification	Clear Entry (mm) Deflection < 1/200
Beams Specification	1500	1800	2000	2300	2500	2700	3000	3300	3600	3900
*B80501.5*	4000	2800	2200	1700	1500	1200	1000	850	-	-
*B100501.5*	-	4200	3400	2800	2500	2100	1700	1400	1200	-
*B110501.5*	-	-	4500	3300	2800	2500	2200	1800	1500	1200
*B120501.5*	-	-	-	4000	3400	3000	2600	2200	1800	1500
*B140501.5*	-	-	-	-	4500	3800	3200	3000	2600	2000
*B160501.5*	-	-	-	-	-	4800	4200	3800	3300	2800

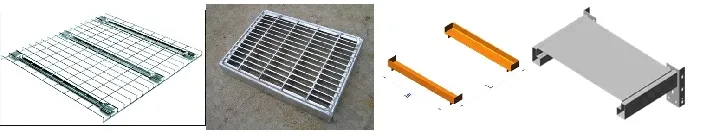

Available accessories

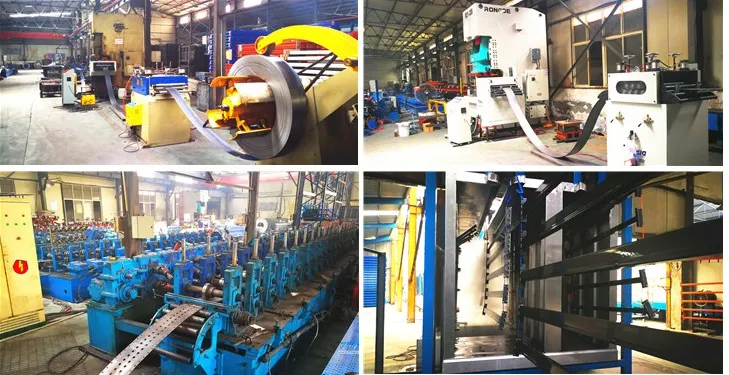

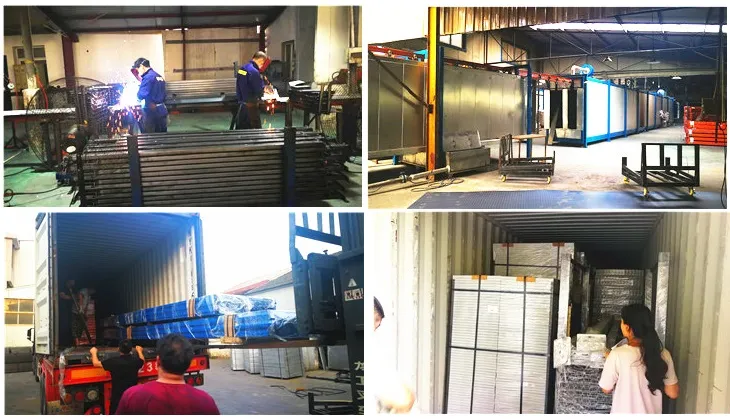

Production

RFQ documents

Before sending your Requirement For Quotation, please prepare the following information:

Warehouse layout CAD drawings if available.
Pallet size, entry side, width, depth, and height of goods.
Loading weight per pallet.
Clear height of the warehouse.
Your forklift information, working aisles width, and max reaching height.
Your intra logistic flow within the warehouse.

Frequently Asked Questions

Q1 What is VNA Pallet Racking and how does it work?

VNA (Very Narrow Aisle) Pallet Racking is derived from selective pallet racking, configured with narrow working aisles. It is designed to work with special VNA trucks featuring rotating masts or forks that can store and retrieve pallets from the aisle without the truck itself needing to turn.

Q2 What is the typical aisle width for VNA Racking?

The working aisle width for a VNA system typically ranges from 1700mm to 2000mm, with standard operations commonly around 1800mm. The exact width depends on the VNA forklift specifications, reach height, and pallet depth.

Q3 What is the maximum design height of the rack beams?

The rack beam height for VNA pallet racking structures can be designed to reach as high as 15 meters, making it ideal for high-density storage applications.

Q4 What standard colors are available for the racking components?

Standard Epoxy-powder coating colors include RAL 5015 (sky blue) for frames, RAL 2004 (pure orange) for beams, and RAL 1004 (golden yellow) for protectors. Special customized colors can also be provided upon request.

Q5 What information is required to get a precise layout and quote?

To prepare a quote, we require warehouse layout CAD drawings, specific pallet size details (dimensions and height of goods), total loading weight per pallet, clear warehouse height, forklift model specifications (aisle width requirement/reach height), and the warehouse logistics flow details.
