Basic Info
Usage
Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack
Height
Max 12000mm or Customized
Weight Capacity
5000kg (Each Shelf)
Serviceability
Common Use
Width
1800/2700/3600mm or Customized
Depth
850-1050 mm or Customized
Upright Options
80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75
Beam Dimensions
Height: 80~160mm; Width: 50mm; Thickness: 2.0-2.5m
Shelf Height Adjustment
75/50mm
Unit Bay Capacity
500kg-23000kg / Customized
Aisle Selection
Single Row, Back-to-Back Rows, and Multiple Rows
Construction Type
Bolted Frame
Beam Type
Step Beam/Box Beam
Surface Finish
Powder Coated/ Galvanized
Color Options
Blue, Orange or Customized: All Ral Color
Number of Levels
According to Customer Needs
Feature
Durable, Corrosion Protection

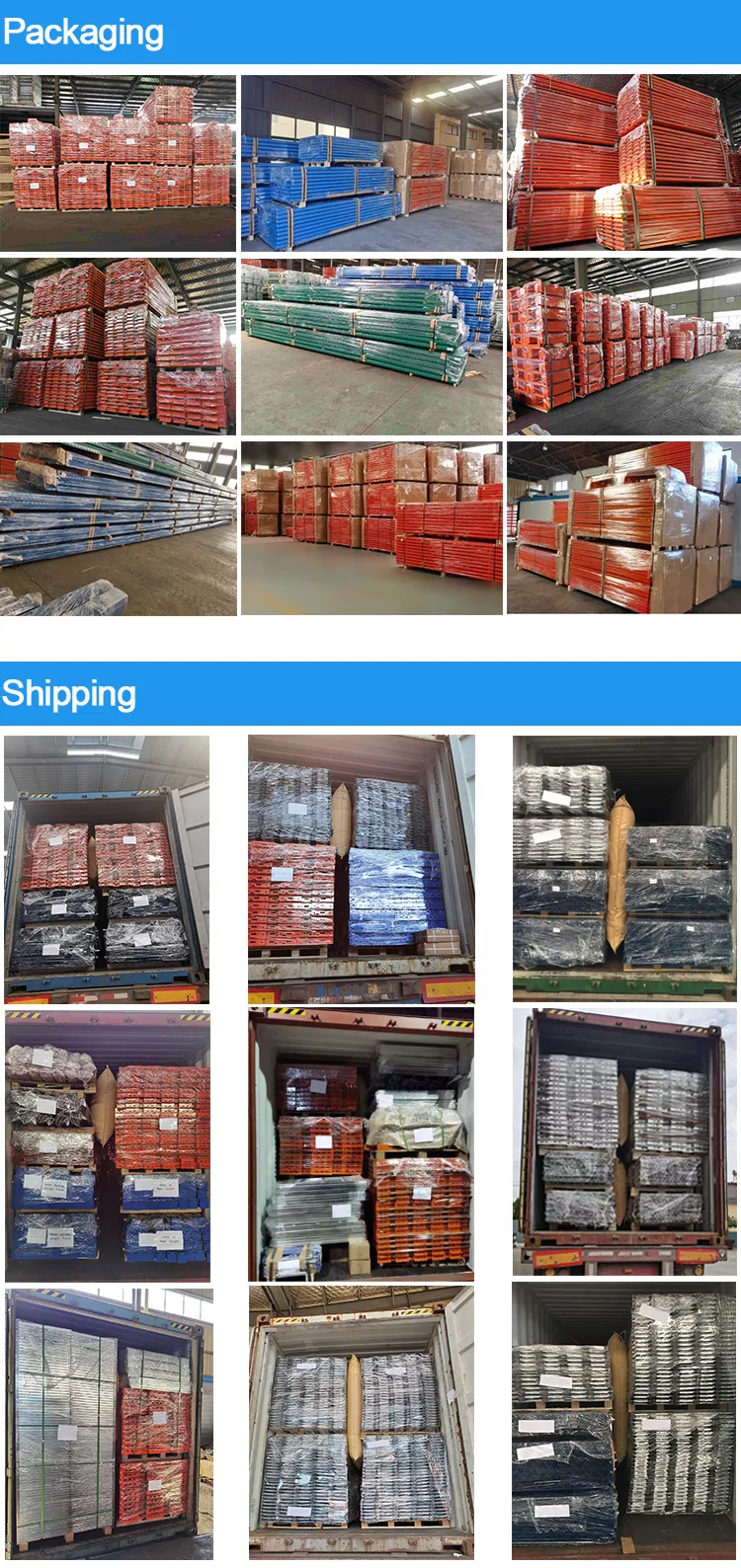

Transport Package
Package Ends with Cardboard and Bundle with Steel
Production Capacity
5000 Ton/Tons Per Month Warehouse Racking
Packaging & Delivery
Package Size
365.00cm * 110.00cm * 1205.00cm
Package Gross Weight
300.000kg

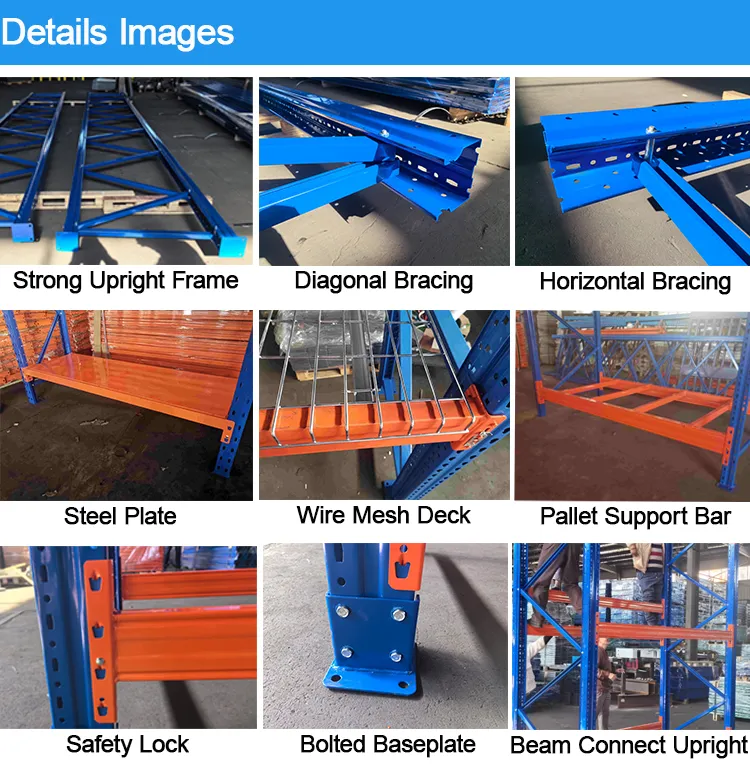

Details Images

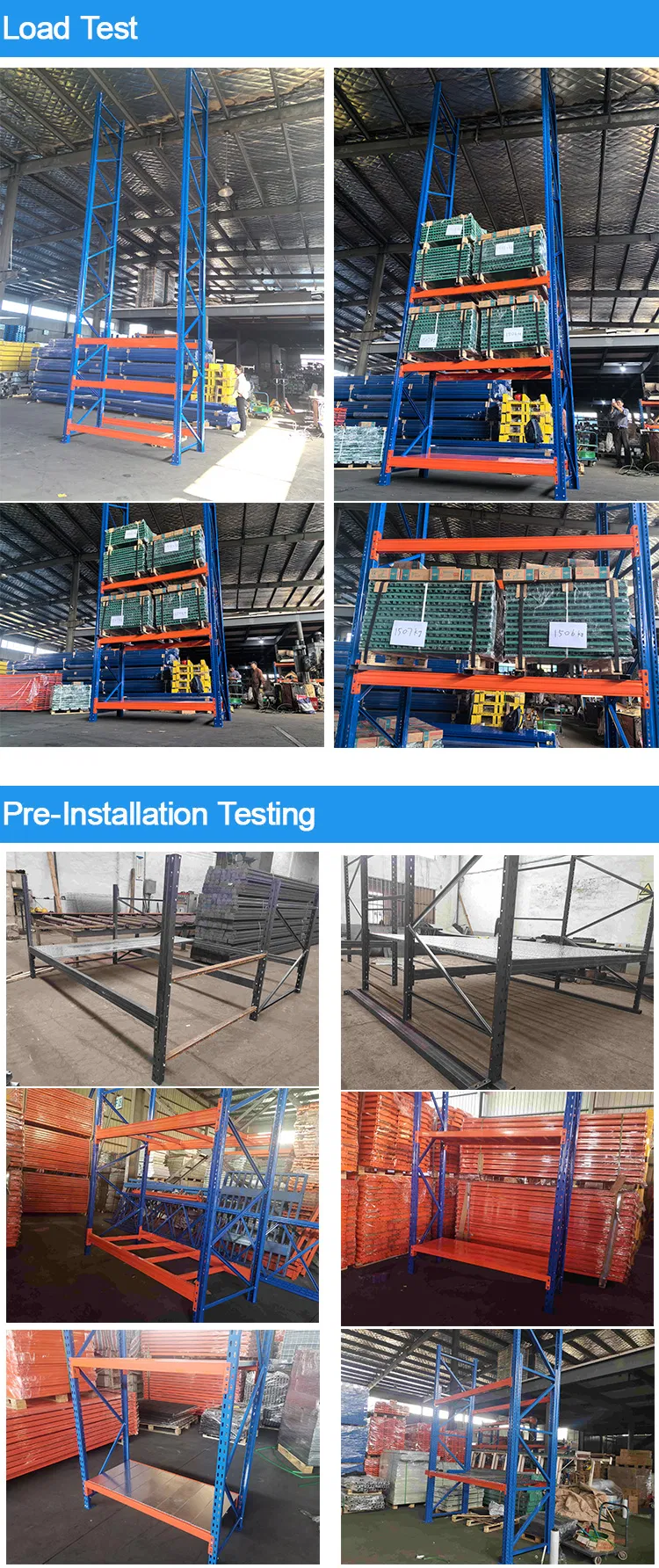

Load Test

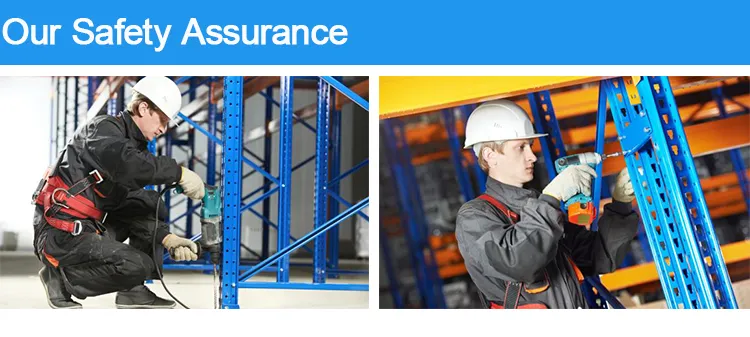

Our Safety Assurance
In VNA pallet racking the main factor that we must be taken into consideration is automatic guidance vehicles. A special type of forklift is required for this system.
Other than that we need to focus on metal rails, roller guides, and automated wired guidance system checking. Some special components help in safety measures. We must take essential measures while installing VNA racking.
- Guard Rail: The specification is 100*63*6.0. Triangular reinforcements are added every 500mm to make the guard rail stronger.
- Guard Rail Corners: Set up denser and thicker triangular reinforcements to Strengthen the anti-collision performance of guard rail.
- Pallet Backstop Types: The backstop of the pallet rack is made of metal and secured with bolted arms, as well as uprights or columns. It is used to prevent pallets from falling. It makes loading and unloading more secure.
- Backstop For Floor Pallets: Fixed to the floor. It manages floor-level pallets either with single or double backstops as per requirement.
- Safety Bolt: 7-shaped, inserted into the holes of the uprights to maintain the stability of the beams.
- Back Mesh: Installed on the sides of the shelves to prevent small items from scattering.
- Goods Dividers: Used to separate goods to prevent them from tilting or collapsing when stacked.
- Pallet Supports: Increase beam support and prevent items from falling, available in two types: single- and double-sided.
- Diagonal Braces: Support structures between shelf uprights that increase the overall stability of the shelves, reducing lateral deformation and shaking.
- Cross Braces: These connectors can be installed between the horizontal beams of the shelves to increase overall rigidity.
- Row Spacer: Maintains stability between mainframes and sub-frames.
- Shims: Provide shock absorption, reduce noise, adjust shelf height and horizontal angles, and prevent shelf sliding.
- Markers: Used for guidance. A rectangular metal plate that gives information about signs. These signs may place on outer areas of narrow pallet racking at different aisle points.
Warning Of Loading Notices:
The load warning notice may be applied on prominent and visible places of VNA pallet racking. The load warning notice may include the following information:
* The safety notices
* Type of racking system
* Load bearing installations
Label About Carrying A Load: Its purpose is to mention the load capacity of VNA racking beams. It reduces the damage risks in your warehouse. You may overcome loading and unloading mistakes.
| Products Support |
Details |
| Free Consultation |
Yes, Any Questions You Can Consult With Free. |
| Support For Custom |
Yes |
| Free Design |
Yes, CAD/PDF/3D Drawing |
| Free Sample |
Available (Delivery Cost By Buyer) |
| 3D Sample |
Yes, 1:1 3D Sample, Save Your Time And Cost of Trial and Error |
| Pre-installation |
Yes |
| Capacity Test |
Yes, If Needed. |
| OEM&ODM |
Available |
| Lead Time |
15-20 Days For Regular Pallet Racking, One Container |
| Installation Service |
Yes, Submit the Installation Drawing Or Video, and send the Engineer To Your Site If Needed. |
| Maintenance Service |
Yes, We Submit a Free Maintenance Guide. |
| Repair Service |
Yes, We Submit Repair Services. |
Key Components
The following introduces you to different very narrow aisle pallet racking components:
- Upright: Upright plays an important role in connecting each beam of pallet racking and broadening the entire storage space.
- Frame: The main role of the frame is to connect the beam and guarantee the whole pallet racking more stability.
- Beam: Beams can be used to get strong support for your pallet racking.
- Base Plate: Fix the bottom of pallet racking.
- Upright Protector: Fix the upright columns to avoid the frame being unstable, and protect the racks.
- Shim: Make the bottom of the pallet racking flatter.
- Connecting Bolt: Responsible for connecting the beams and frames.
Why Choose Us
1. Strictly Racking Quality Inspection
Our quality inspection team checks the pallet racking quality for every producing step, which guarantees the quality of your racking during processing.
2. Advanced Production Equipment
A variety of complete equipment to make sure the delivery time and quality are within our control range.
3. The Best Racking Quality of Powder Coating
Our production utilizes two times powerful pickling technology to oxidize effectively and produce an oxidation film layer on the steel surface. This process optimizes resin powder adsorption to the steel, significantly increasing the lifecycle of your racking system.
Company Profile
We are dedicated to the production of racking storage, providing quality solutions for saving your storage space and optimizing storage workflows.
With over 23 years of experience exporting quality racking to over 85 countries worldwide to date, our fully automated, state-of-the-art technology provides the ideal conditions for the production of optimum racking systems.
We offer a 10-year warranty to cover your racking needs in the future, maintaining a client-first approach to provide the best possible service.
FAQ
Do you have any MOQ for your racking order?
We have no strict MOQ requirements; even 1 set can be ordered, allowing you to order flexibly according to your industrial storage rack requirements.
Can I get a sample? Is it free or extra?
Yes, we can provide you a FREE cut-size sample at any time with a quick delivery window of 7 days.
Can you do custom development and sizing?
Yes, we can. We design and build customized racking to meet all your unique requirements. Additionally, we offer an exclusive way to provide a physical prototype before mold opening, reducing cost and trial and error.
Can I get a FREE solution design?
Yes, we provide FREE racking layout designs. Simply send us your detailed dimensions and warehouse requirements.
How can I get a quick quotation?
If you are stocking racking: Send your regular material list, and we will provide pricing within 2 hours.
If you are managing a project: Provide design drawings or project dimensions (length, width, height, post and gate locations). End-users should also provide details on pallet dimensions (loaded H*W*D), maximum loading weight, and preferred tier configurations.
What is the typical lead time for an order?
For regular pallet racking, the typical lead time is 15-20 days for a single container. Customized or complex project items may require a revised schedule.
