Modernization Warehouse Storage Very Narrow Aisle Vna Racks Heavy Duty Pallet Racking

Product Description

Space efficiency Maximized by 20%

The Very Narrow Aisle (VNA) racking system, also known as VNA racking, is engineered for superior space efficiency. Unlike traditional pallet racks, the aisle width in VNA systems ranges between a compact 1600-2000mm, necessitating the use of specialized three-way forklifts. This design dramatically enhances warehouse space utilization, maximizing storage capacity by up to 20%.

Application: Ideal for warehouses managing a low variety of high-volume items with frequent goods movement and stringent picking requirements.

Specifications

Model Number	Rack supported building	Type	VNA
Material	Steel Q235B, Q235D, SS400	Feature	Corrosion Protection
Use	Warehouse storage	Certification	CE, ISO9001, ISO14001
Size	Customized	Load Capacity	4000kg per level
Color	Blue, orange or customized	Pitch	75mm
Surface Treatment	Electrostatic spraying	Keyword	Pallet rack building
Structure	Assemble	MOQ	Customized

Modernization Warehouse Storage Very Narrow Aisle Vna Racks Heavy Duty Pallet Racking

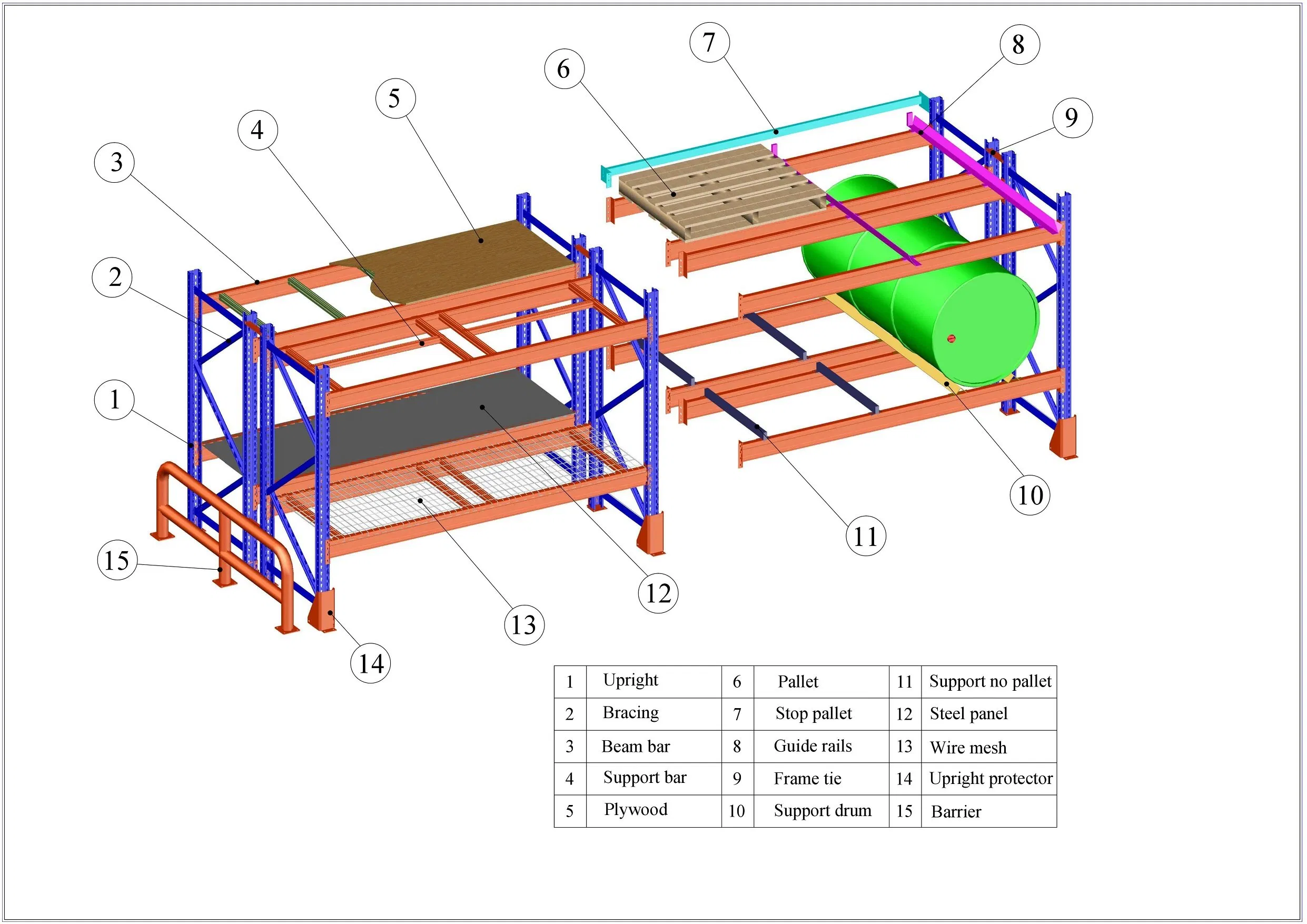

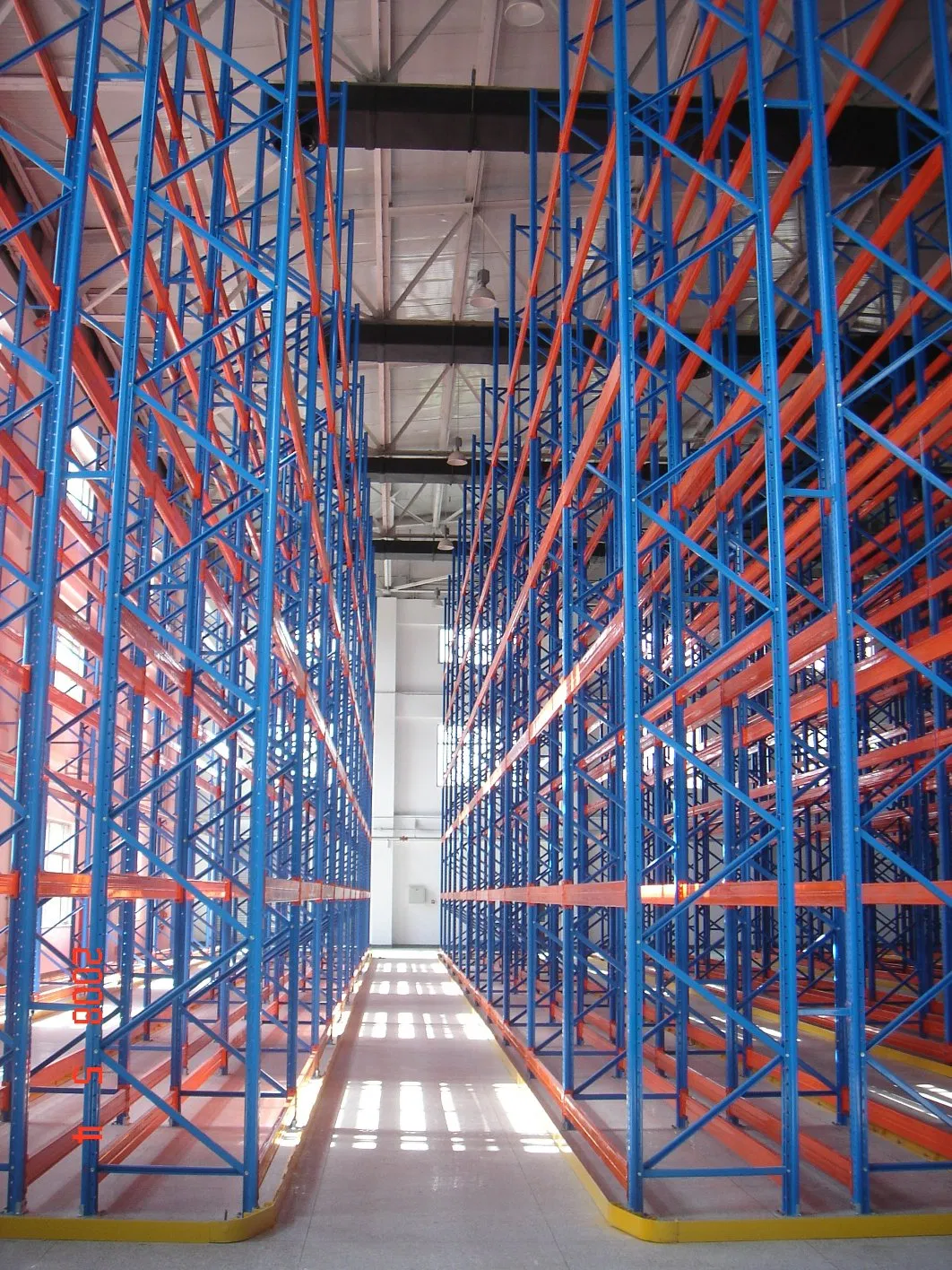

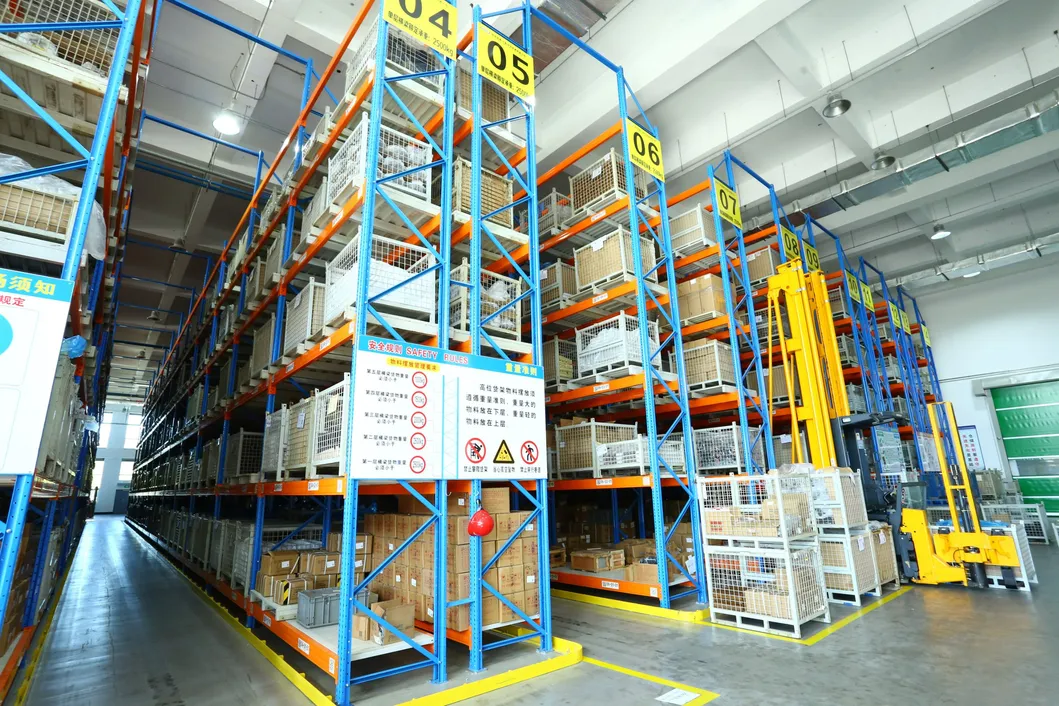

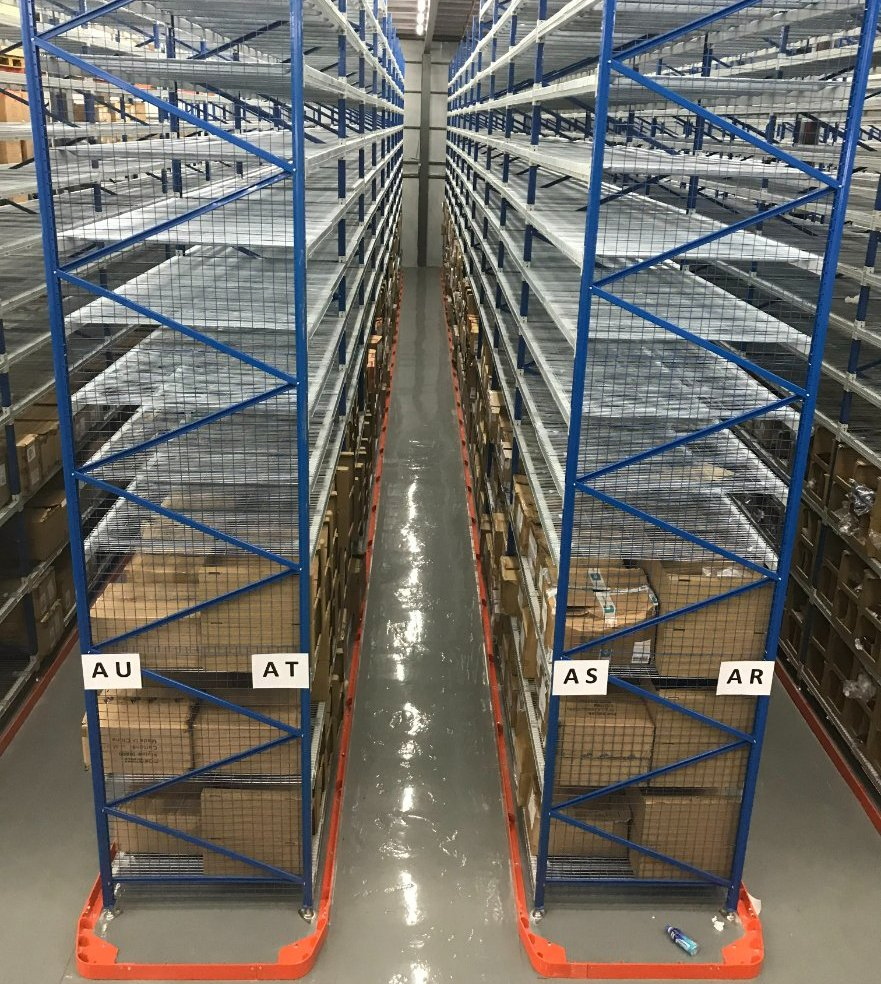

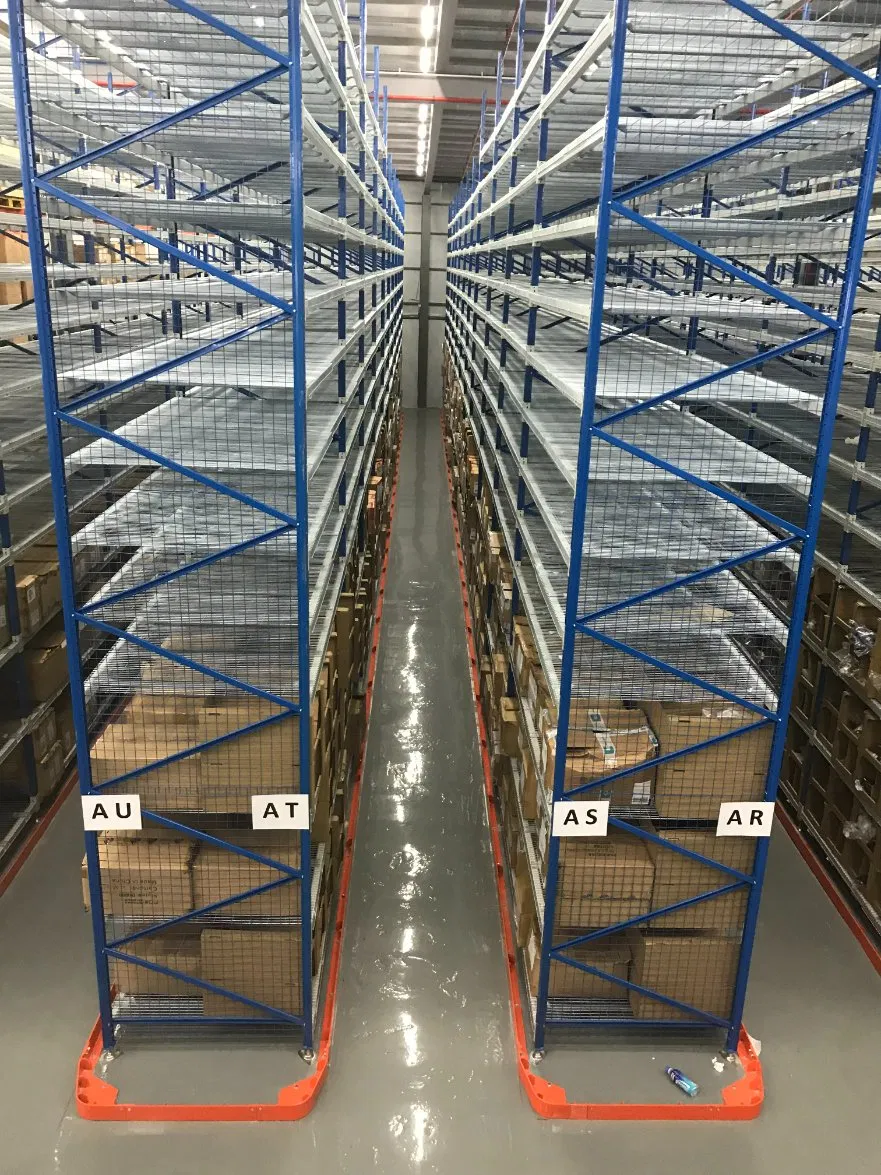

Detailed Photos

Modernization Warehouse Storage Very Narrow Aisle Vna Racks Heavy Duty Pallet Racking Detail

Product Parameters & Design Considerations

Our VNA pallet racking systems are tailored for modern warehouses reaching heights of up to 17 meters. These systems are meticulously crafted to align with the precise operational tolerances of VNA equipment, ensuring the aisles are only marginally wider than the load. This configuration demands exceptional rigidity and precision in manufacturing.

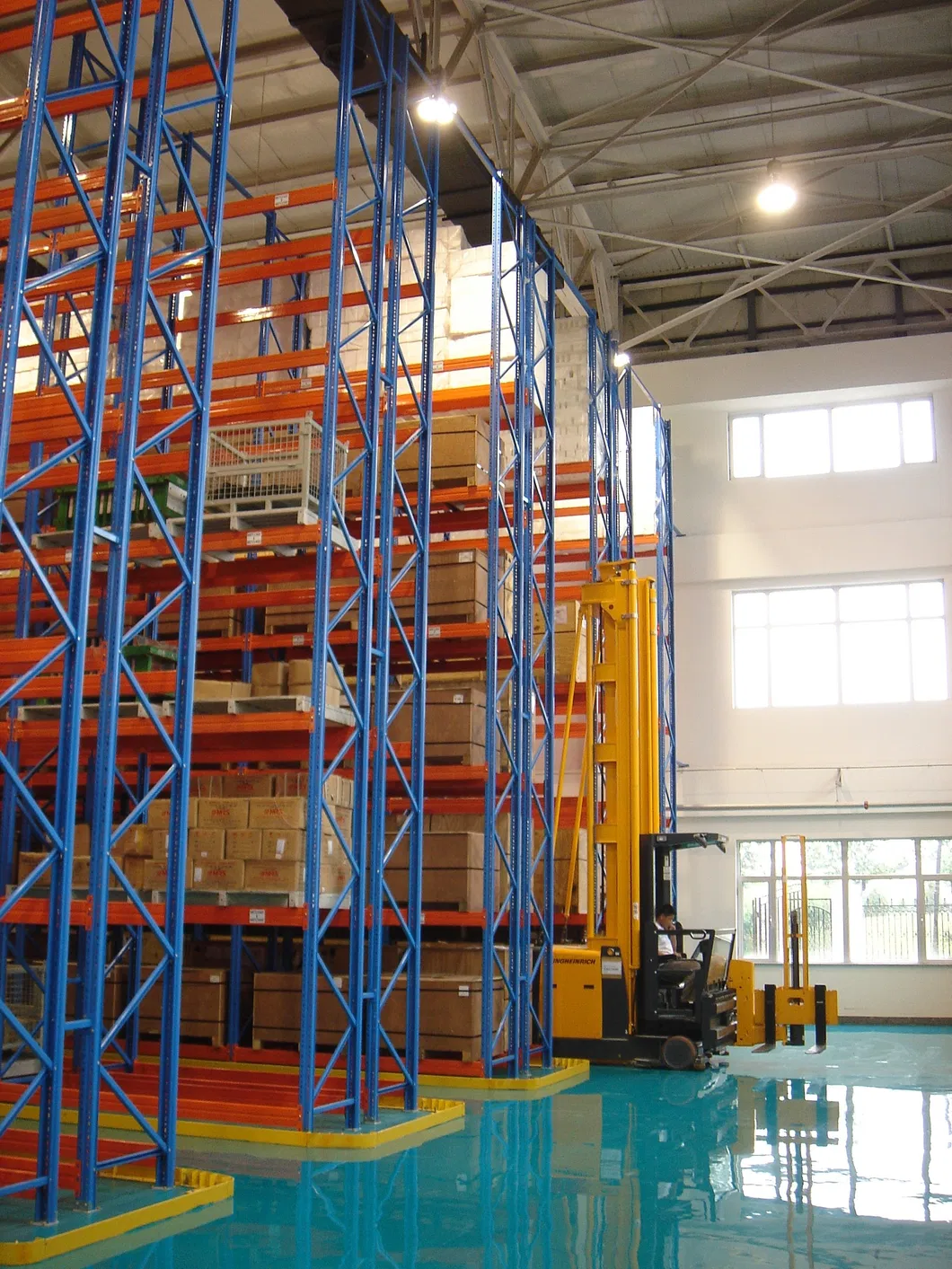

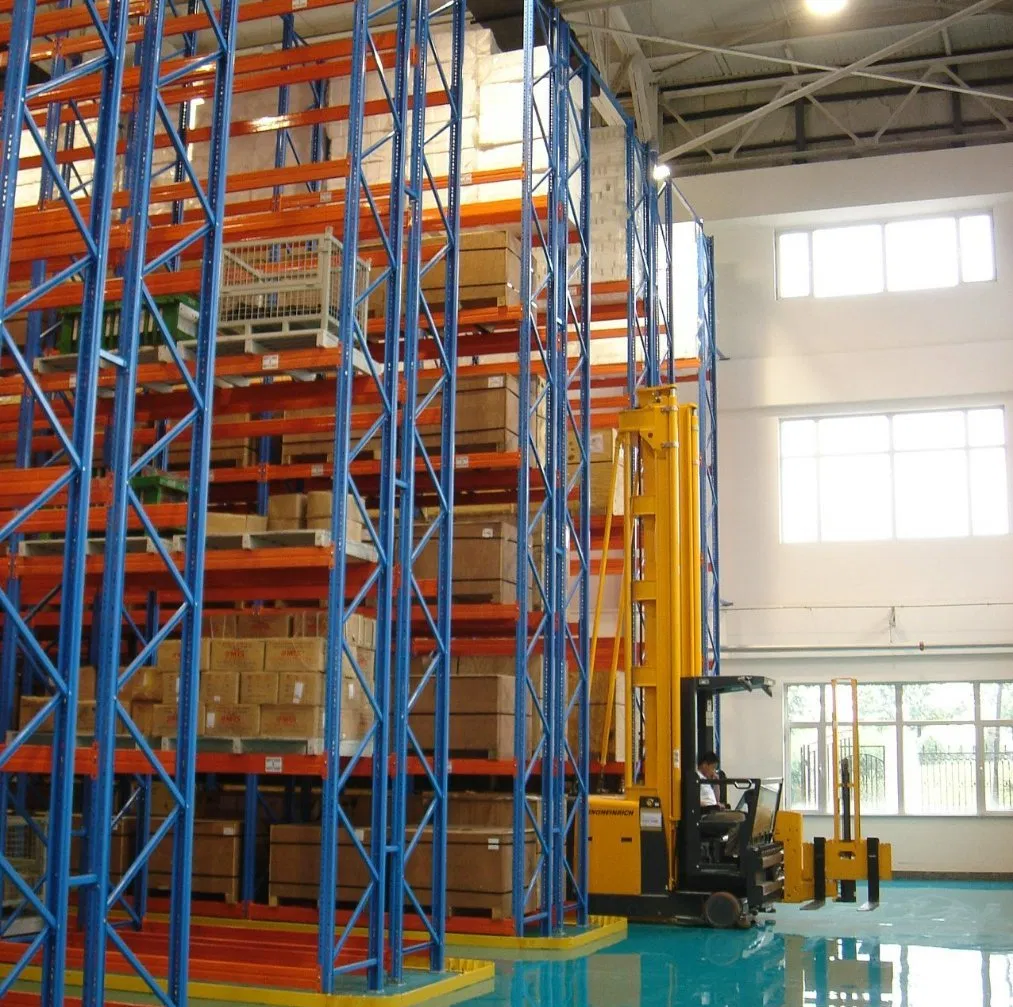

VNA aisles, approximately 1600mm-2000mm wide, are significantly narrower than those of standard pallet racking, substantially boosting space efficiency. Operation within these aisles requires skilled drivers using specialized forklift rotating trucks.

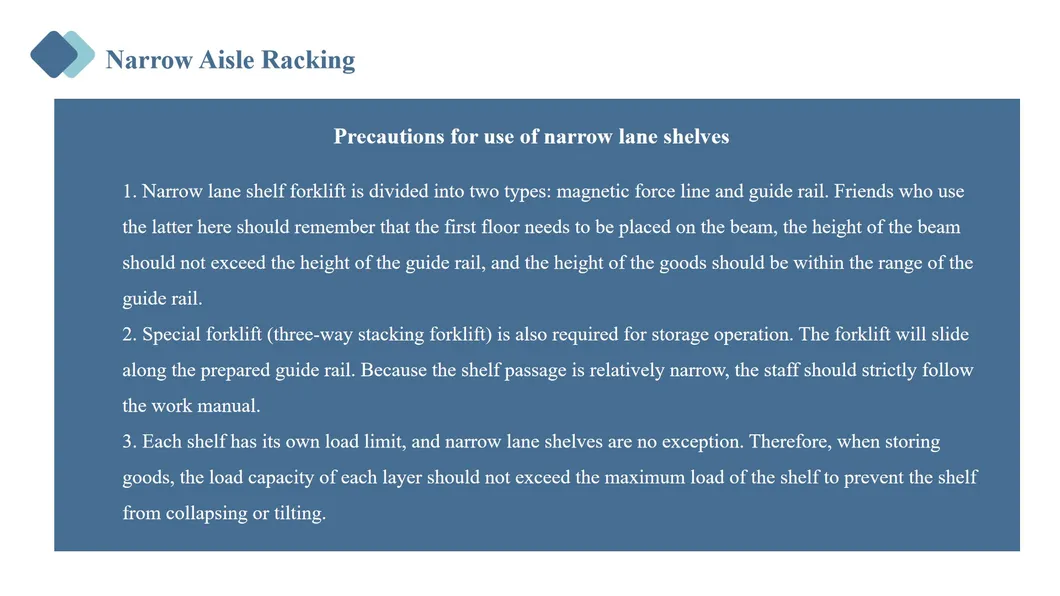

Guide rails for VNA, standing at about 200mm in height, can be installed during civil works or racking installation and are accompanied by protective plates. These rails guide forklifts, reducing accident risks and lowering the skill requirements compared to drive-in pallet racking.

Considerations for fire suppression and seismic resilience are crucial. Floors must be exceptionally flat and hard-wearing to withstand heavy static and live loads.

Certifications

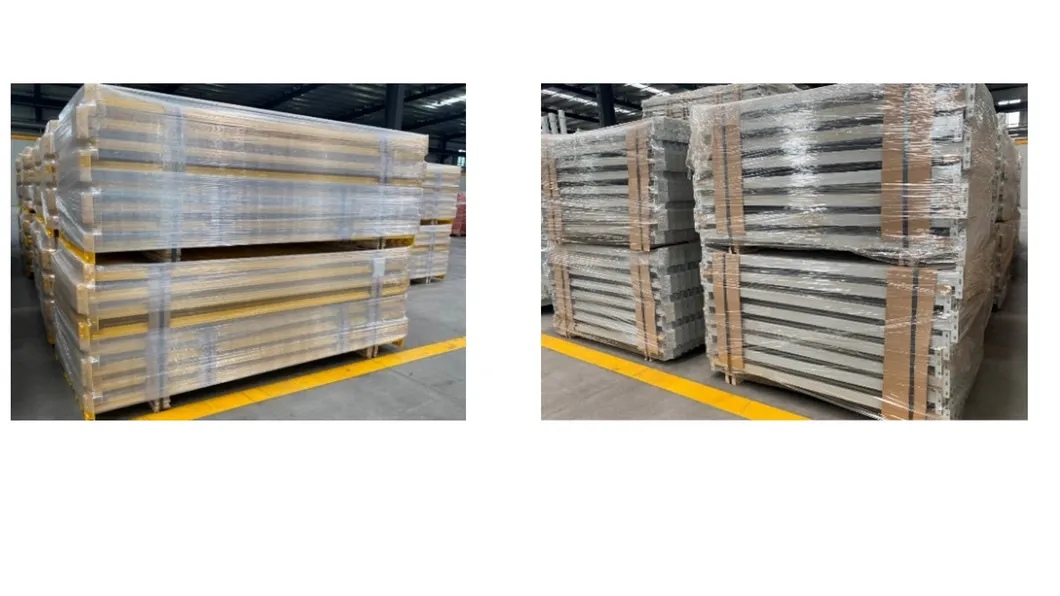

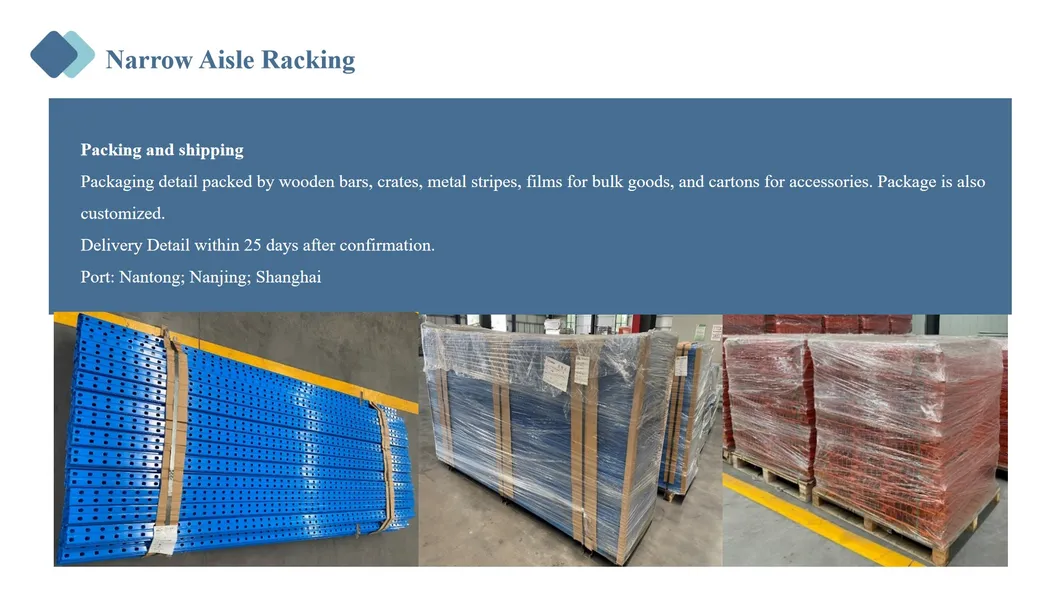

Packaging & Shipping

Our Advantages

Expert services in packaging and product exportation.
Superior manufacturing capabilities.
Flexible payment terms: T/T, Western Union, L/C.
High-quality, safe materials at competitive prices.
OEM design customization for all clients.

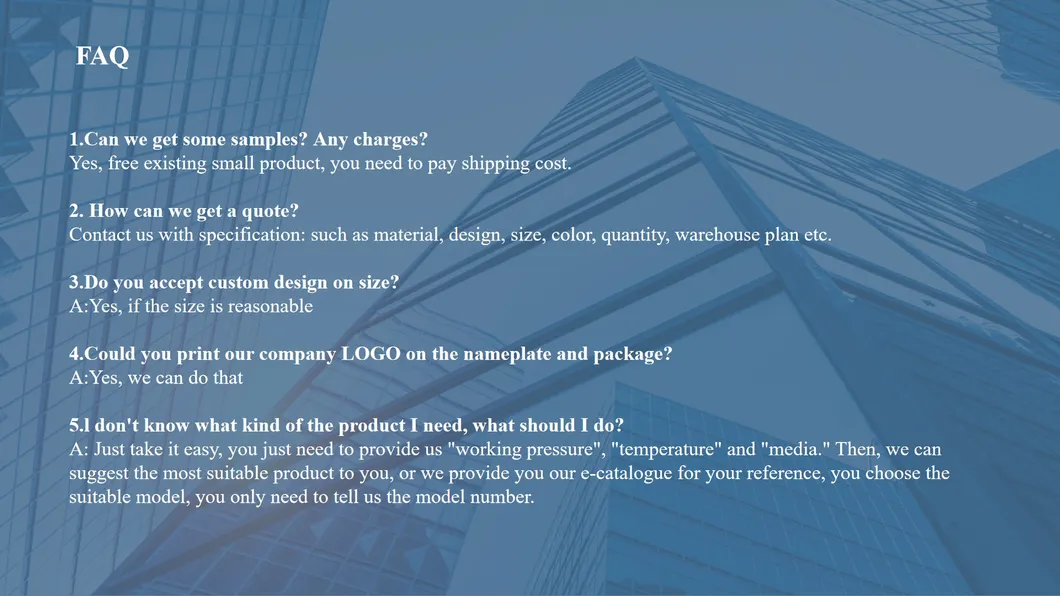

Frequently Asked Questions

What is a Very Narrow Aisle (VNA) racking system?

A VNA racking system is a high-density storage solution that narrows the aisle width down to 1600mm-2000mm. It operates with specialized forklifts, maximizing overall warehouse space usage by up to 20%.

What specialized equipment is needed for VNA racking?

VNA systems require specialized three-way forklifts or rotating turret trucks that can handle operations in very tight corridors without turning the entire vehicle around.

Are guide rails required for the forklift aisles?

Yes, guide rails (typically 200mm high) or wire guidance systems are recommended to safely guide the forklifts along the aisles, preventing racking damage and ensuring high operational speed.

What are the requirements for the warehouse floor?

Because VNA racking can reach heights of up to 17 meters, the floor must be exceptionally flat, level, and hard-wearing to prevent forklift swaying and support high static and dynamic loads.

Is this system customizable?

Yes, the sizes, load capacities (up to 4000kg per level), colors, and pitches are completely customizable to fit your warehouse layout and inventory specifications.

Does the system feature corrosion protection?

Yes, all structural steel undergoes an electrostatic powder spraying surface treatment to provide durable protection against corrosion and mechanical wear.
