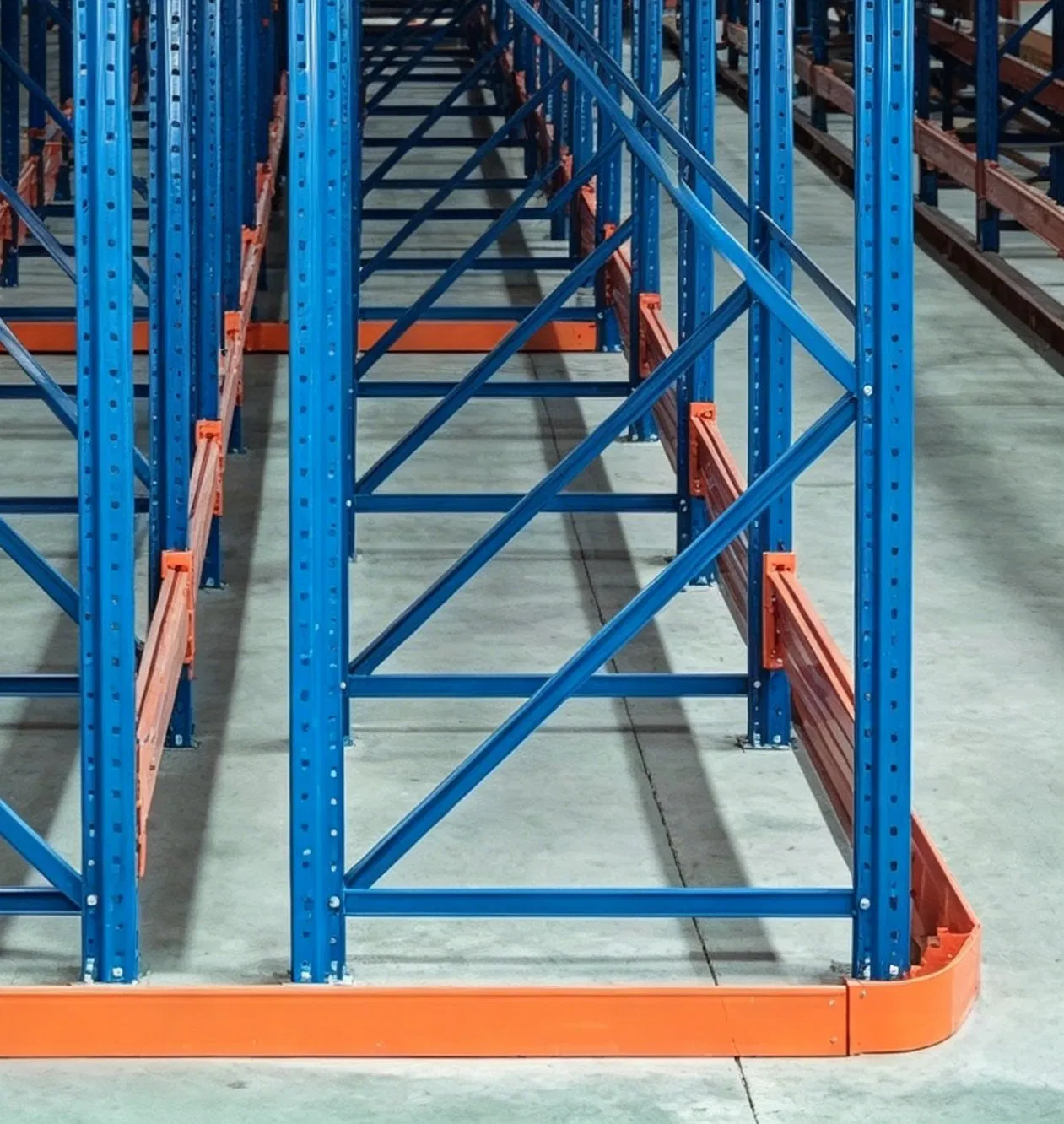

Industrial Vna Very Narrow Aisle Intelligent Warehouse Racking Storage System Solution

Customization: Available
After-sales Service: Provide Remote Guidance and Installation Drawings
Warranty: 3 Years

Product Description

Basic Info.

Model NO.
OGL-HDS-002
Usage
Beverage, Clothing, Industrial, Warehouse Rack
Material
Steel
Structure
Rack
Type
Pallet Racking
Mobility
Adjustable
Height
5-15m
Weight
800kg-4000kg/Layer
Closed
Open
Development
New Type
Serviceability
Common Use
Color
Blue and Orange, Customized
Surface Treatment
Powder Coated, Corrosion Resistant, Anti-Rust Treatment
Certification
ISO9001/CE
OEM&ODM
Acceptable
Advantages
One-Stop Service
Assembly Accessories
Provided by Seller
Design Service
Free CAD Service Available
Transport Package
Standard Simple Export Packing
Specification
Q235B cold rolled steel
Origin
China
HS Code
7308900000
Production Capacity
10000tons/Month

Product Description

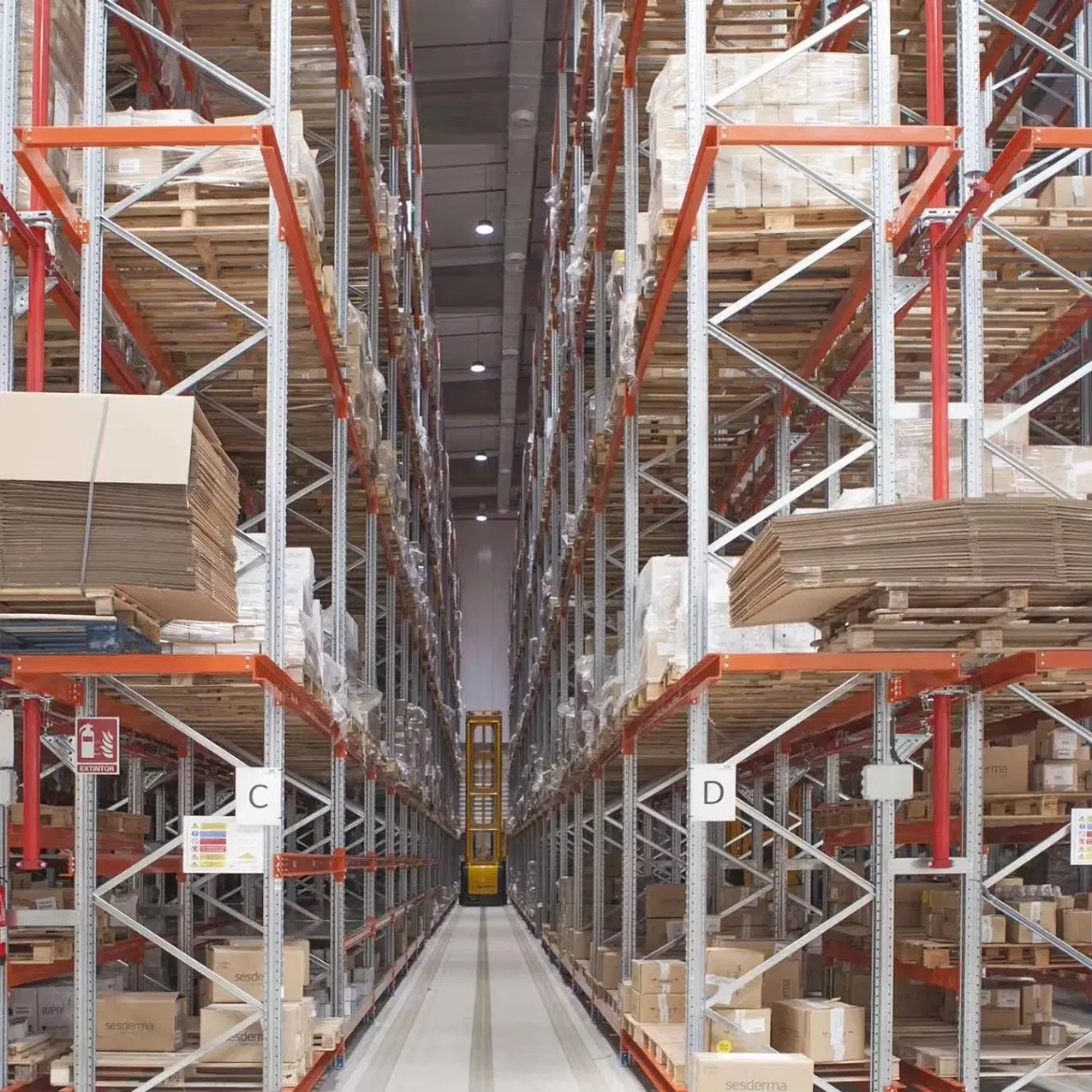

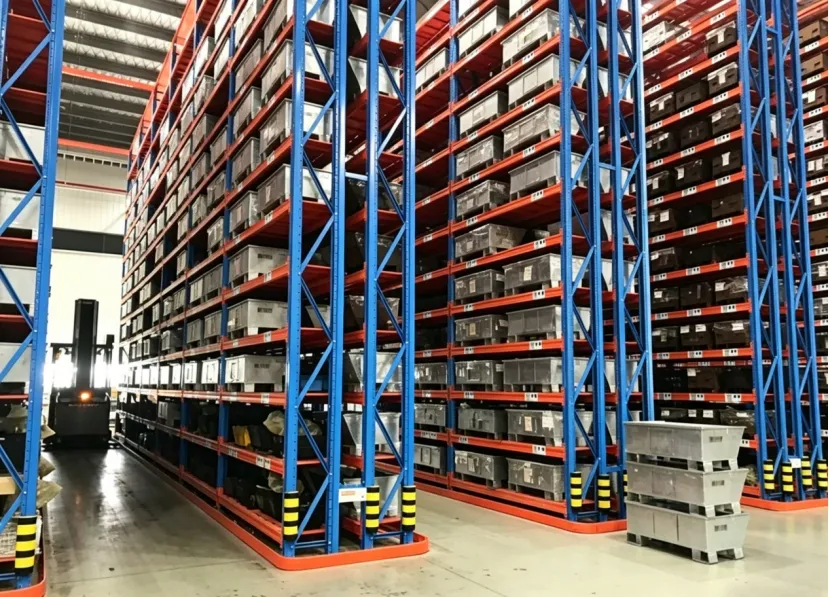

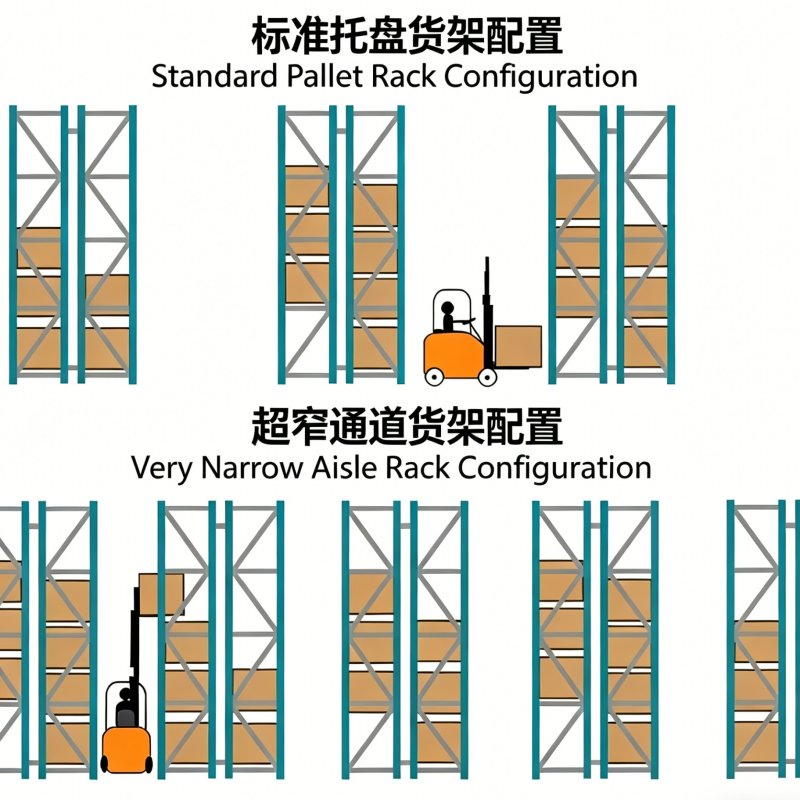

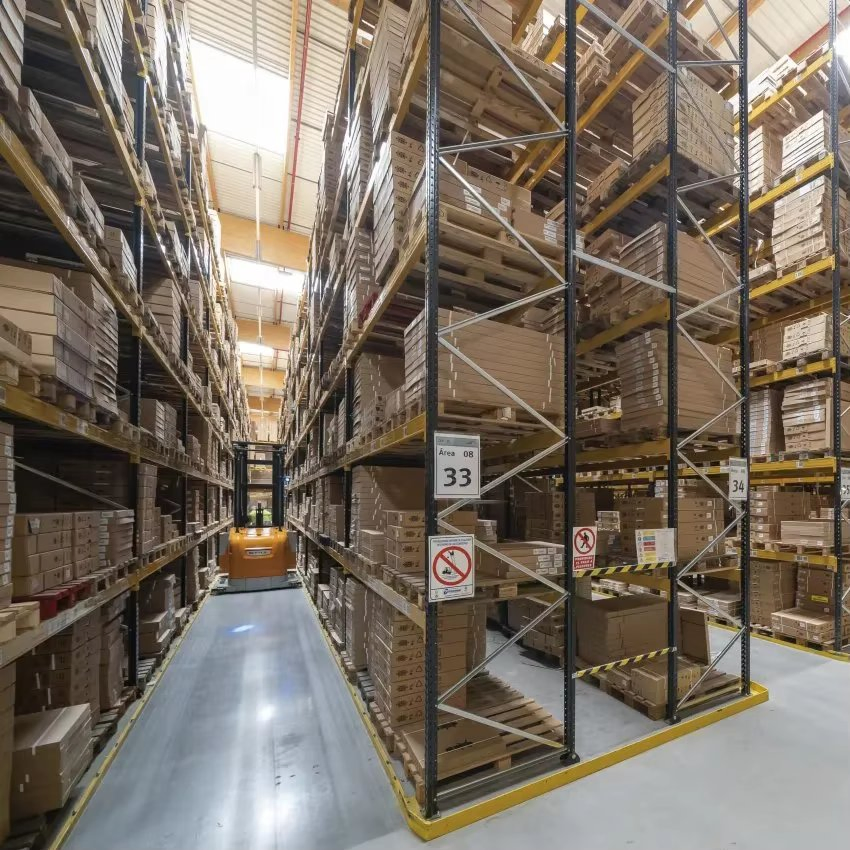

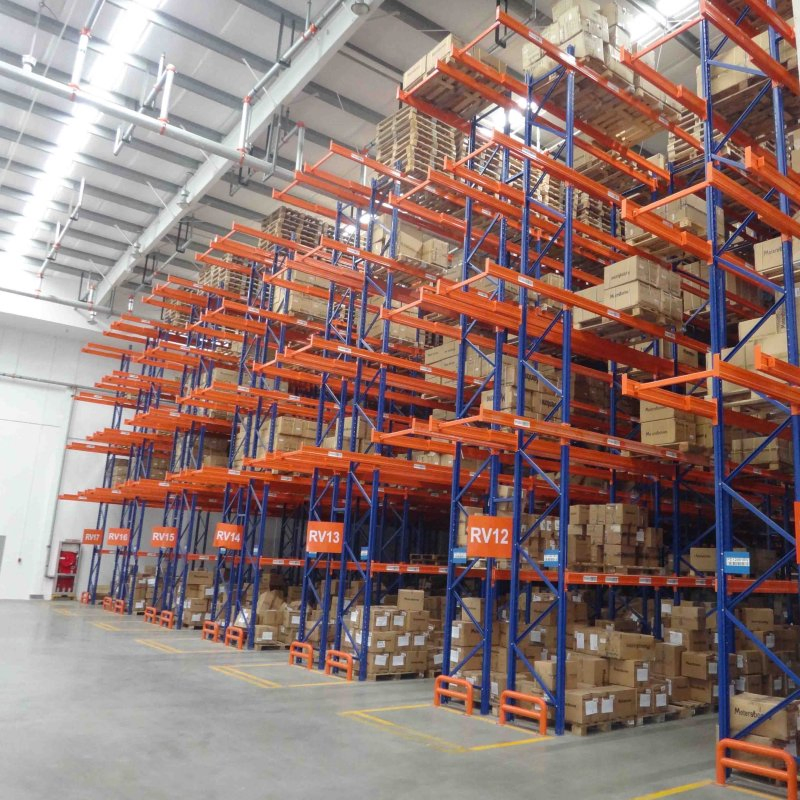

Narrow Aisle (VNA) Racking is designed for high-density warehouse storage, maximizing warehouse vertical space and floor utilization. It applies turret forklift working in very narrow aisles to access pallet goods directly, greatly saving aisle space compared with conventional pallet racking.

Key Advantages

  • High-Density Storage
  • Very Narrow Aisle Configuration
  • High Space Utilization Rate
  • High Access Efficiency
  • VNA Forklift Compatible
  • Optimized Floor Usage
Widely used in high-rise warehouses, cold storage, electronics, food, pharmaceutical, and auto parts industries with large SKU and high stock volume.
Industrial Vna Very Narrow Aisle Intelligent Warehouse Racking Storage System Solution

Material Specifications

(Custom configurations available upon request.)
Upright Beam Thickness
55*47 80*50 1.0
90*70 100*50 1.5
80*40 120*50 2.0
- 140*50 -
- 160*50 -

Drawings & Dimensions

Our engineering team provides custom dimension layouts and CAD drawings according to specific project requirements. Standard configuration diagrams are also available upon consultation.

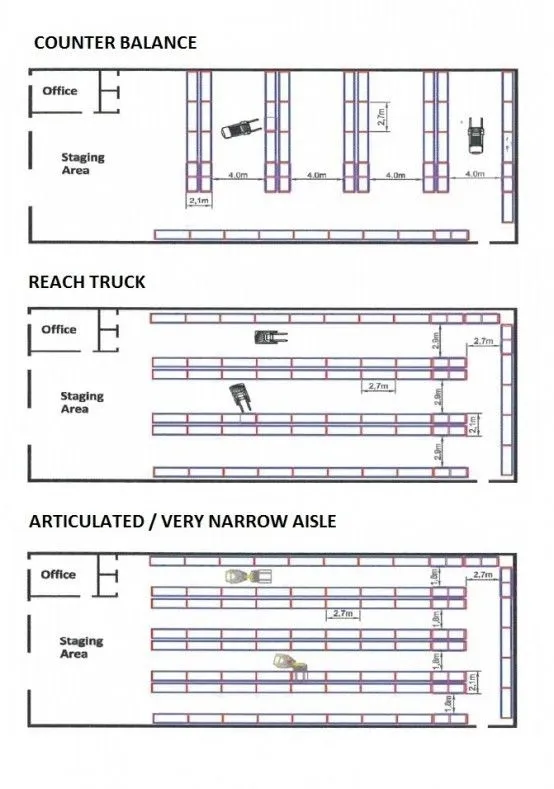

Drawings & Dimensions of Warehouse Racking

After Sales Service

  • Standard Warranty: 24 months.
  • Extended Warranty: Optional coverage up to 36 months.
  • Global Support: 24/7 technical assistance and spare parts supply.
  • Training: On-site or remote operation and maintenance training.

Manufacturing Capabilities

As a high-tech enterprise, we integrate research and development, design, manufacturing, sales, and engineering installation to deliver top-tier logistics solutions.
Our facilities feature two major production bases covering a total area of 40,000 square meters. We have built an expansive service network that extends overseas to provide seamless support.
Our core product portfolio includes conventional warehouse racking, automated AS/RS warehouses, AGV intelligent handling systems, and WMS warehouse management systems, widely applied in industries such as auto parts, cold chain logistics, e-commerce retail, and new energy.
Certified under ISO 9001:2015 Quality Management System and EU CE standards, our production processes align with international quality regulations and hold multiple utility patents.
With large-scale manufacturing capacity and a quick-response service network, we have established long-term strategic cooperative partnerships with many Fortune Global 500 enterprises.
Production Facility Showcase

Frequently Asked Questions

Q: What's the lead time for orders?

A: Standard models ship in 15 days; customized units require 20-25 days.

Q: What is the MOQ we can order?

A: Normally it is one 20ft container, which also depends on the size of your products. Generally, the MOQ is 10 sets.

Q: What are the payment terms?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q: What documents do you provide for export?

A: We provide a full export package including the Commercial Invoice, Packing List, Bill of Lading, COC, etc.

Q: I don't have a drawing or picture available for the products, could you design it for me?

A: Yes, we can make the most suitable design for you, but we will need to obtain more details about your specific warehouse requirements.
