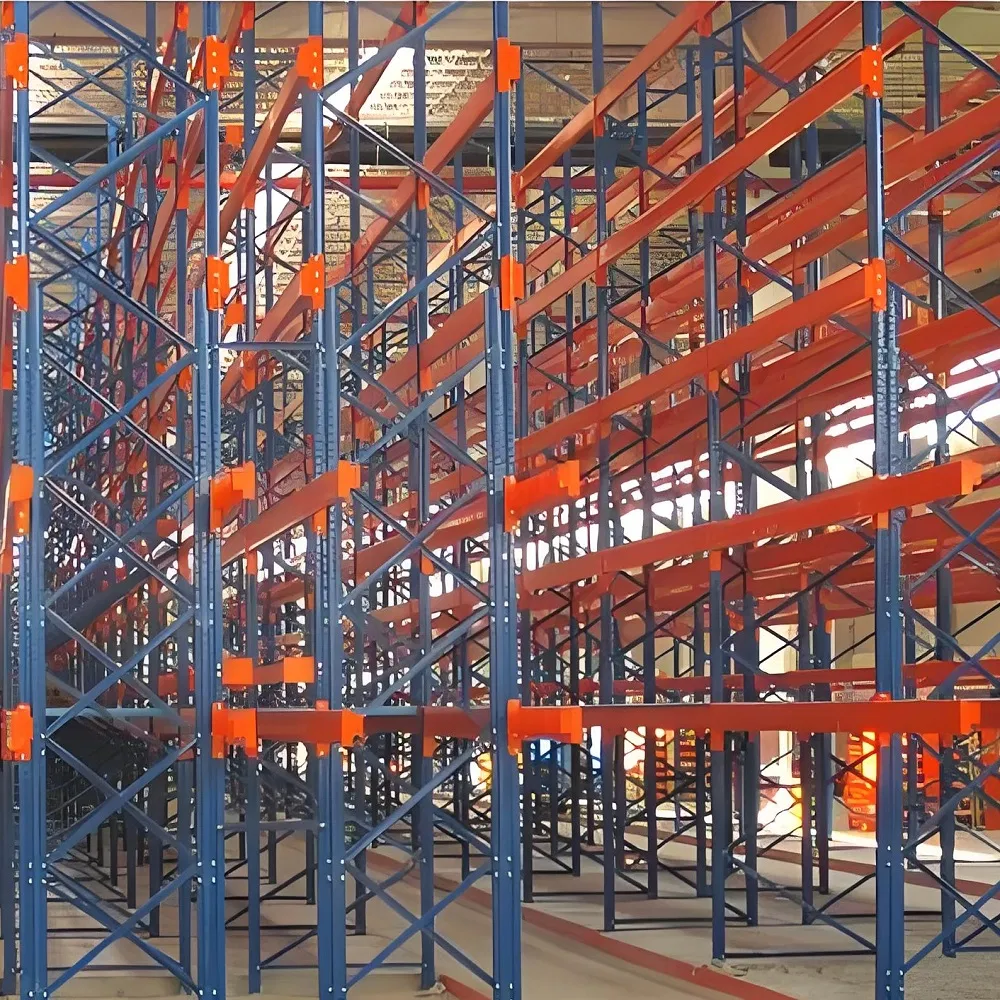

High Density Very Narrow Aisle Vna Pallet Racking System Industrial Storage Rack for Warehouse Optimization

Customization:	Available
After-sales Service:	Avaliable
Warranty:	One Year

Overview - Basic Info

Model NO.20260228

UsageWarehouse Rack

MaterialQ235B

StructureSteel Structure

TypePallet Racking

MobilityAdjustable

Height>15m

Weight500kg

DevelopmentConventional

ServiceabilityWarehouse

ColorBlue and Orange, or as Request

SizeCustomized Size

Surface TreatmentPowder Coated

Main MarketsAsia, America, Europe, Africa, Oceania

ApplicationAny Area Where Goods Need to Be Stored

CertificationCE

CustomizedOther Special Size Available

Transport PackageStandard Export Package

SpecificationCustomized

OriginChina Nan Tong

HS Code730890

Production Capacity10000t/Year

Packaging & Delivery

Package Size100.00cm * 100.00cm * 100.00cm

Package Gross Weight100.000kg

Product Introduction

High Density Very Narrow Aisle Vna Pallet Racking System Industrial Storage Rack for Warehouse Optimization

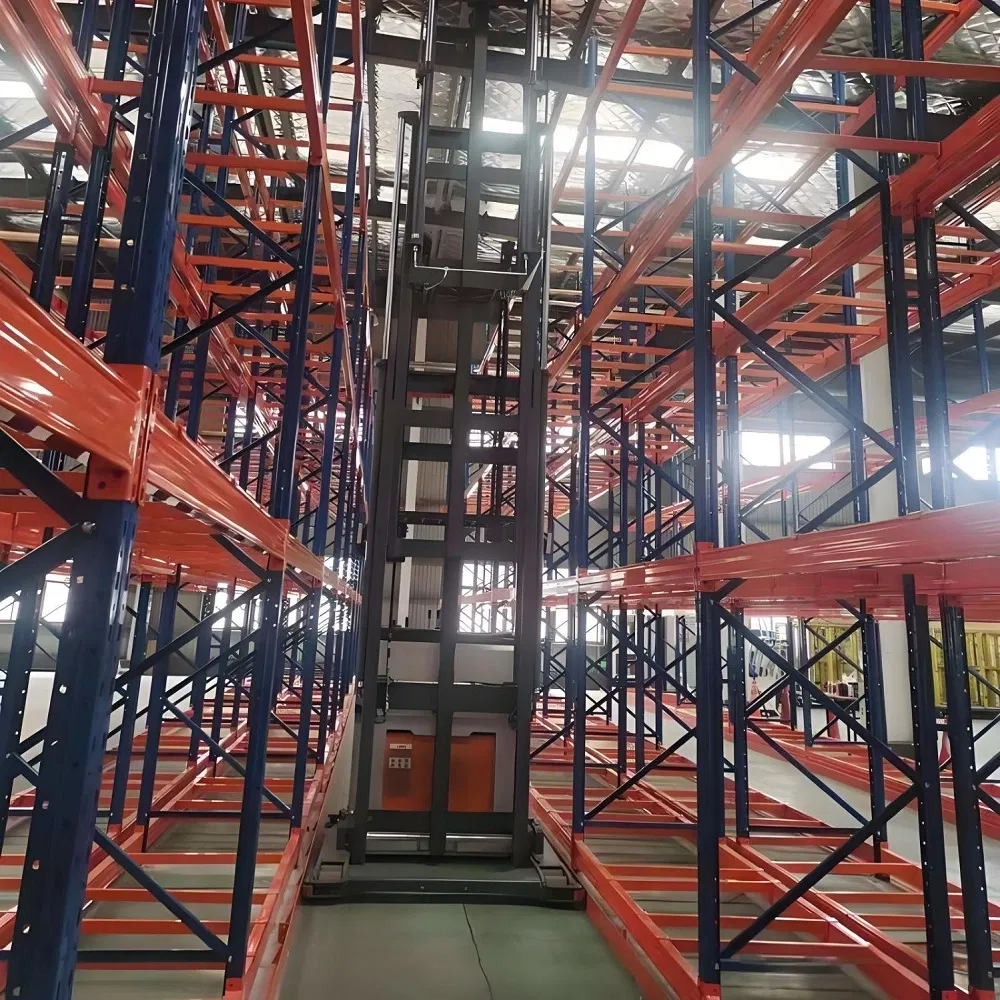

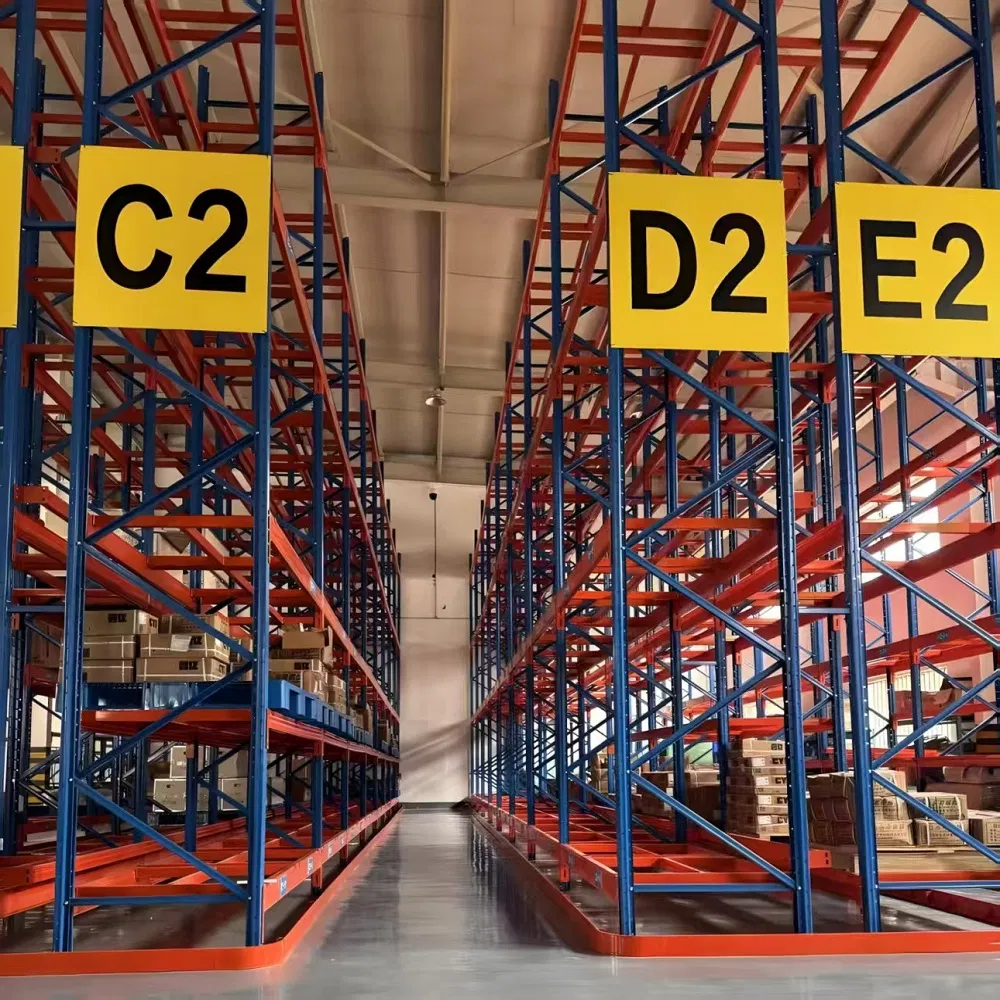

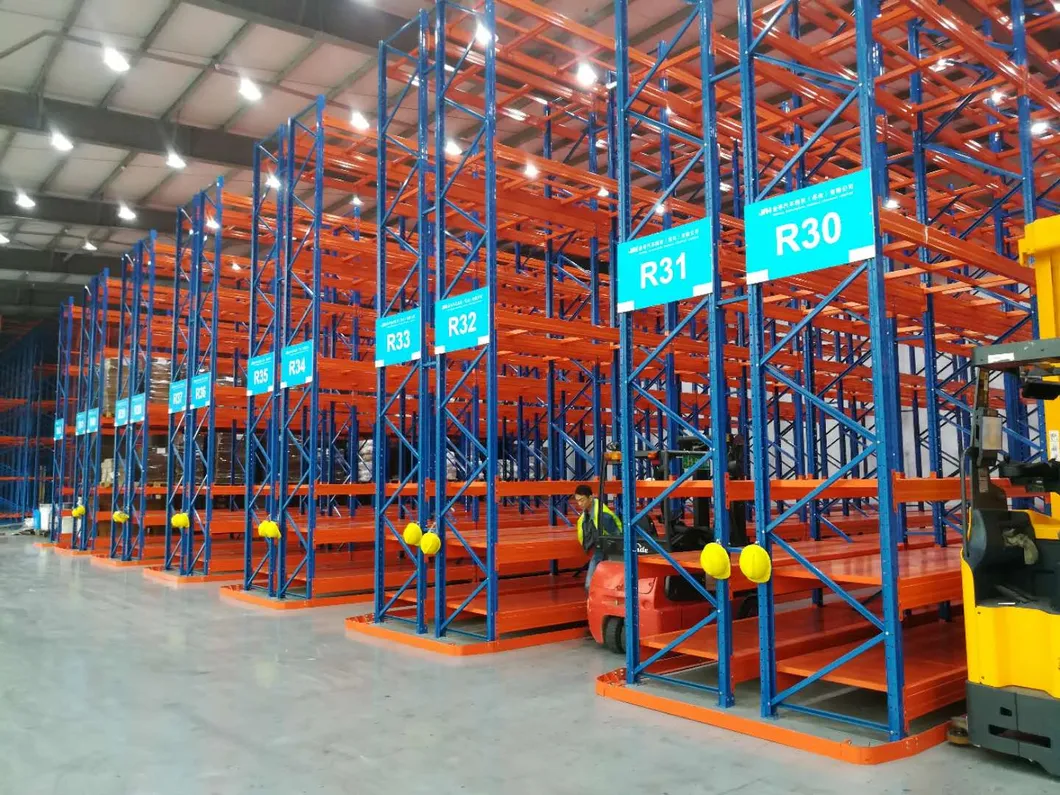

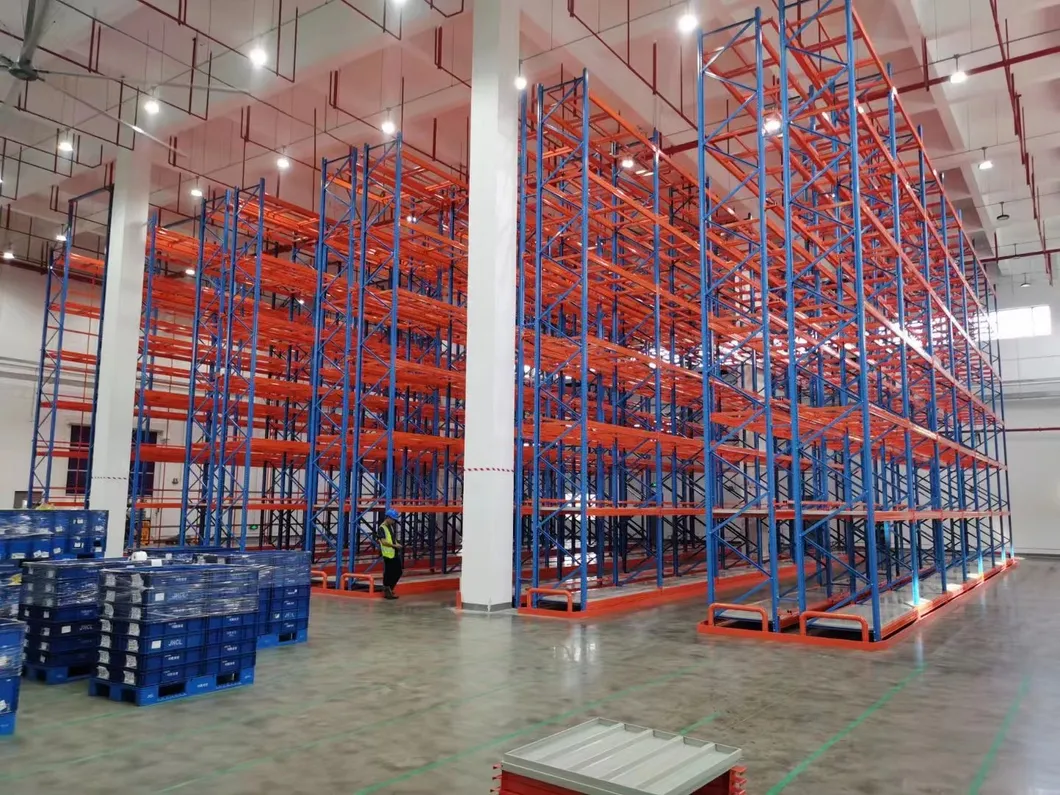

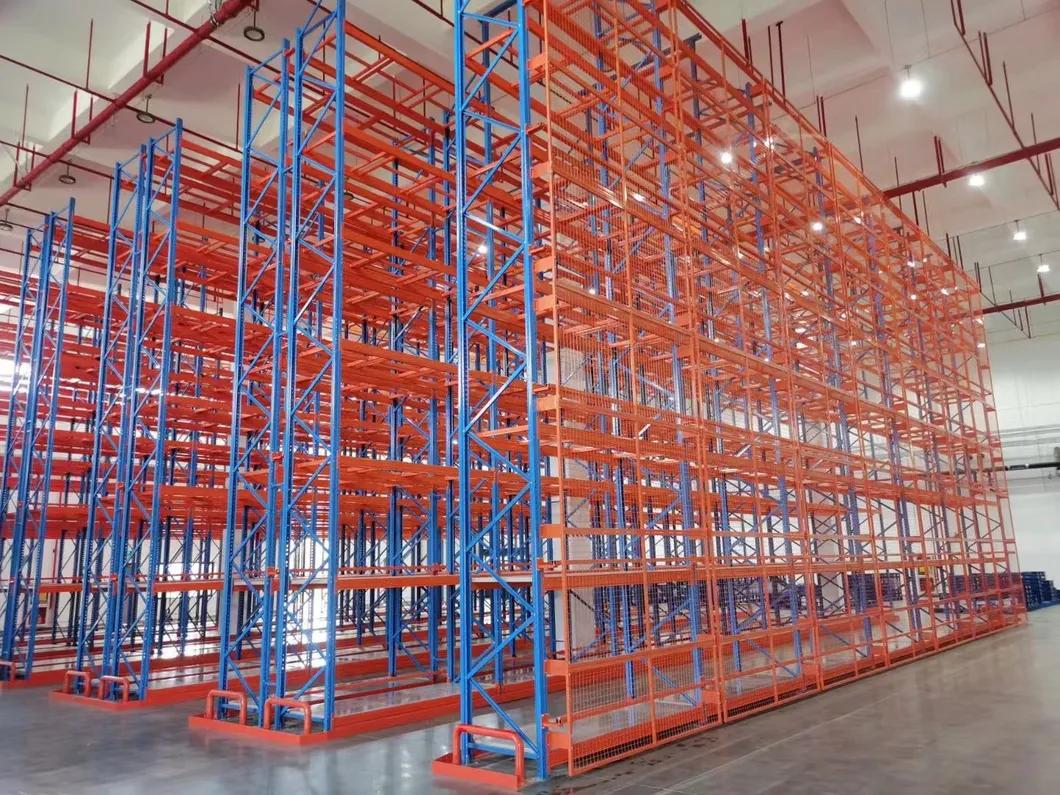

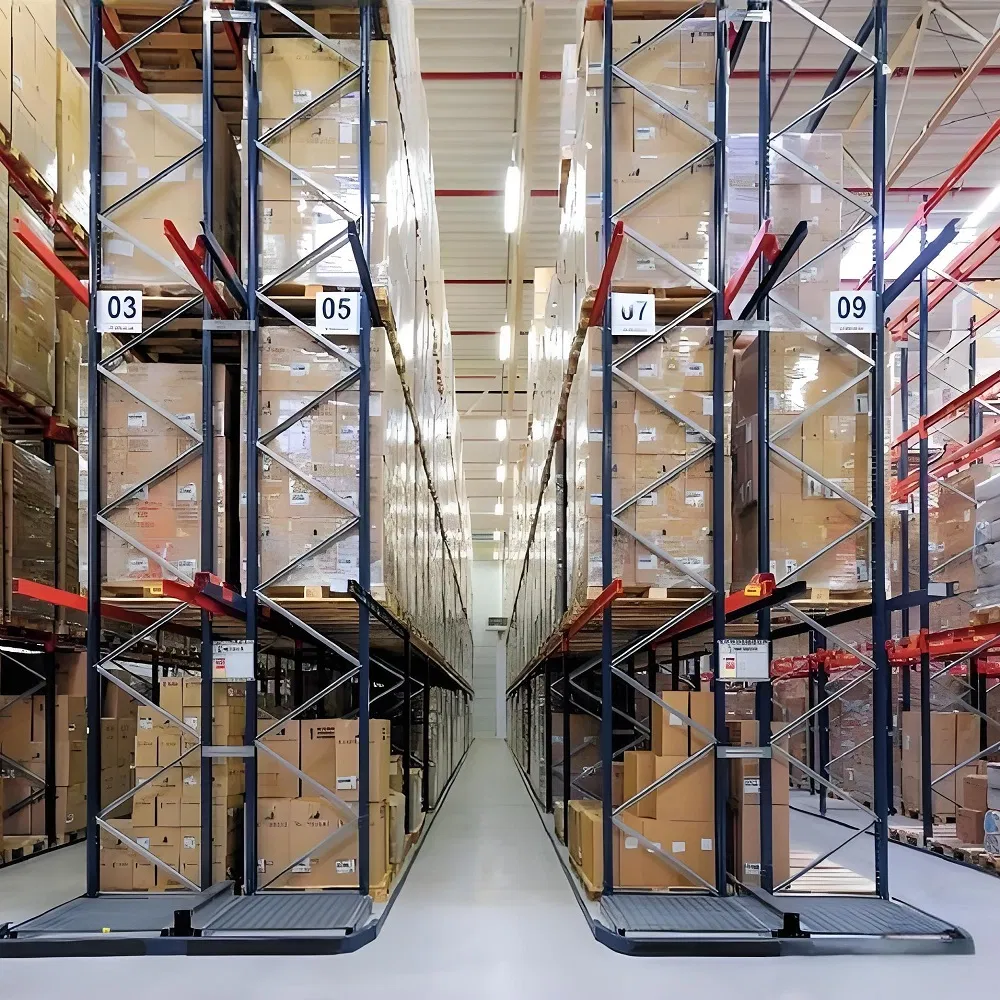

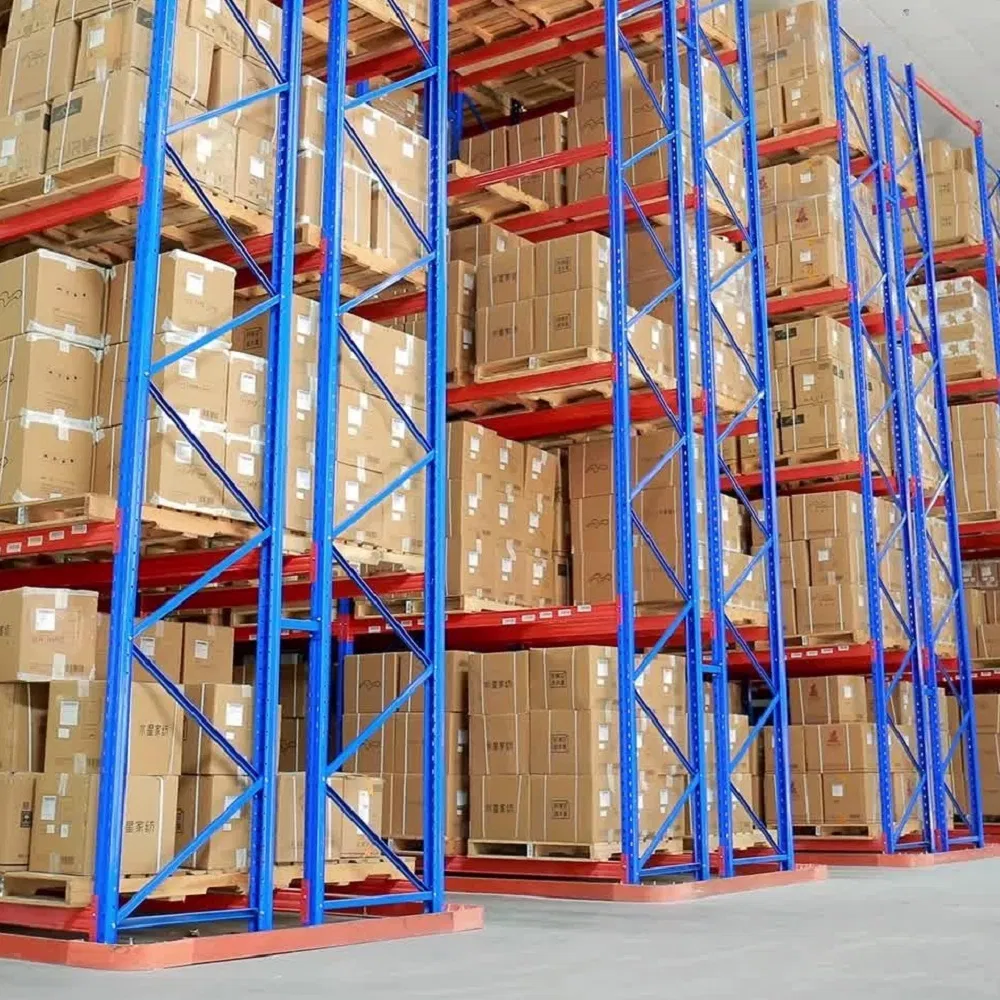

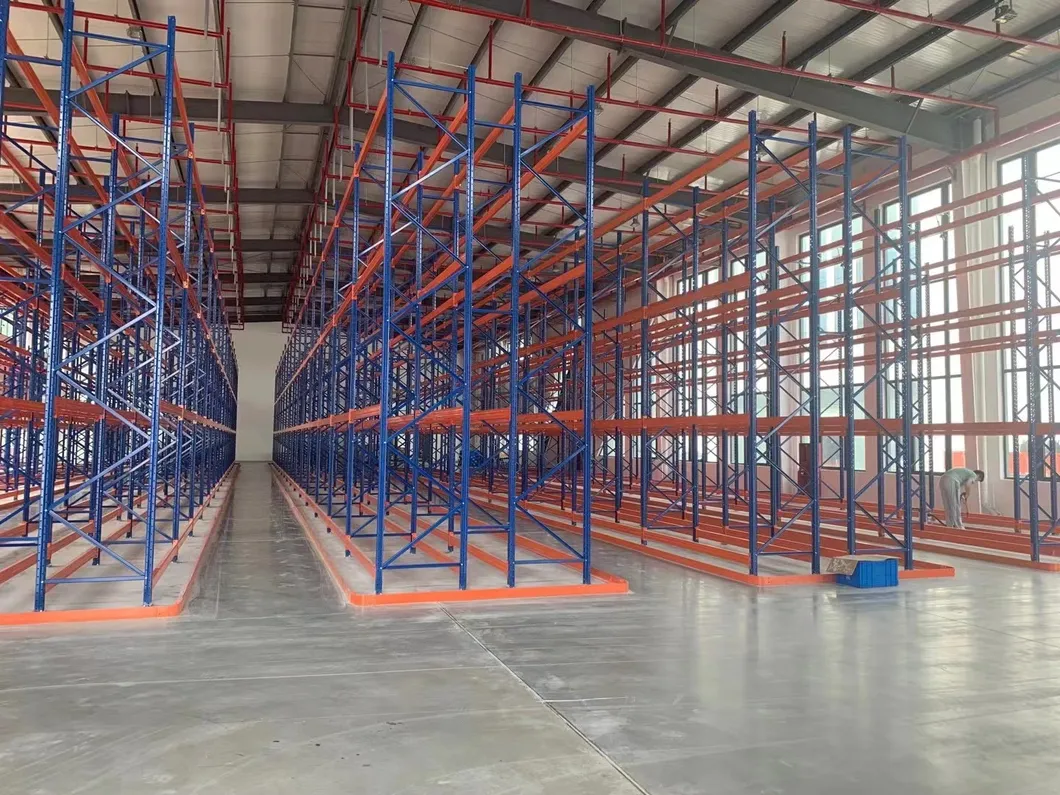

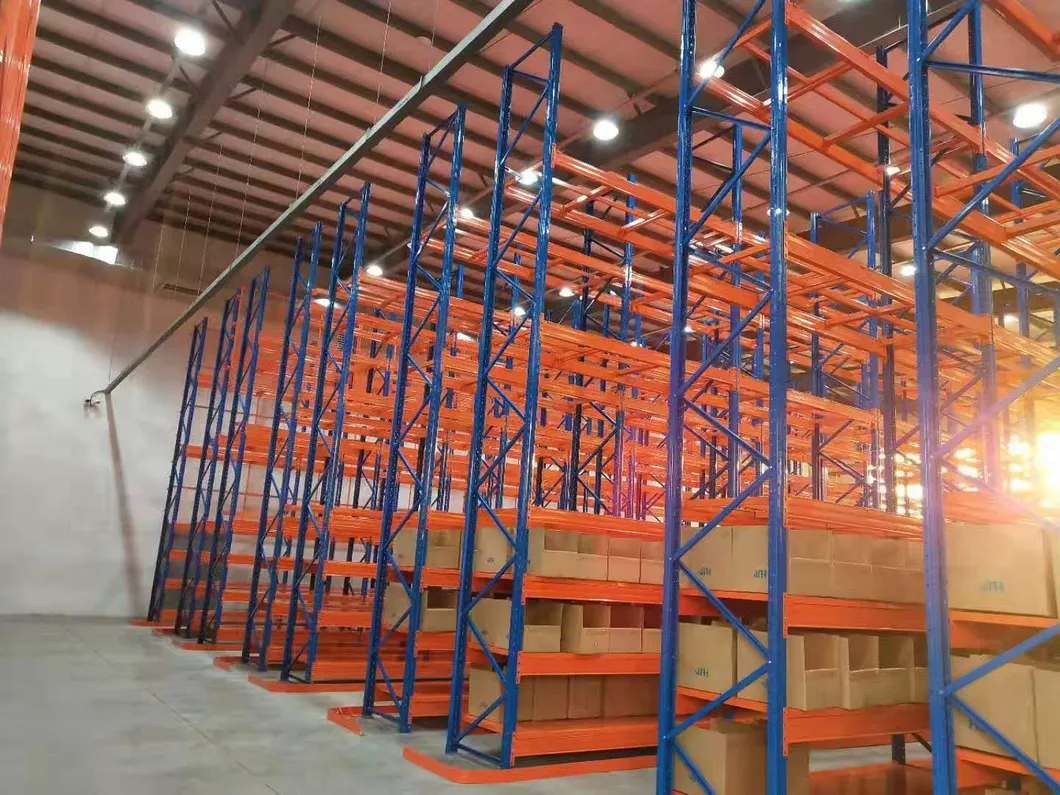

VNA(Very Narrow Aisle) Racking commonly referred to as VNA is an effective method of increasing pallet storage with in a given area with the advantages of selective racking.This system requires a special forklift which reduces the aisle space by a minimum of 40% compared to traditional fork lifts.This system still provides100 % product selectivity and utilizes the vertical space for pallet storage.

Extremely Narrow Aisles High Space Efficiency

Aisle width is only 1.6-2.2 meters (vs. 3+ meters for traditional racking), reducing aisle space by 30-50% and significantly improving floor utilization. Ideal for warehouses with high land costs or limited space. Racking height can reach 15-30 meters, leveraging vertical space for high-rise storage.

Balanced Density and Throughput

Combined with the precision of narrow-aisle forklifts, it achieves both high storage density and moderate-to-high inventory turnover, suitable for warehouses with medium-frequency access (e.g., ecommerce, manufacturing, cold chain).

High Load - Bearing Capacity

As the name implies, it is designed to handle heavy loads. Each beam can typically support several tons of weight, making it suitable for storing large and heavy pallets filled with goods. This high load - bearing capacity ensures the safety and stability of the stored items.

Product Parameters

Parameter	Details
Size:	Size can be customized as your request
Layers:	Customizable
Loading Capacity:	1000~6000kgs or 2200~13200lbs
Surface Treatment:	Powder coated
Packaging:	Air bubble, Wooden Case, etc.
Color:	Blue and Orange or Customized

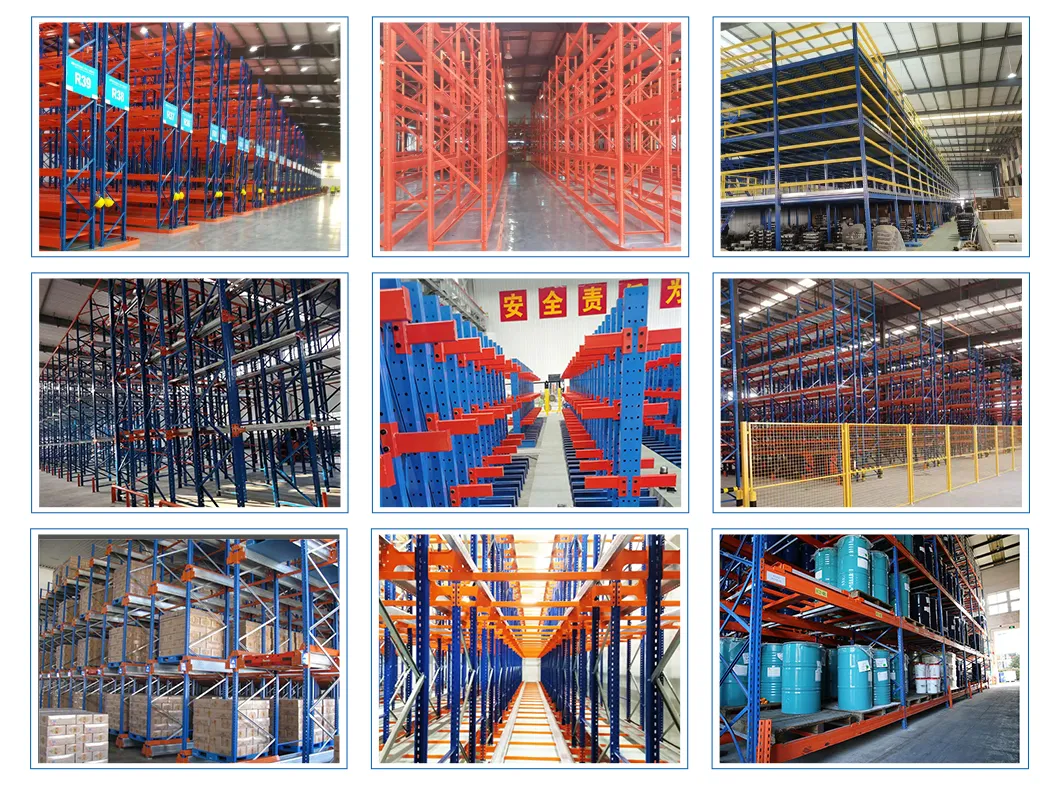

Main Product

Profile

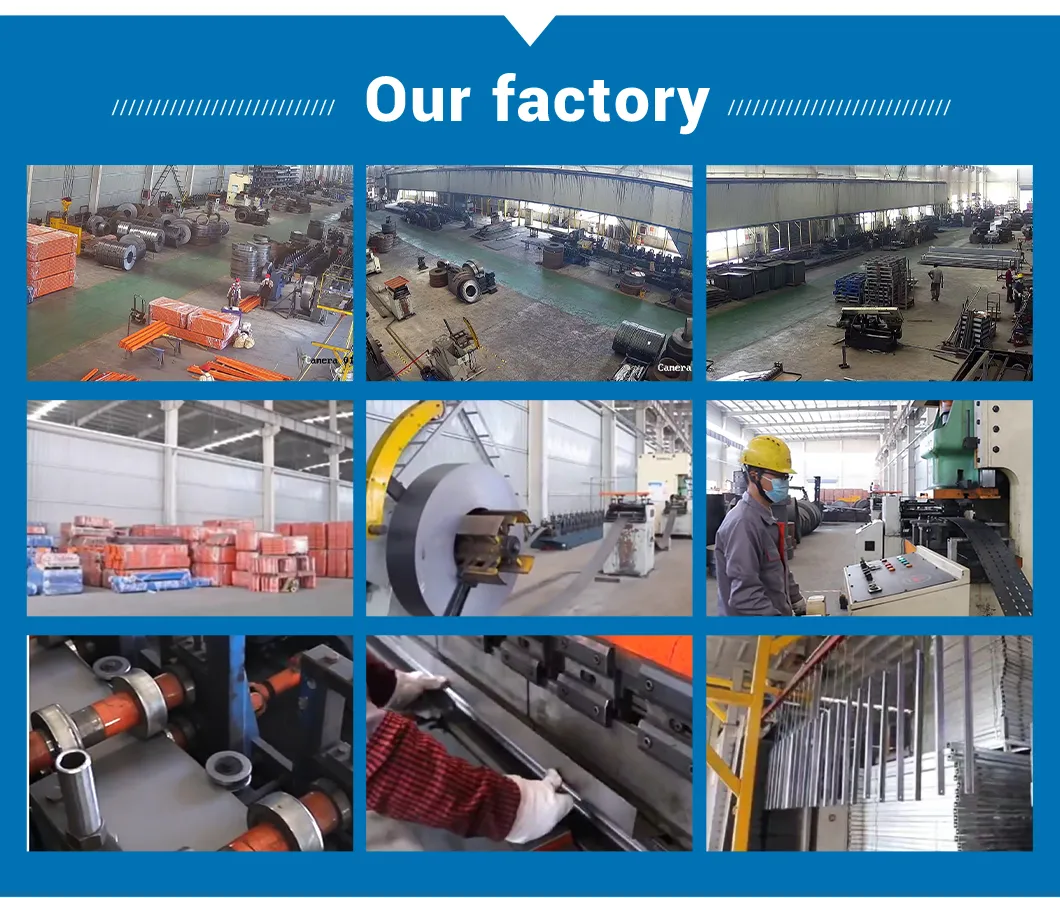

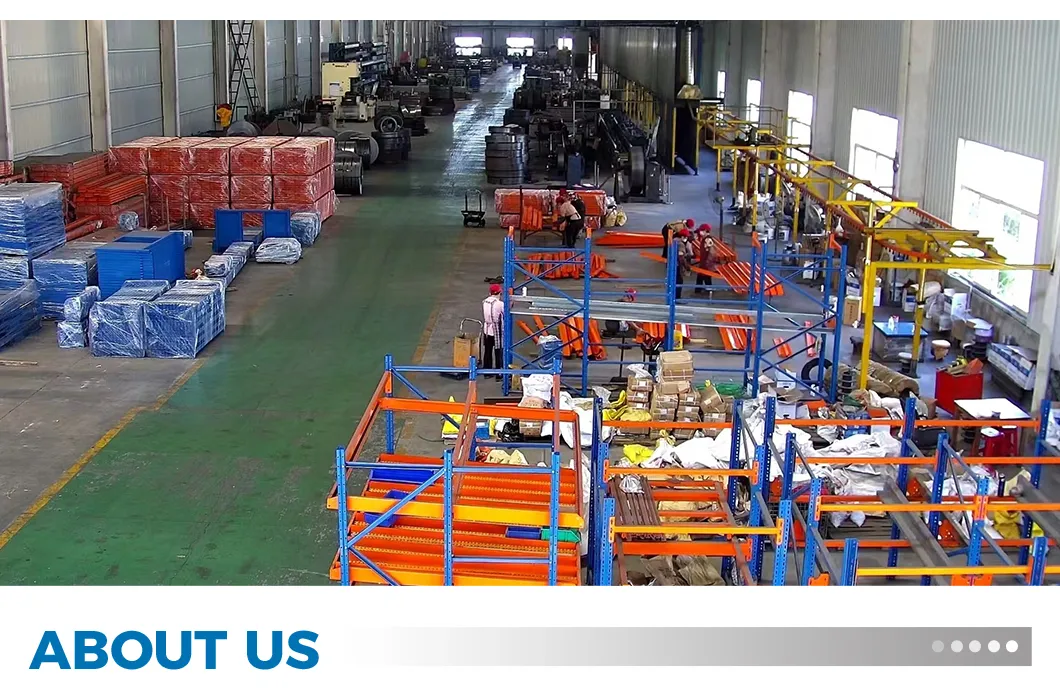

We are a large-scale manufacturer specializing in the research, development, design, manufacturing and installation of modern logistics equipment. The company is able to independently design and produce a variety of logistics equipment, such as storage racks (pallet racks, movable pallet racks, mobile racks, multi-layer racks, cantilever racks, drive-in racks), pallets (flat pallets, box pallets, foldable pallets), mountain bikes and storage boxes, etc. With high-quality products, reasonable prices and attentive services, we have established a reliable reputation among our customers.

Advantage

Our Certificate

Packaging & Shipping

Frequently Asked Questions

Q1: How long is your delivery time?

A1: The delivery time depends on your package. Generally, it takes 25 - 45 days. Based on the quantity, we will calculate the most reasonable and fastest production and delivery time. Please contact our team for the most accurate advice.

Q2: What do you need to provide for a product quotation?

A2: For a product quotation, we need the length, width, height, number of layers, and load capacity of the product.

Q3: What products do you export?

A3: Our main export product lines include: Heavy-duty pallet racking, Narrow aisle racking, Cantilever racking, Double-deep racking, Drive-through racking, Shuttle racking, Steel structure platform racking, Push-back racking, and Gravity racking.

Q4: What are the product advantages?

A4: 1. The raw material of the square tube products is made of galvanized base material and then coated with plastic to provide double protection against rust and surface peeling. The internal galvanization of the square tube eliminates the possibility of rusting from the inside, extending the service life.
2. Additional backup screw holes are added at the connection between the column and the claw to increase the load-bearing capacity or quickly tighten in case of claw damage, enhancing safety.
3. The column claws are made of extra-thick Sphc material to increase load-bearing capacity and safety.

Q5: Can you produce according to the customer's design?

A5: Of course, we have extensive experience in customizing shelves.

Q6: What is the packaging method?

A6: Generally, the shelves are flat-packed in standard export cartons with bubble wrap/film. Other packaging such as wooden crates can be provided upon customer request.
