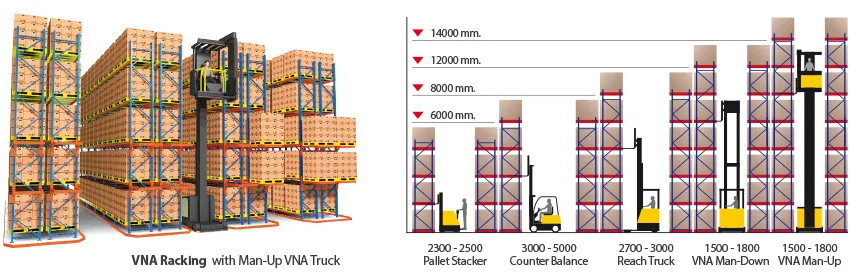

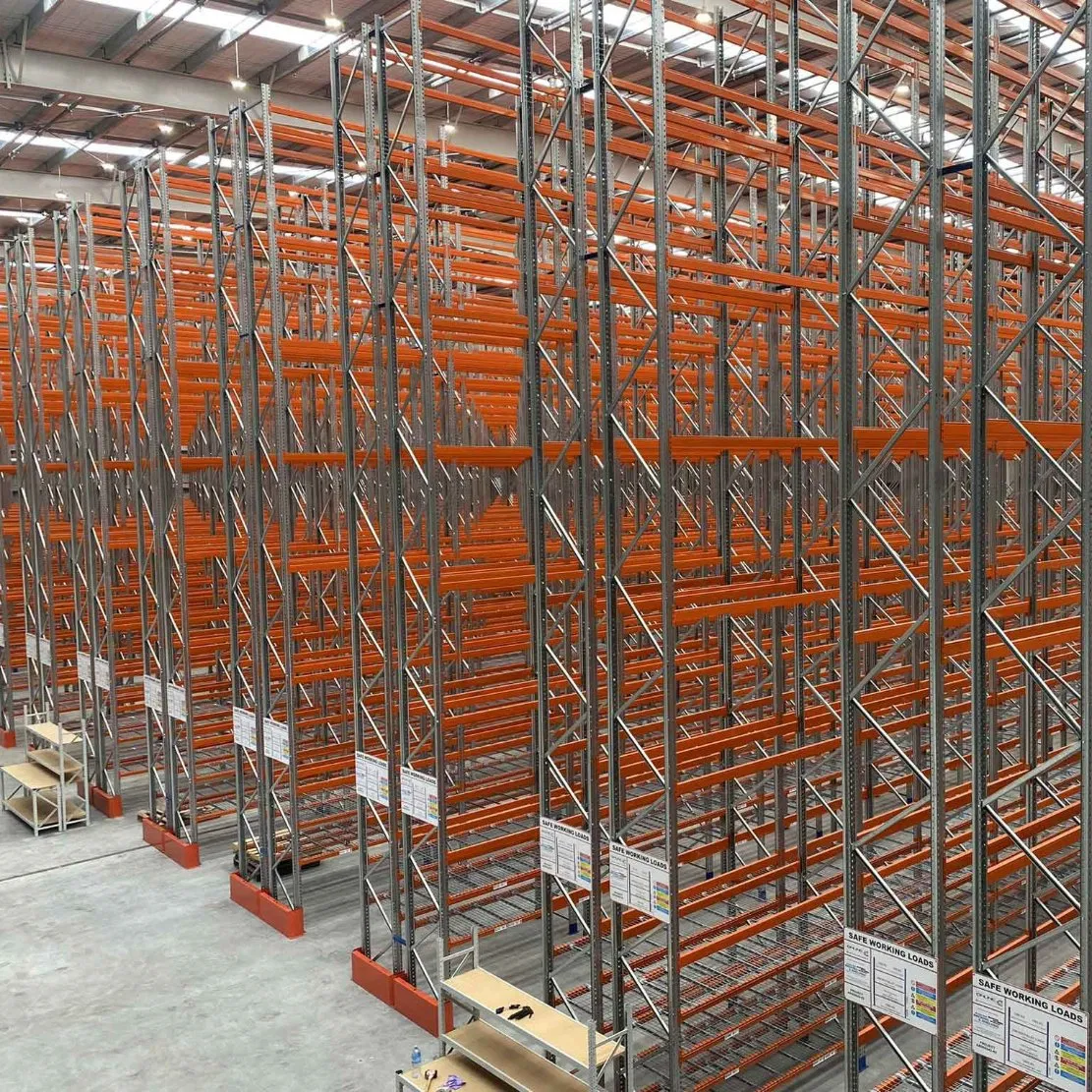

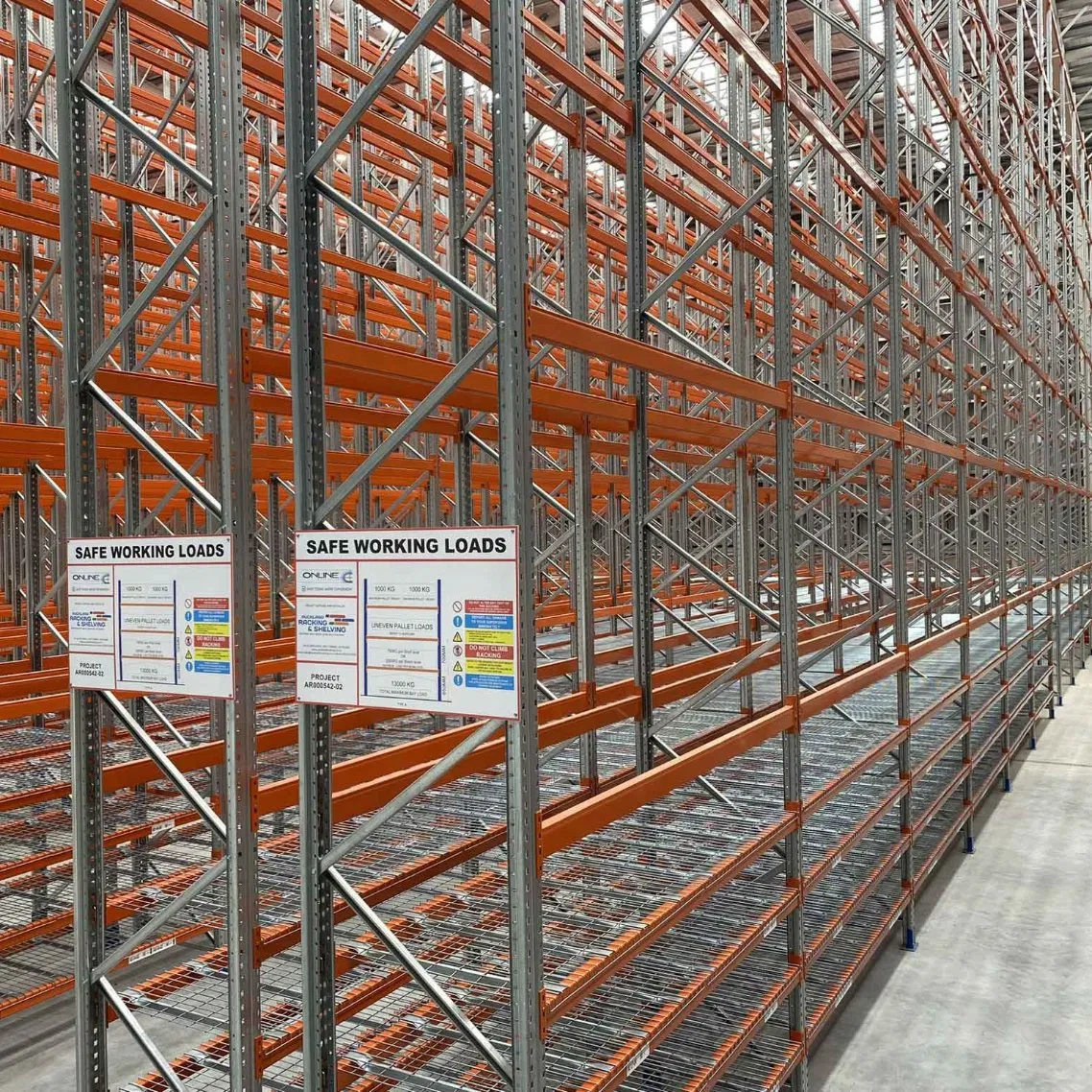

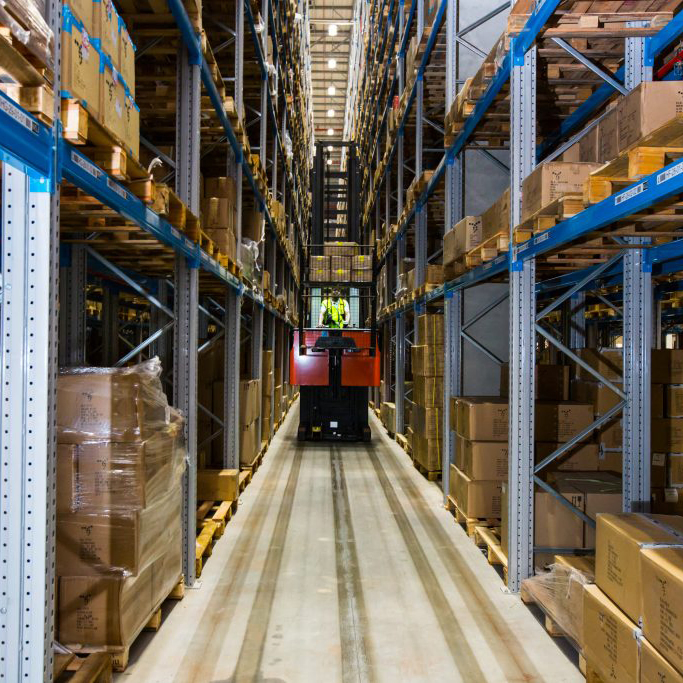

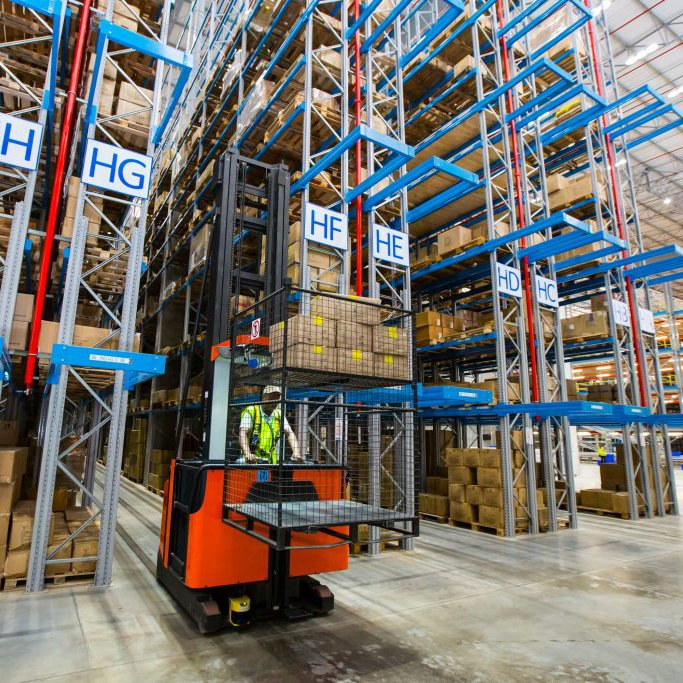

Very narrow aisle pallet racking condenses standard pallet racking into a smaller area with narrower aisle width to generate a high-density storage system from both horizontal and vertical level. In different racks, different forklifts may require for material handling.

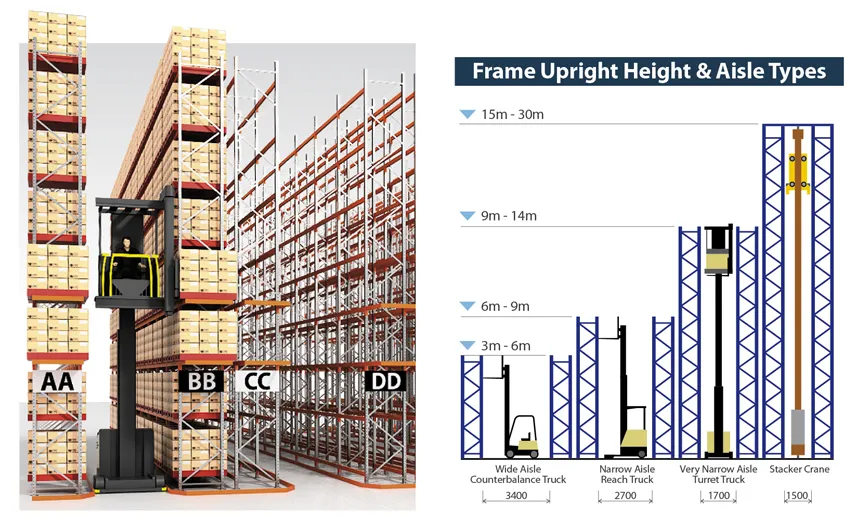

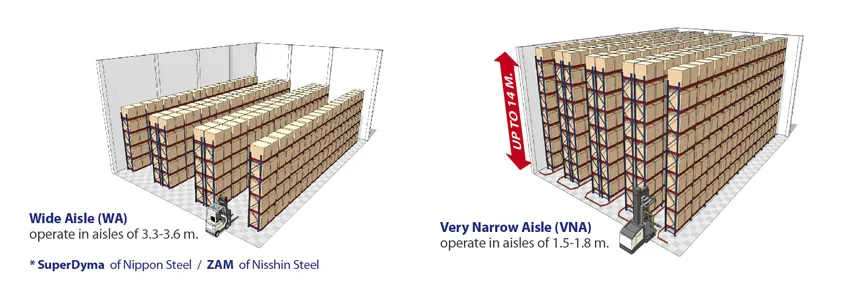

Comparison between wide aisle rack and narrow aisle rack
| Standard Size | L2300*D1000*H4500 and size can be customized as your request |
| Height | 1500-8000mm or Customized; |
| Width/Depth | 400-1500mm or Customized; |
| Length | 1500-3200mm or Customized; |
| Color | In default, the Upright frame is blue, and the Beam is orange, which can be customized. |
| Raw Material | High-quality Q235 cold-rolled steel |

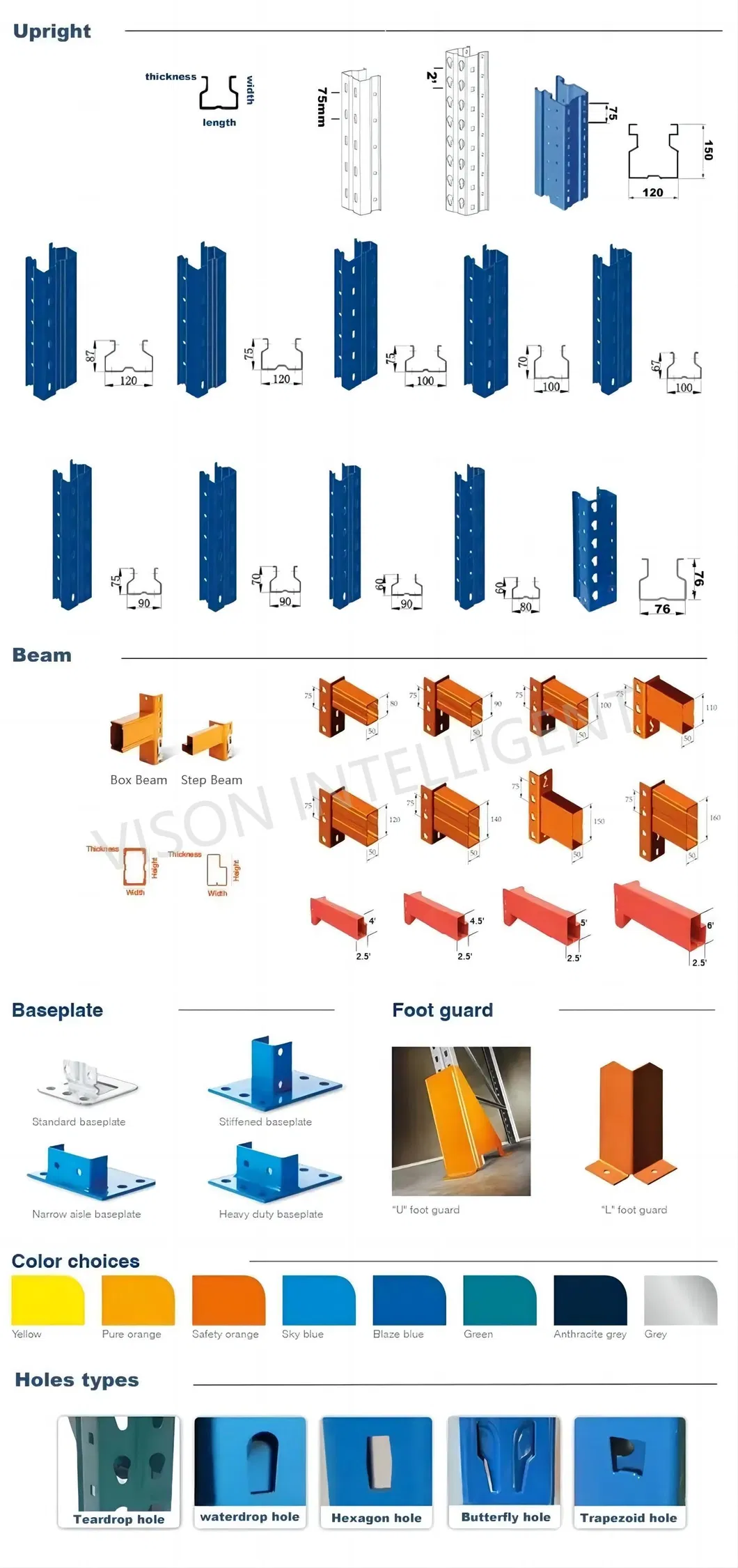

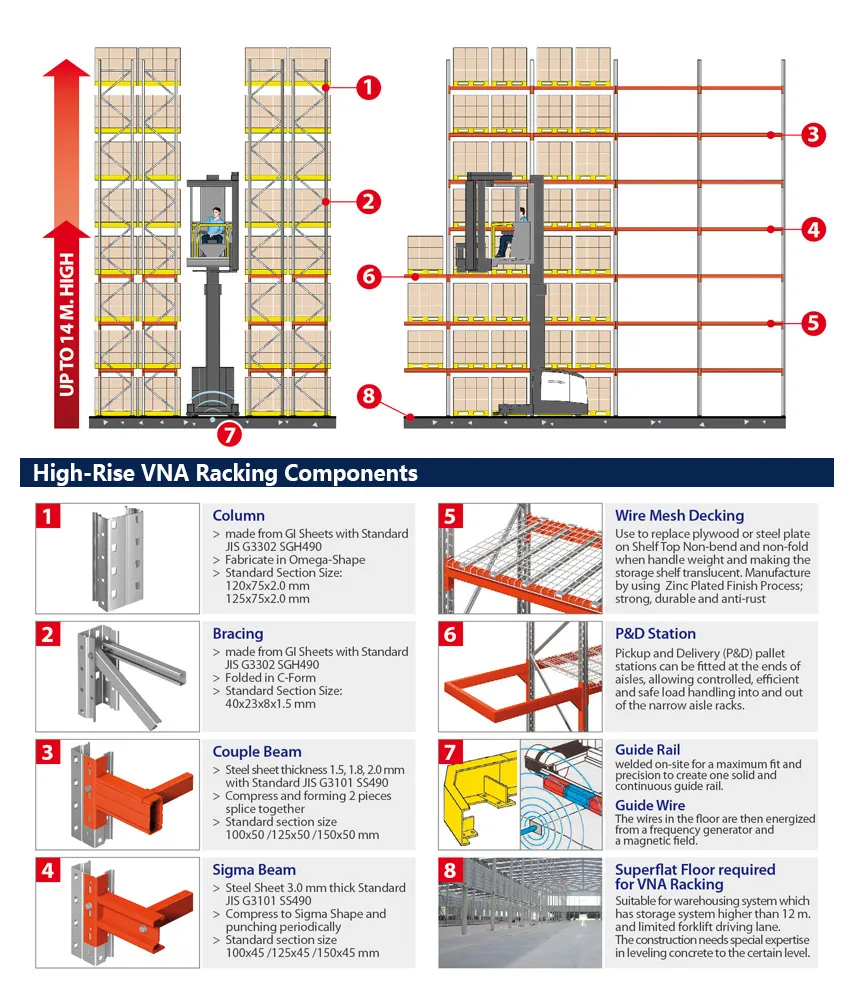

| Upright-Section | 80*60*1.5/1.8/2.0mm, 90*65*1.5/1.8/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm, etc. |
| Beam-Section | 80*45mm, 100*45mm, 120*45mm, 140*45mm, 160*45mm, 180*45mm etc. |
| Layers | Customizable |
| Pitch Holes | 75mm |
| Loading Capacity | 1000~6000kgs or 2200~13200lbs |
| Surface Treatment | Powder coated |

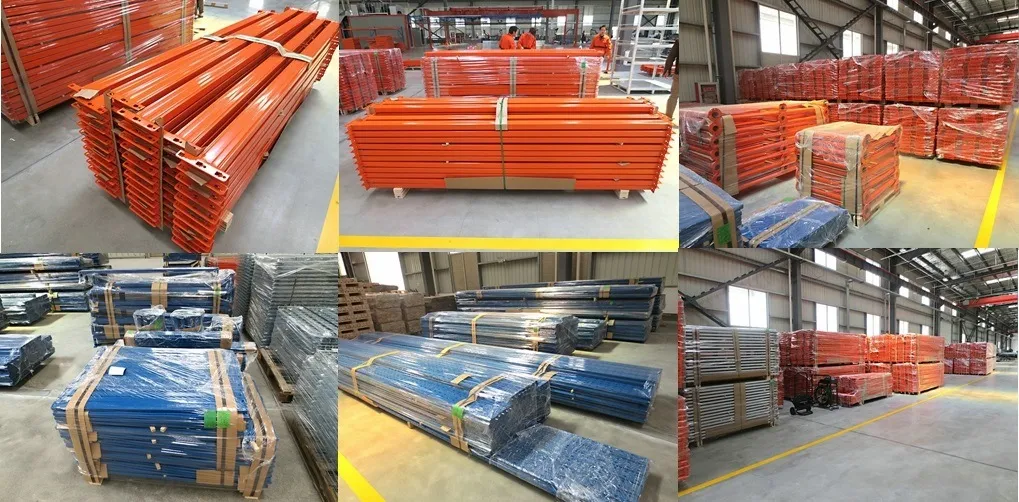

| Packaging | Air bubble, Wooden Case, etc. |

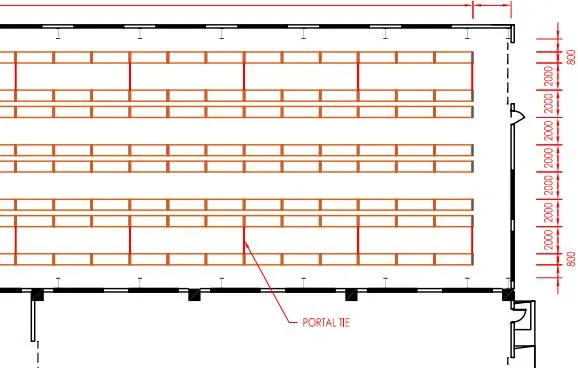

Before quotation, our Team will provide free consultation for our valuable customers. After detailed discussion, our experienced engineers will design our customers with professional storage solutions based on warehouse layout, products characters, inventory quantity, storing & picking rate, estimated cost and personal requirements. If you have an empty warehouse and don't know how to get started, please contact us directly for smart storage solutions for space maximizing and cost-saving.
We are one of the earliest manufacturers and suppliers of intelligent storage shelves and equipment in China. Mainly engaged in the manufacture of storage shelves and automated storage equipment systems. It has become the supplier of many world-renowned enterprises. Heavy-duty racks, shuttle racks and intelligent material handling equipment are not only sold domestically, but also exported to Europe, America, Southeast Asia, South Korea and other countries and regions. Passing ISO9001-2000 quality system certification, our produced products and quality are well received by customers at home and abroad.

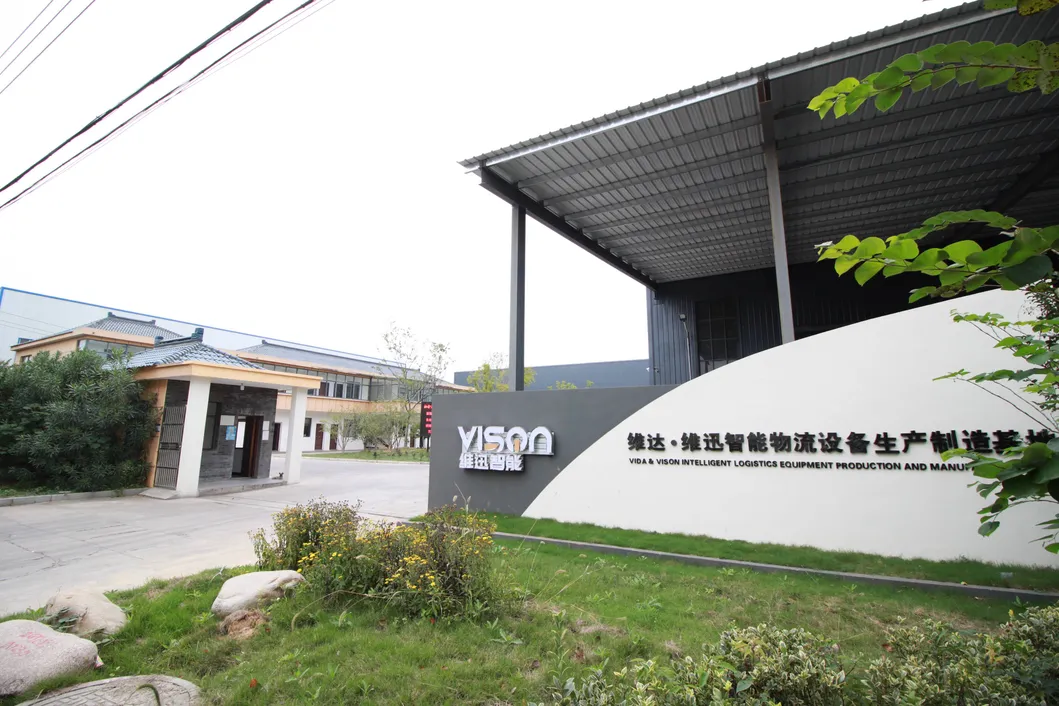

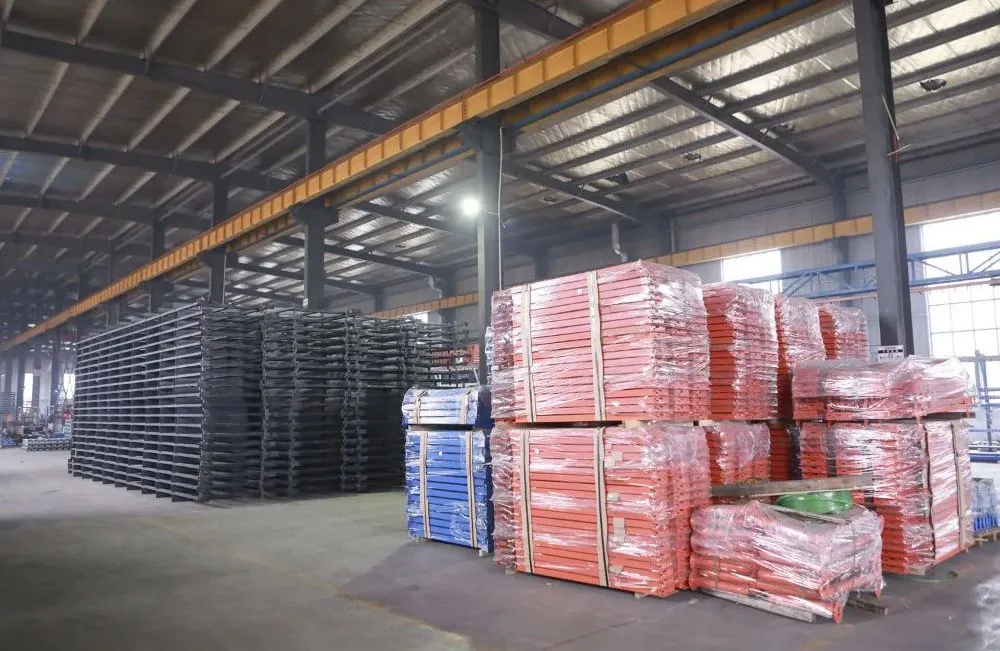

Production Base 1
Production Base 2

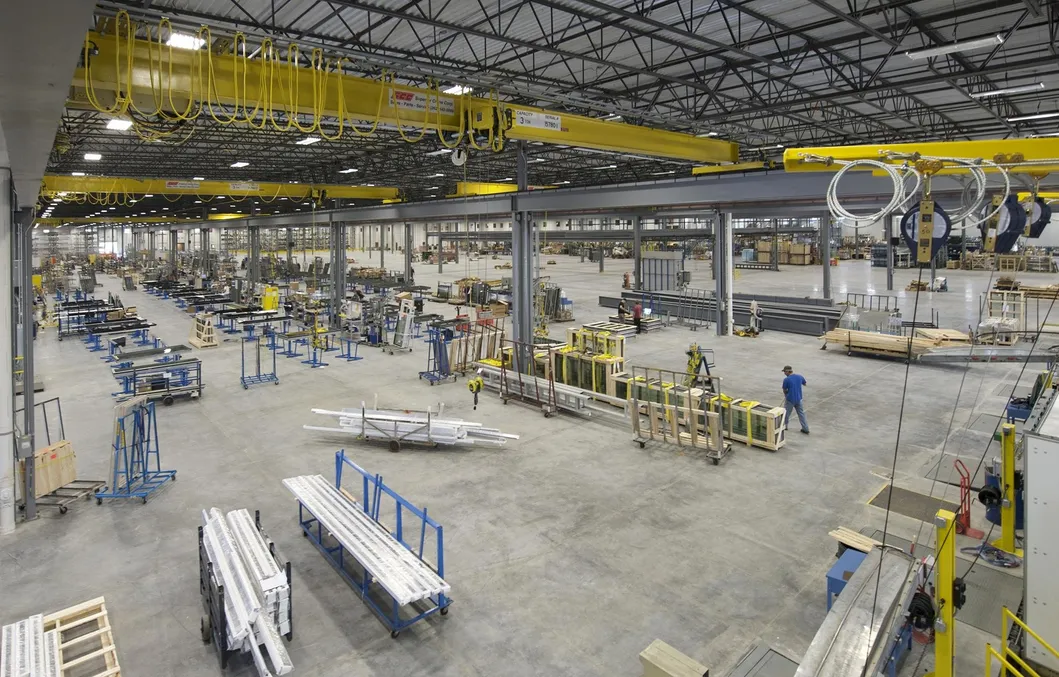

Innovative and independent research & development is the guarantee of customer trust!
With fast development, our company continues to increase technology development and production capacity, making the company a leading intelligent warehouse storage solution and material handling supplier globally!
