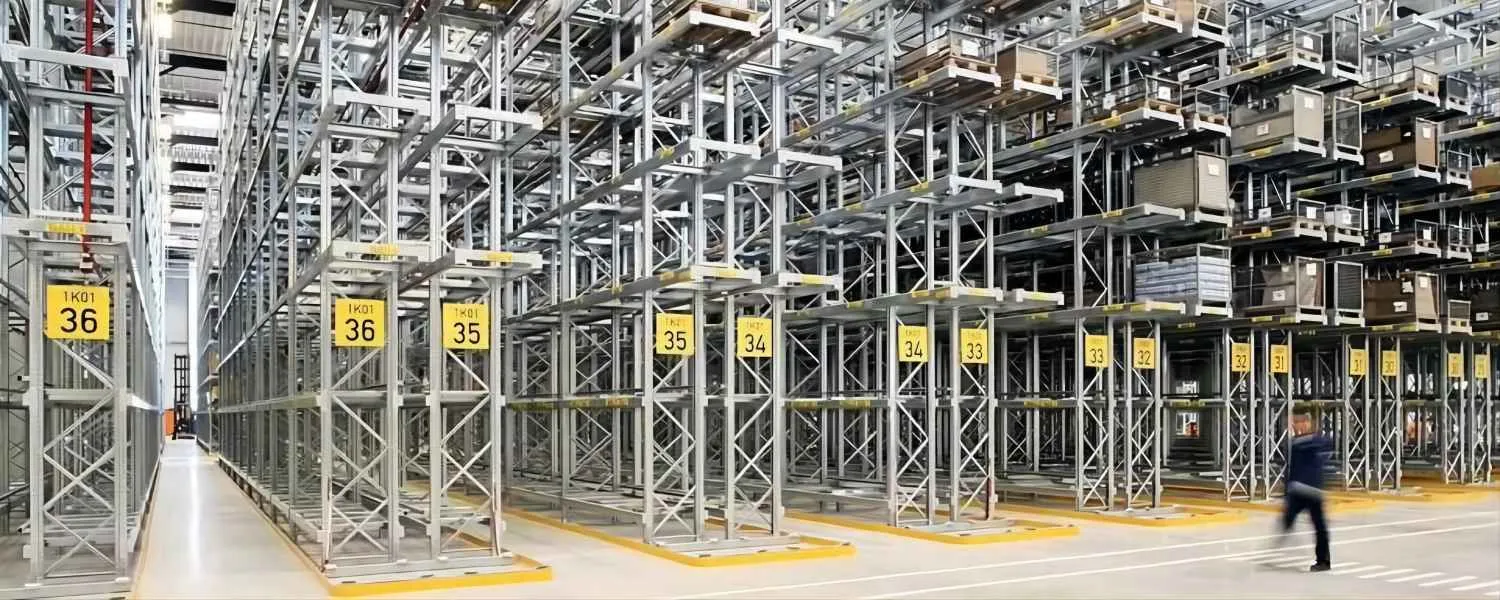

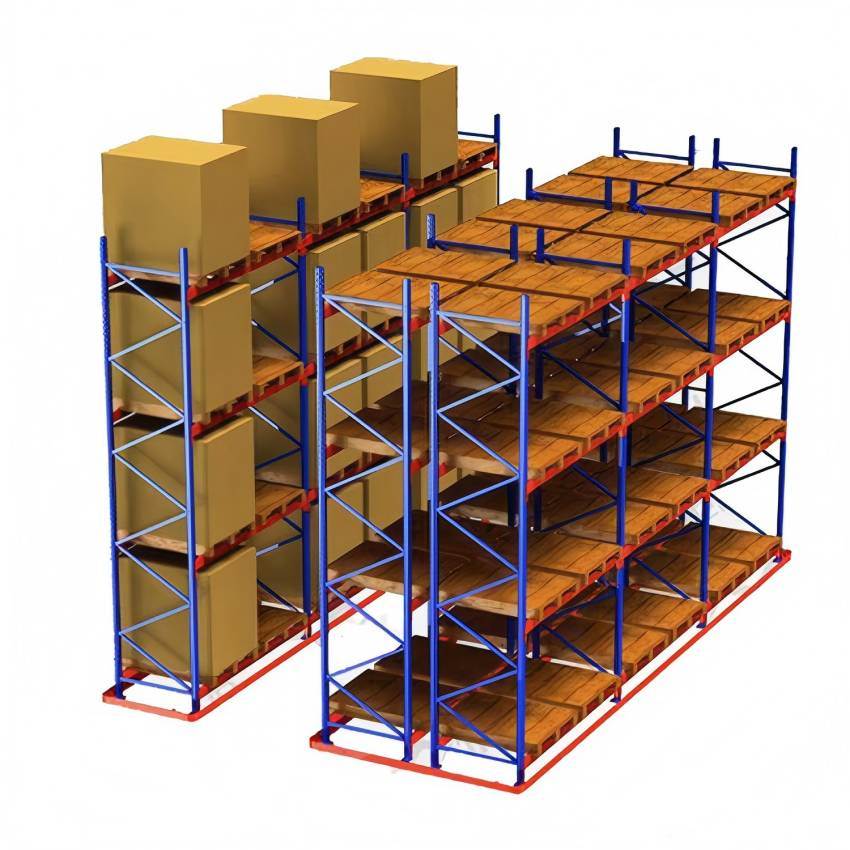

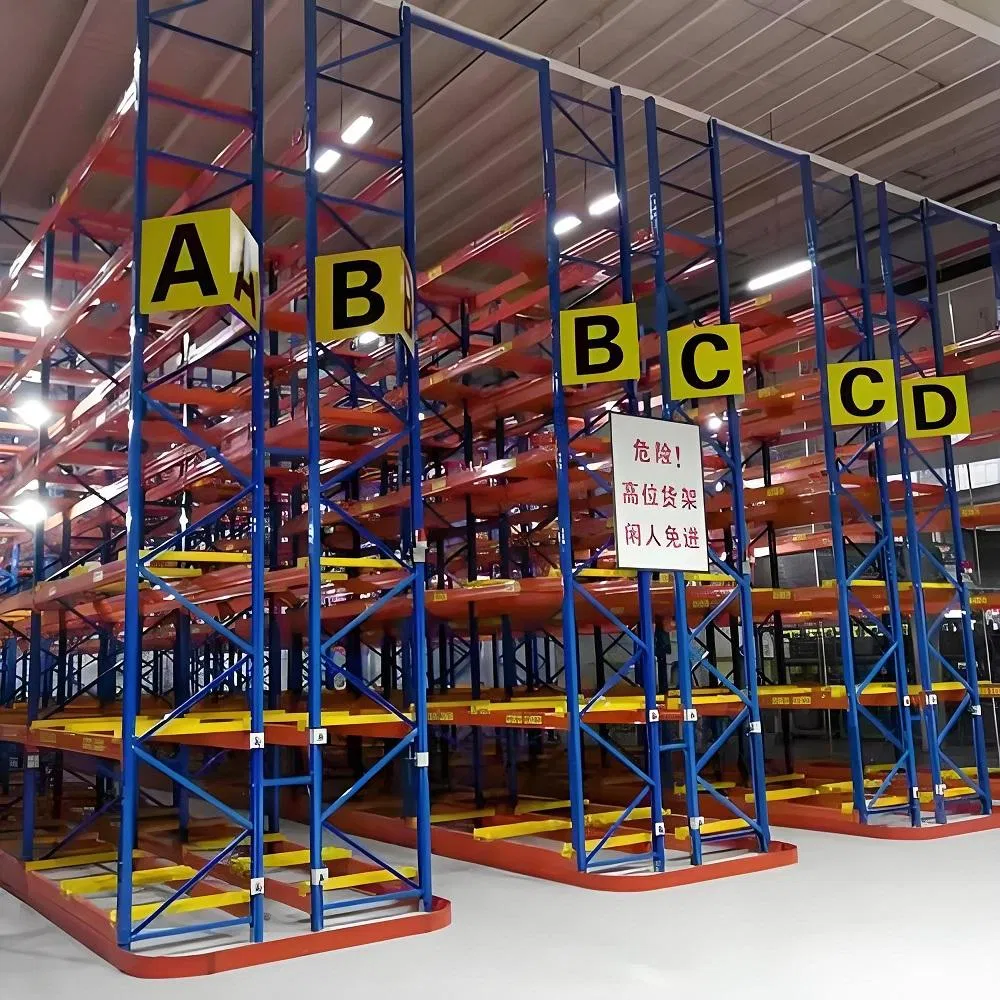

VNA (Very Narrow Aisle) Rack

Very narrow aisle pallet rack mainly used with the most advantage three ways forklift, occupying small aisle, saving space of warehouse, can store and pick up products quickly so as to cut down the operating cost, particularly suitable for logistic center less than 15 m high.

Key Advantages

This storage racking makes optimum use of floor area and roof height by providing high density storage.
Pallets can be located, accessed and moved individually.
The height between levels can be easily adjusted by 50 mm pitch interval.
Strength and rigidity prevents compression damage to goods.
Bottom level of pallets can be stored on the floor, lowering structure costs.

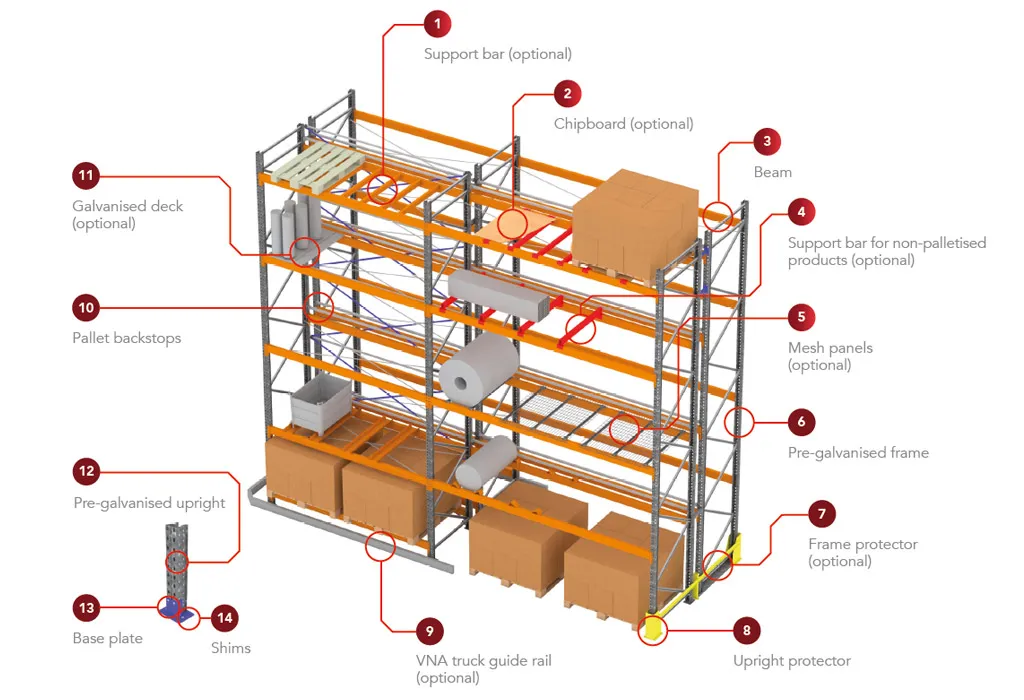

Rich accessories: upright protector, guide rail, frame barrier, row spacer, wire deckings, steel shelf, etc.

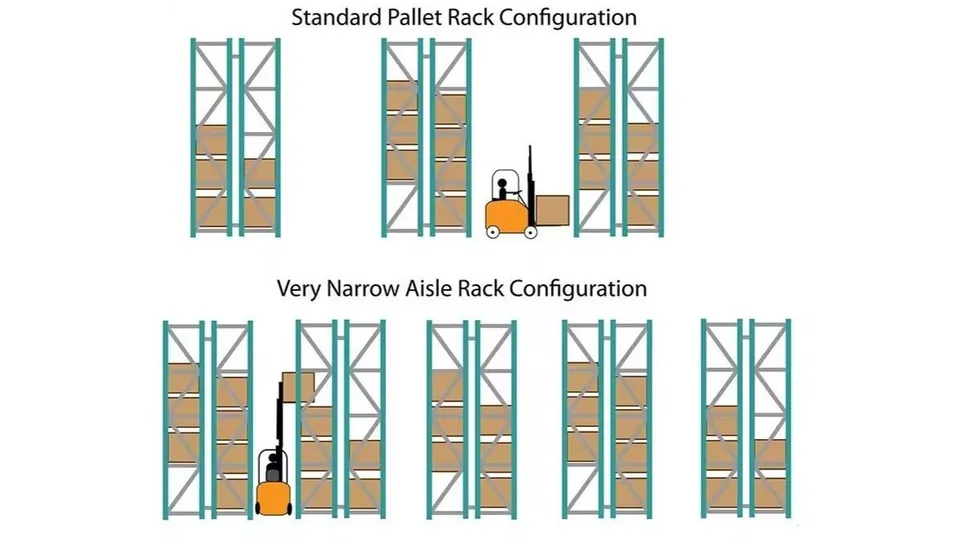

Conventional pallet rack compared to VNA rack

Comparing with the conventional pallet rack, VNA rack aisle is much narrower, ordinarily 1600-2000 mm. The space utilization rate will increase about 20%.

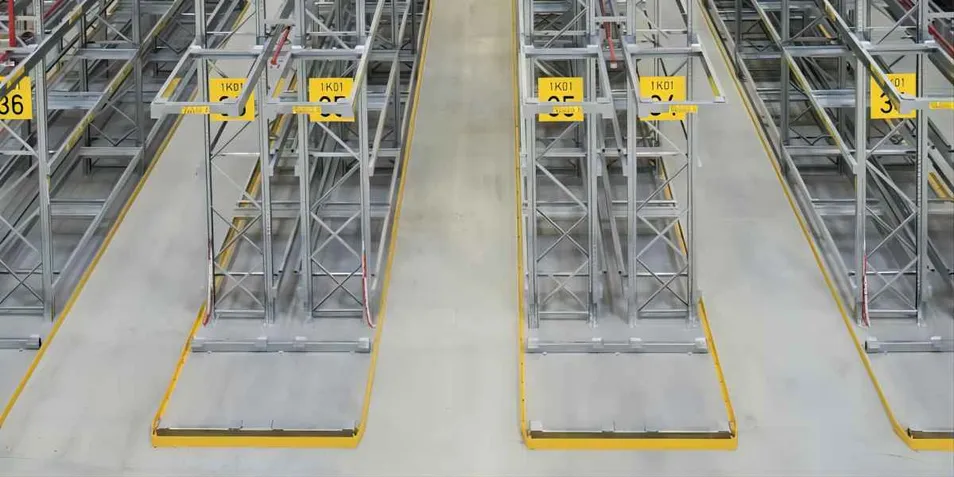

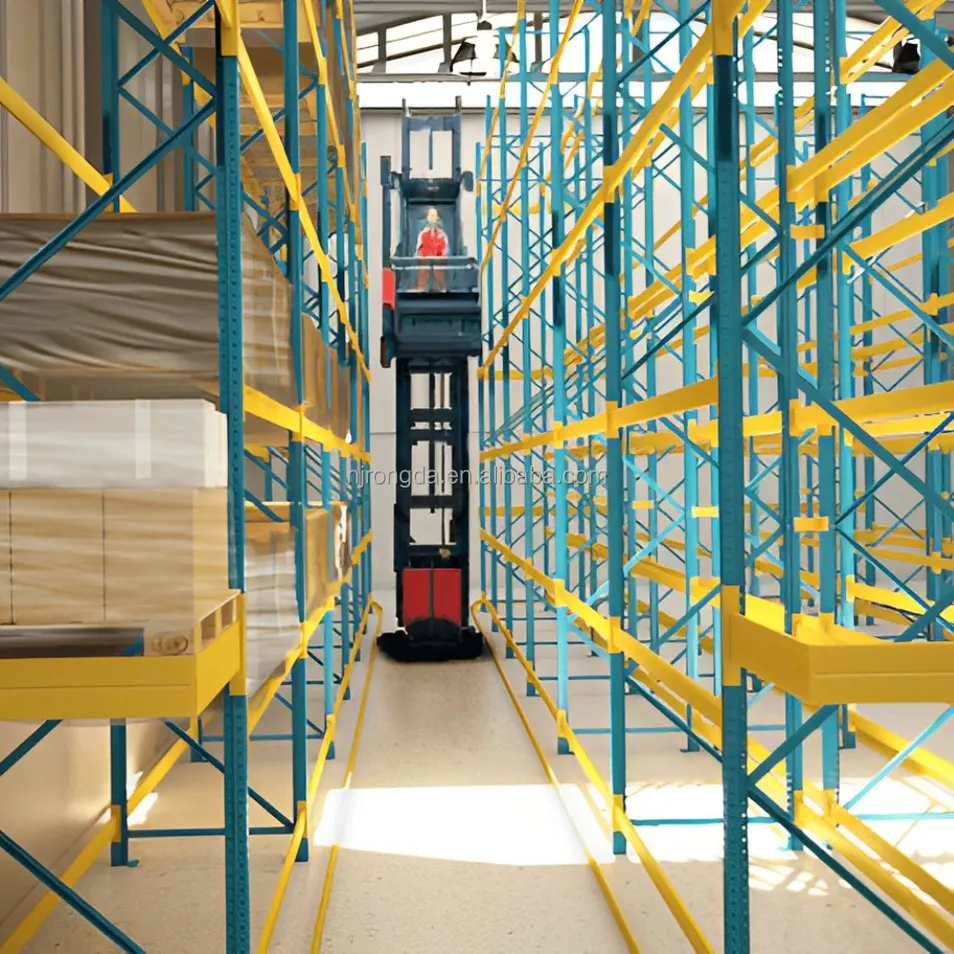

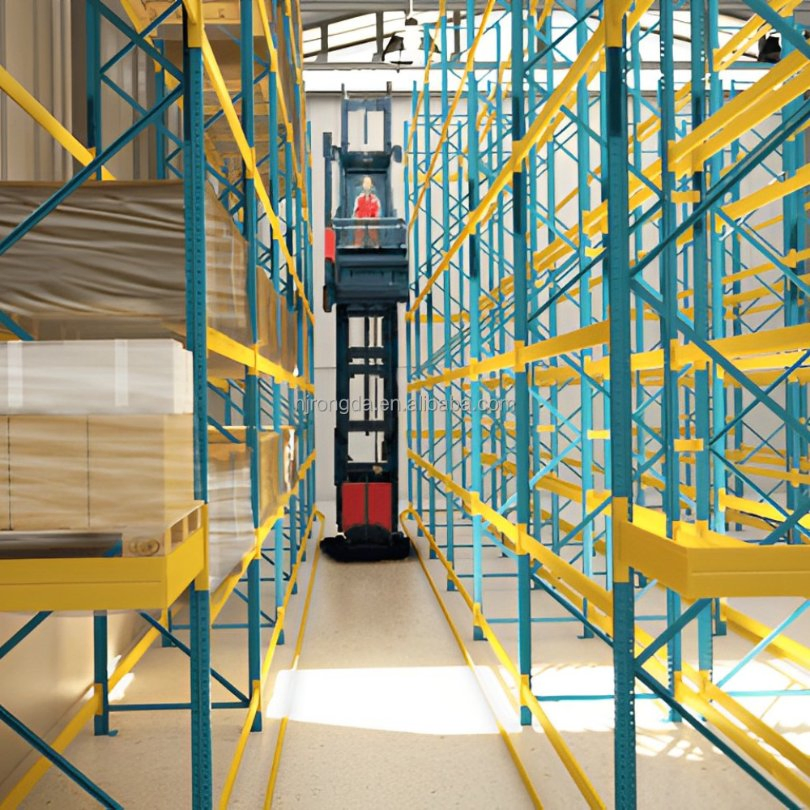

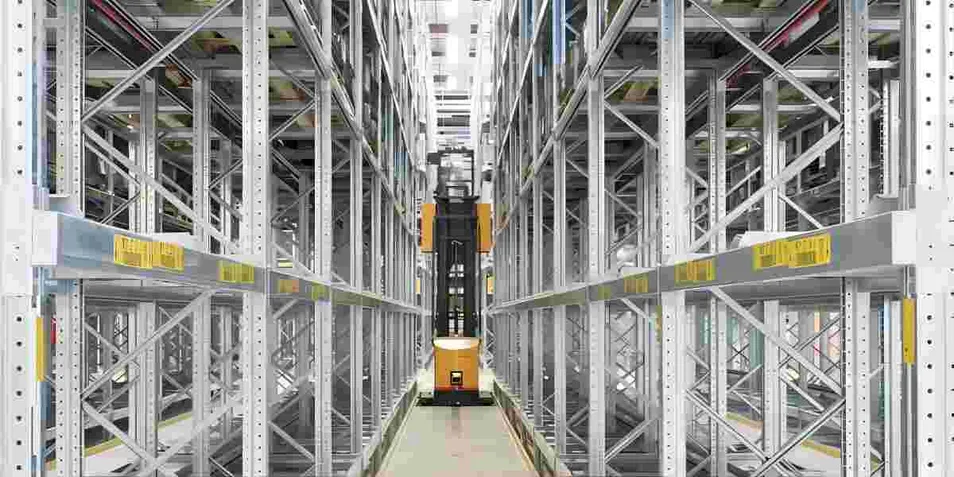

Guide rails should be installed on both sides of aisle for the three-way forklift running.

Specifications

Style	Warehouse Storage Pallet Rack
Dimension	Standard Pallet: 1200800(F) / 12001000(F) / 11001100(F) / 1066(F)1220 Depth: 1000MM / 900MM / 1020MM Width: 2700MM / 2300MM / 2500MM / 2432MM Height: pitch is adjusted by increments of 75mm
Beam	Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm
Upright	8060; 9060; 9070; 9075; 10067; 10070; 10075; 12075; 120*87mm, Thickness: 1.5~3.0mm
Bearing Capacity	5000KG per level max ; 1500KG per pallet max

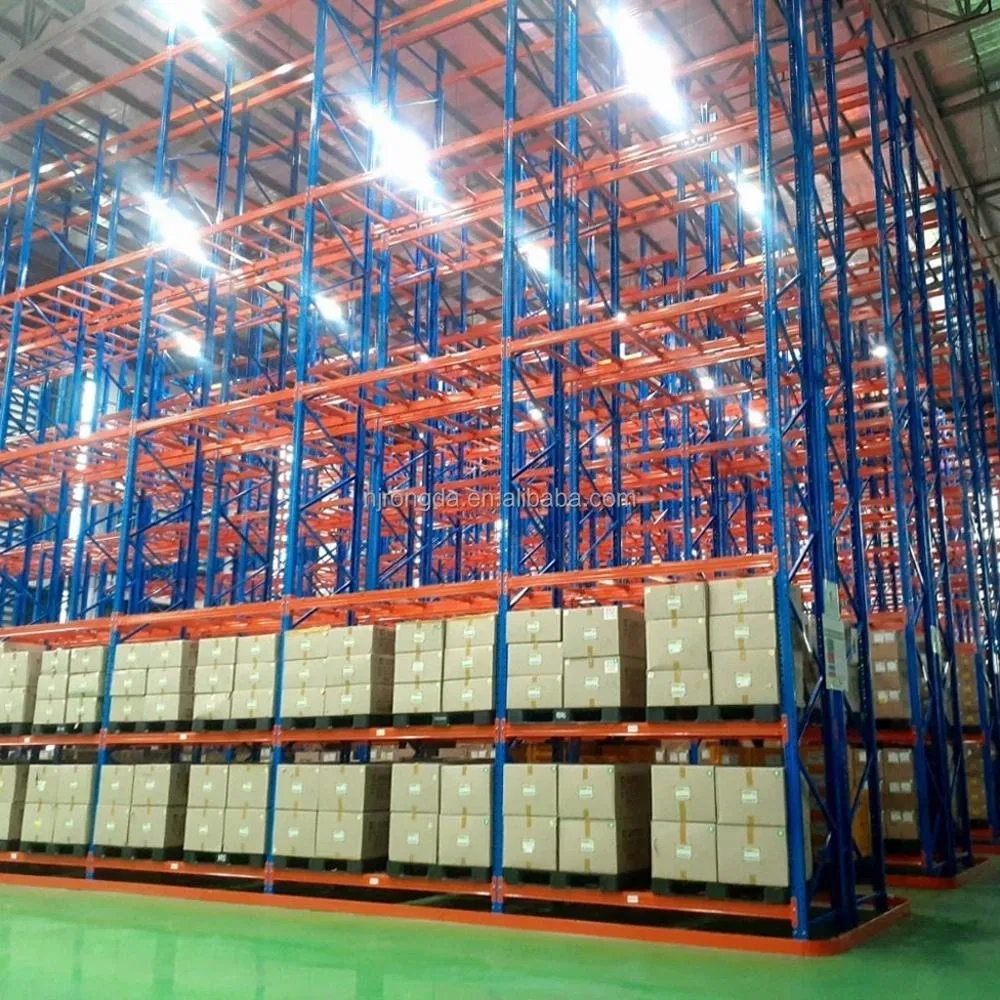

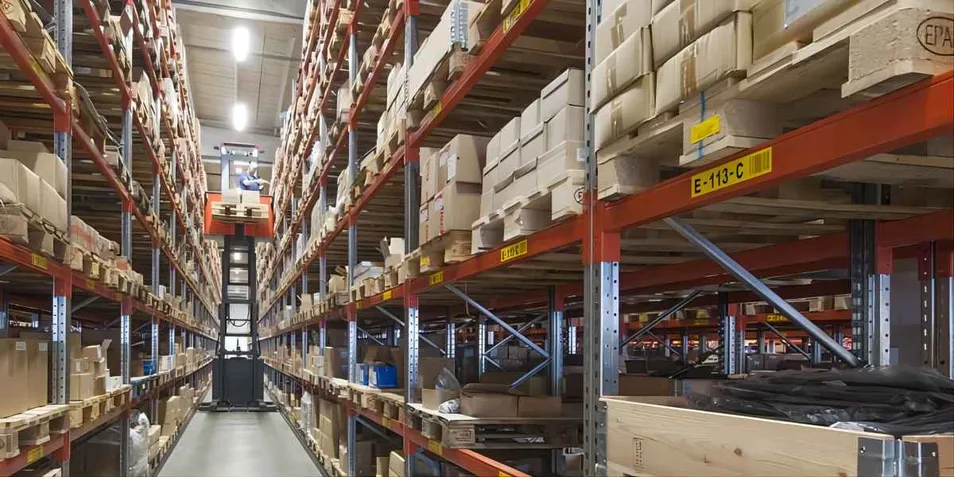

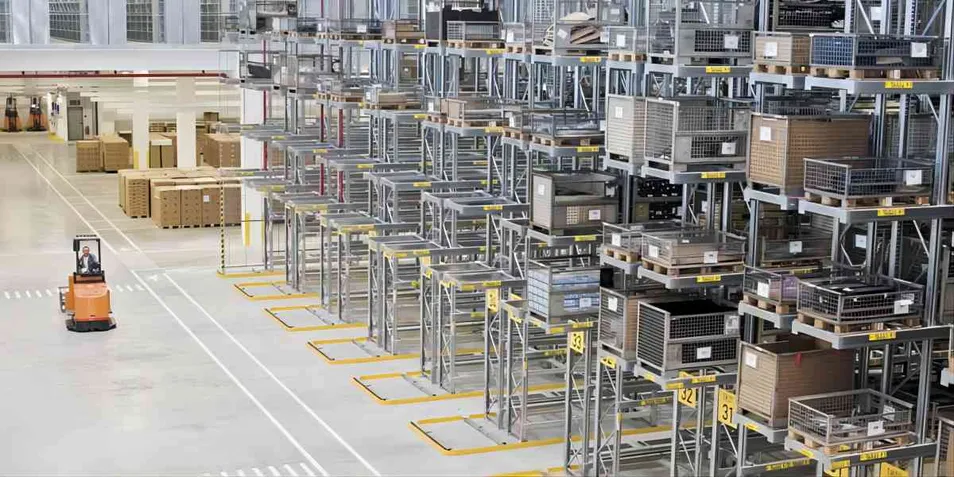

Client Projects

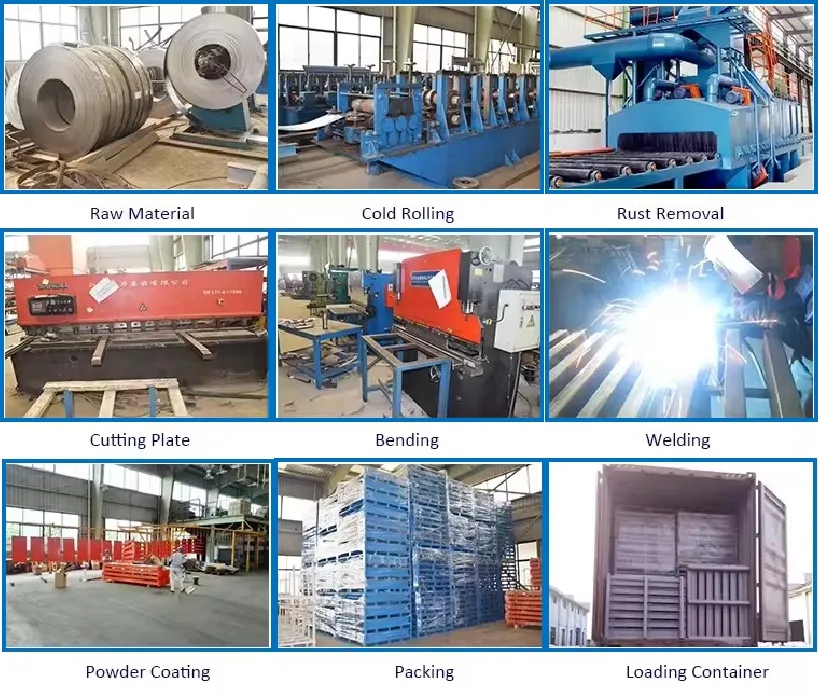

Production Procedure

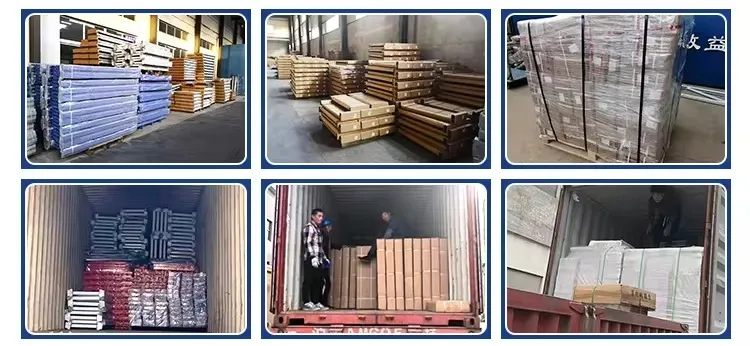

Packing & Delivery

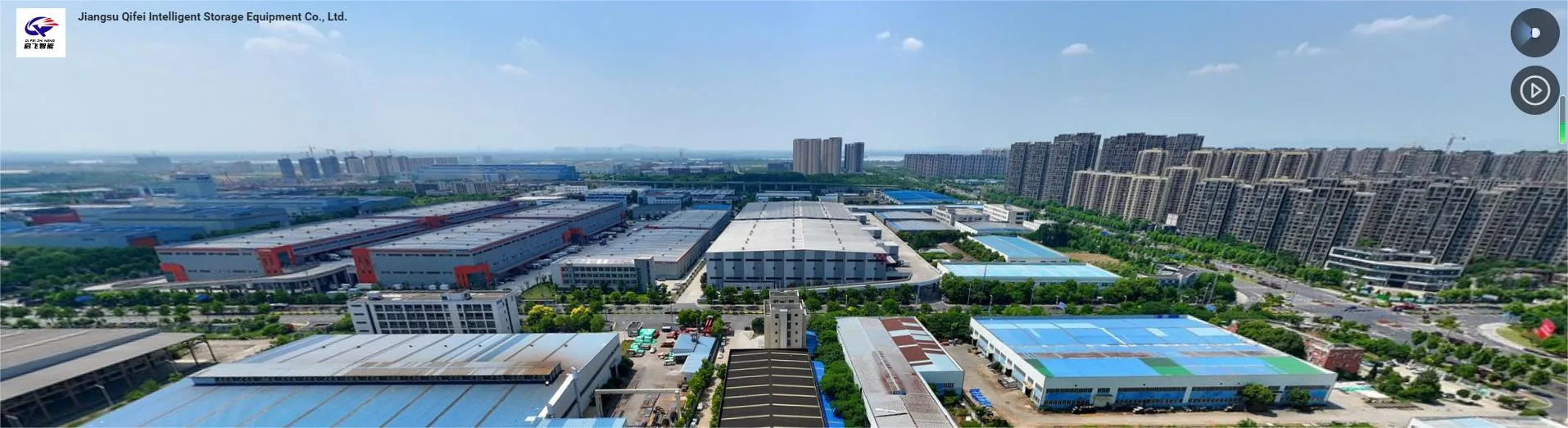

Company Profile

Established in 2020, we are one of the leading manufacturers specialized in industrial warehouse storage equipment. Our main products are heavy/medium/light duty racks, cantilever racks, steel sheet racks, mezzanine floors, drive-in racks, and more. We aim to provide cost-effective and space-optimized storage solutions for all customers worldwide.

Frequently Asked Questions

Are you a manufacturer or trading company?

We are an experienced manufacturer in the warehouse storage industry.

What is the typical delivery time?

Generally, delivery is within 12 days upon receiving the formal order and deposit.

What are your terms of payment and delivery?

We accept T/T 30% as deposit, and 70% before delivery. We will provide photos of the products and packaging before you pay the balance. Our delivery terms include EXW, FOB, CIF, DDP, and DDU.

Are product samples available?

Yes, we can supply samples if we have ready parts in stock. Customers are responsible for the sample and courier costs.

What materials are used for your products?

We primarily use high-quality mild steel Q235 for our storage equipment.

Can you customize designs if I don't have drawings?

Yes, we can create the most suitable custom design for you based on the specific details and requirements of your warehouse space.
