Customized Very Narrow Aisle Rack Industrial High Load Capacity Heavy-Duty Vna Pallet Racking for Warehouse Storage Solutions

1 / 5

Customized Very Narrow Aisle Rack Industrial High Load Capacity Heavy-Duty Vna Pallet Racking for Warehouse Storage Solutions

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Basic Info
Model NO.	Narrow Aisle Rack
Usage	Tool Rack, Beverage, Clothing, Tools, Supermarket, Food, Industrial, Warehouse Rack
Material	Steel
Structure	Rack
Type	Multi-Level Racking
Mobility	Adjustable
Height	5-15m
Weight	500kg
Closed	Open
Development	New Type
Serviceability	Common Use
Certificate	CE

Technical Parameters & Packaging
Delivery Time	20-25 Days
Steel Type	Steel Q235B
Surface Treatment	Powder Coated
Color	Blue / Orange or Customized
Design	CAD Drawing Professional
Feature	Corrosion Protection
Transport Package	Banding, Plastic Film, Wood Pallet, Carton
Specification	Customer customization
Production Capacity	10000000000
Package Size	270.00cm * 100.00cm * 100.00cm
Package Gross Weight	2700.000kg

Product Overview

Versatile Vna Racking Solutions for Optimized Space Management

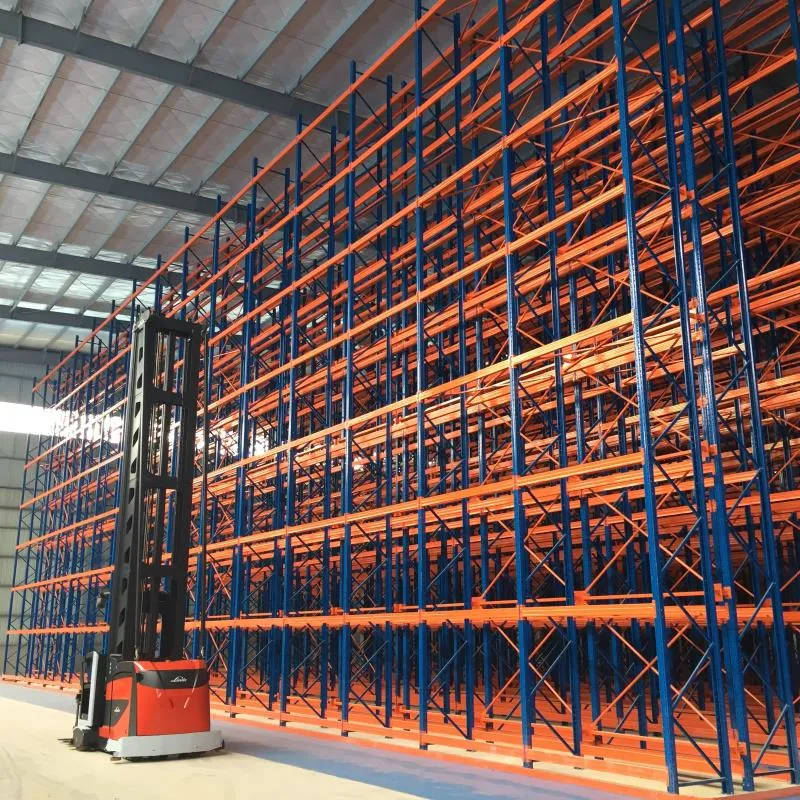

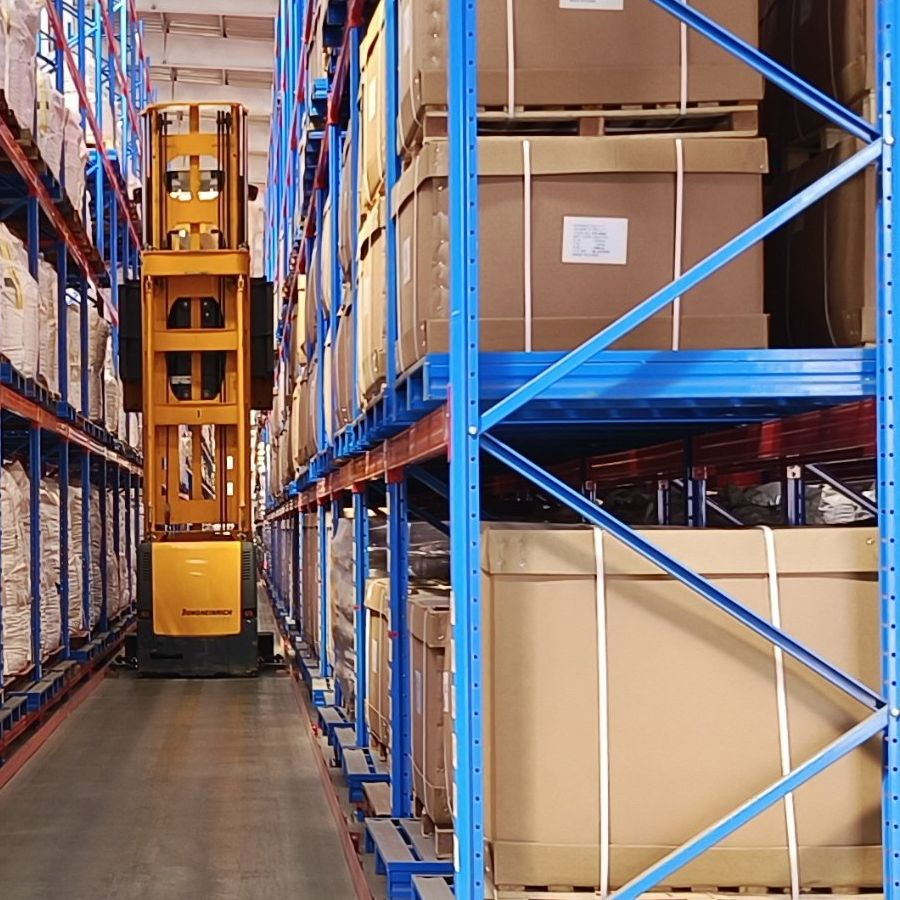

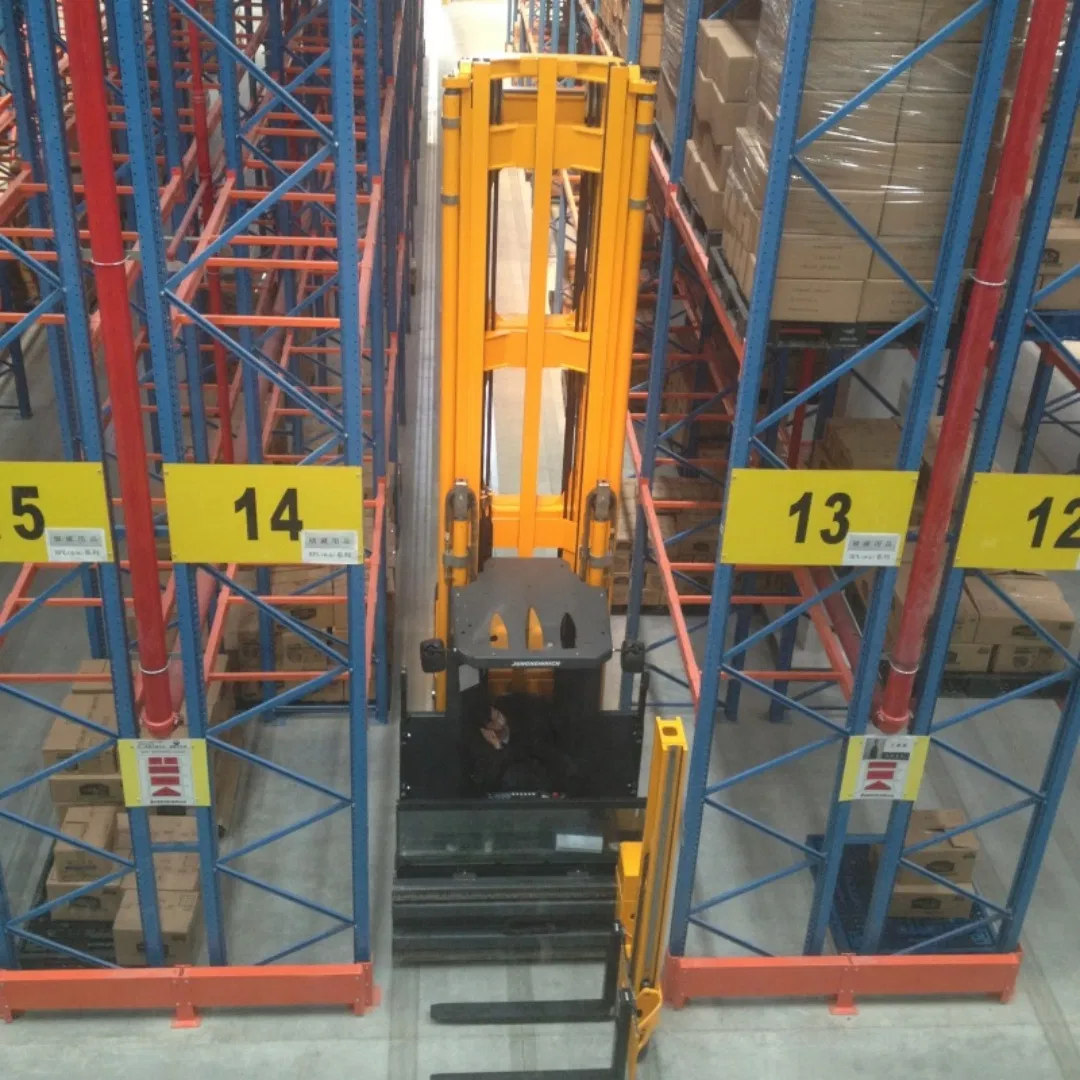

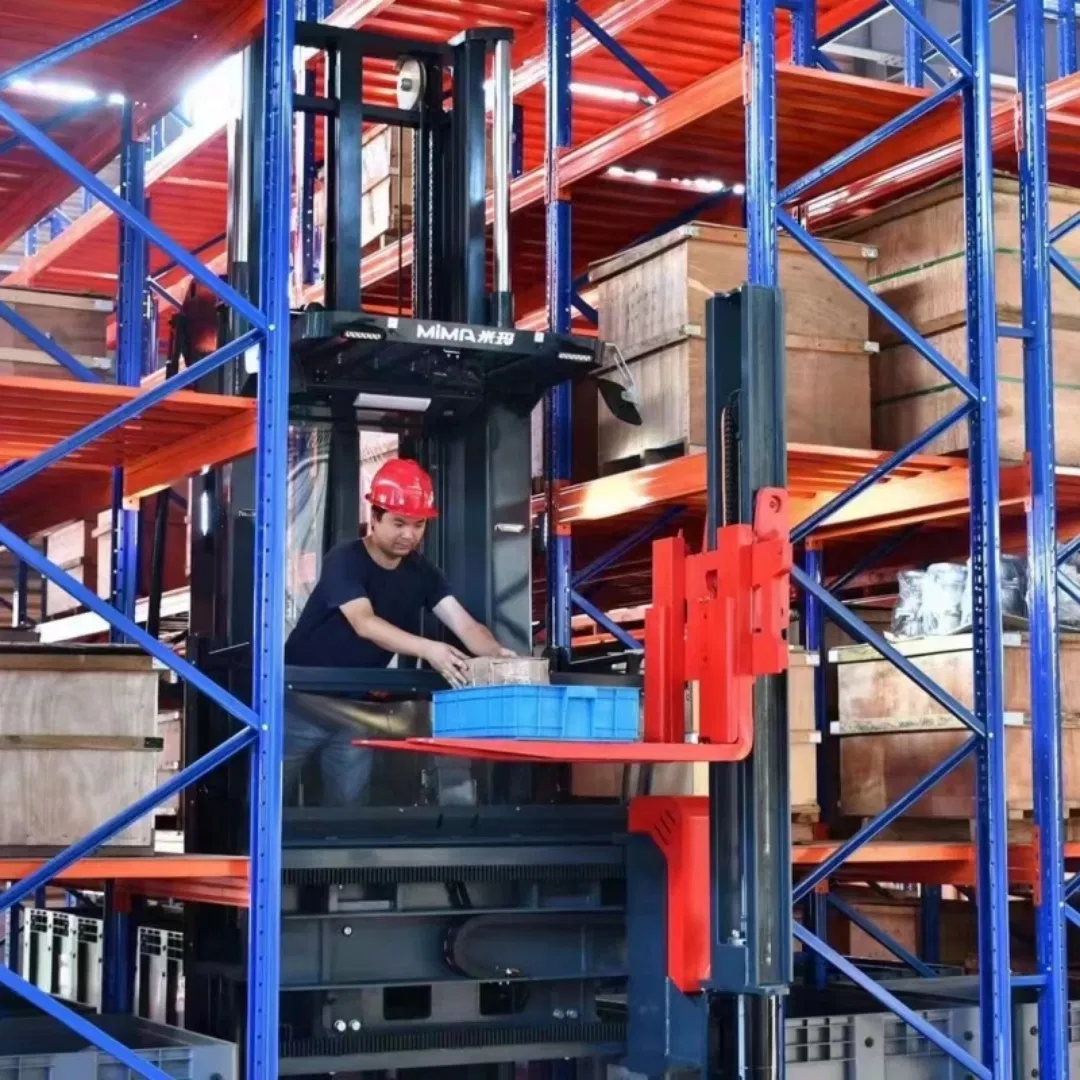

VNA racking (ultra-narrow aisle racking) is a high-density storage system specifically designed to maximize the utilization of warehouse space. It is typically used in conjunction with three-way stacker forklifts (VNA forklifts) or narrow aisle forklifts.

Maximize the utilization rate of warehouse space Saves more than 50% aisle space and has much larger storage capacity than ordinary shelves. It is suitable for areas with high land costs such as first-tier cities, bonded warehouses, etc.
Improve access efficiency Forklifts do not need frequent U-turns, have faster access and retrieval speeds, and are suitable for high-frequency operation warehouses. Combined with WMS (Warehouse Management System) enables intelligent management.
Applicable to various types of goods Suitable for palletized goods such as food, beverage, electronics, chemicals and other industries. Can be combined with drive-in racking or push-back racking to meet different storage needs.
High long-term investment returns While the initial equipment (VNA forklifts) cost more, the long-term savings in storage costs are more worthwhile. Suitable for long-term use in large logistics centers, e-commerce warehouses, manufacturing warehouses, etc.
Safe and reliable Made of high strength steel, with strong load-bearing capacity (up to 2-3 tons per layer). Optional seismic design for earthquake-prone areas.

Applications & Details

I. E-commerce and Retail Logistics Large-scale e-commerce warehousing centers, fast-moving consumer goods (FMCG) warehouses, clothing and footwear warehouses.
II. Cold Chain and Food Storage Cold storage (-18℃ to 4℃), pharmaceutical cold chain, fresh food distribution center.
III. Manufacturing and Industrial Warehousing Automobile parts storage, electronic component warehouse, chemical raw material storage.
IV. Third-party Logistics (3PL) and Bonded Warehouses Cross-border logistics warehouses, express distribution centers, contract logistics warehouses.
V. Special Industry Applications Aerospace industry, Library and Archives Management, New energy industry.

left elevation

right elevation

front elevation

Technical Specifications

(Custom configurations available upon request.)

Name	Cantilever Racking	Material	Q235B Steel
Size	Customized Size	Color	Customized Color
Depth	Customized	Weight Capacity	1000kg/arm
Width	Customized	Height	Customized
Finish	Powder coating; Hot Dip Galvanized
Packing	Export Package
Certification	RMI/CE/ISO/TUV/AS4084-2012
MOQ	One 20ft/40ft Container
Free Sample	Available (Delivery Cost on Buyer)
OEM	Available

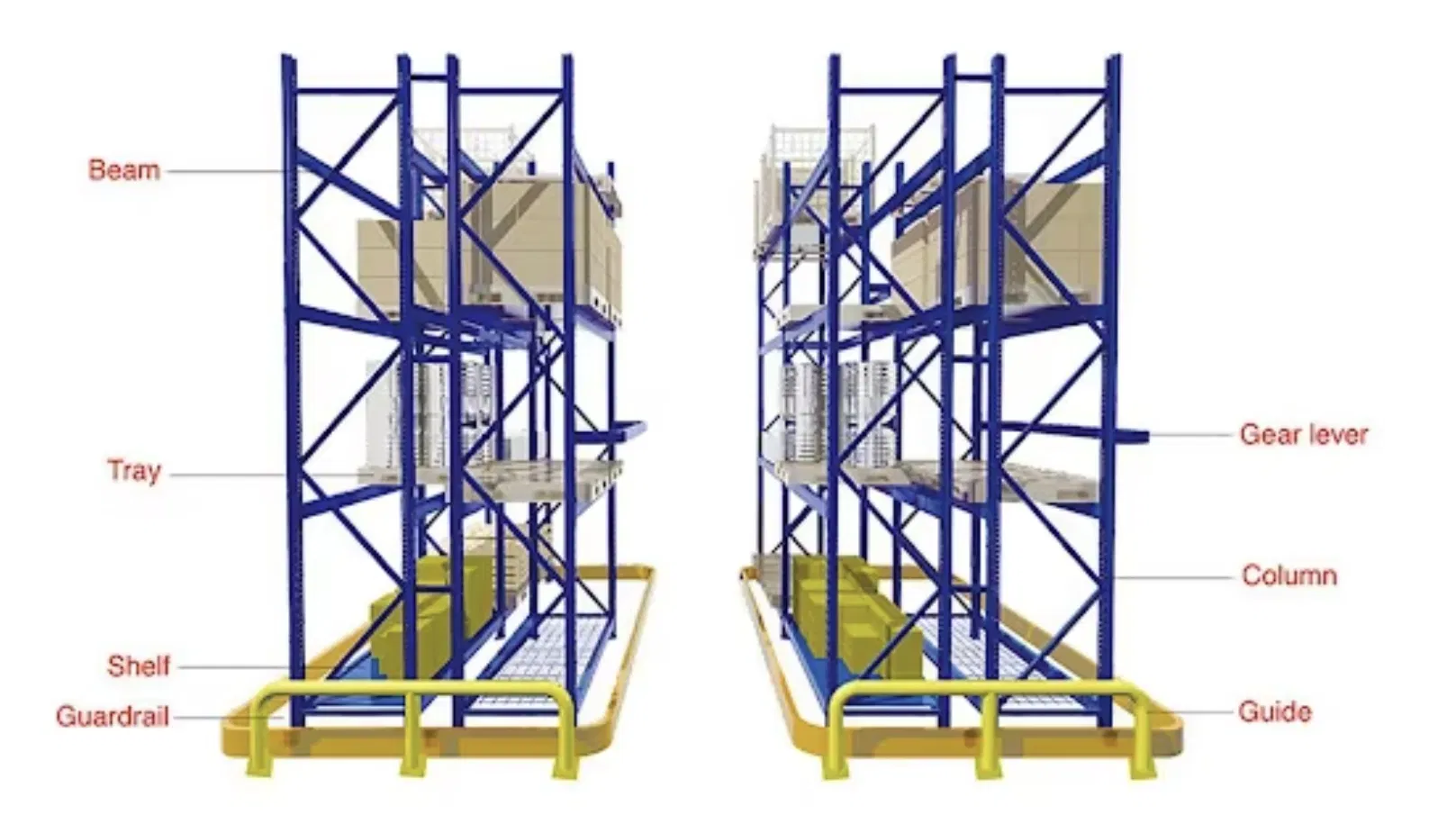

Drawings & Dimensions

After Sales Service

Standard Warranty 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty Optional coverage up to 36 months.
Global Support 24/7 technical assistance and spare parts supply.
Training On-site or remote operation/maintenance training.

Company Profile

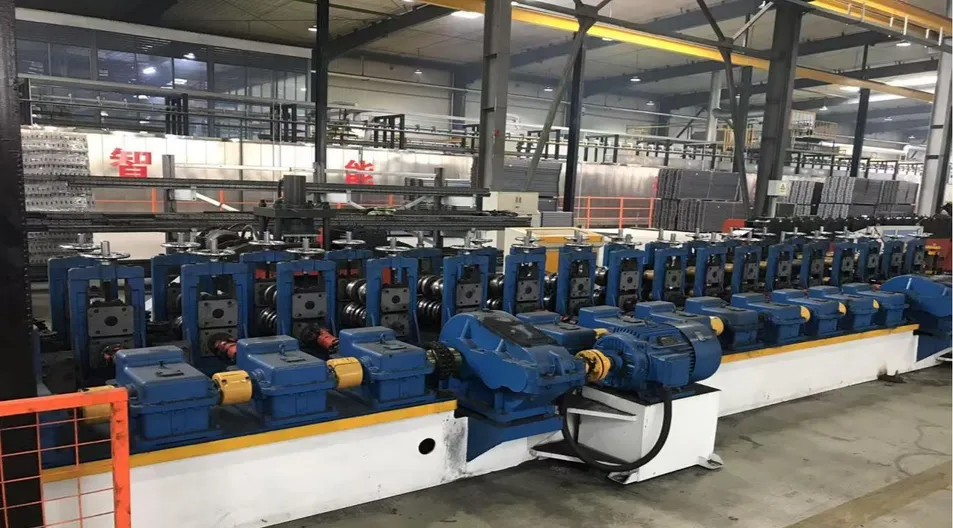

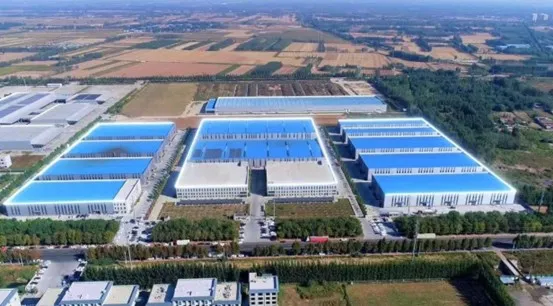

The company was established in 2008 and is a professional manufacturer dedicated to the development, research, design, production and installation of modern logistics technology. It has strong technical strength and product development capabilities. It is equipped with cold-rolling lines for section steel, automated powder coating lines, automatic continuous punching lines for steel strips, etc. At present, the company has one technology research and development center, two sales centers, one professional shelf manufacturing factories and several professional installation teams. With a total of over 150 employees, it ranks among the top in terms of scale and strength in the same industry and is one of the earlier manufacturers of warehousing equipment in the province. The company's annual production capacity is over 20,000 tons, with a rated capacity of 200 million yuan per year.

Why Choose Us?

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support

Company Strength

All models and styles of shelves can be customized according to customer needs to create the most suitable solution for you.

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a manufactory for storage racks.

Q: Which port will be used as loading port?

A: Qingdao port, or we can arrange shipment according to your needs.

Q: What is the raw material of your products?

A: The raw material brand of our normal temperature warehouse is carbon steel Q235b. For cold storage at minus 18 degrees Celsius or lower temperatures, we adopt Q345D. Other types of steel can also be customized according to your needs.

Q: Do you have a MOQ (minimum order quantity) limitation?

A: No, we do not have a MOQ requirement for most of our products. However, a 1*20ft container order is normally recommended to save costs and facilitate operations.

Q: What is the packaging of the products?

A: Standard export packaging. All parts are packed with packing tape after being stacked regularly, and covered with plastic film. The steel plates of medium-sized shelves are packed in cartons and then secured with packing belts.

Q: How will I install the racks?

A: We provide installation videos and drawings. If necessary, we can send an engineer to guide the installation or dispatch an installation team to set up on-site.
