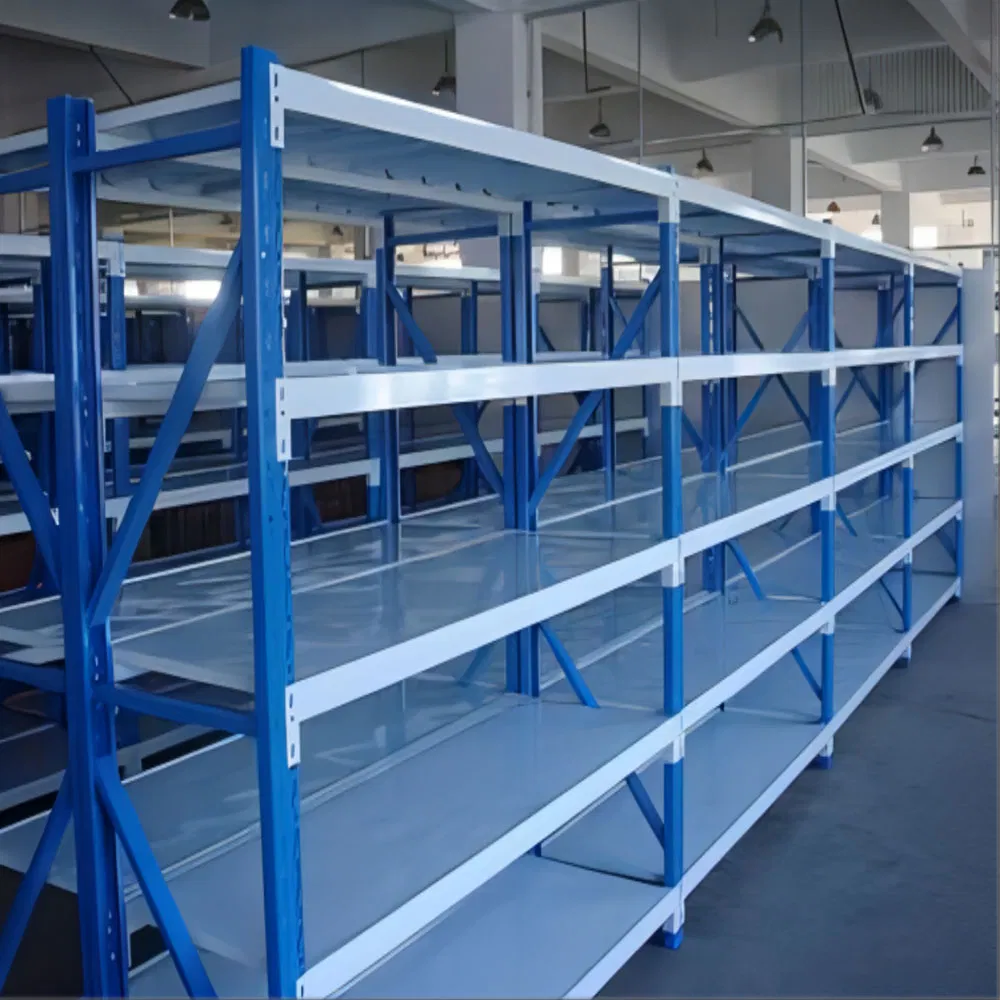

Widely Used Assembled Iron White Longspan Light Duty Rack Industrial Metal Steel Warehouse Supermarket Boltless Storage Shelving for Book Food Display Kitchen

Overview

Basic Info.

Model NO.

OKE-20240705-01

Usage

Tool Rack, Beverage, Tools, Food, Industrial, Warehouse Rack

Material

Steel

Structure

Rack

Type

Boltless/Rivet Racking

Mobility

Adjustable

Height

2m;Customizable

Weight

Max 300kg Per Shelf

Closed

Open

Development

Conventional

Serviceability

Common Use

Product Name

Storage Shelf

Width

1.2m-2m;Customizable

Depth

400/500/600mm;Customizable

Upright

50*30mm, 80*40mm, Thickness 1.5-2mm. Customizable

Beam

50*30mm, 60*40mm, Thickness 1.5-2mm. Customizable

Shelf Height Adjustment

50mm

Shelf Boards

Strip Steel, Mesh Panels, Wood Boards.Customize

Levels Number

Based on Customer Needs

Surface Finish

Good Powder Coated

OEM&ODM

Yes

Color

White/ Blue/ Orange/ Customized Color

Feature

Durable, Corrosion Protection

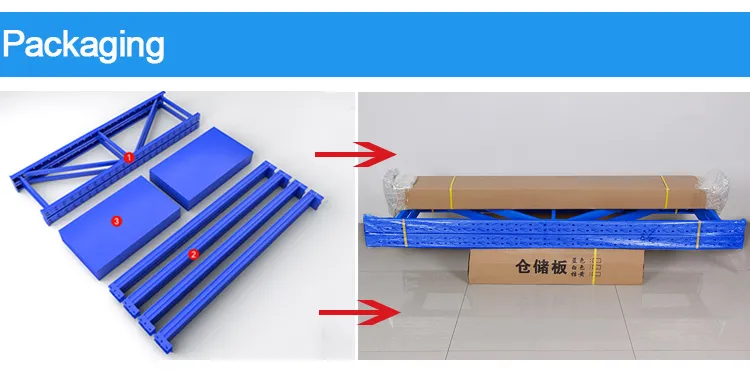

Transport Package

Package Ends with Cardboard and Bundle with Steel

Origin

China

HS Code

73089000

Production Capacity

30000 Piece/Pieces Per Month Warehouse Racking

Packaging & Delivery

Package Size

205.00cm * 65.00cm * 205.00cm

Package Gross Weight

100.000kg

Details Images

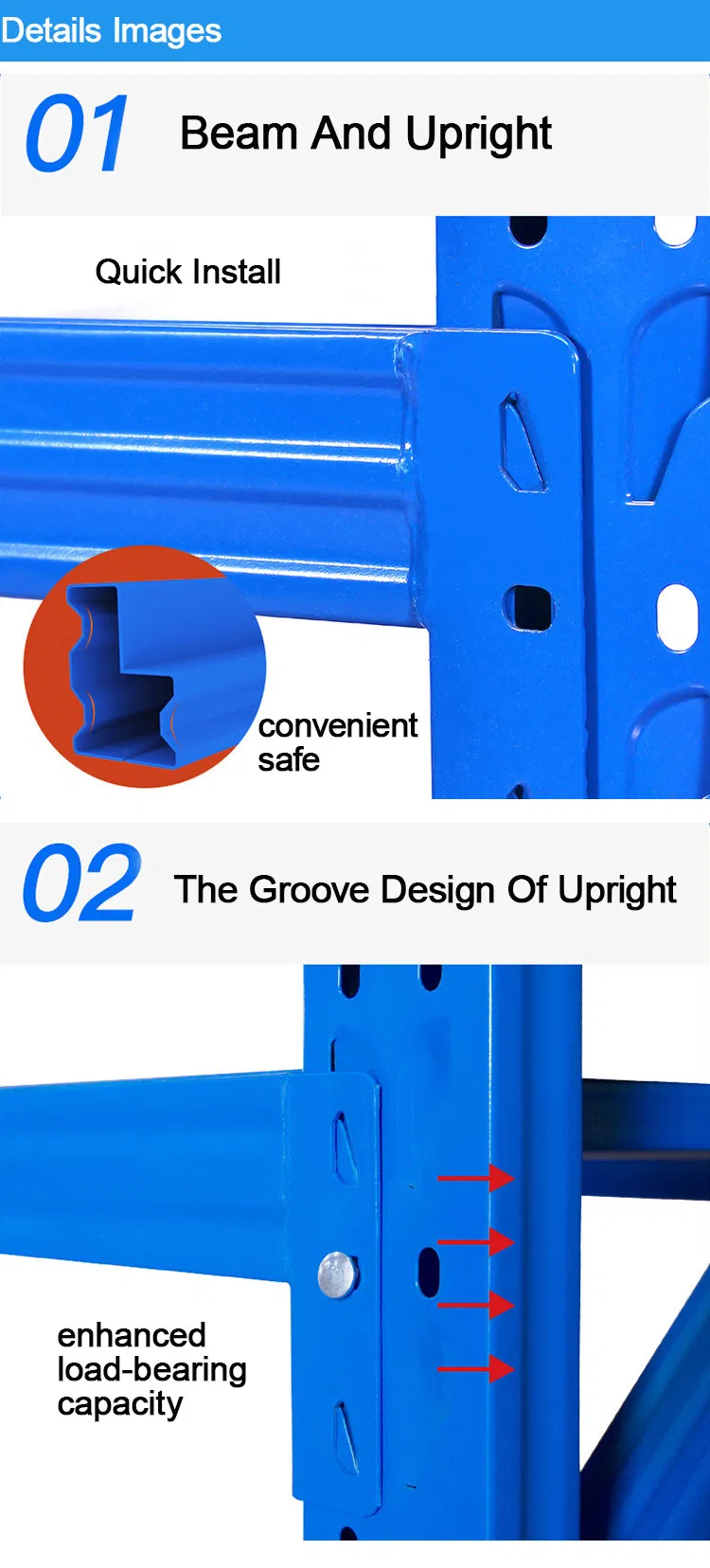

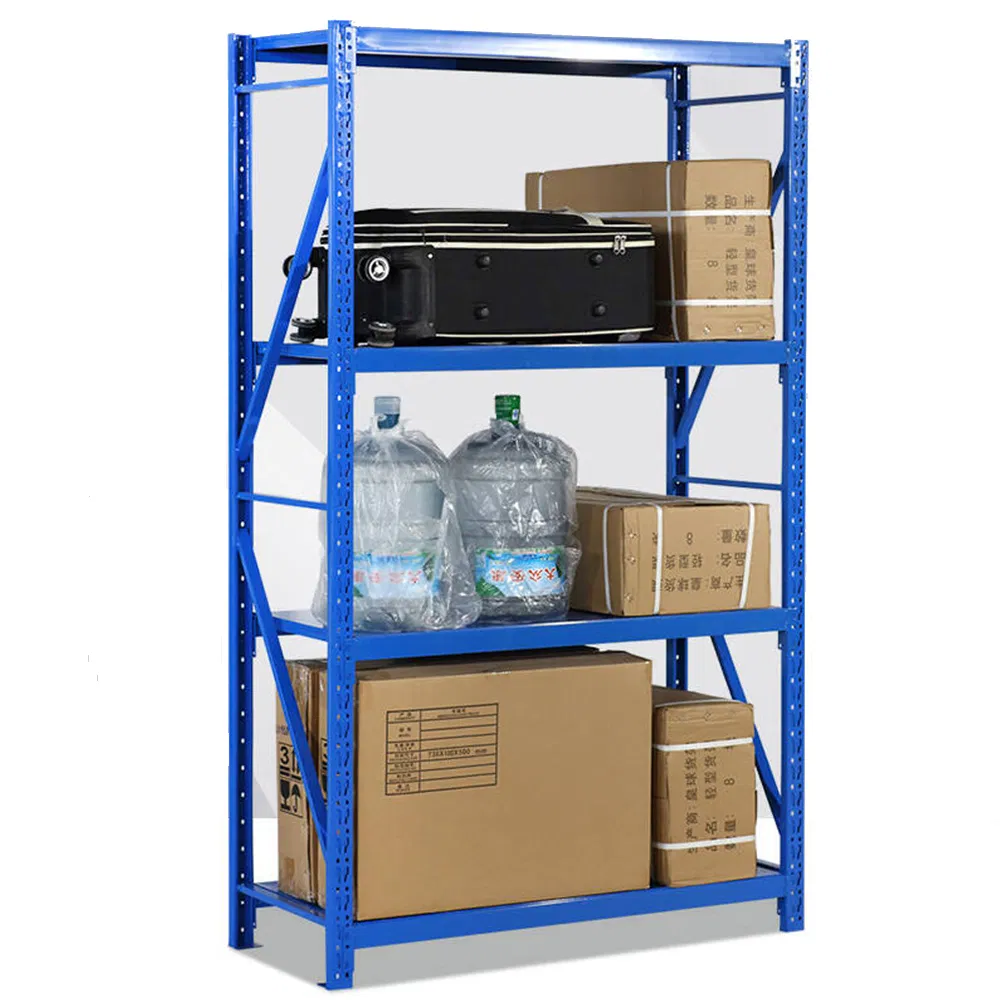

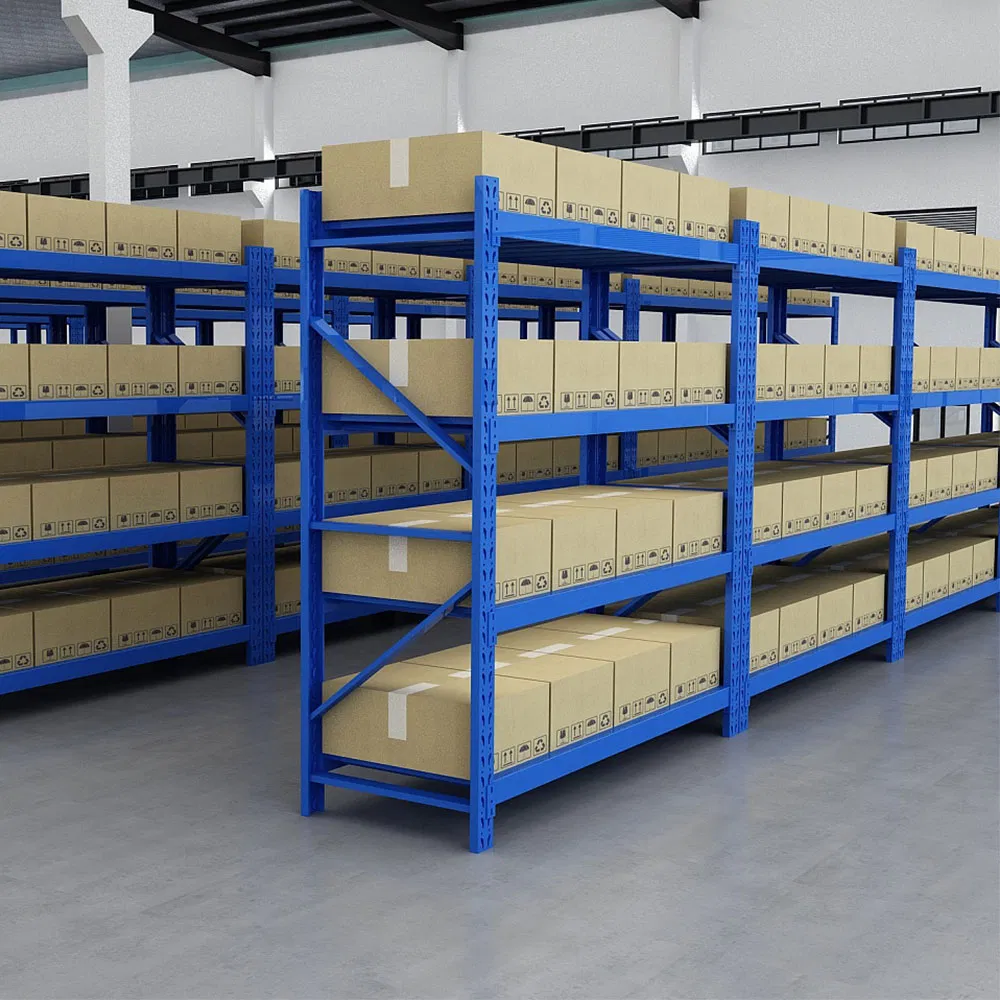

Assembled Iron White Longspan Light Duty Rack

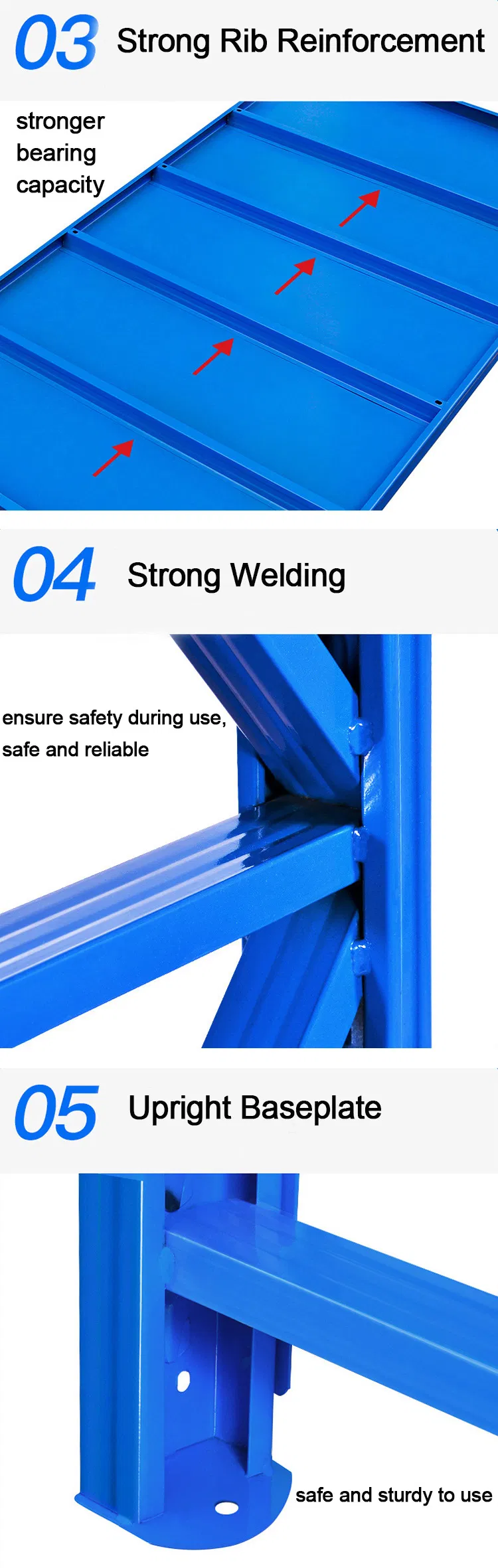

Boltless Storage Shelving for Display Kitchen

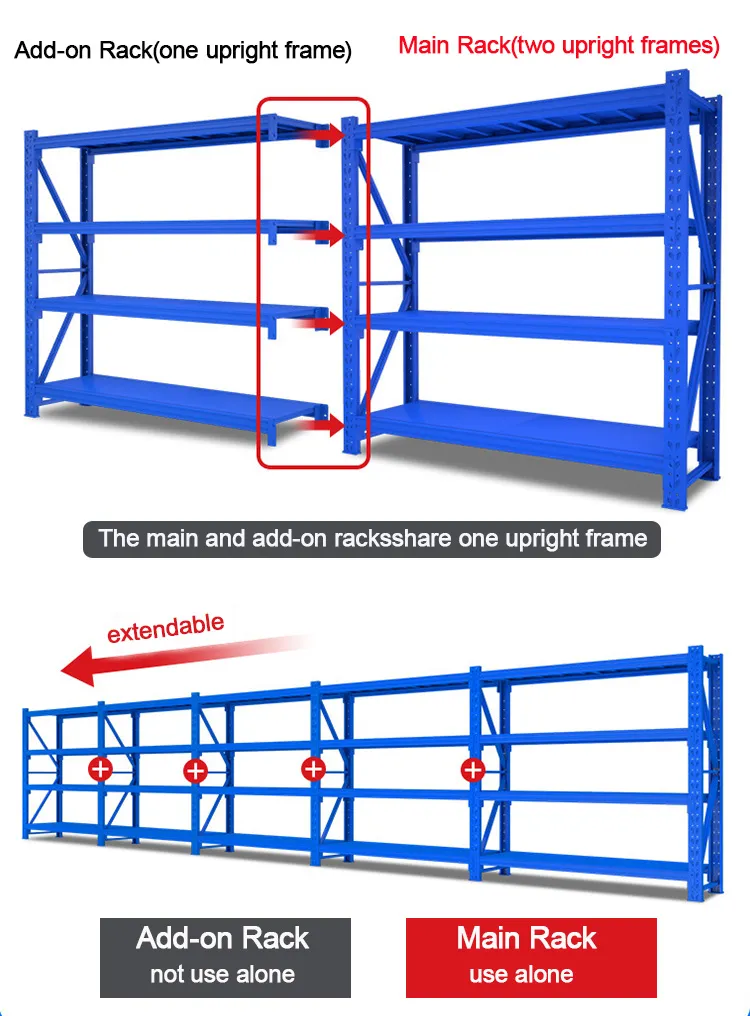

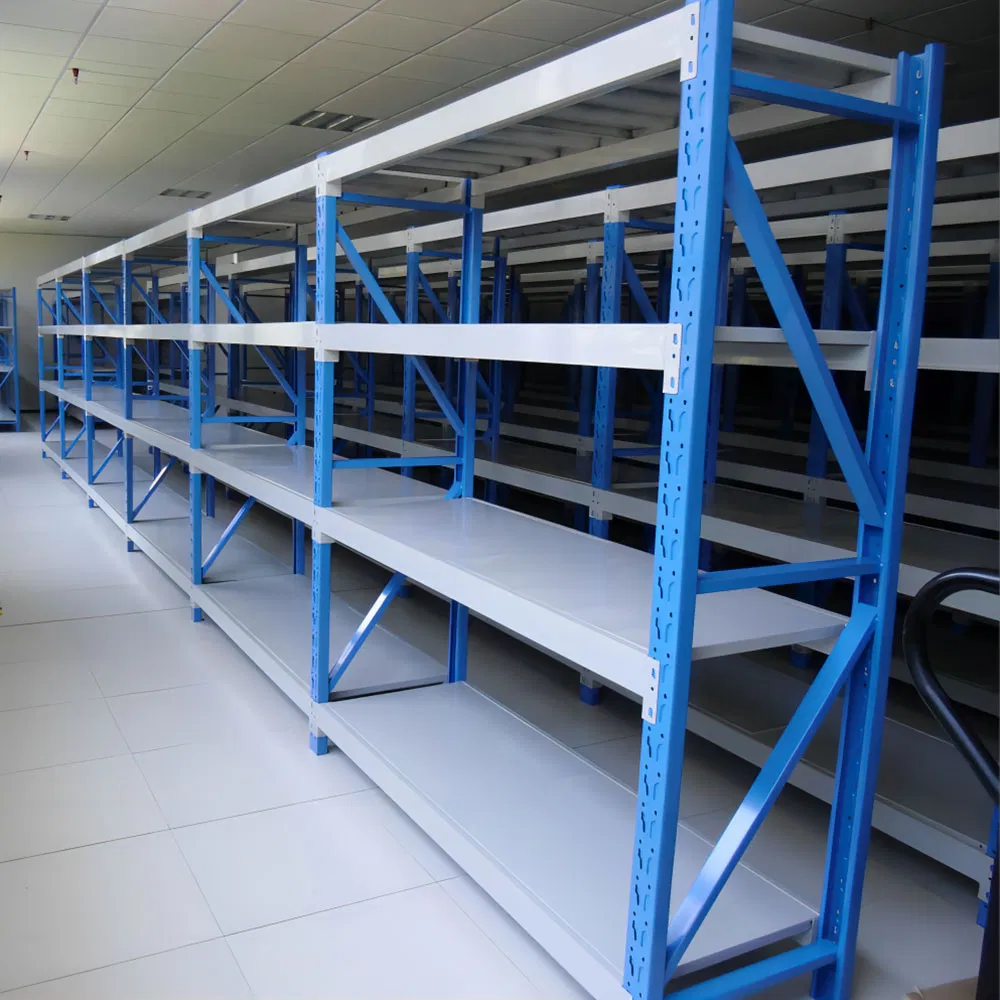

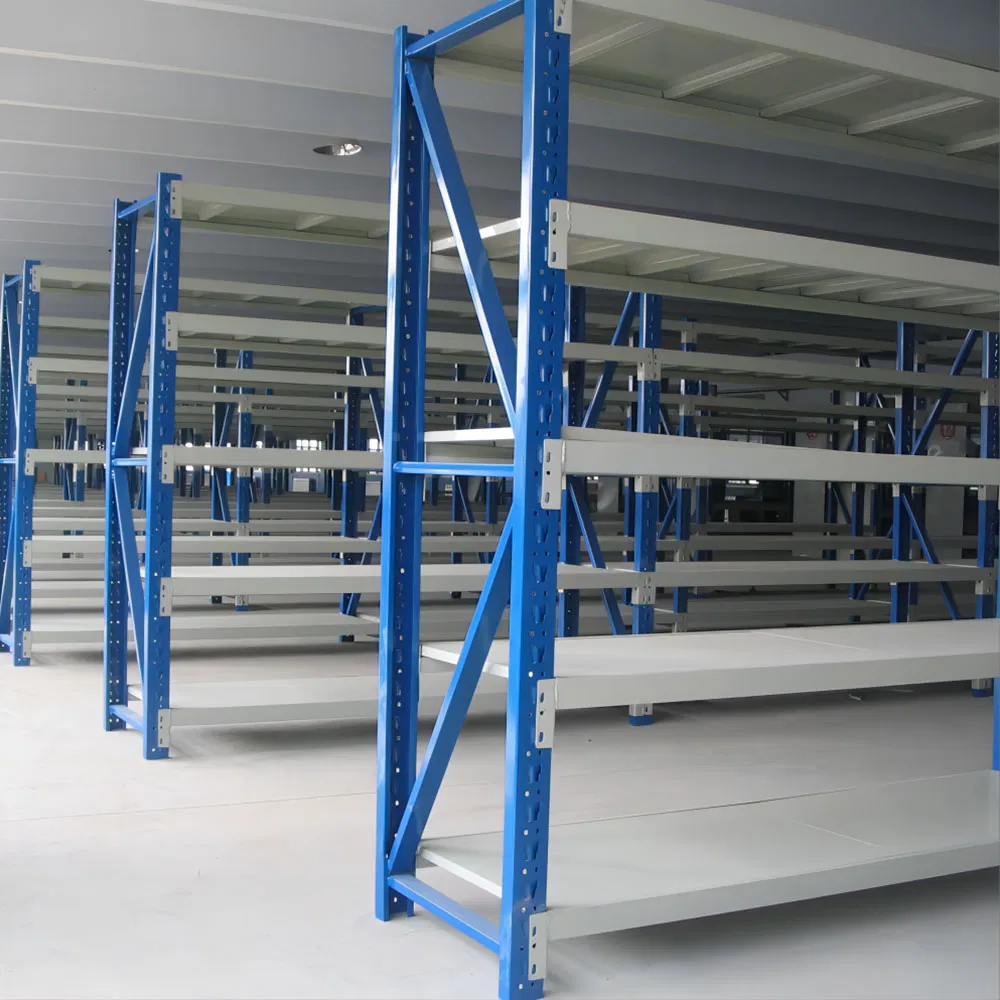

Warehouse Supermarket Boltless Storage Shelving

Product Description

Products Support
Free Consultation	Yes, Any Questions You Can Consult With Free.
Support For Custom	Yes
Free Design	Yes, CAD/PDF/3D Drawing
Free Sample	Available (Delivery Cost By Buyer)
3D Sample	Yes, 1:1 3D Sample, Save Your Time And Cost of Trial and Error
Pre-installation	Yes
Capacity Test	Yes, If Needed.
OEM&ODM	Available
Lead Time	7-10 Days
Installation Service	Yes, Submit the Installation Drawing Or Video, and send the Engineer To Your Site If Needed.
Maintenance Service	Yes, We Submit a Free Maintenance Guide.
Repair Service	Yes, We Submit Repair Services.

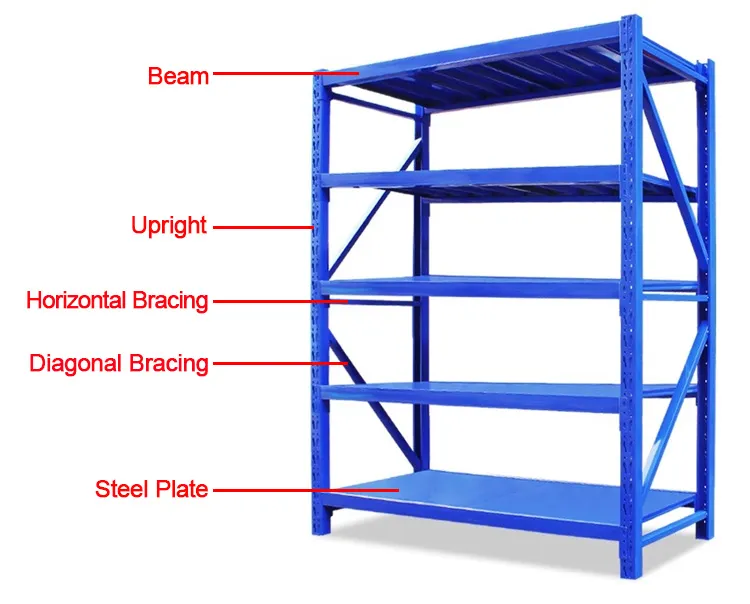

Light Duty Racking Components Introduction:

Uprights

High-quality Q235 cold-rolled steel is used as the raw material. Hole spacing at 50mm intervals.

Beam

High-quality P-shaped structural beams, with thickened ends, are welded with column clips at both ends to connect to the columns, providing stronger support for the goods.

Shelf Boards

Shelf boards are constructed by welding pressed steel plates and are placed on the beams. They are reinforced with three to four Reinforcement ribs. The height of the shelf boards can be adjusted up or down in multiples of 50mm for convenient placement of goods of different sizes and heights.

Bracing (Diagonal and Horizontal Braces)

These are typically Z-shaped or X-shaped and are connected to the columns through welded angle irons. The combination of horizontal and diagonal bracing helps reduce the deformation of the shelving and increases overall torsional stability.

Foot Plate

Welded to the bottom of the column to anchor the shelf to the ground.

Why Choose Us

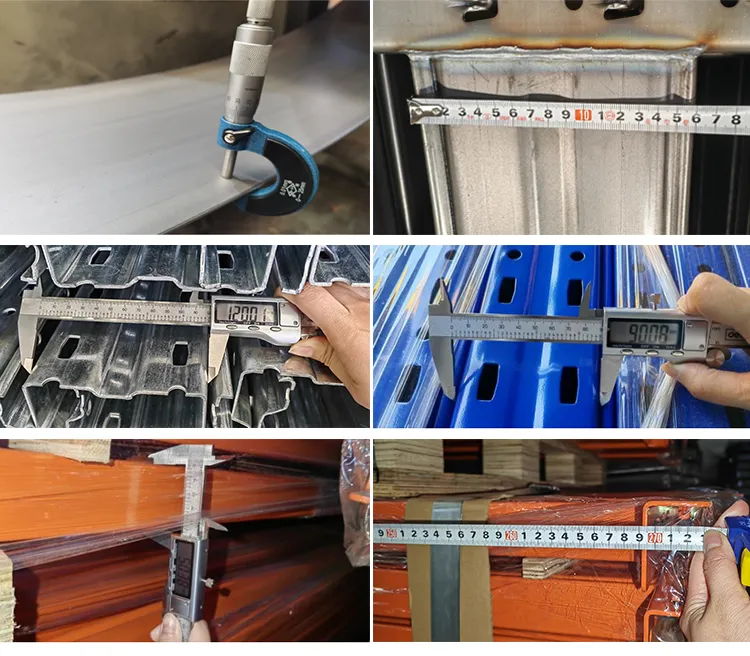

1. Strictly Racking Quality Inspection

Our professional quality inspection team consisting of 15 people checks the pallet racking quality for every producing step, which guarantees the quality of your racking during processing.

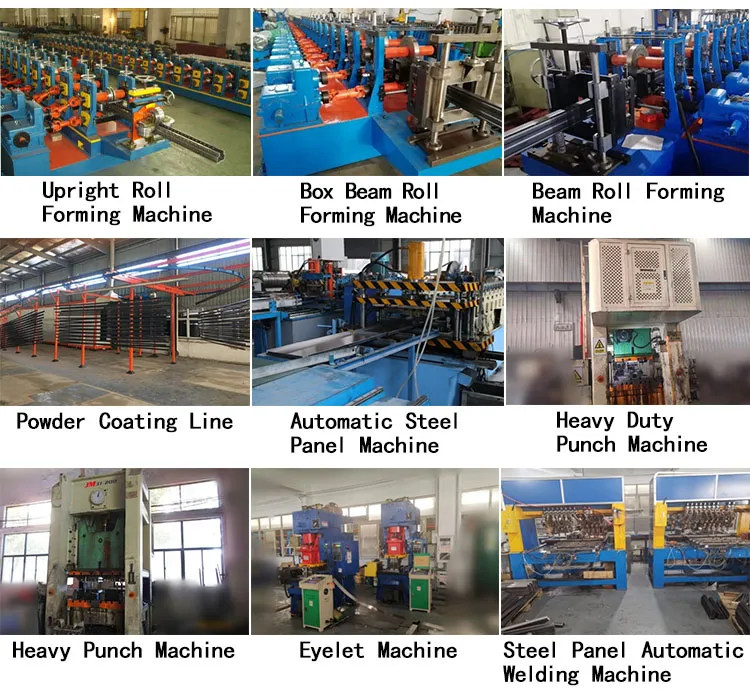

2. Advanced Production Equipment

A variety of complete equipment is utilized to make sure the delivery time and quality are within our control range.

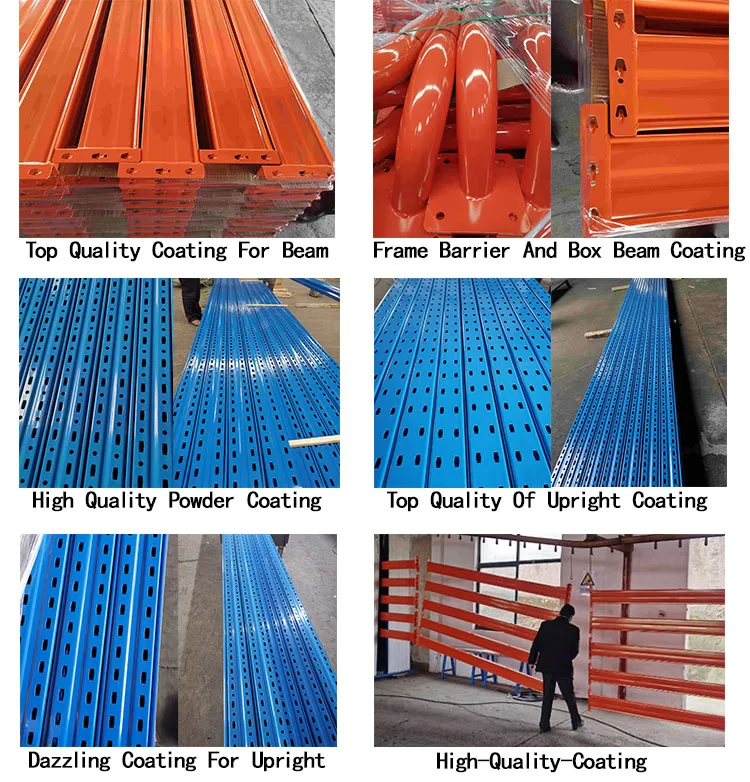

3. The Best Racking Quality of Powder Coating

We use a two-times powerful pickling technology to achieve excellent oxidation and produce a layer of oxidation film on the steel surface. This ensures the resin powder adsorbs better on the steel, offering quality that stands out. This greatly increases your racking life.

Company Profile

Company Introduction:

We are dedicated to the production of racking storage, providing quality solutions for saving your storage space and optimizing storage layouts.

We have over 23 years of experience exporting our quality racking to over 85 countries worldwide to date. Our fully automated, state-of-the-art technology provides the preconditions for the production of the optimum racking.

We also offer a 10-year warranty to cover your racking concerns in the future. Most importantly, we always put the customer first and provide the best possible service.

FAQ

Q1: What services do you offer? Are there any charges?

We provide free services including designing warehousing solutions, providing three-view drawings, and detailed quotations.

Q2: Our products have irregular shapes. Can your shelves accommodate them?

Yes, our light-duty shelves can support 100-300KG per shelf, and the shelf height can be adjusted in 50mm increments. We can customize storage shelves based on the specific data of your products, such as their shape and size.

Q3: How is the price of warehouse shelves calculated?

Warehouse shelves are customized products with no standardized pricing. Typically, after receiving the customer's requirements, we design a warehouse storage solution tailored to their needs. Once the solution is confirmed, we calculate the price. Additionally, price is not the only factor to consider; factors like space utilization, storage efficiency, load capacity, safety, and after-sales service are also important considerations.

Q4: How do I choose the right shelves for my warehouse?

Our technical team will communicate with you in detail to understand your requirements and select the shelves that are suitable for your warehouse, creating a customized storage solution for you.

Q5: Is it feasible to install the light-duty shelves independently?

Our shelves are designed with a fully modular structure, ensuring easy installation by following our provided guide. The process is straightforward and efficient:

Assemble column pieces: Secure cross braces and diagonal braces to the upright columns using screws (units with cross braces and diagonal braces directly welded to the uprights skip this step).
Install beams: Begin from the bottom, inserting one end of each beam into the holes in the upright columns. Shelf height can be adjusted in 50mm increments.
Place shelf boards: Smoothly position the shelf boards into the slots of the beams.
Secure the columns: Utilize expansion screws to fasten the welded base angles to the floor.
Calibration and adjustment: After installing all components, perform the final calibration and adjustment to ensure that the shelves are level, vertical, and securely positioned.

Q6: What is the estimated delivery time for the shelves?

On average, the delivery time is 7-10 days. Customized products may require additional time.
