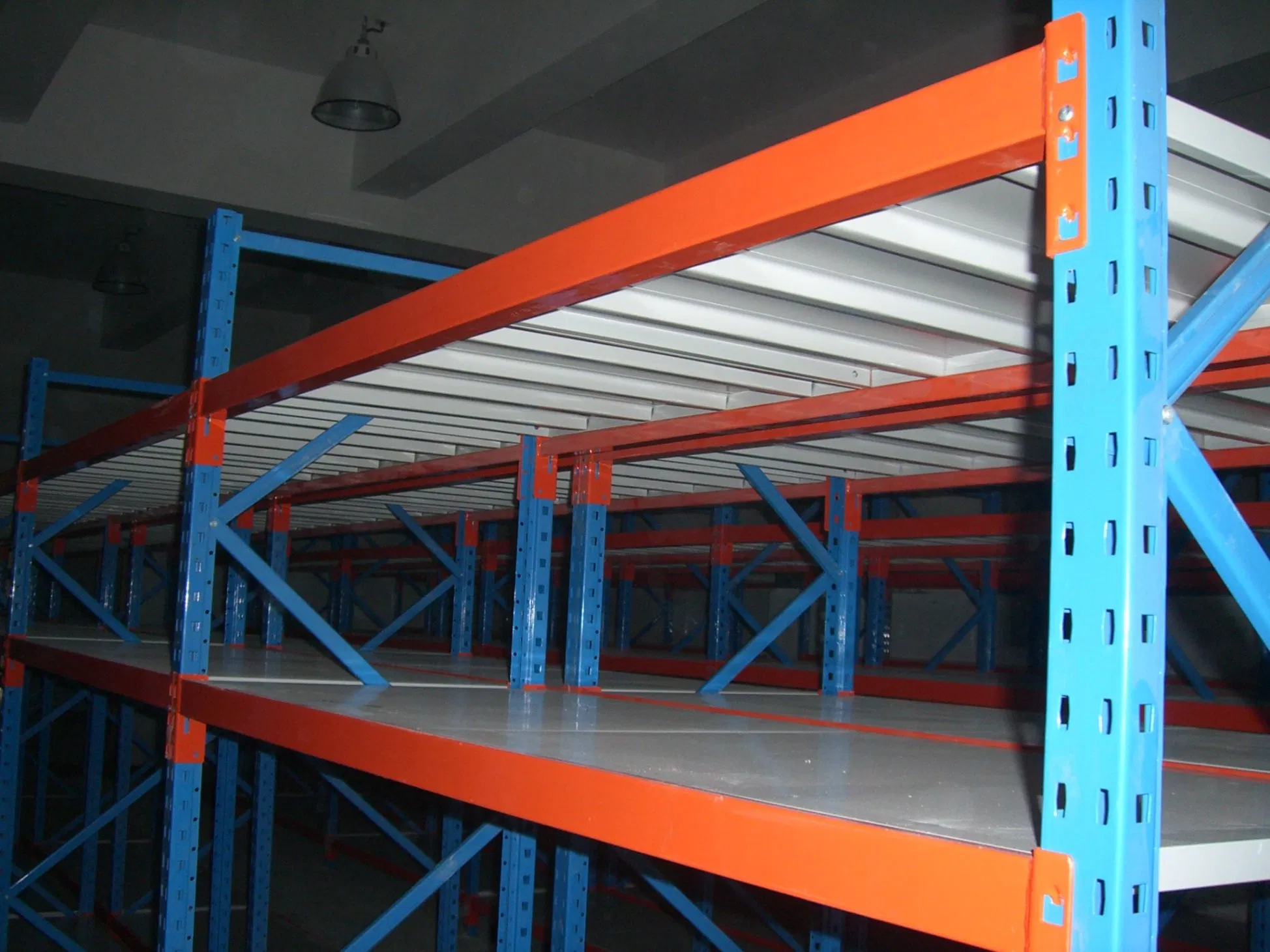

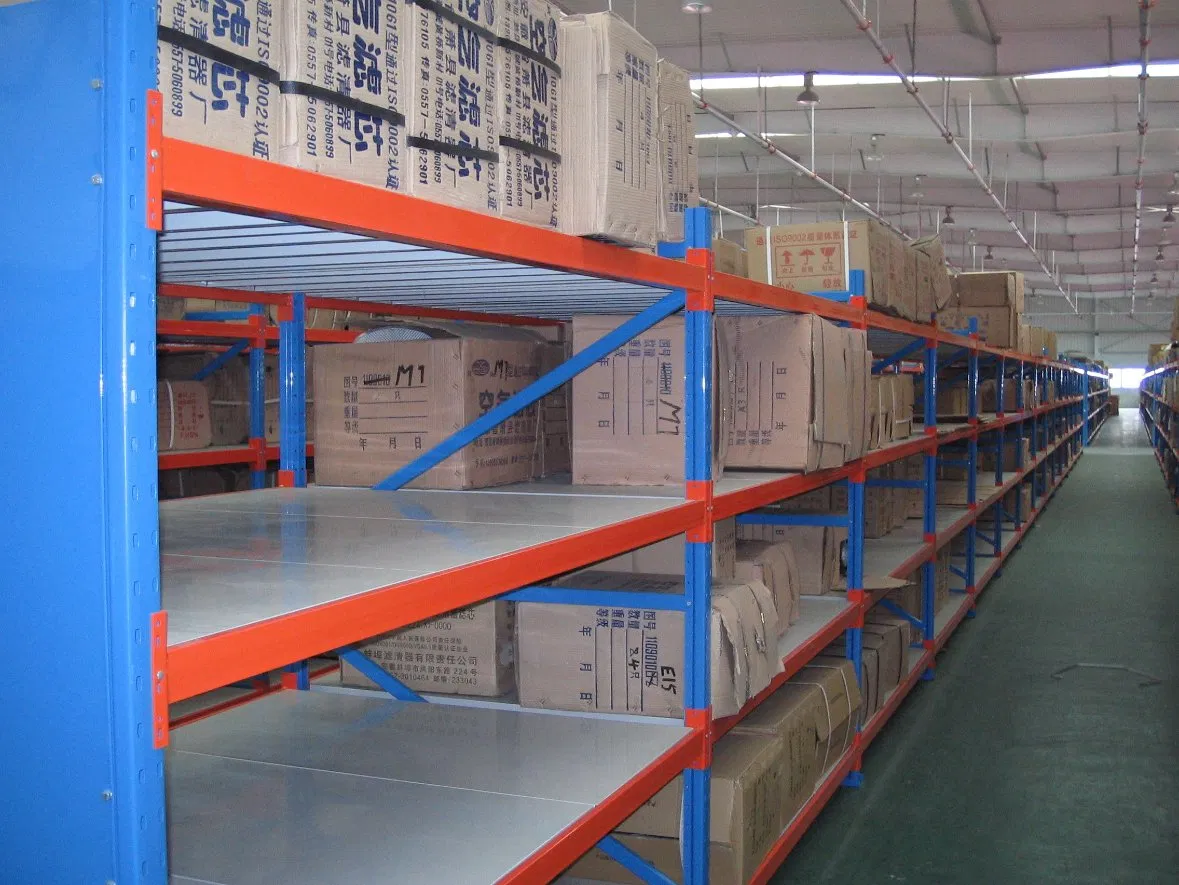

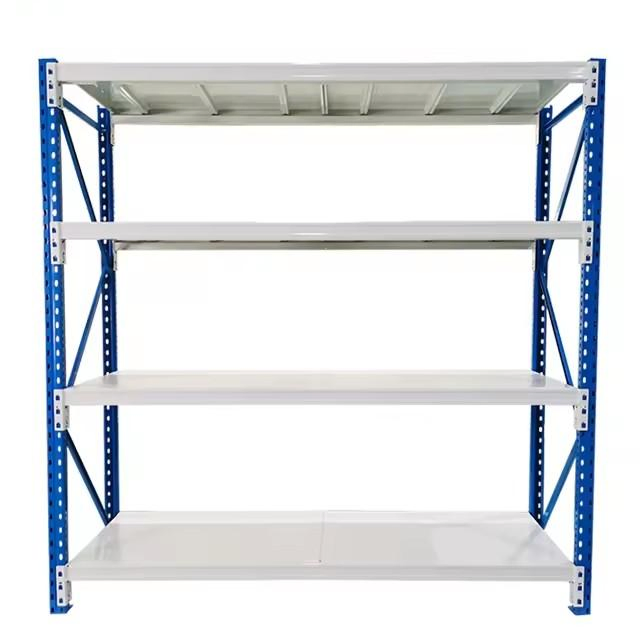

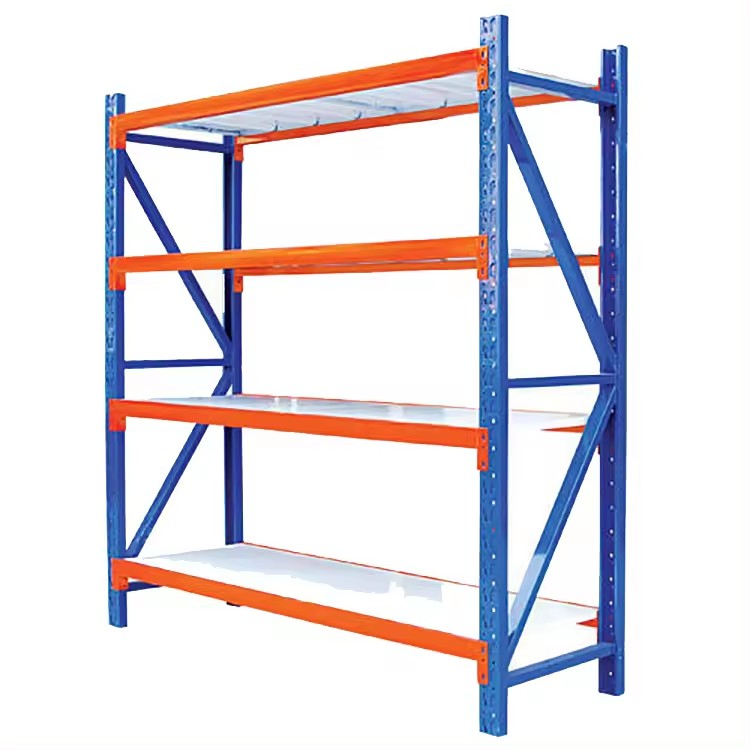

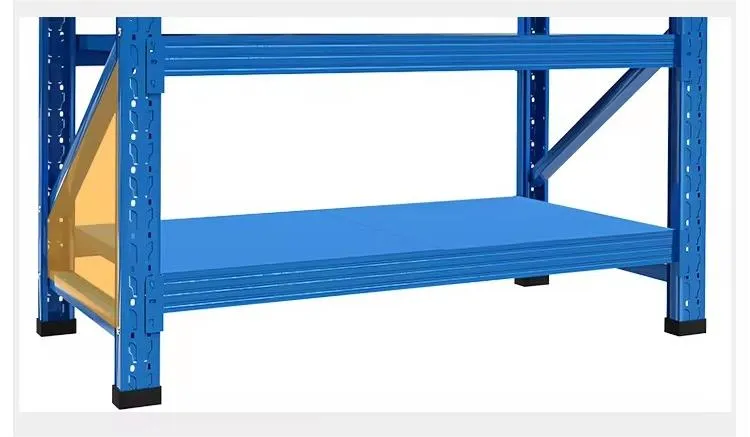

Adopts special step beams, which has the characteristics of simple structure, light weight, strong bearing capacity and low cost. The frame is connected by two uprights, horizontal braces and diagonal braces. It can be adjusted freely up and down to meet variety of storage needs. Medium duty racking is widely applied in electronics, food and medicine, clothing and office, business and other industries.
| Parameter | Value |
|---|---|
| Shelf Brand | OEM/ODM |
| Product Name | Medium-Duty Warehouse Shelf |
| Shelf Thickness | 0.35mm |
| Product Color | Orange, Gray, White, Blue, Black, or customized |
| Upright Specification | 50*35*0.5mm |
| Number of Shelves | 4 layers or customized |
| Product Dimension | 2000*600*2000 mm |
| Manufacturing Process | Uprights/Crossbars/Shelves: Cold-rolled |
| Load Capacity | Sizes (L*W*H) mm | Specification |
|---|---|---|
| 100kgs/layer | 1200*400*2000 | Frame: 30*50*0.6mm Beam: 30*50*0.4mm |
| 1200*500*2000 | ||
| 1500*400*2000 | ||
| 1500*500*2000 | ||
| 2000*400*2000 | ||
| 2000*500*2000 | ||
| 200kgs/layer | 1500*500*2000 | Frame: 40*80*0.7mm Beam: 40*60*0.6mm |
| 1500*600*2000 | ||
| 2000*500*2000 | ||
| 2000*600*2000 | ||
| 300kgs/layer | 1200*600*2000 | Frame: 40*80*0.7mm Beam: 40*60*0.7mm |
| 1500*500*2000 | ||
| 1500*600*2000 | ||
| 2000*500*2000 | ||
| 2000*600*2000 |
SAVES COST & SAVE SPACE

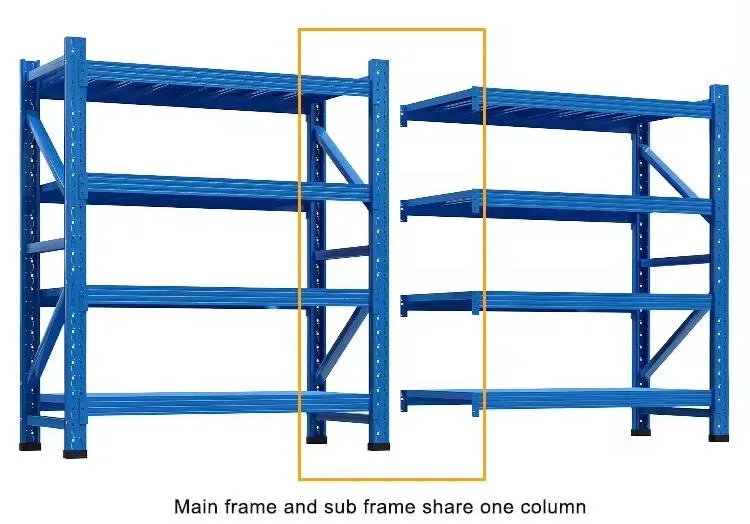

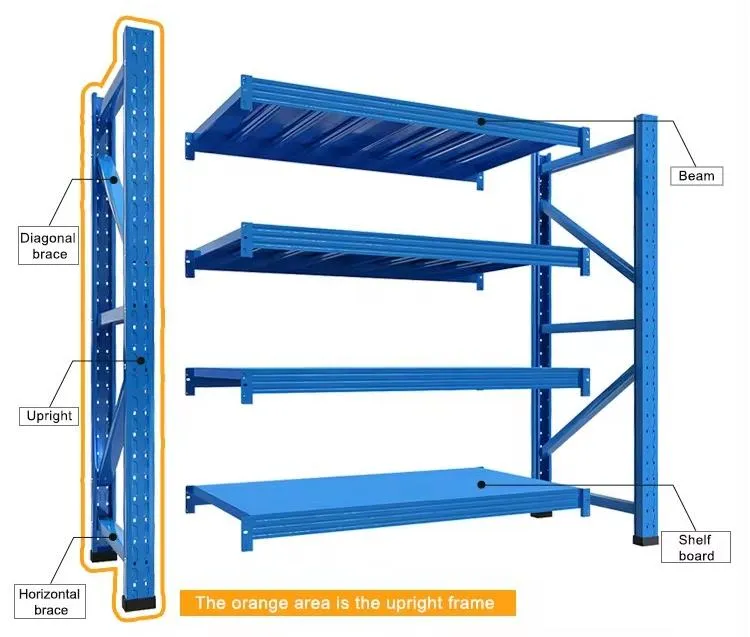

The main frame has two columns frames, which can be used independently. Add-on racks cannot be used alone and must be integrated with the main rack.

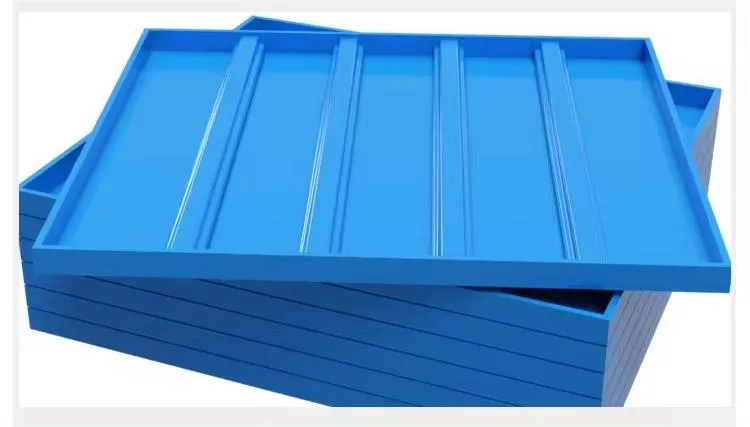

The spot-welded reinforcing ribs at the bottom of the shelf board increase the focus of the laminate, prevent the shelf board from being deformed, and make it much stronger.

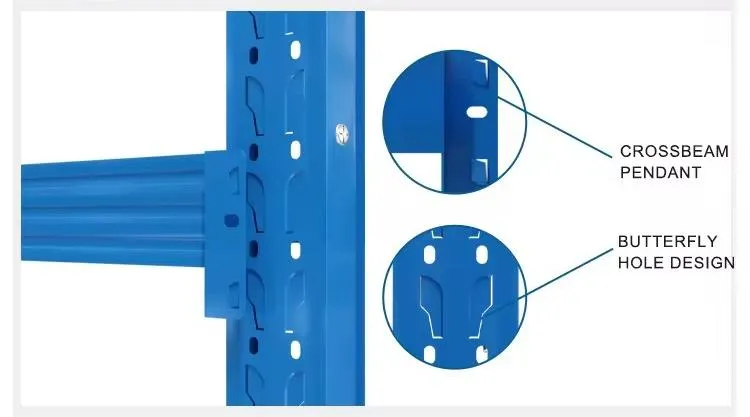

The upright frame is designed with butterfly holes and connected to the buckles on the beam pendants, saving time and effort during installation and ensuring easy disassembly. The shelf layer height can be adjusted according to specific needs.

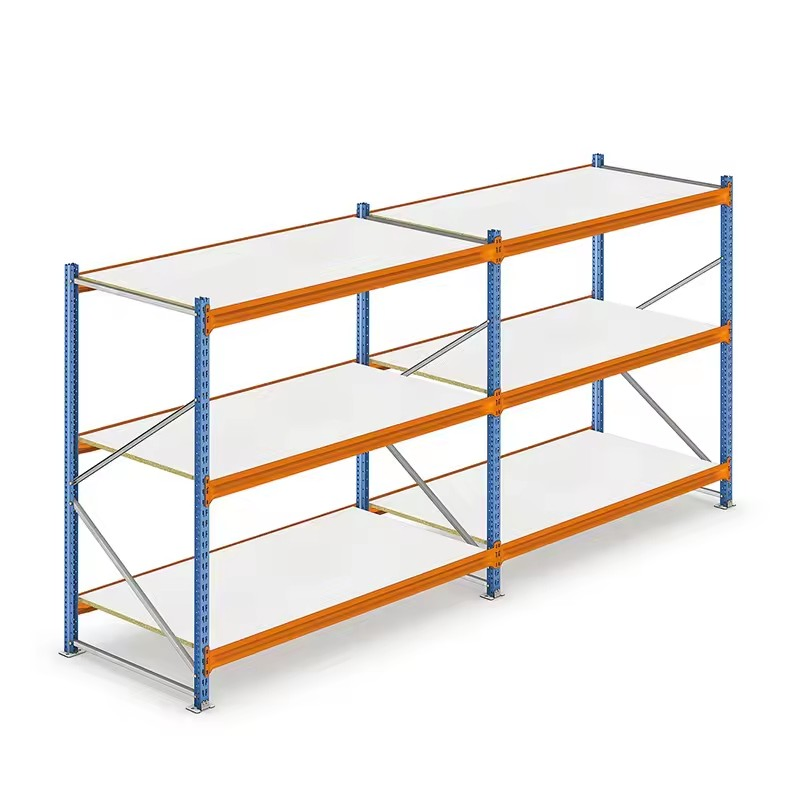

Diagonal bracing is added to the shelf, which conforms to mechanical theorems to ensure stable and reliable load-bearing.

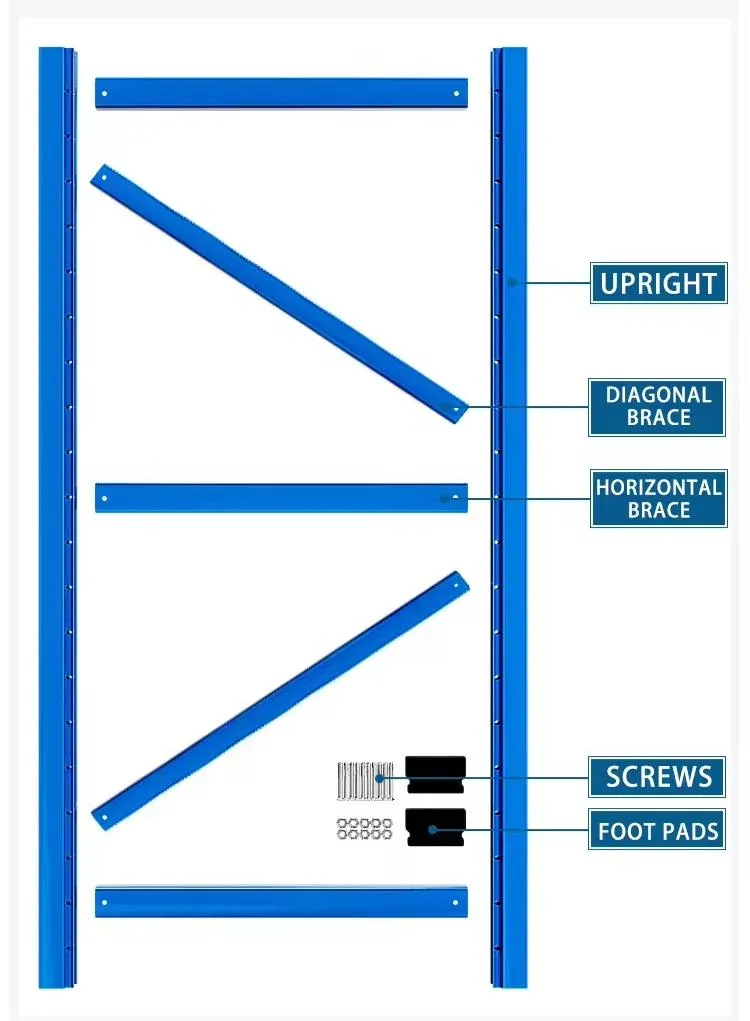

Our upright frames are assembled with bolts instead of welding. This allows more quantity to fit inside shipping containers and significantly saves on shipping freight.
Established in 2020, we are one of the leading manufacturers specializing in designing & manufacturing industrial warehouse storage racks, automation warehouse systems and professional logistics equipment. We aim to provide cost-effective and space-utilizing storage solutions for all customers worldwide.
We have a powerful R&D team, including 8 experienced design engineers. Our workshop is equipped with 6 automatic production lines of rolling and curved steel and two static powder coating lines, which ensures the high quality of our products. All products and operations are ISO:9001 certified, and all racks/shelving are approved by SGS.
Our main products are heavy duty racks, medium duty racks, light duty racks, cantilever racks, mezzanine floors, drive-in racks, and more. Welcome to visit us.
