Product Overview

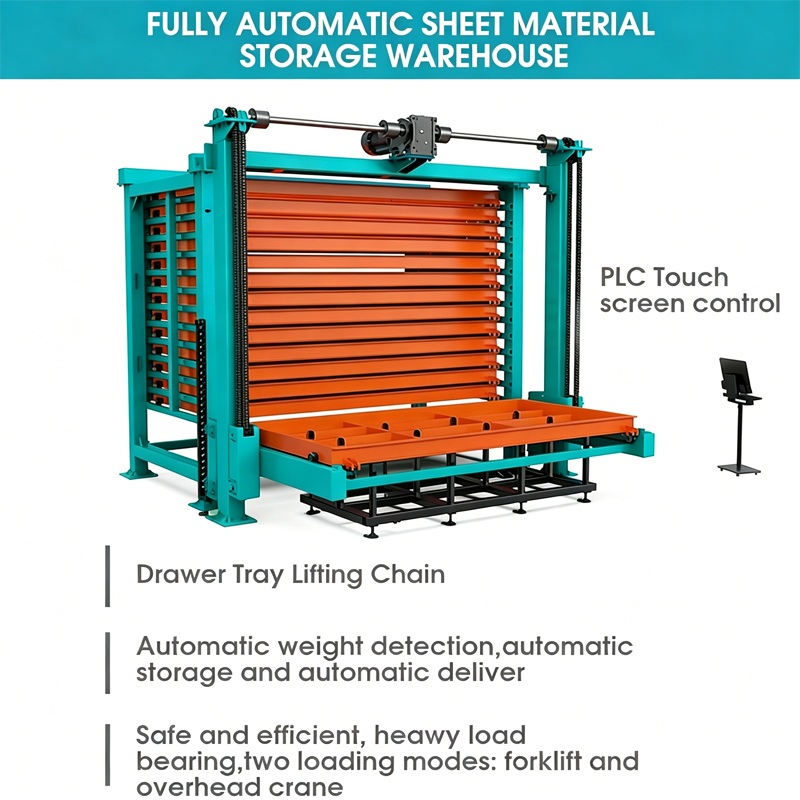

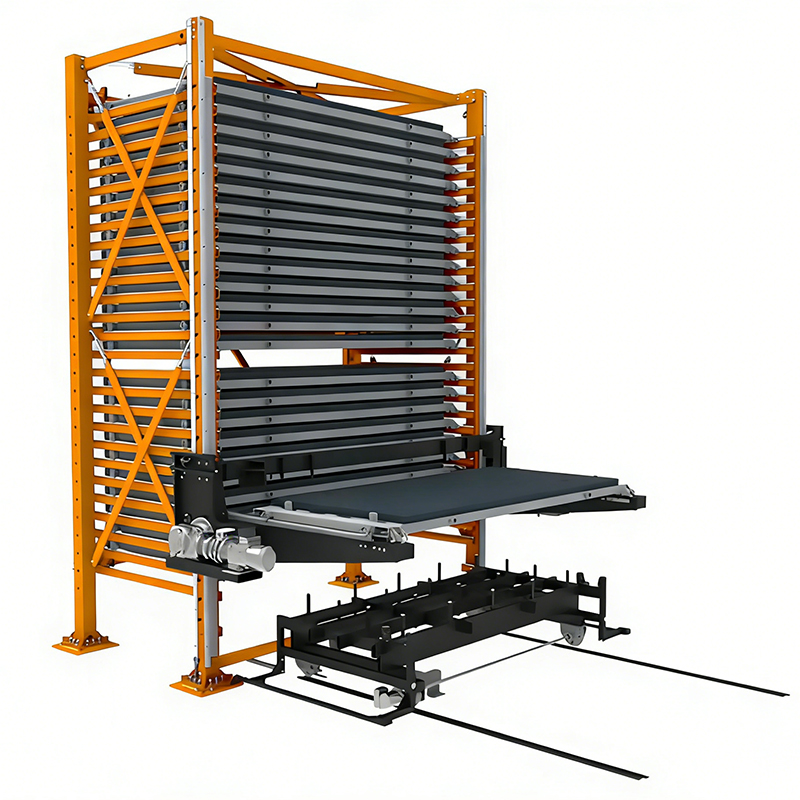

Automatic Drawer-type Plate Storage System
The drawer-type plate storage system stores aluminum plates, steel plates, and wooden boards flat in drawers. The applicable plate size is 1500*3000 mm. Each rack consists of 5-10 drawers, allowing for easy classification and separate storage of different specifications. This method reduces the space occupied by traditional storage systems, which can waste valuable workshop space. The multi-layer drawer design increases storage capacity by 10 times while reducing the footprint by 10 times.
This intelligent 3D panel storage ASRS warehouse is a fully automated vertical storage system designed for sheet materials, boards, panels and flat workpieces. Adopting advanced stacker crane, PLC control system and intelligent warehouse management software, it realizes automatic storage, retrieval, positioning, handling and real-time inventory management.
It is widely used in woodworking factories, furniture manufacturing, sheet metal processing, construction material production, panel processing lines and modern intelligent workshops, providing a high-density, space-saving and efficient automated storage solution.

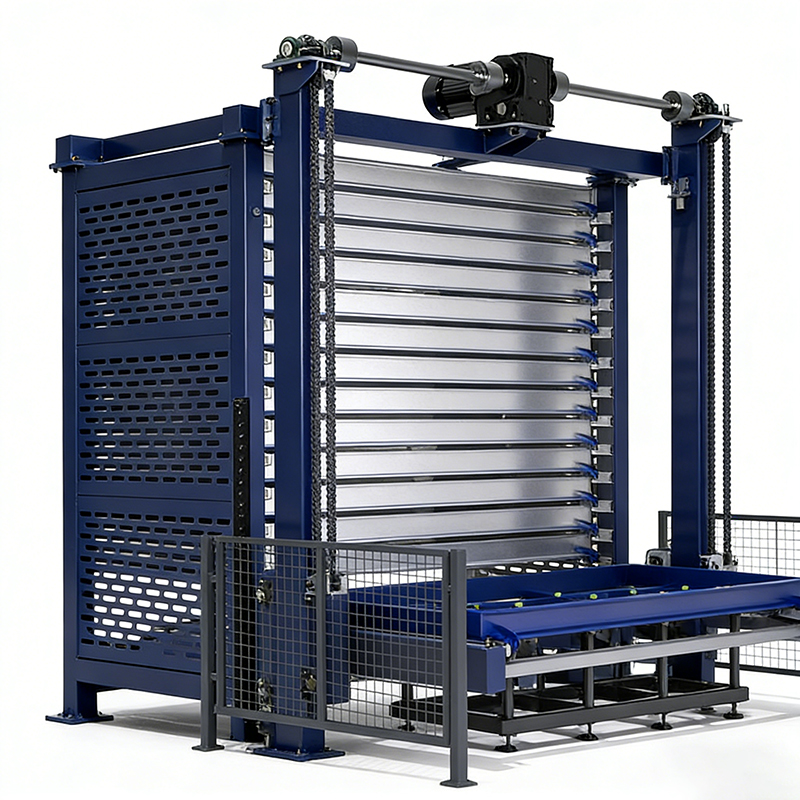

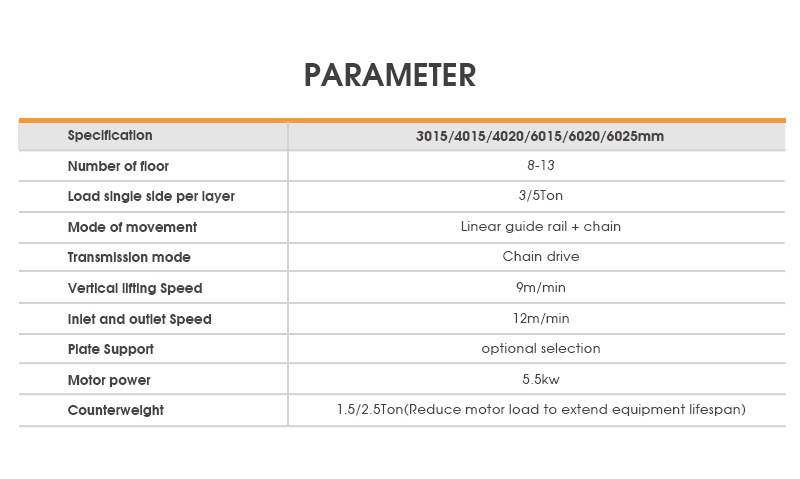

Product Specifications
| Specification |
3015/4015/4020/6015/6020/6025mm |
| Number of floor |
8-13 |
| Load per layer |
3/5Ton |
| Mode of movement |
Linear guide rail + chain |
| Transmission mode |
Chain drive |
| Vertical lifting Speed |
9m/min |
| Inlet and outlet Speed |
12m/min |
| Plate Support |
optional selection |
| Motor power |
5.5kw |
| Counterweight |
1.5/2.5Ton (Reduce motor load to extend equipment lifespan) |
Features At A Glance
- Heavy-duty framework
- Easy pull-out
- Efficient access
- High stability
- Long-term cost-effectiveness

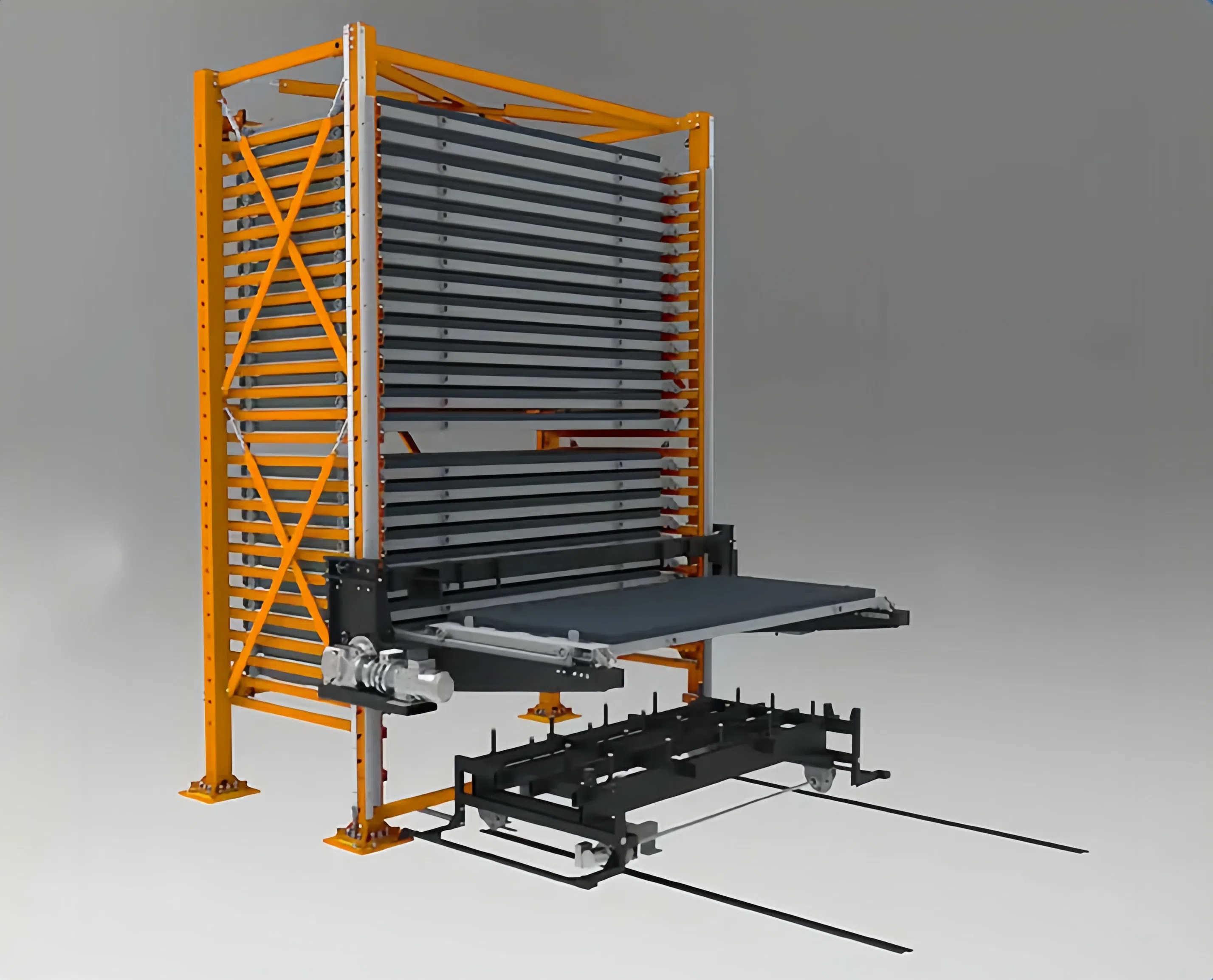

- Material protection
Maximize Your Storage Efficiency with Our Advanced Vertical Storage System. Our innovative storage solution allows you to fully utilize your warehouse's vertical space, dramatically increasing storage capacity for sheets and optimizing space efficiency in every square foot. The drawer-style design makes organizing and storing materials a breeze, allowing for easy classification and quick retrieval—saving you time and effort when you need it most.

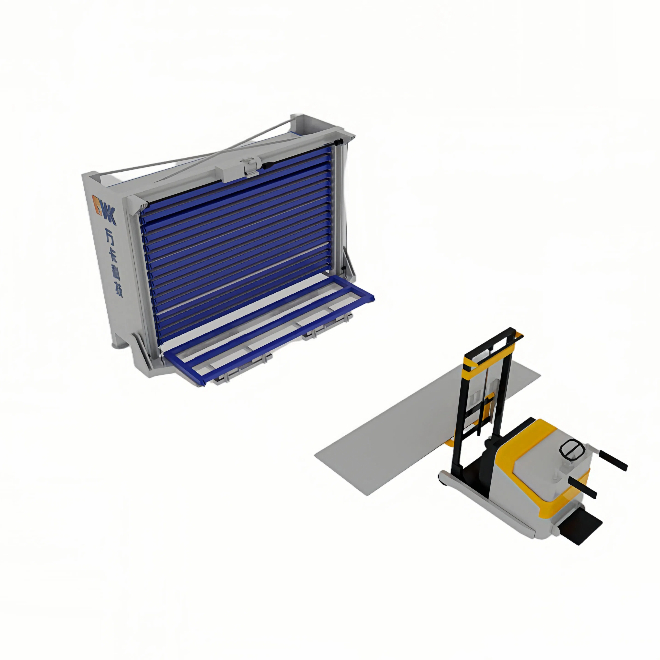

Additionally, the pallet sleepers ensure that forklifts can precisely place or remove sheet metal from the shelves, enhancing the accuracy and speed of goods handling. This means less downtime, fewer errors, and a more streamlined workflow for your warehouse operations. Perfect for businesses looking to maximize storage potential, improve operational efficiency, and boost overall productivity, our system is a game-changer in modern warehousing.
Our Advantages
Our team boasts a long history of development and is a high-tech enterprise integrating the research and development, production, sales, installation, and service of storage machinery. Specializing in providing storage services for raw materials such as metal plates and tubes, we also tailor various integrated solutions for customers.
We operate a modern standard factory building spanning 20,000 square meters and employ over 200 staff members. Possessing a professional research and design team along with a dedicated service crew, we offer customized services integrating production, delivery, and installation guidance. As an industry leader, our company provides comprehensive after-sales services to ensure a worry-free user experience.
Production & Testing Equipment
We are equipped with advanced production and testing equipment, which is the guarantee of product quality and production efficiency, proving that we are a professional manufacturer.
Laser Tube Cutting Machine
Strict Quality Control
Zero Defect Commitment: Experienced quality inspectors equipped with advanced testing equipment provide professional quality guarantees.
Sales and Service Network
Our products have passed a number of international authoritative certifications (ISO 9001, ISO 14001, CE), which can fully meet the quality and safety requirements of different markets, providing you with a strong guarantee for market entry.
We can provide complete certification documents and test reports according to your market needs, ensuring that your import and sales go smoothly.
Similar Products
Telescopic Cantilever Rack
Intelligent Vertical Plate Storage System
Modular Vertical Plate Storage System
Frequently Asked Questions
How can I proceed with procurement?
You can reach out to our technical personnel via backend contact options. We will provide a suitable technical solution and quotation based on your specific requirements and parameters.
How do I specify my shelf requirements?
Please provide us with details about the materials you intend to store, including dimensions, load capacity per level, and the preferred number of drawers. Our engineering team will design a tailor-made storage solution for you.
Do you supply loading robotic arms or integrated loading/unloading systems?
Yes. Integrating loading and unloading systems requires the dimensions of your laser cutting machine table to match specific parameters. We also need details on your preferred loading method: board rack, exchange platform, or automated warehouse.
Can you provide on-site installation and debugging?
Yes, we deploy technical specialists globally to assist with on-site installation, setup, and system testing. Our professional service team has successfully handled projects worldwide.
How do you guarantee product quality and safety?
Our quality assurance team enforces strict ISO9001 standards. We perform comprehensive structural load testing on all equipment prior to shipment, and our systems are certified under CE compliance for seamless global export.
How can we inspect your manufacturing facilities?
We welcome all clients to request live video inspection tours or schedule on-site visits to check our standard production workshops, which operate directly to offer competitive pricing without middleman markups.
