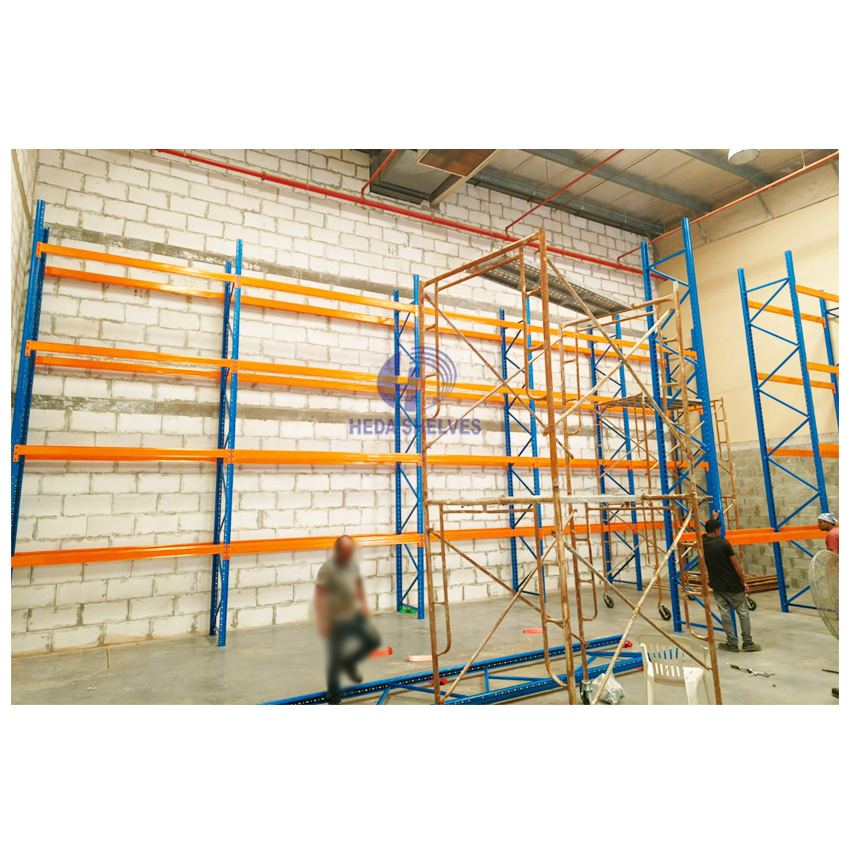

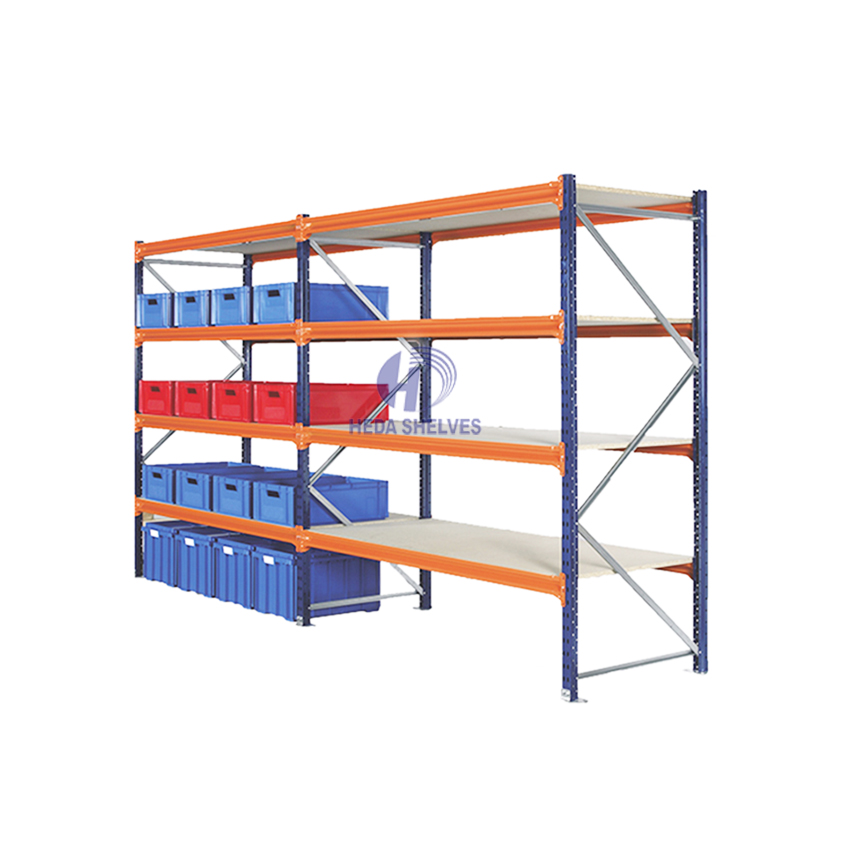

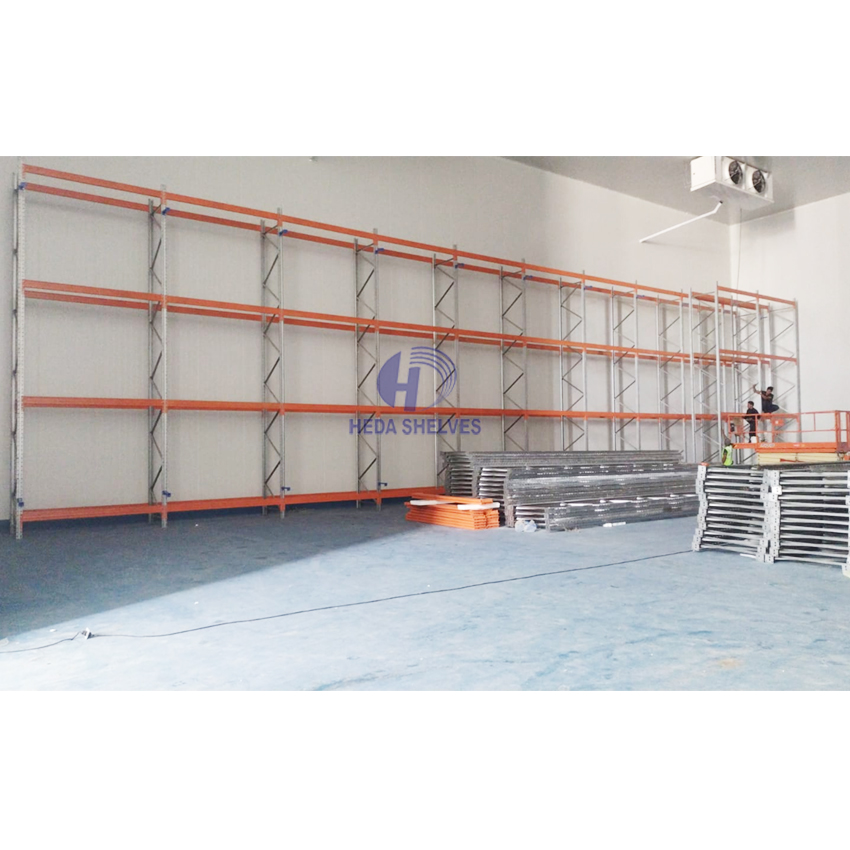

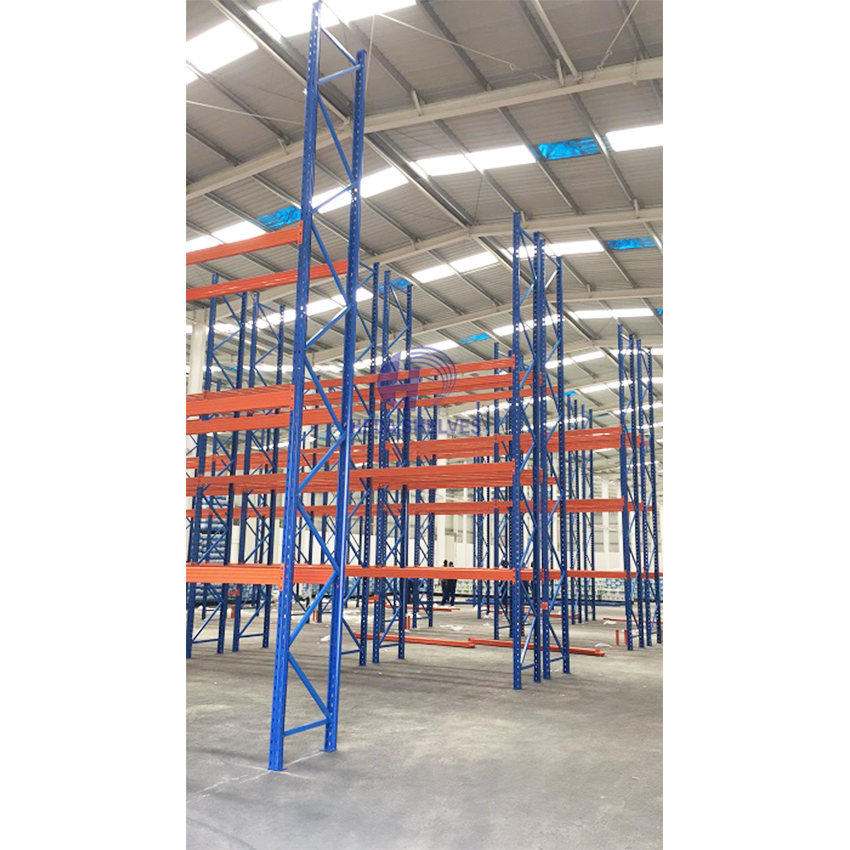

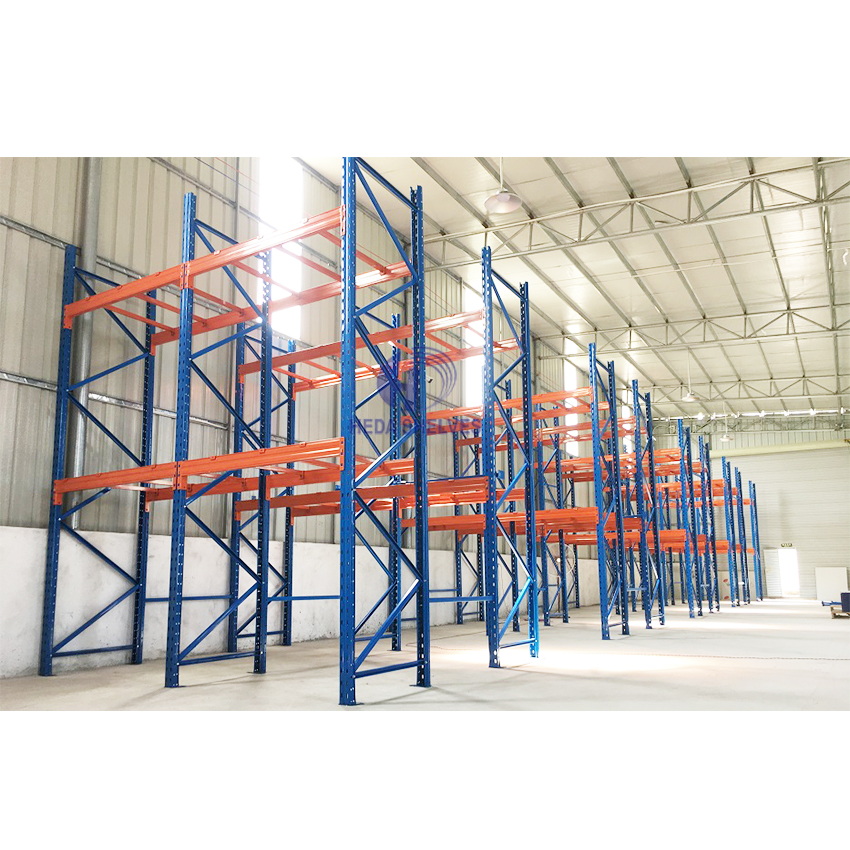

Double Deep Pallet Rack Heavy Duty Pallet Storage Racking 1000kg/2000kg/3000kg Per Layer Construction Warehouse Storage

Product Description

Pallet Racking System Banner
Pallet Racking System

The Industrial Pallet Racking System is composed of upright frames, beams, and accessories such as safety pins and foot plates. It is a versatile and widely used storage solution, suitable for storing palletized goods in warehouses, distribution centers, and manufacturing facilities.

Advantages and Features:
  • Robust Structure: Designed for heavy-duty applications with high load capacity and excellent stability.
  • Flexible Configuration: Adjustable beam levels to accommodate various pallet sizes and storage needs.
  • Efficient Space Utilization: Maximizes warehouse storage by optimizing vertical and horizontal space.
  • Compatibility: Suitable for storing different types of goods, including standard pallets, non-standard pallets, and bulk items.
  • Optional Accessories: Available with additional components like wire decking, safety bars, and back mesh for enhanced functionality and safety.
Specification

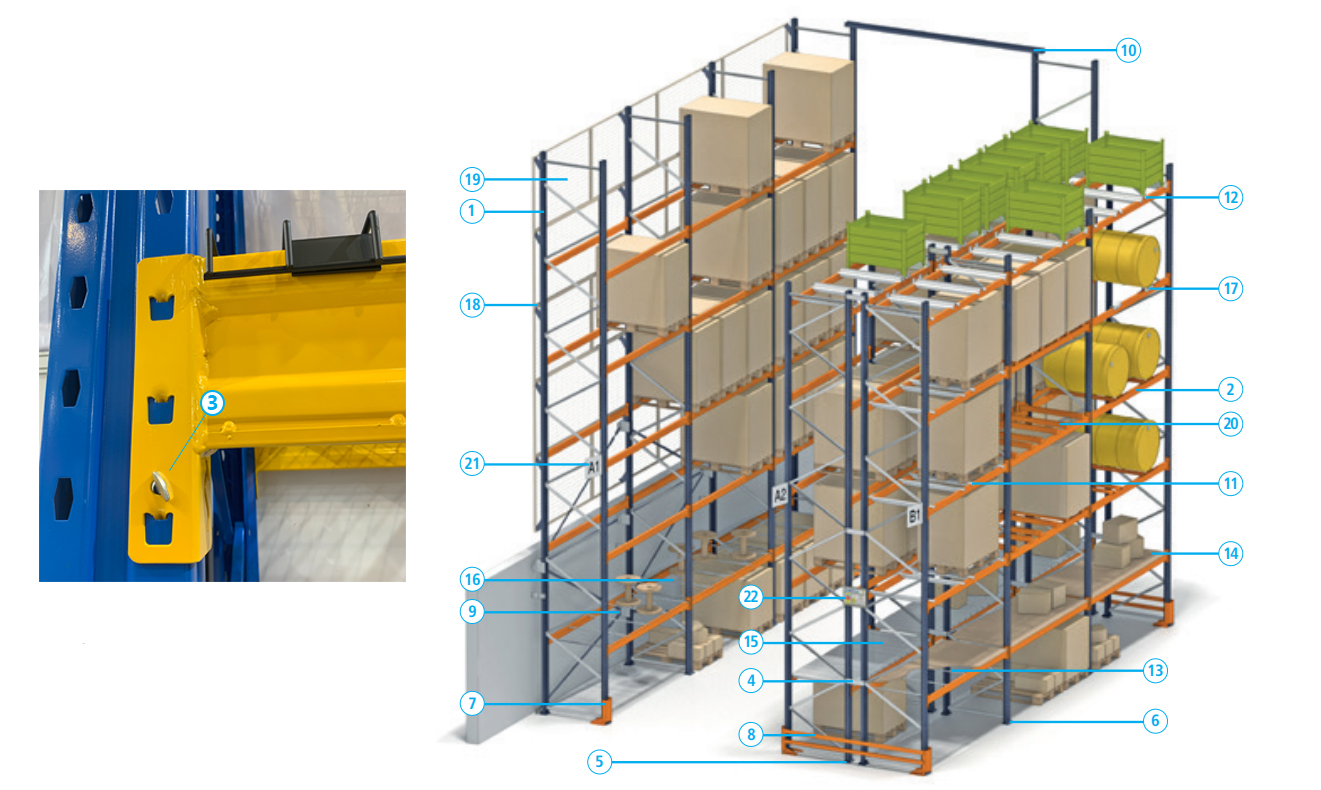

Racking System Specification Layout
1. Frame
2. Beam
3. Safety locking mechanism
4. Frame union
5. Anchor bolts
6. Levelling shims
7. Upright protector
8. Lateral protection barrier
9. Cross bracing set
10. Top portal tie
11. Pallet cross tie
12. Container support
13. Chipboard shelving cross tie
14. Chipboard or melamine shelf
15. Galvanised picking shelf
16. Mesh shelf
17. Drum support
18. Pallet stop set
19. Anti-fall mesh
20. Raised cross tie
21. Aisle identification plate
22. Signalling plate

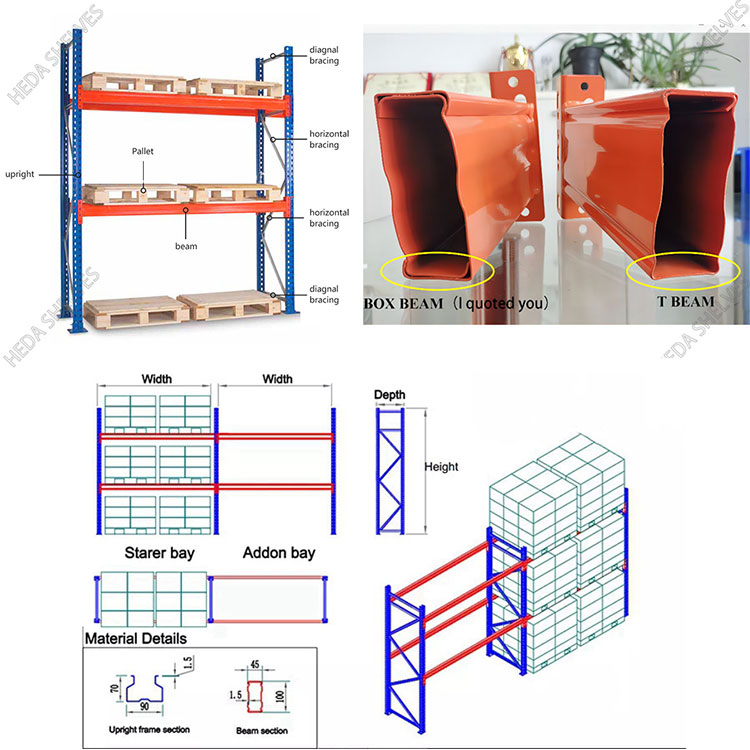

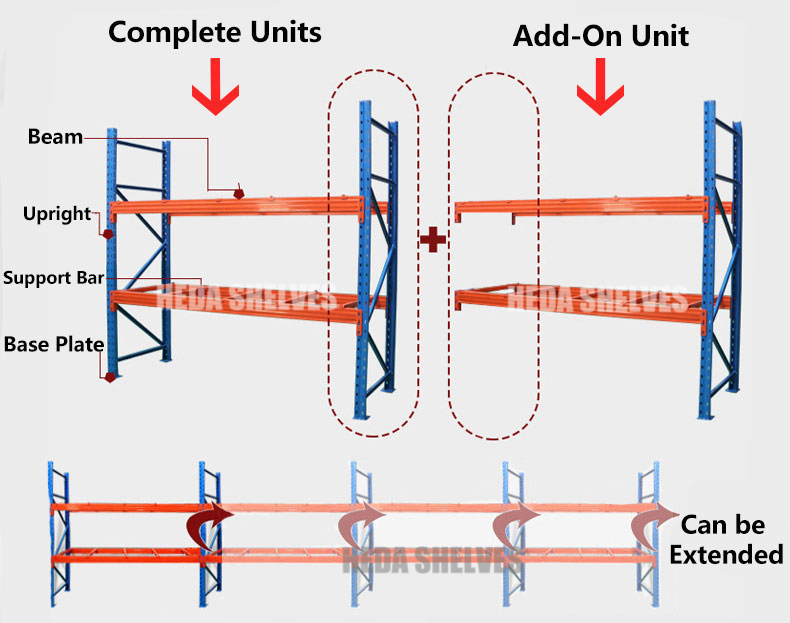

Racking System Component details 1 Racking System Component details 2
Product Description

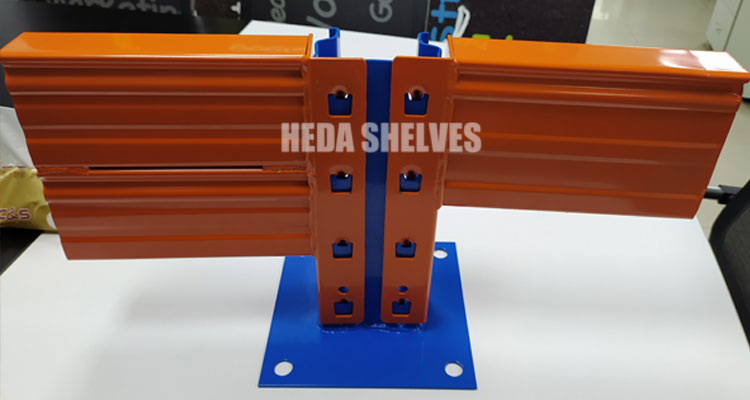

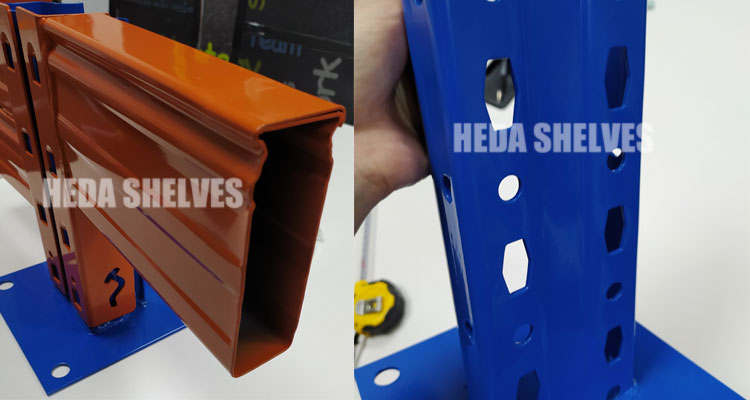

Pallet Racking application view 1 Pallet Racking application view 2

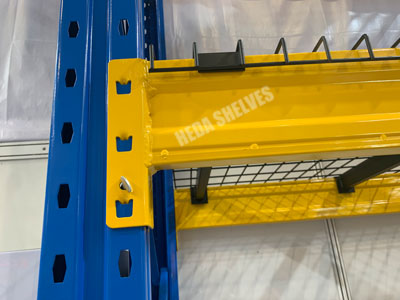

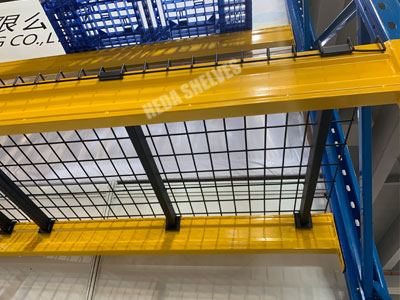

Pallet Racking application view 3 Pallet Racking application view 4

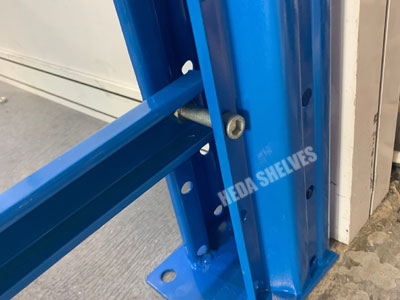

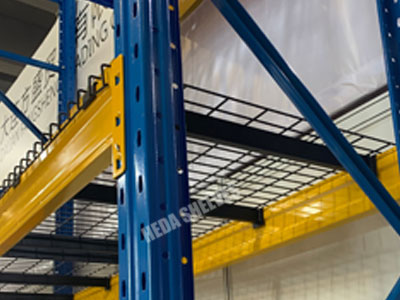

Pallet Racking application view 5 Pallet Racking application view 6

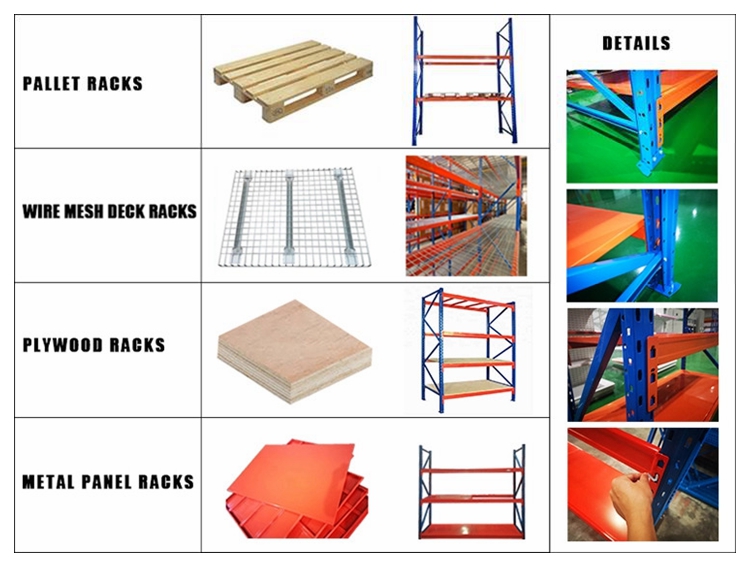

Structural detail overview
Material Cold-Rolled Steel Q235B
Product Size Length: 2300 / 2500 / 2700 / 3000 / 3300 / 3600 / 3900mm
Width: 800 / 900 / 1000 / 1100 / 1200mm
Height: 2000 ~ 6500mm
(or Customizable)
Thickness column: 1.5mm, 2.0mm (or Customizable)
Load Capacity 1000KG~5000KG per layer (or Customizable)
Layers 2-5 Adjustable Layers (or Customizable)
Color Blue, Orange, Black, White, Grey (or Customizable)
Surface Electrostatic Spray Surface
Feature Anti-rust, Corrosion-protection
Guarantee Period 5 Years Warranty
Remark OEM & ODM Accepted
Relevant Certificate CE, BV, ISO9001
Use Area Warehouse, Factory, Storage Place
Structure Knock Down Structure, Easy Assembling, Convenient For Delivery
Function storage goods, rack, storage
Product range warehouse, storage place
3D Drawing & Floor Plan Design

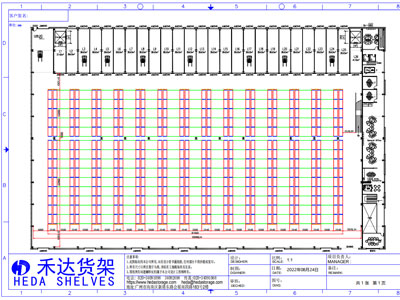

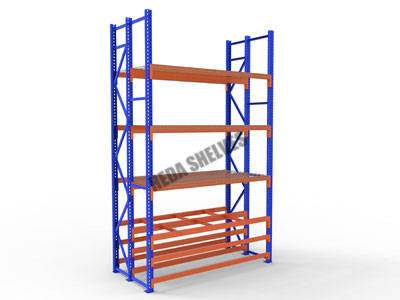

3D Layout Planning 1 3D Layout Planning 2

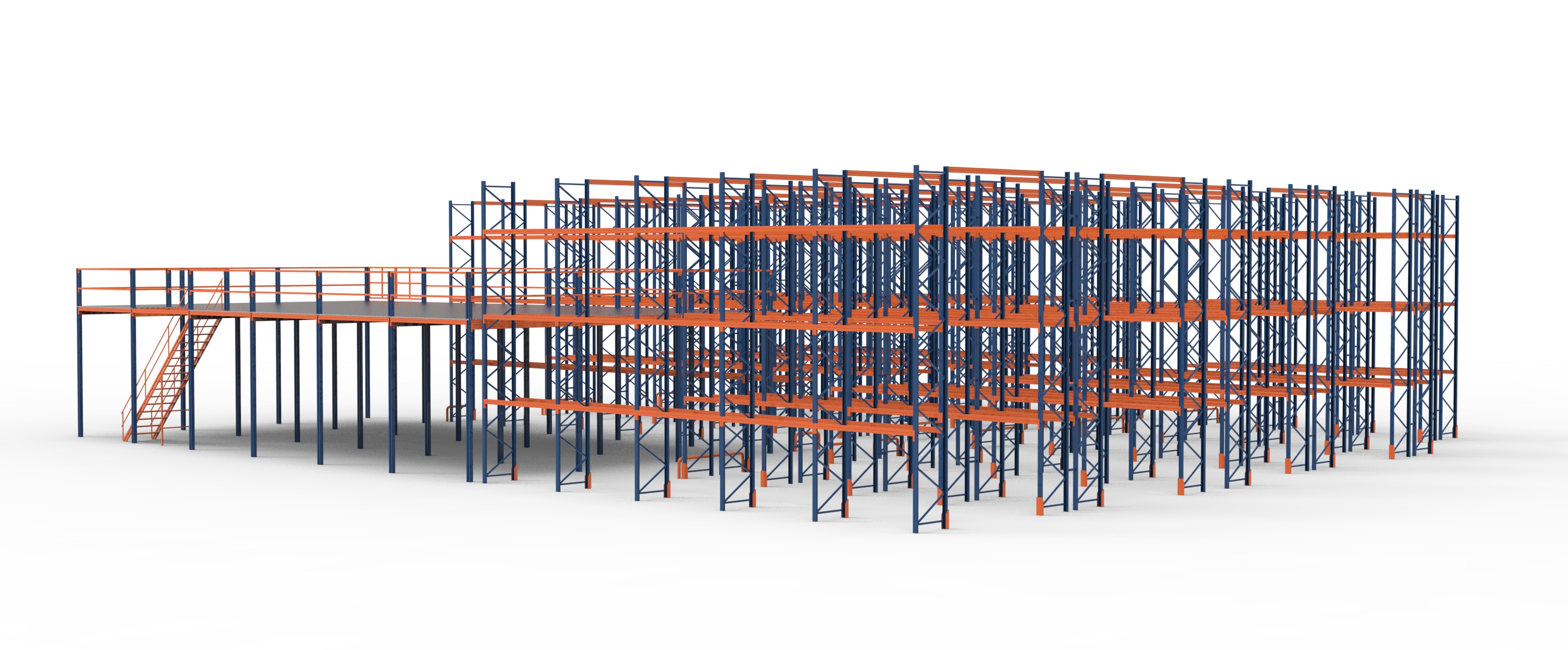

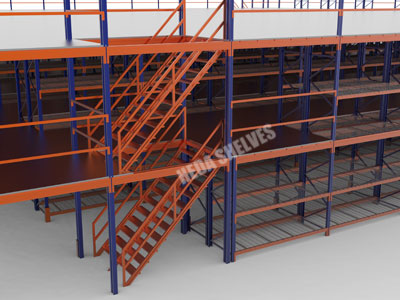

3D Layout Planning 3 3D Layout Planning 4

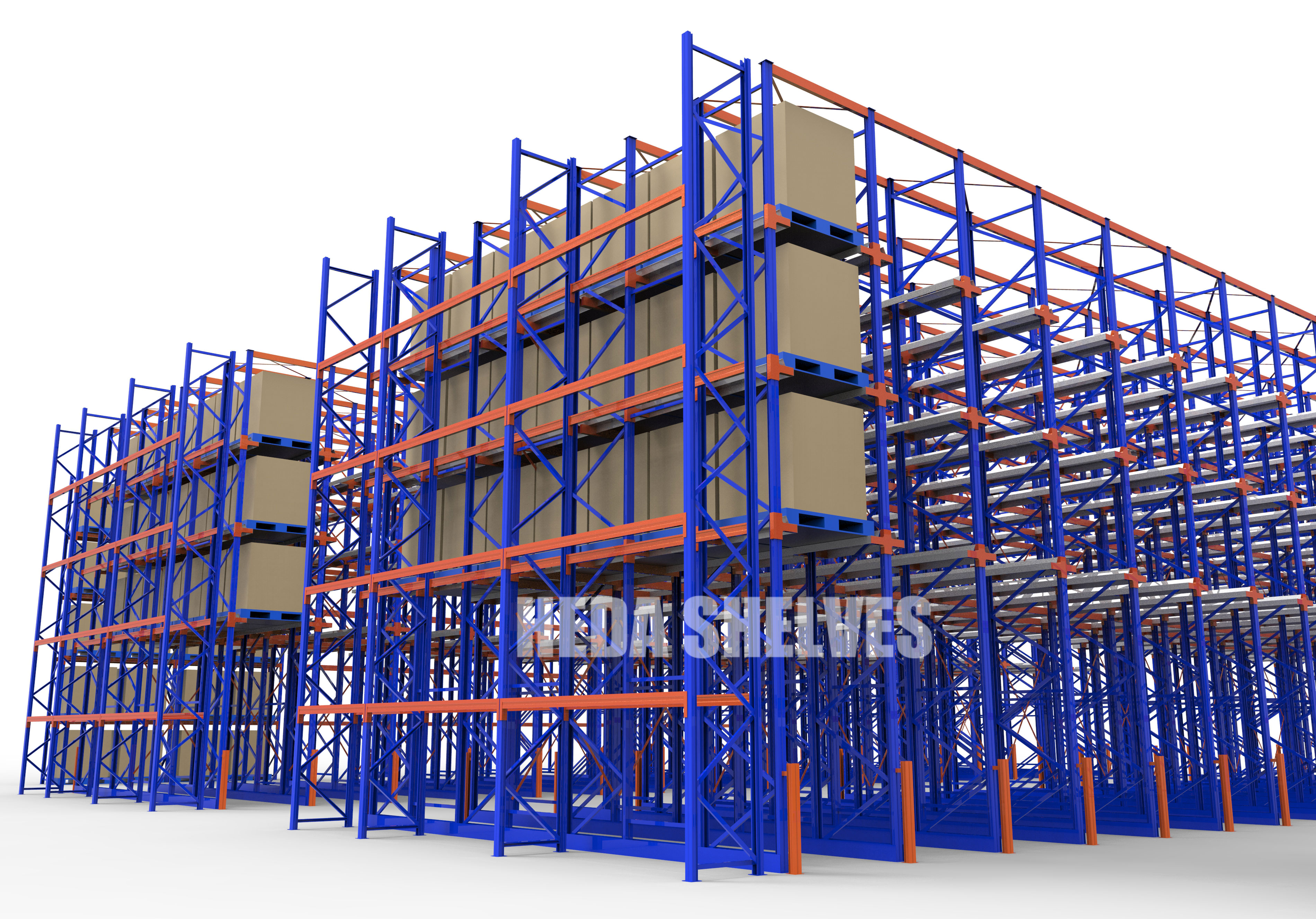

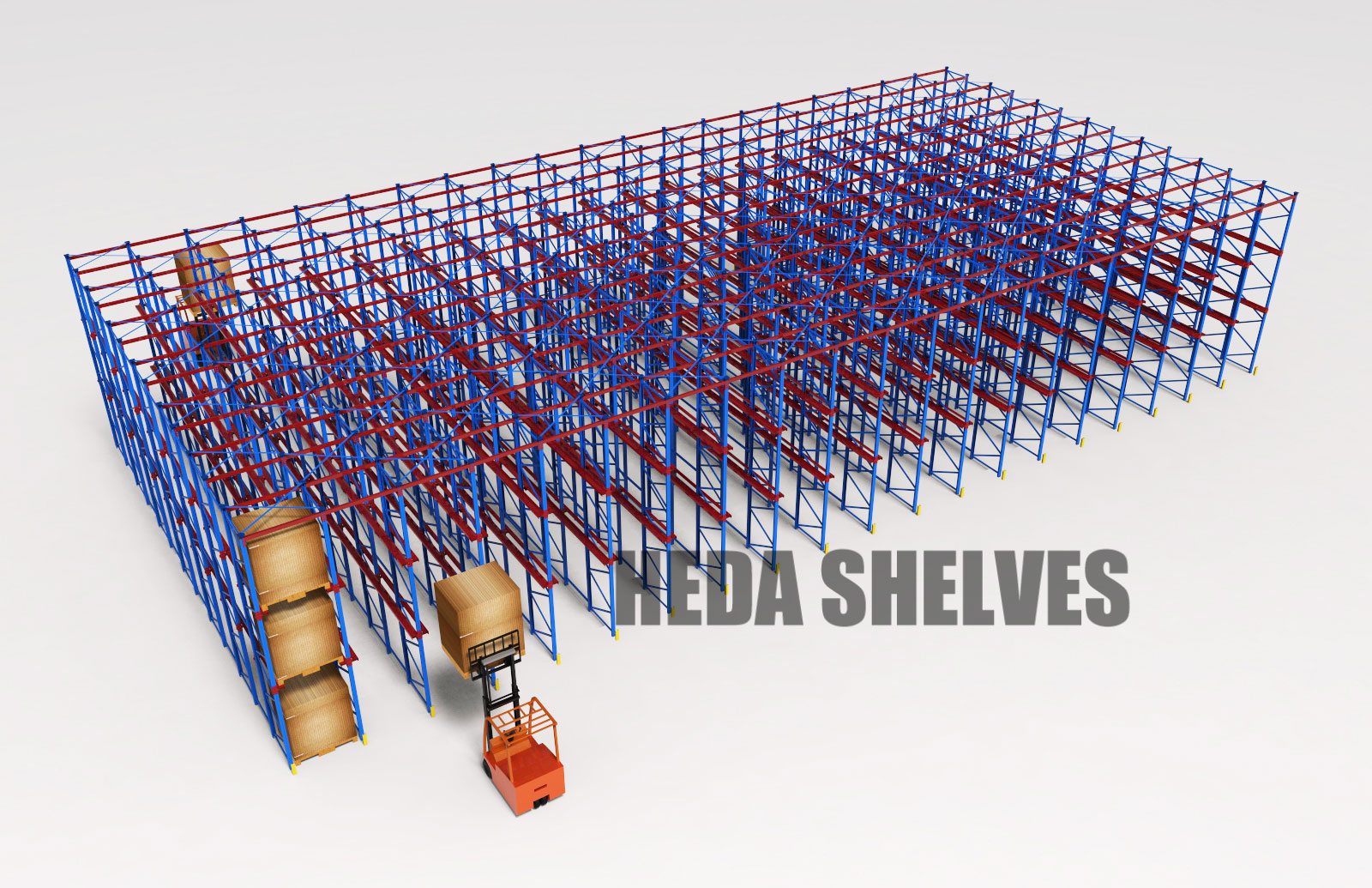

3D Layout Planning 5 3D Layout Planning 6
Successful Cooperation Cases

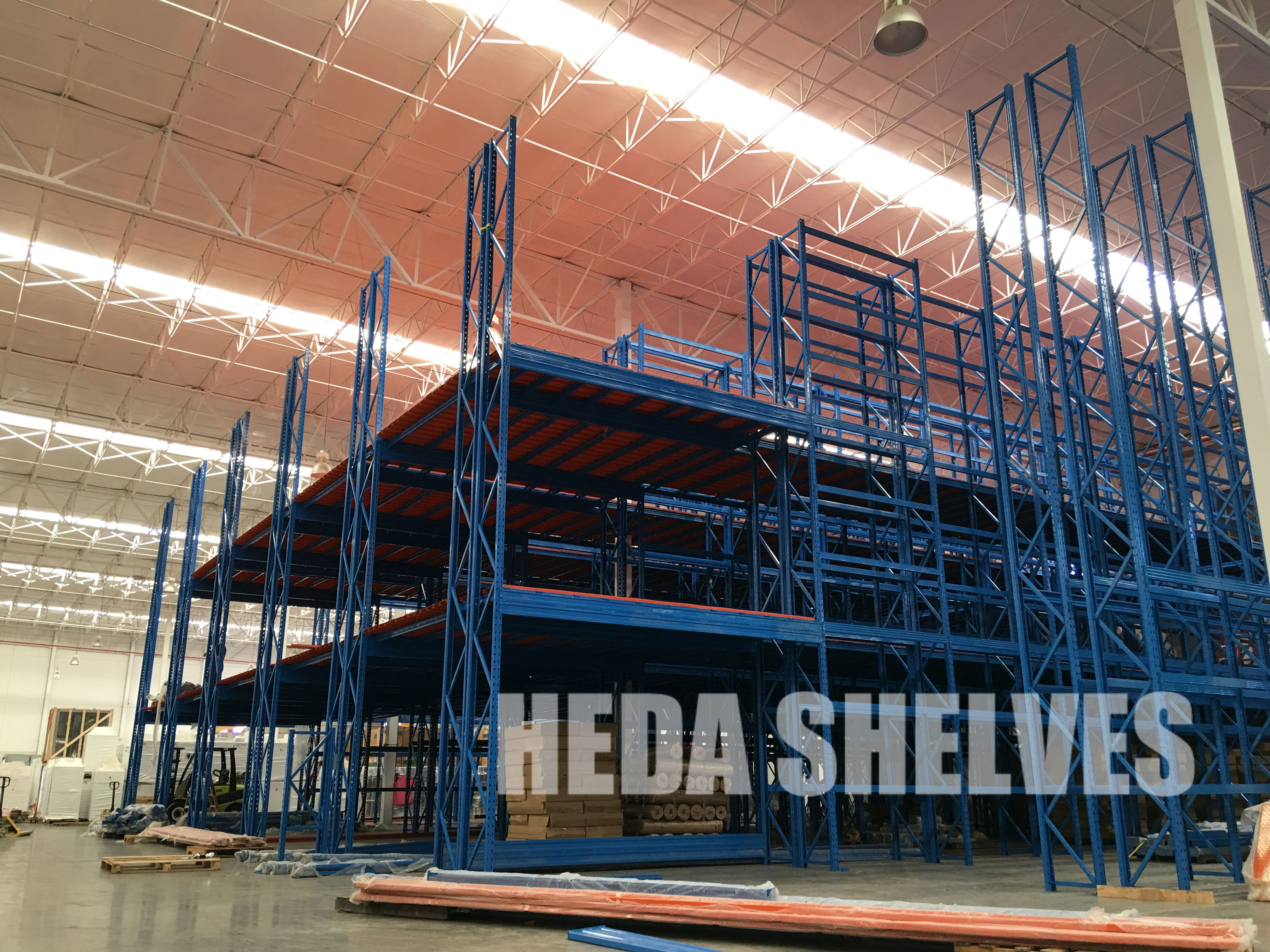

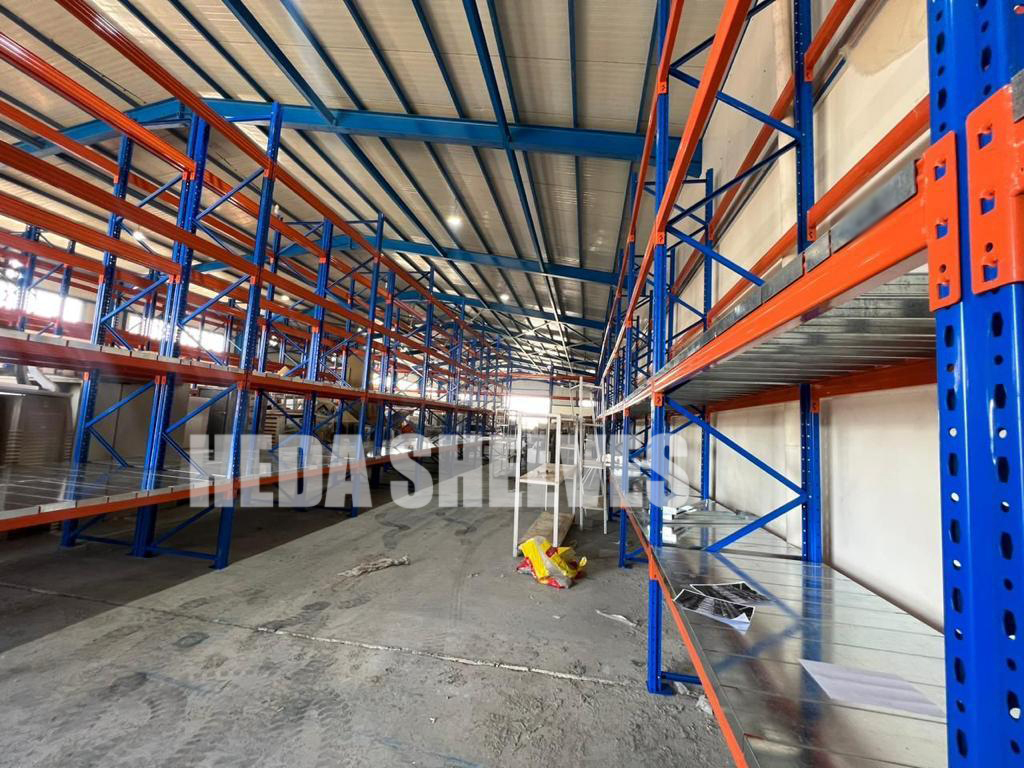

Successful project installation case 1 Successful project installation case 2

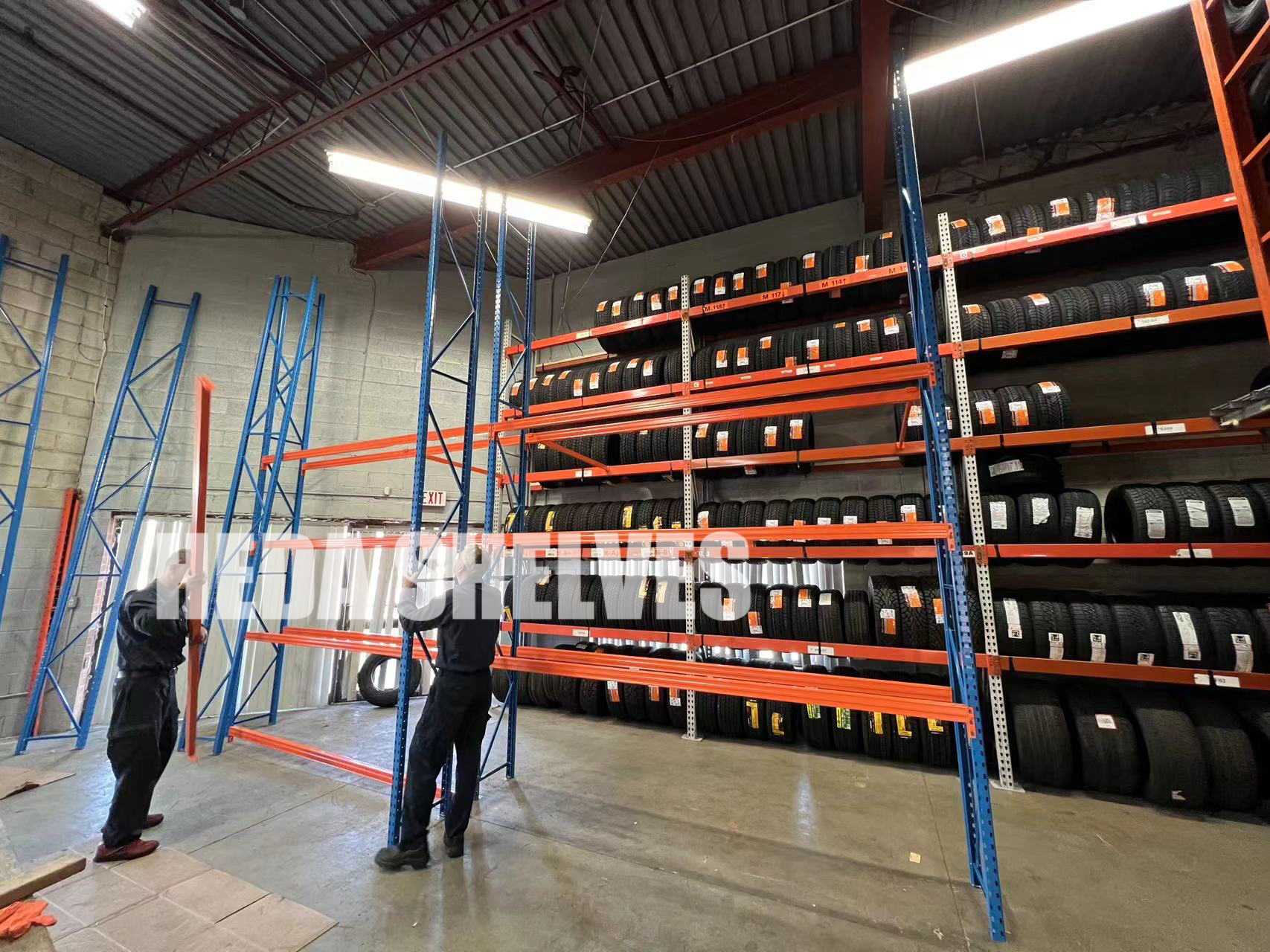

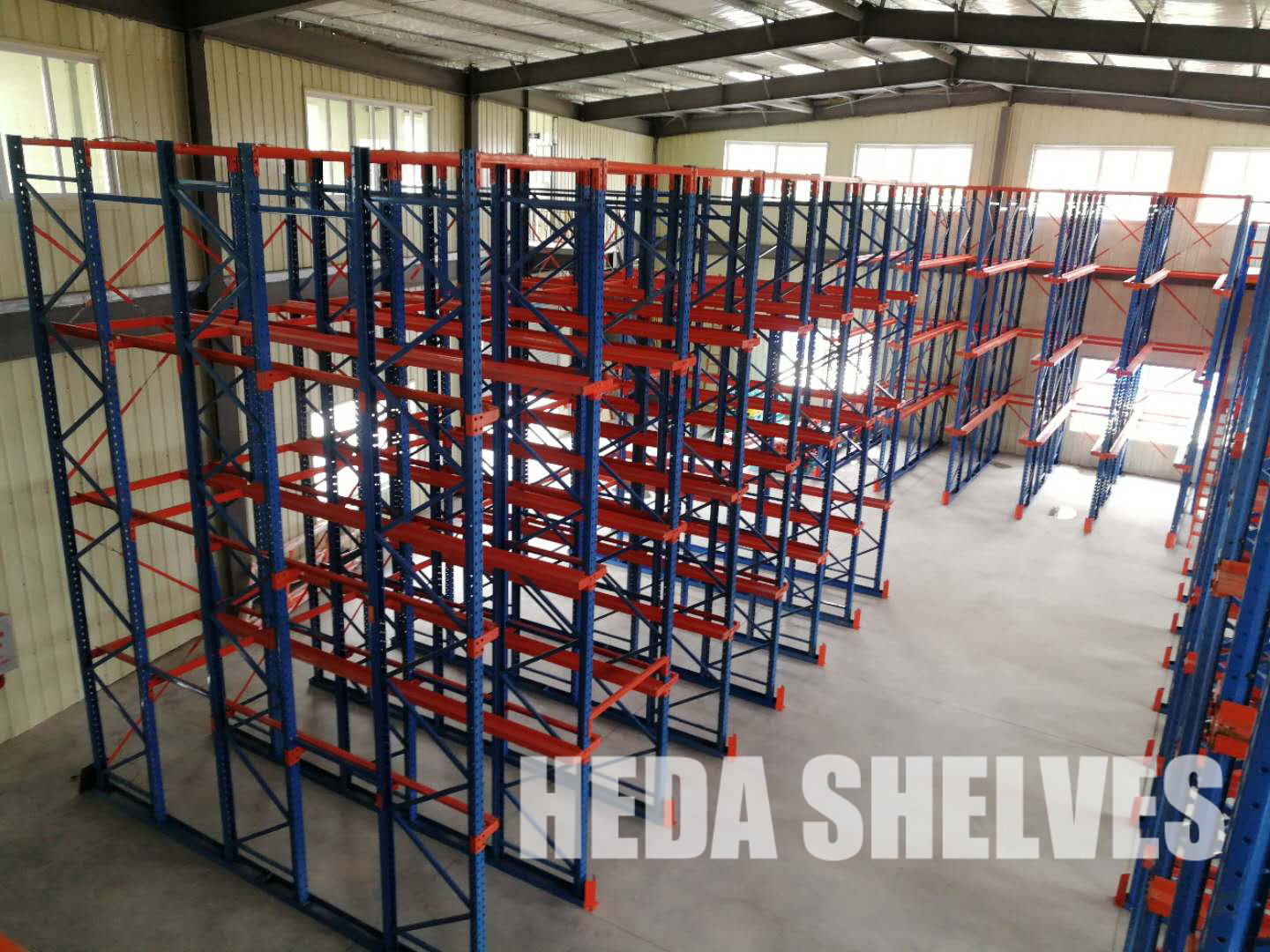

Successful project installation case 3 Successful project installation case 4

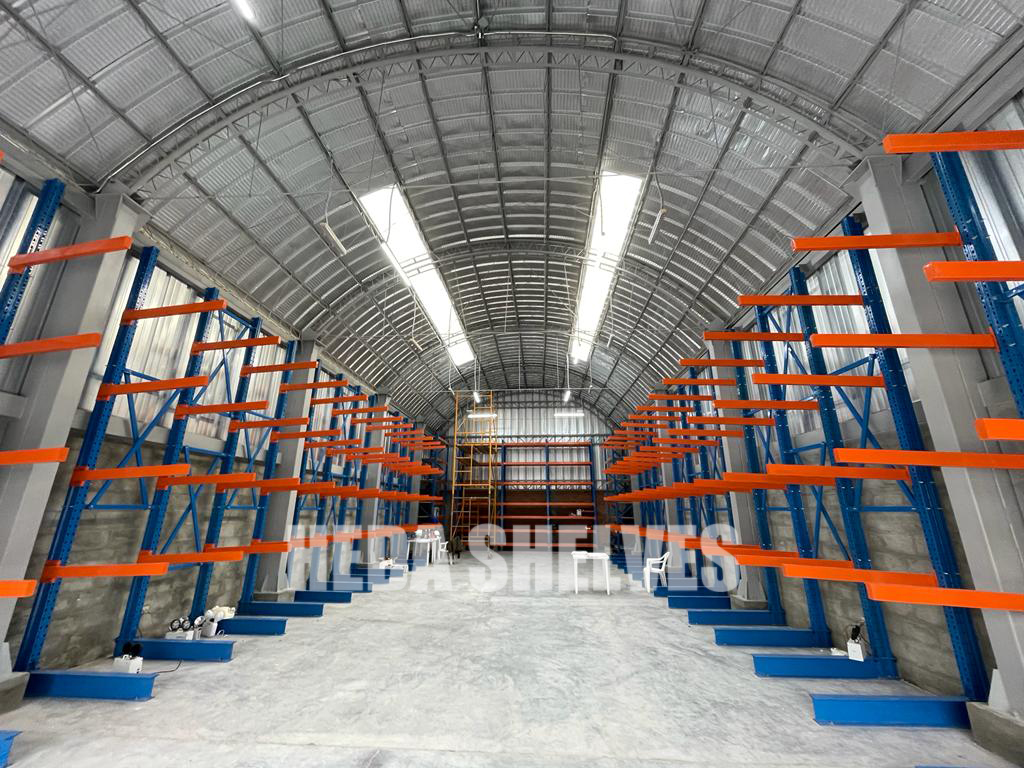

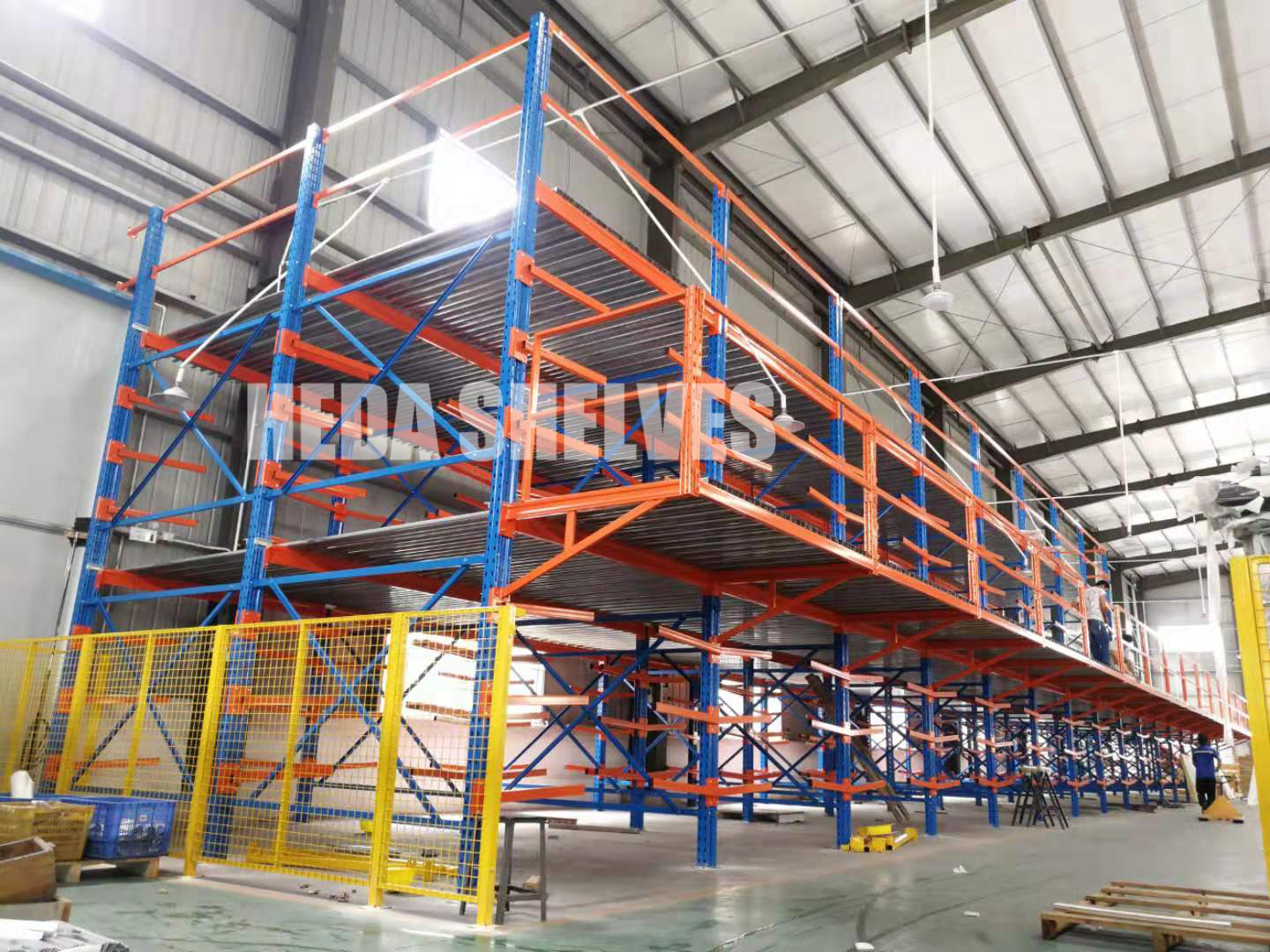

Successful project installation case 5 Successful project installation case 6
Our Factory
Manufacturing facility overview
About Us

Established in 2001, we are a trusted leader in the design, manufacturing, and installation of display stands, storage shelves, and supermarket equipment. With a factory spanning over 22,000 square meters and a skilled workforce of 120 employees, we deliver high-quality products at competitive prices to clients around the world. Committed to excellence, we provide tailored warehouse storage solutions designed to optimize space and enhance efficiency for our customers. Guided by the principle of "Focused on Quality & Committed to Service," we aim to be your trusted global partner, delivering exceptional products and services to support your success.

Factory assembly operations Automated manufacturing line
OUR PRODUCTS (All products can be customized)
  • Warehouse racking and warehouse equipment: warehouse pallet racking, light medium racking, heavy duty racking, mezzanine floor racking systems and storage pallet racking in warehouses/workplaces, including: cantilever racking systems, drive-in racking systems, wide span shelving, pallets flow rack, carton flow rack, etc.
  • Supermarket shelves, store fixtures and equipment: supermarket gondola shelves, heavy duty gondola shelves, shopping carts, promotional carts, shopping baskets and cashier counters and other supermarket store equipment.
  • Hardware tool display stands: customized metal product display stands, etc. Our products are widely distributed across Southeast Asia, Japan, America, Canada, Australia and Europe. Over 40% of our annual orders come from repeat customers.
Diversified product line display

High Quality makes us own CE/ISO9001/BV Certification and have gained great credit from our foreign customers. We serve clients with the consistent principle of "Best Quality, Durable Structure, Perfect Design, Punctual delivery and Customer Satisfaction". Our development relies on your active participation and we will make every effort for further development. With your support, we will move forward and further be the perfect shelving manufacturer and your best business partner!

Certifications and Quality Recognition
Packing & Delivery

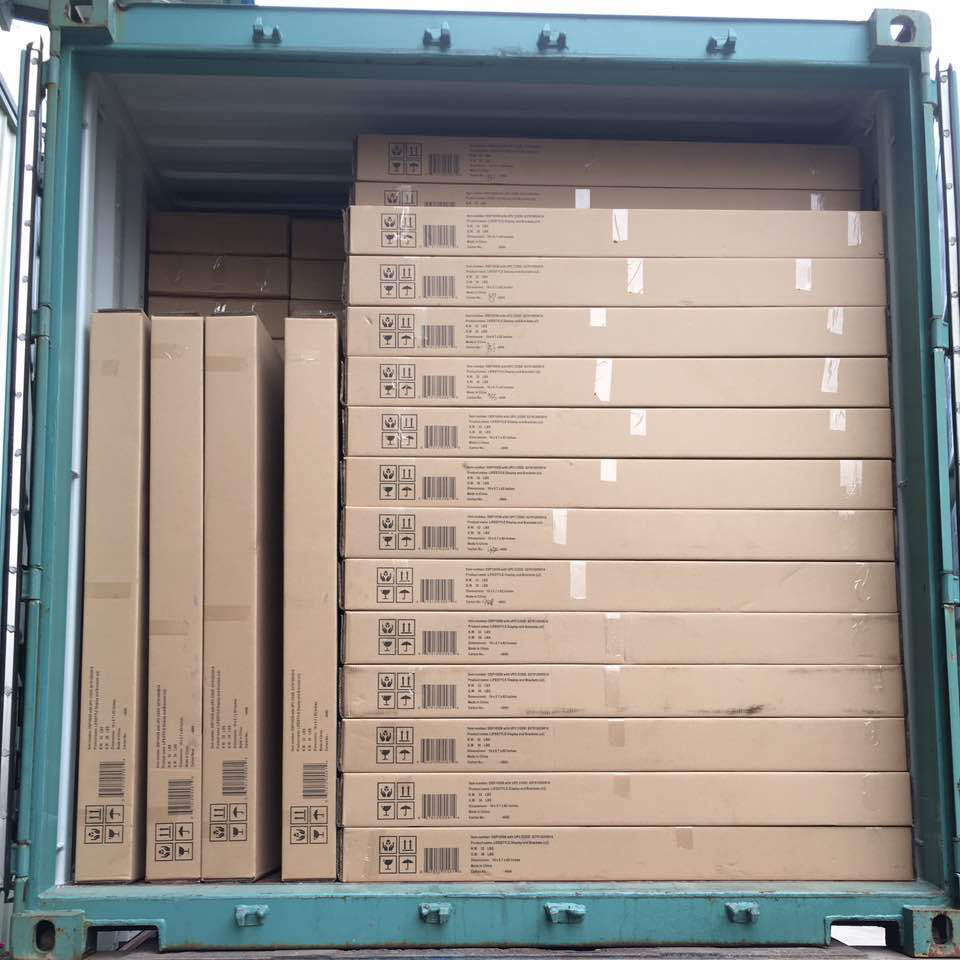

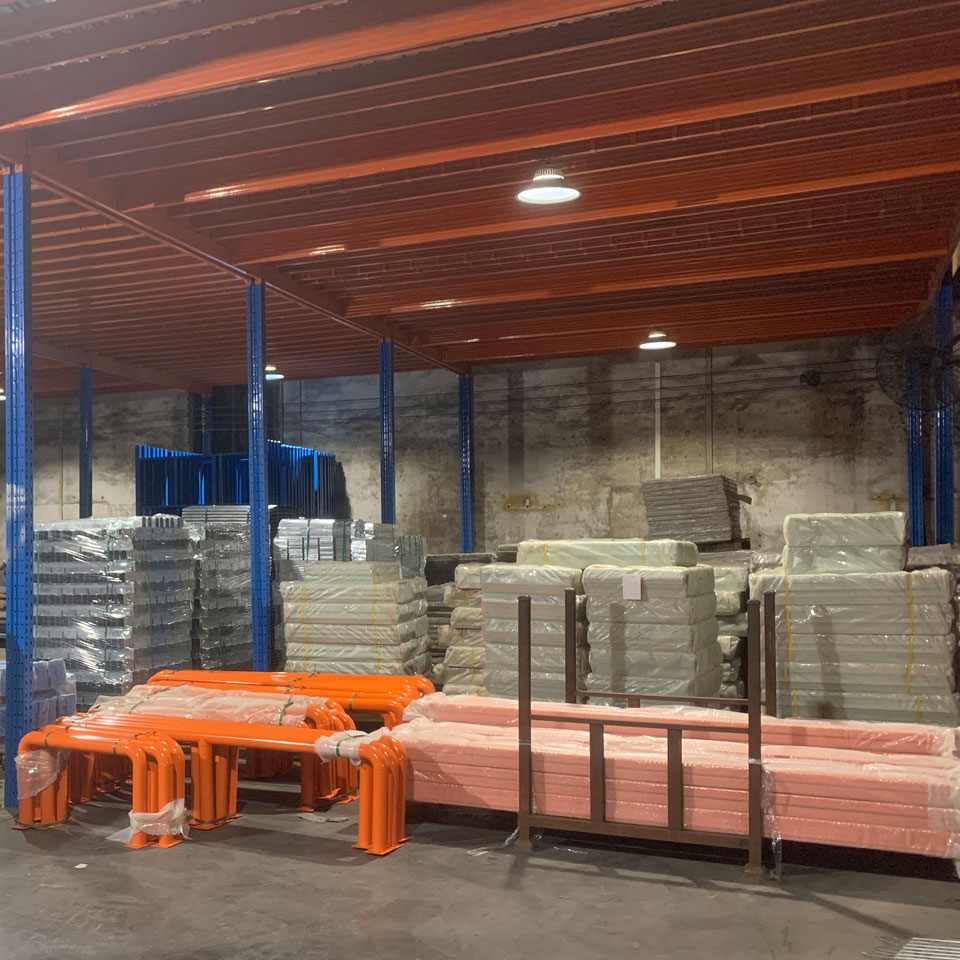

Packaging method 1 Packaging method 2 Shipping container loading 1 Shipping container loading 2
Frequently Asked Questions (FAQ)
Are you a manufacturing or trading company?
We are a manufacturing specialist. Our factory has been specializing in supermarket shelves, warehouse racks, and various kinds of display stands since 2001.
What is your delivery time?
In general, within 15 days. It also depends on the order quantity and the custom shelving design.
What are your terms of payment?
Our standard payment terms are a 30% deposit upon signing the Proforma Invoice (PI), and the remaining balance will be cleared by T/T before delivery.
How do I install the racking systems?
We provide detailed installation instructions for every type of shelf configuration. If needed, we can also assign engineers to assist with installation guidance.
Can you manufacture according to the customer's design?
Yes, we have extensive experience in customizing warehouse shelving and retail display units to match client specifications.
What is the difference between a main rack and an add-on rack?
The difference lies in the number of upright frames. A main rack is the starter rack configuration with 2 uprights, while an add-on rack is the continuation rack that connects with only 1 upright. For instance, a run of 15 wall racks consists of 1 main rack and 14 add-on racks.
