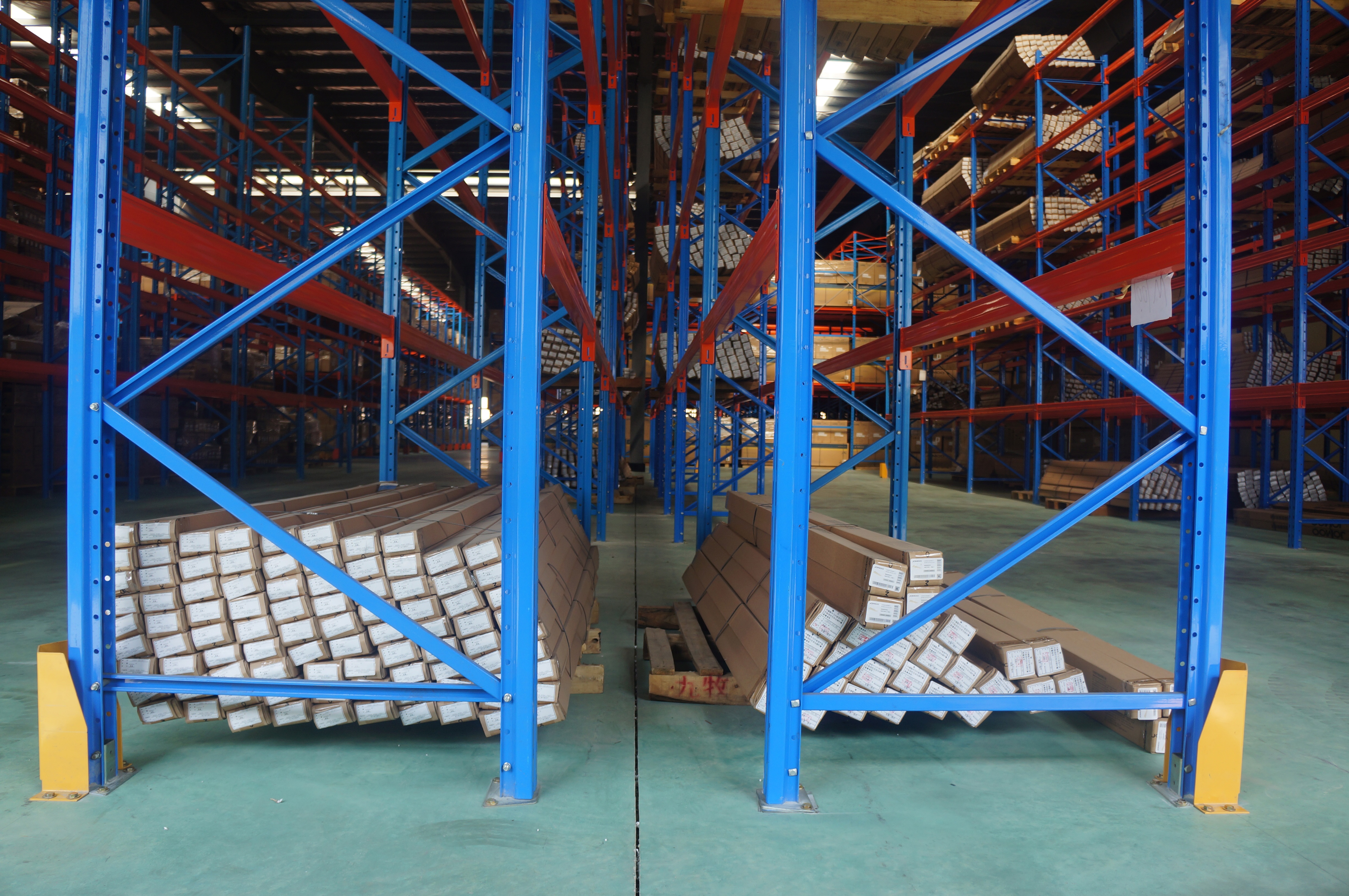

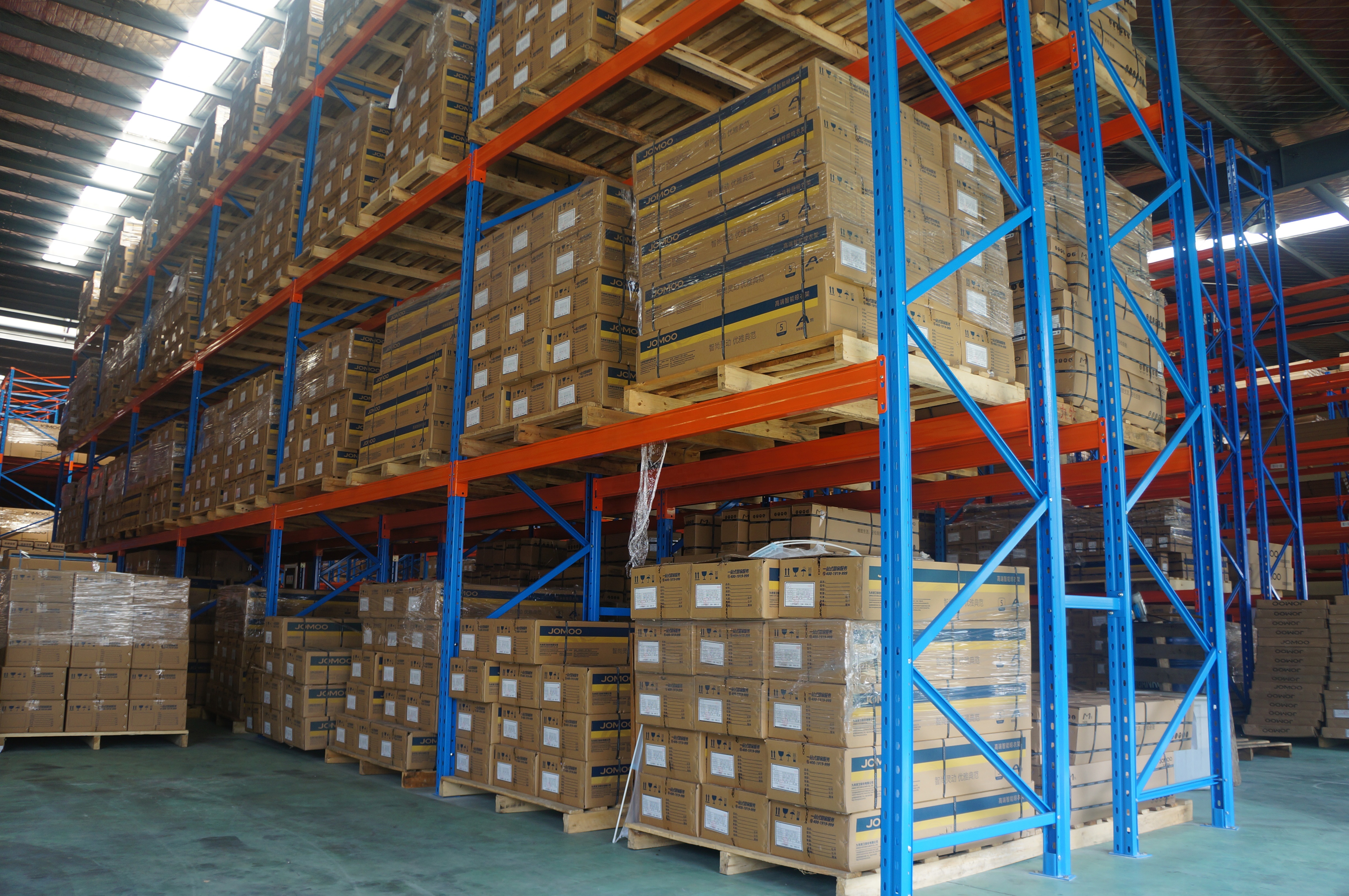

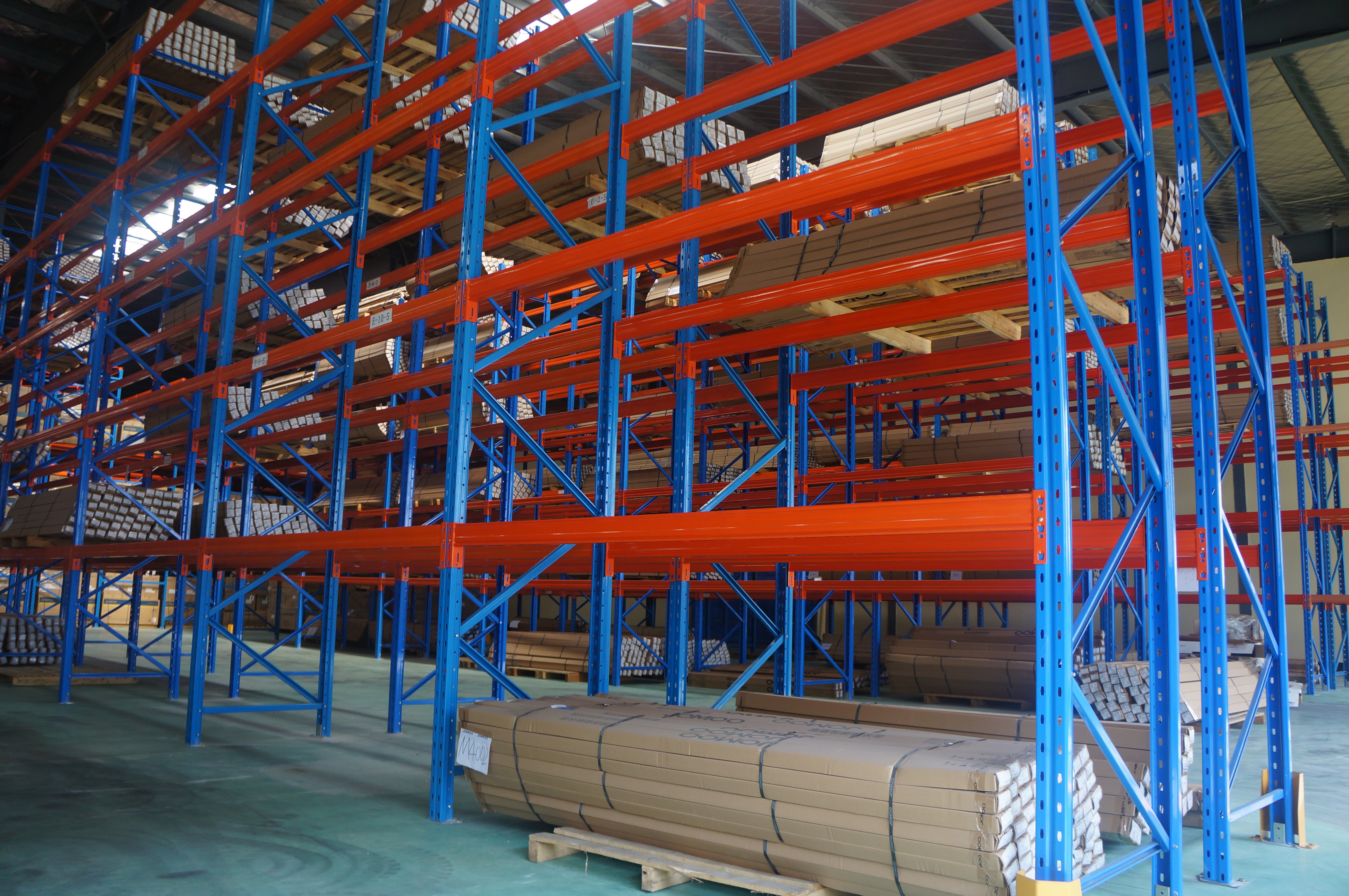

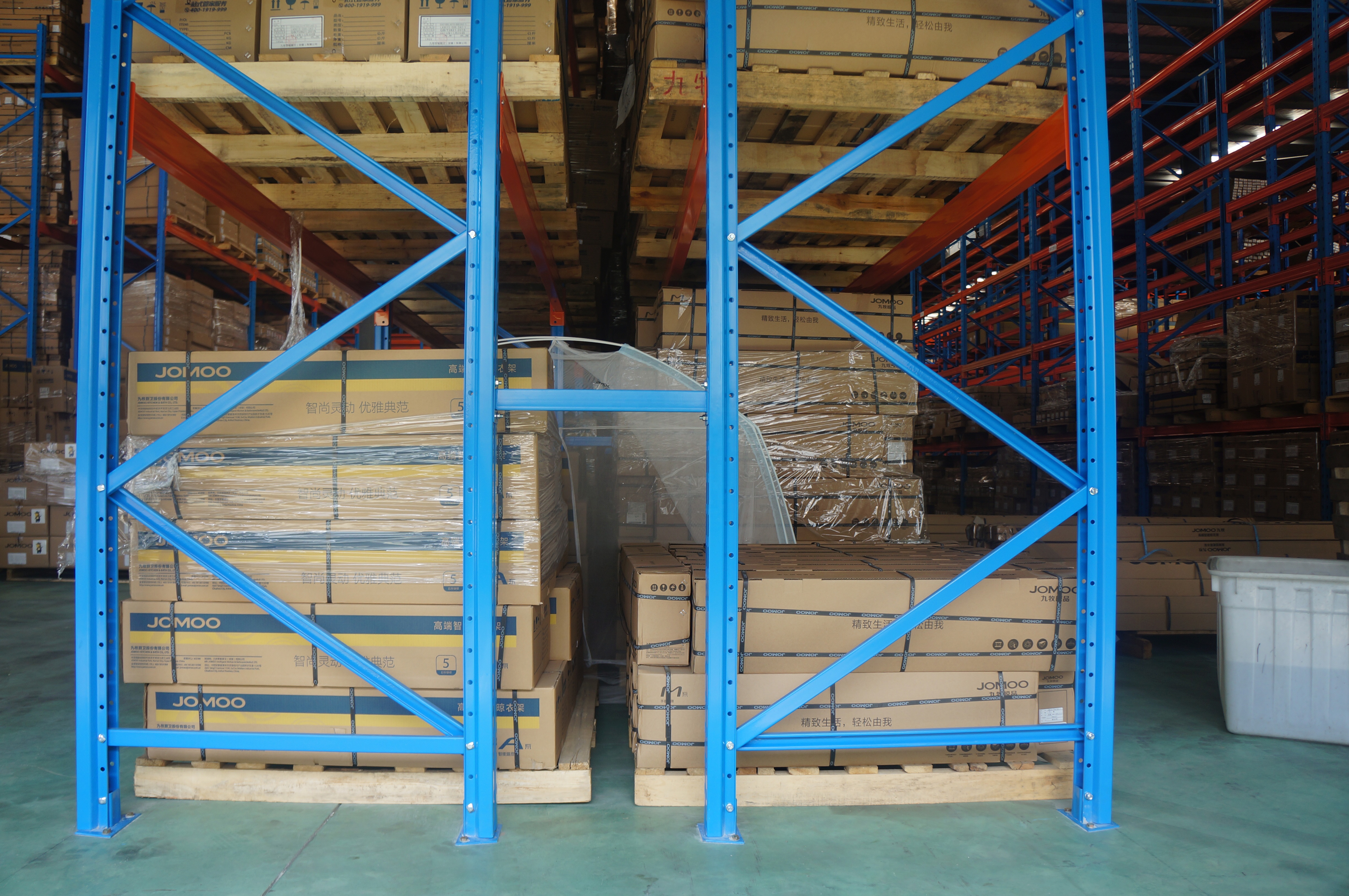

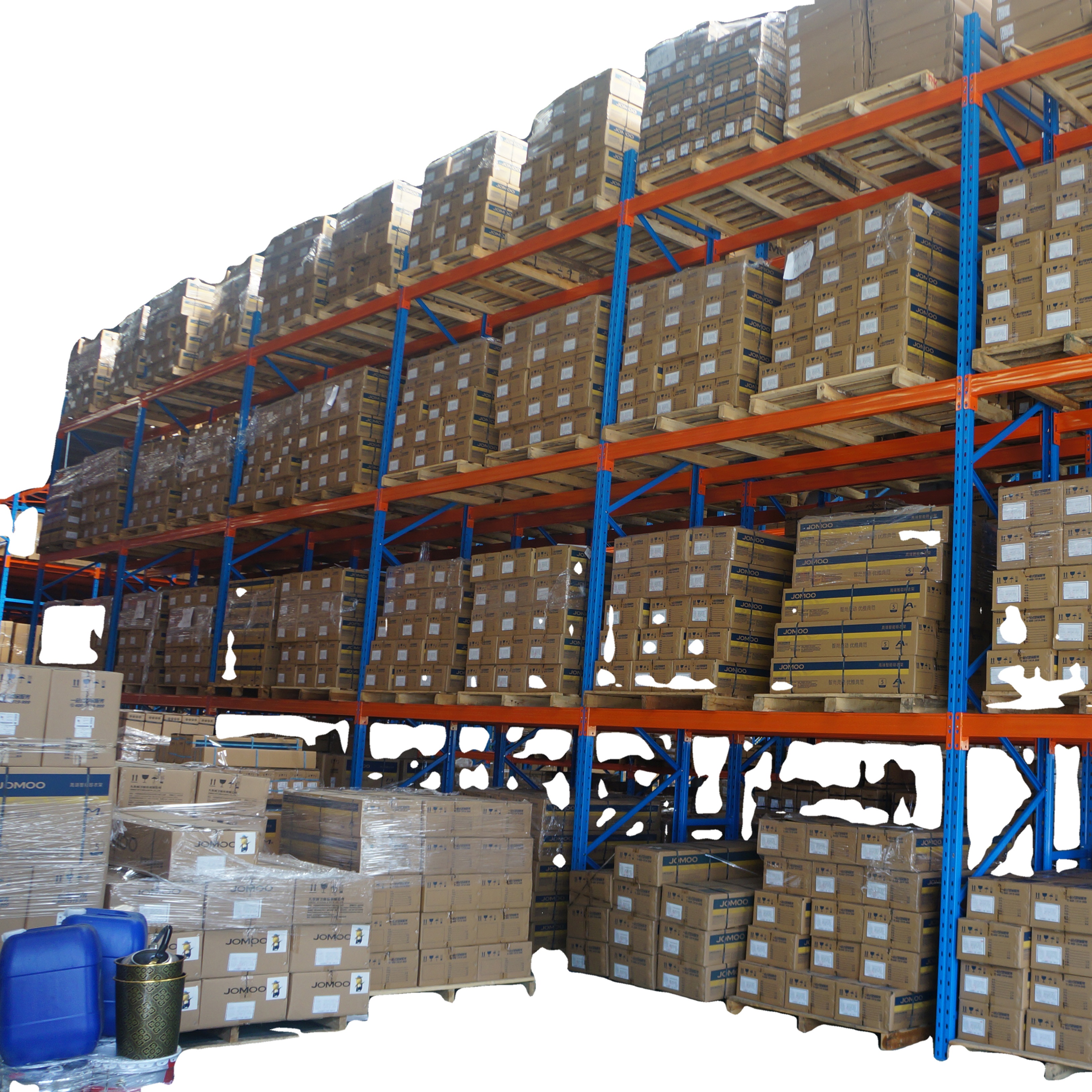

Heavy duty pallet rack is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility. It installs quickly and adjusts easily to your specific needs.
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
|---|---|---|
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000 KG |
| Specification (mm) | Loading (kg) / Length of Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | - | - | - | - |
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | - | - |
| 100 x 50 x 1.5 | - | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | - | - |
| 110 x 50 x 1.5 | - | - | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | - |
| 120 x 50 x 1.5 | - | - | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | - |
| 140 x 50 x 1.5 | - | - | - | 3868 | 3330 | 2720 | 2370 | 2020 | - |
| 160 x 50 x 1.5 | - | - | - | - | 4220 | 3690 | 2970 | 2600 | 2340 |
| 160 x 50 x 1.8 | - | - | - | - | - | 4400 | 3420 | 3020 | 2590 |
| 160 x 50 x 2.0 | - | - | - | - | - | 4130 | 4170 | 3320 | 2840 |
| Specification (mm) | Loading (kg) / Length of P Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | - | - |
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | - |
| 120 x 50 x 1.5 | - | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 |
| 140 x 50 x 1.5 | - | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 |

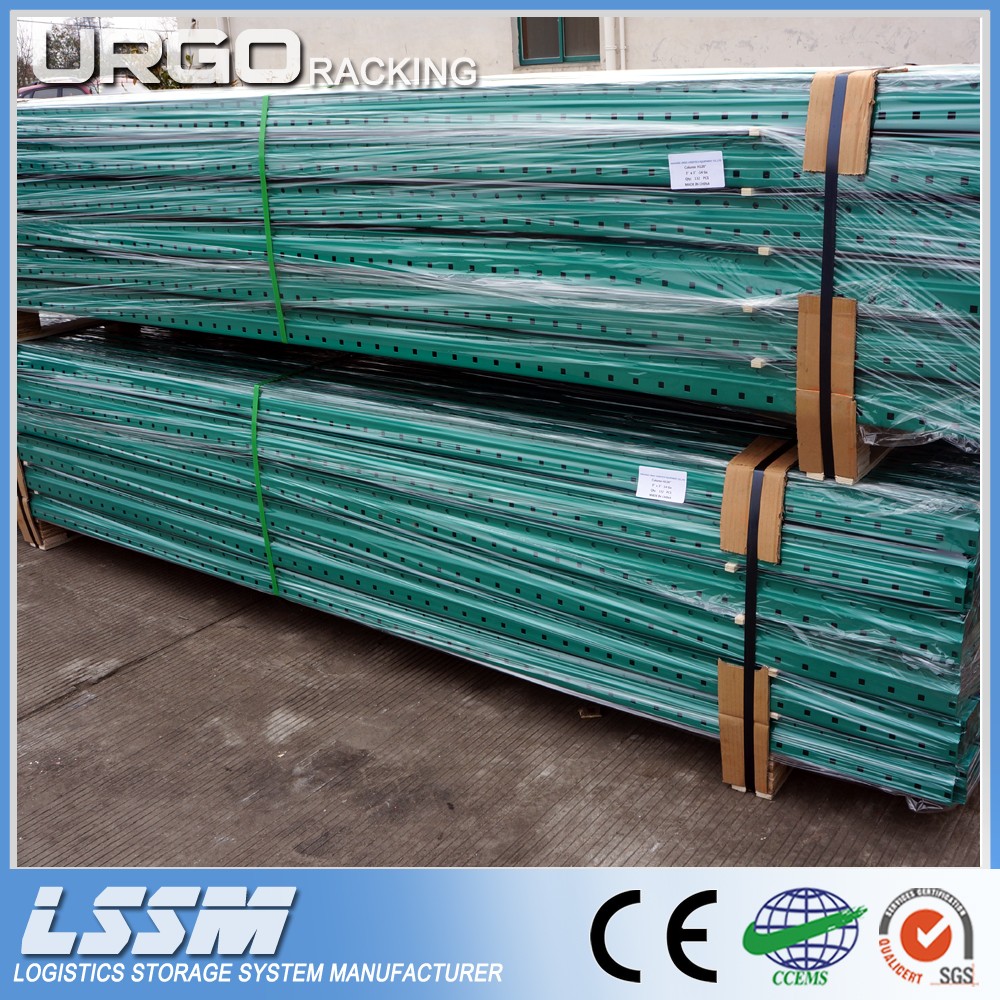

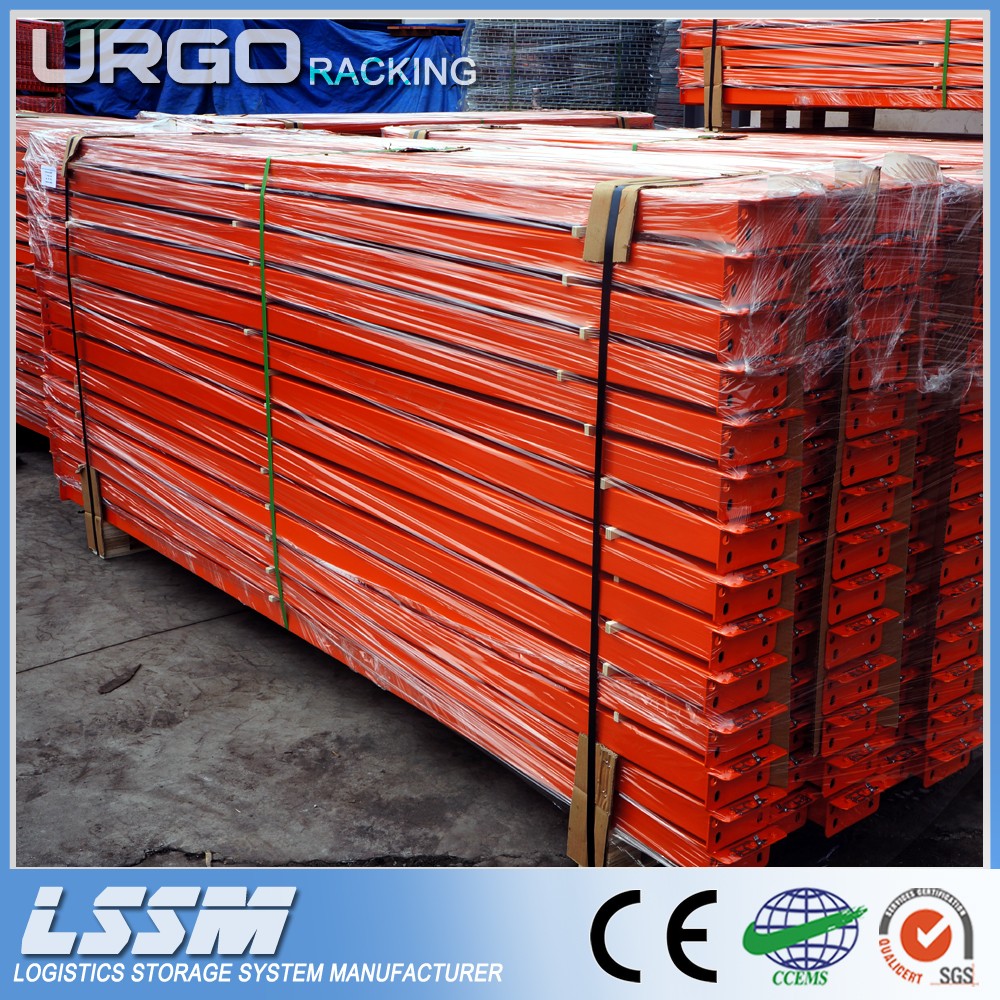

Professional Packaging and Shipping Protect Your Cargo.
We own a professional logistics team. First-class packaging techniques meet your customized packing plans. Every step of the logistics progress is thoroughly under our strict control. We ensure your order is received safely within the agreed duration. On-time delivery is our supreme promise.
We have a professional warehousing logistics storage system design team, which can be further optimized based on existing client storage schemes. Partnering with us can meet all your design needs and ensure:
Our requirement in the development of warehousing projects is to cooperate with you to achieve "the most competitive logistics solutions, to provide the best quality service".
We have a professional racking installation team. They can install or relocate storage rackings or other related logistics equipment according to the different needs of customers.
Integrity, pragmatism, innovation, and high quality. Excellent quality is backed by a solid warranty commitment.
The high standards of design and production for our racking systems make it possible to support products with a ten-year warranty period, which is the industry's longest manufacturer's warranty. With over 15 years of industry experience, we guarantee robust structural architecture and complete reliability.
