| Item Spec | Details | ||
|---|---|---|---|
| Product name | Heavy Duty Warehouse Shelves Racks | Place of Origin | China |
| Usage | Warehouse Storage | Color | Blue, Orange |
| Type | Selective Pallet Rack | Surface treatment | Powder Coating |
| Material | Steel | Size | Customer Size |
| Feature | Corrosion Protection | Packing | Customize |
| Use | Warehouse Rack | Certification | ISO9001/CE |
| Weight Capacity | 2000-5000kg/layer | Structure | Assembled |
| Width | 60/80 cm or customize | OEM & ODM | Available |
| Height | max 12000mm | - | - |
Warehouse Storage Boltless Rack Heavy Duty Pallet Racking System Garage Storage Warehouse Racking System

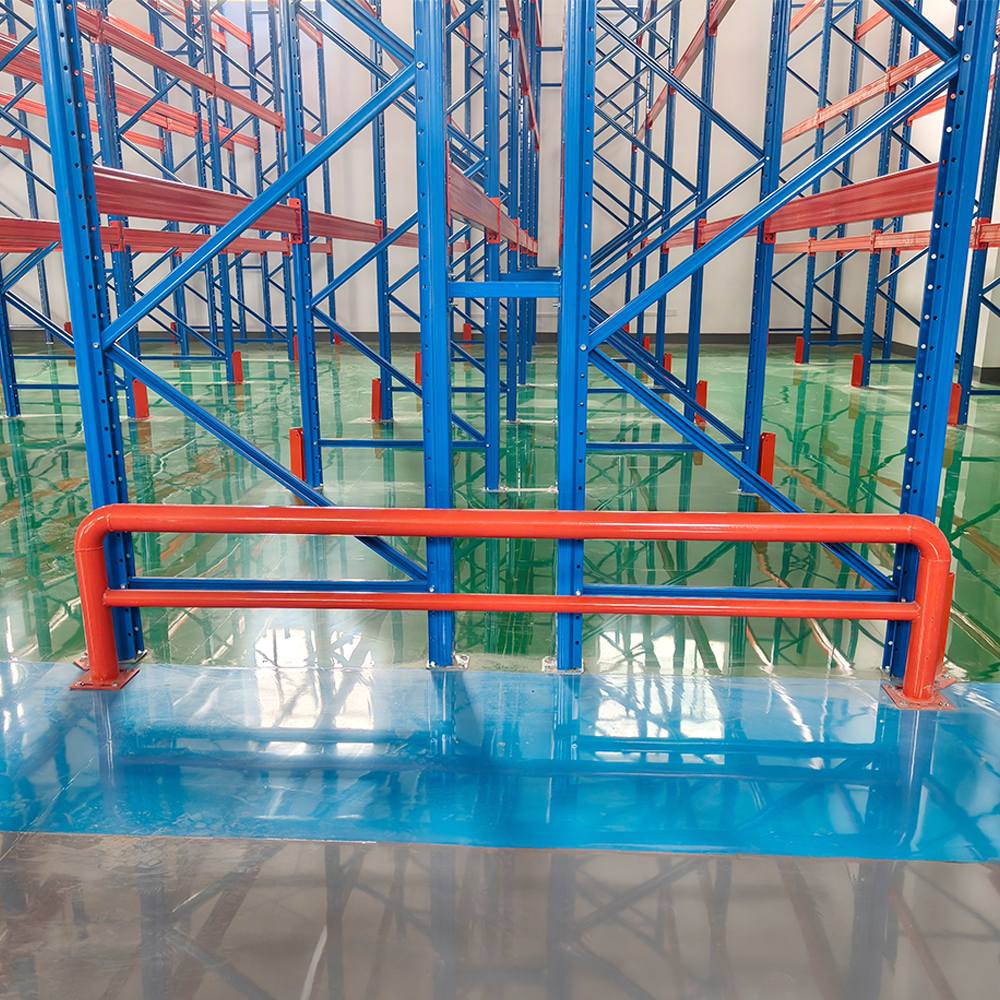

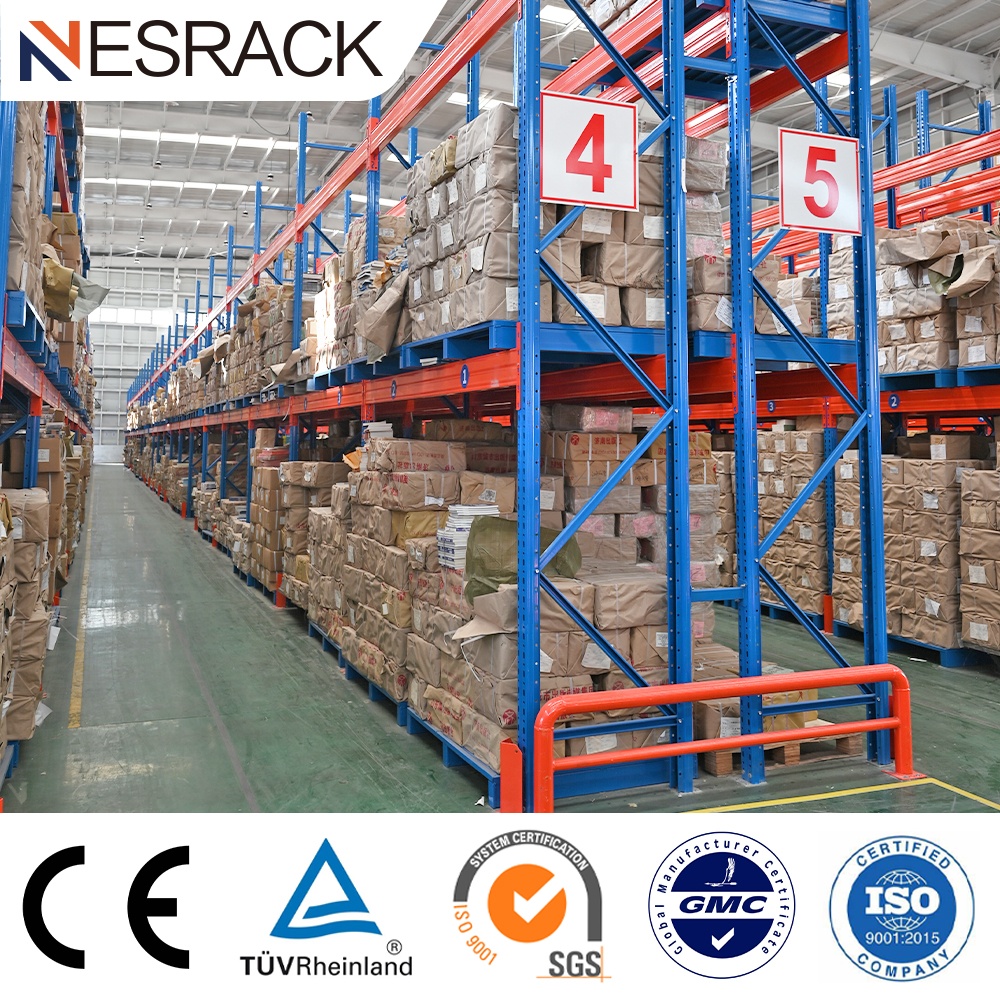

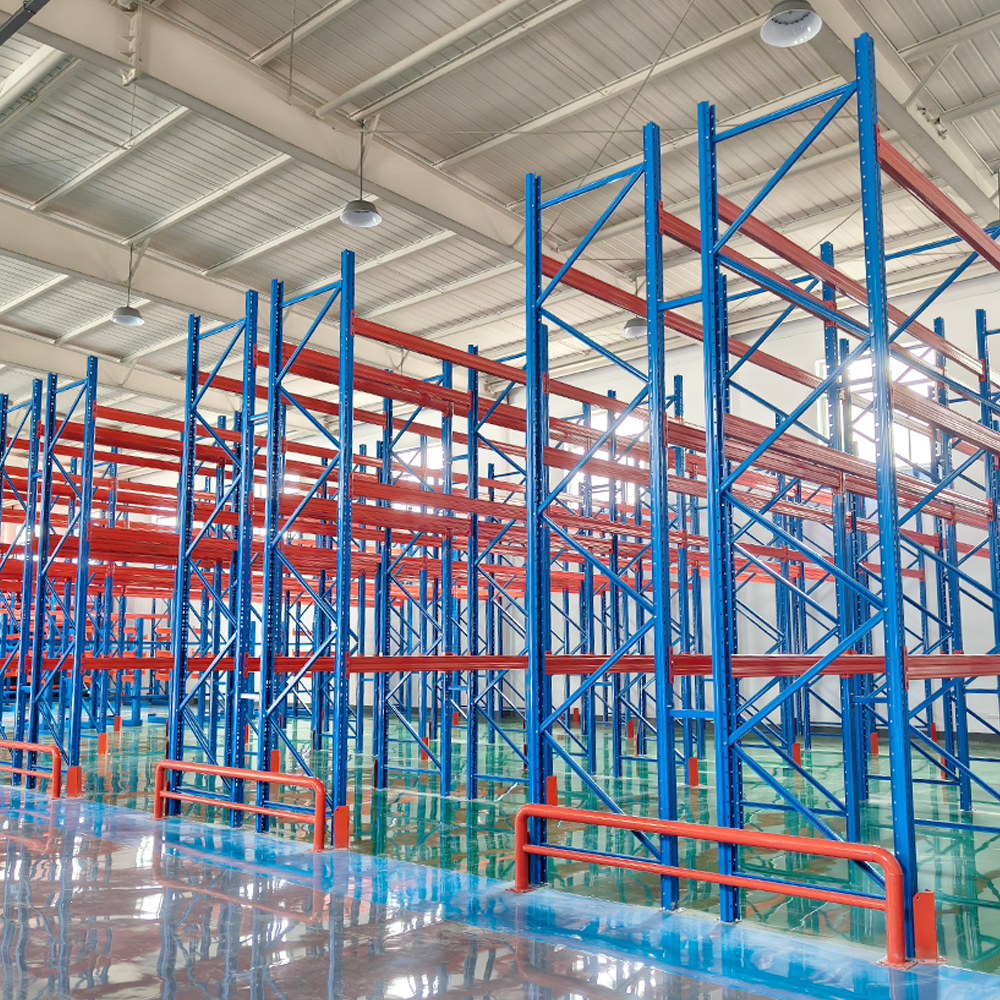

Pallet racking systems provide direct access to all pallets and represent the most economical choice in terms of cost. Composed of upright frames and beams, this system is designed to optimize the storage of goods of all sizes and weights. With a wide range of components and accessories, storage configurations can be tailor-made to meet your precise requirements. The structure is versatile for any application and environment, making it easy to install and dismantle.
| Column Height (mm) | 3 Layers Beam (kg) | 4 Layers Beam (kg) | 5 Layers Beam (kg) |
|---|---|---|---|
| 2000 | 3500 | 2500 | 2100 |
| 2500 | 3500 | 2500 | 2100 |
| 3000 | 4000 | 3600 | 2900 |
| 3500 | 3100 | 2400 | 2100 |
| 4000 | 3100 | 2400 | 2000 |
| 4500 | 3000 | 2400 | 2000 |
| 5000 | 3000 | 2300 | 2000 |
Frame & Beam Specifications

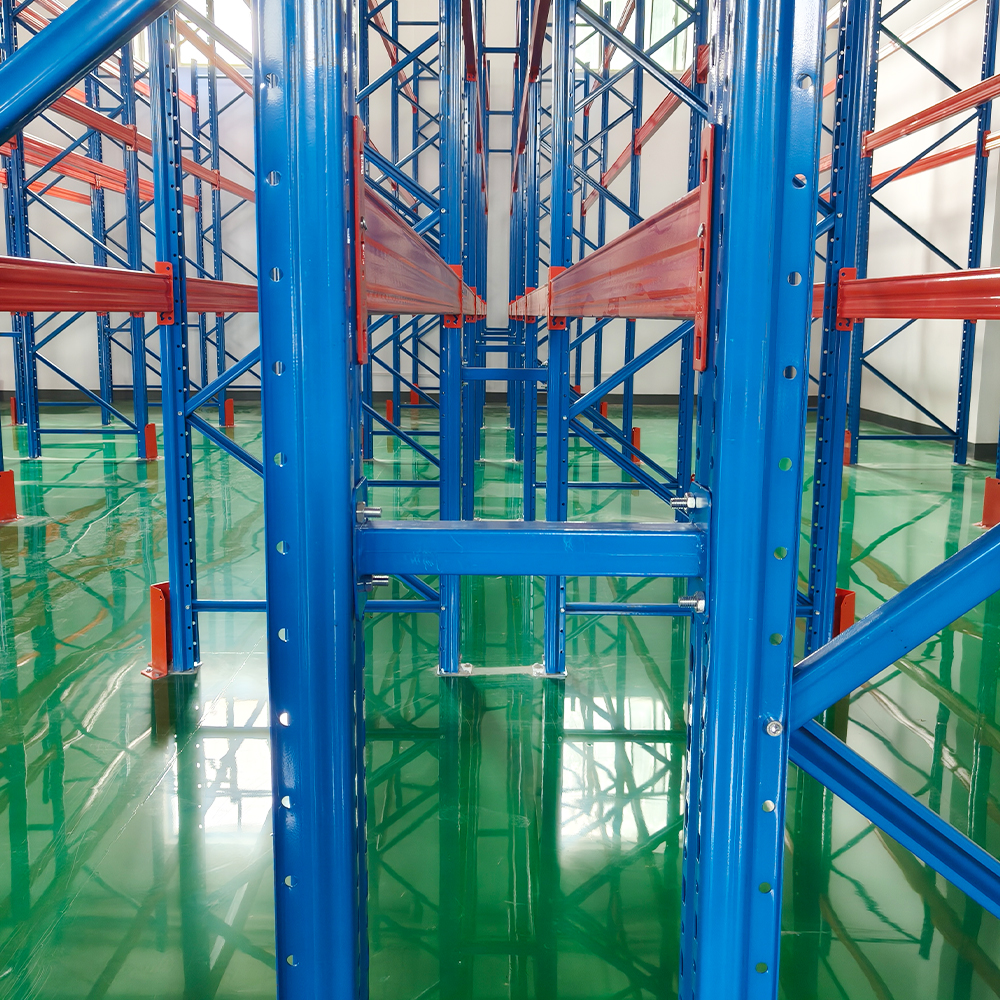

Frame: The frame of the European 50mm pallet rack is connected by two uprights, horizontal bracing, diagonal bracing, two base plates, and necessary bolts.

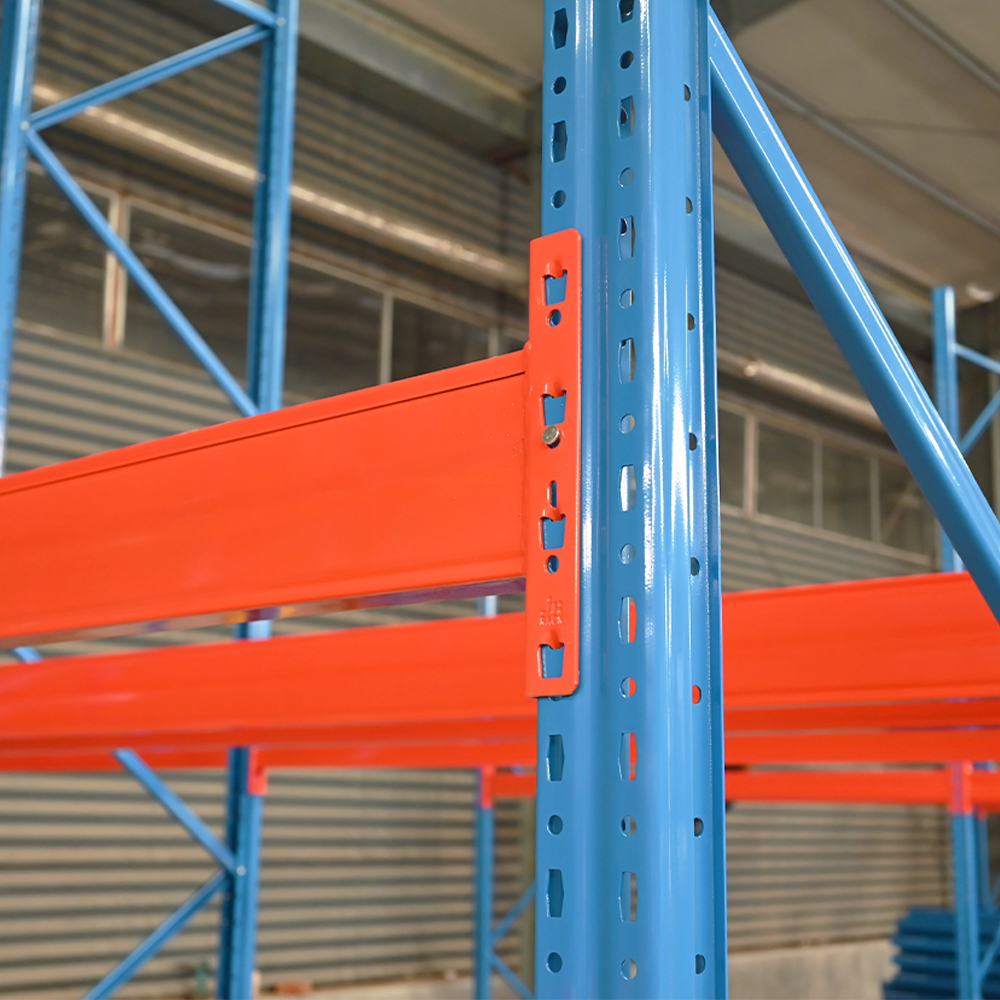

Beam Details: The longest beam span can reach up to 4.5mm, with a maximum loading capacity of 4000kg per level. Other custom specifications are available upon request.
Our organization has focused on high-quality storage and logistics equipment for over 15 years in China. With extensive industry experience, we have become an established provider in the warehouse racking industry. Today, we are active manufacturers of quality pallet racking and other racking equipment, including: drive-in racks, radio shuttle racks, cantilever racks, mezzanines, steel platforms, medium duty shelving, and light duty shelving. As a global supplier of heavy duty, medium duty, and light duty racking equipment and related accessories, we aim to create added value for customers around the world.
Standard export packaging: For international shipping, the packing details depend on the product quantity and delivery location. For a specific estimate, please provide your storage requirements and shipping destination details so that we can quote the most cost-effective option.
We offer a professional design team, adequate production capacity, and products that hold ISO and CE certificates, fully complying with AS4084, RMI, and FEM standards.
The raw material selected for manufacturing our high-quality warehouse storage systems is Q235 and Q345 grade steel.
The workflow consists of: Design drawing approval → Confirm drawing → Price quotation → Proforma Invoice (PI) confirmation → 30% deposit payment → Manufacture → Quality Control (QC) inspection → Balance payment → Shipping setup.
We use standard export packaging. All racking parts and components are safely secured by steel belts and wrapped in protective plastic film.
Normally, the minimum order size is one 20ft shipping container, though it may vary depending on the specific dimensions of the ordered products.
We accept payment via TT (Telegraphic Transfer) or L/C (Letter of Credit) at sight. Standard delivery takes approximately 3 to 4 weeks after receiving the deposit payment.
