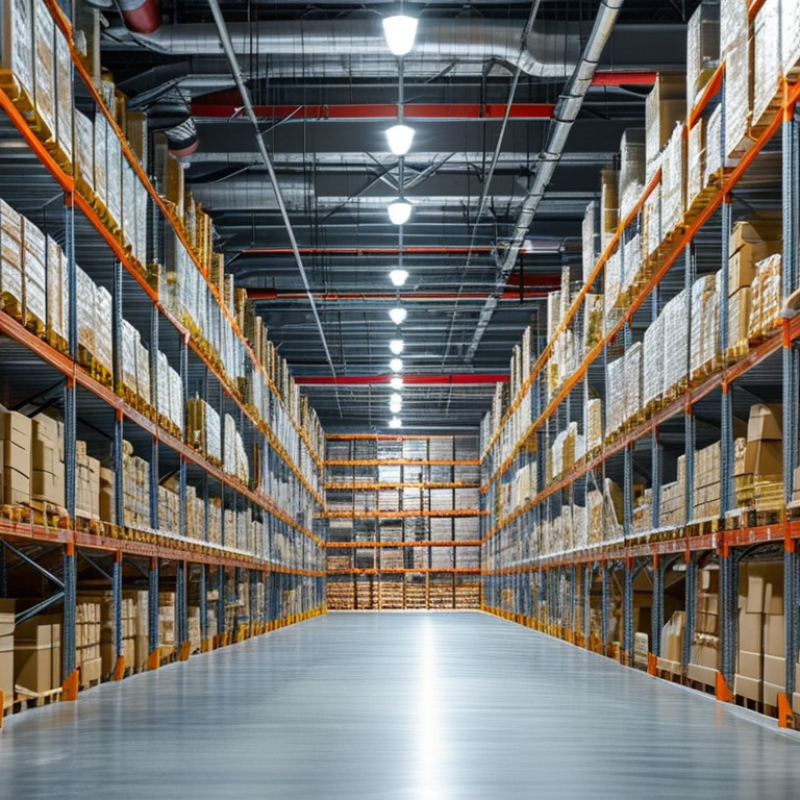

Designing fire protection for high-bay racking in China requires more than selecting a sprinkler head from a catalogue. The critical question is: what are the fire sprinkler requirements for high bay racking? The answer depends on storage height, commodity class, pallet material, rack arrangement, aisle width, and ceiling construction.
China’s GB 50084-2017, Code of Design for Automatic Sprinkler Systems, provides the primary technical framework. GB 50016 also influences warehouse fire compartmentation and building protection. International references remain useful. NFPA 13 addresses high-piled storage design, while FM Global Data Sheet 8-9 evaluates storage commodities, rack layouts, and sprinkler performance. These standards show one practical reality: a 10-meter rack holding exposed plastic products creates a different fire challenge than boxed paper goods.
NFPA warehouse fire studies consistently identify storage arrangement, combustible contents, and delayed fire control as major loss factors. A small flame at floor level can become a ceiling-level fire when vertical flues remain open. That detail matters.
Real projects still need engineering judgment. A generic “high-bay sprinkler package” may be unsafe or incomplete. Rack-level sprinklers, in-rack barriers, flue-space protection, ceiling sprinklers, and water-supply duration may all require review. The design should be verified against the exact Chinese code edition, local fire authority expectations, insurer requirements, and the manufacturer’s hydraulic calculations. Assumptions can fail.
This article explains the main requirements, design variables, and review points for high-bay racking fire sprinkler systems in China. It also highlights where international guidance may support, but not replace, local compliance.
China’s fire codes treat high-bay racking as a storage risk, not simply a tall warehouse. The design must consider commodity type, packaging, rack height, aisle width, and storage arrangement. GB 55037, GB 50016, and GB 50084 provide the main technical framework. Local authorities may also apply approved interpretations.
Automatic sprinklers usually require careful coordination between ceiling protection and in-rack protection. A high ceiling does not automatically mean stronger sprinklers. Water discharge, spacing, pipe pressure, and obstruction control must match the stored goods. Plastic products, boxed materials, and exposed combustible items can create very different fire loads. Rack flue spaces also need protection when flames may rise vertically.
In practice, the fire consultant should verify the highest storage level and the ceiling clearance. Hydraulic calculations should reflect the actual warehouse, not a standard drawing. Fire pumps, water tanks, alarm valves, and emergency access need regular review. This is where projects sometimes become weak. A design may satisfy a general code, yet overlook later rack changes or denser packaging. One missed beam can affect sprinkler coverage. The local fire authority and a qualified Chinese design institute should review the final plan before construction. Requirements can vary by building use, region, and approval stage.
: Commodity type, packaging, rack height, ceiling height, and aisle width guide sprinkler selection. Plastic goods may require stronger protection than boxed metal parts. The product description must match actual storage conditions.
No. Deep racks, blocked flues, solid shelves, and exposed plastics may require in-rack sprinklers. A ceiling sprinkler can miss heat hidden inside a dense rack. That risk is easy to underestimate.
Designers should check rack beams, vertical clearances, longitudinal flues, and transverse flues. Placement is not simply one sprinkler per level. Pallets must not block sprinkler discharge.
Hydraulic calculations should include discharge, pressure, hose allowance, friction loss, elevation loss, and water duration. The calculation should use realistic storage conditions, not empty racks. Paper assumptions can be wrong.
Each zone should have isolation valves, flow switches, test connections, and clear monitoring. Zones may separate storage areas, offices, and loading docks. Smaller zones simplify testing but can increase installation costs.
Confirm rack height, commodity class, packaging, aisle width, ceiling structure, and water supply. Review sprinkler layouts, hydraulic calculations, alarms, and firefighting access. Measure the actual racks.
Inspectors often find pallets touching sprinklers or cartons extending beyond beams. They may also find damaged piping, closed valves, weak pressure, or missing records. Small obstructions matter.
Check the system after storage changes, added rack levels, or denser pallets. Keep installation records, pressure tests, commissioning documents, and maintenance logs. An approved drawing is not the finish line.
Designing fire protection for high-bay racking in China requires a coordinated approach based on national fire codes, warehouse conditions, storage height, rack configuration, and the classification of stored goods. The key question is: what are the fire sprinkler requirements for high bay racking? Requirements may include ceiling-level sprinklers, in-rack sprinklers, or a combination of both, depending on rack height, aisle width, packaging materials, commodity combustibility, and fire growth potential. Sprinkler type, spacing, discharge direction, obstruction control, and protection of vertical storage channels must all be carefully evaluated.
The system should also provide adequate water supply, flow rate, pressure, storage capacity, and fire protection zoning for the entire warehouse. Hydraulic calculations and reliable fire pumps are essential to ensure the required demand is met under design conditions. Before operation, the fire protection design should undergo professional review, inspection, and acceptance by the relevant authorities. Regular testing, maintenance, recordkeeping, and operational inspections are necessary to maintain compliance as storage layouts or goods classifications change.
